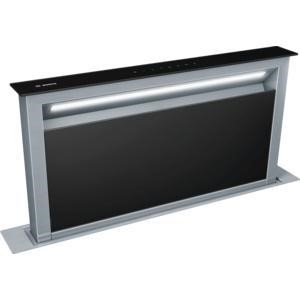

Bosch DDA097G59B Down Draft Hood - Brushed Steel - 91cm Wide.
SKU: DDA097G59B
Code: 1135194
Similar products
Other customers search for...
-
Product Information
-
Dimensions & Spec
-
Recommended Accessories
-
Reviews
-
Finance Options
-
Questions & Answers
Key features- Electronic control via TouchControl
- Interval operation
Design- 90 cm wide
- Brushed steel
- Ceiling mounted
- For installation in a kitchen cabinet
Features- TouchControl with Electronic display
- 4-speed + intensive operation
- Automatic intensive revert (6mins)
- Automatic after running (15 min)
- Rim ventilation
- 1 x 12W LED
- Dimmer function
- Neutral white lights
- 2 removable metal grease filter cassettes
- Removable metal grease filters
- Saturation indicator for metal and charcoal filter
- Filter saturation indicator
Performance/technical information- Suitable for ducted or recirculating operation
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 450 m³/h
- Intensive 710 m³/h
- Extraction rate exhaust air according to EN 61591:
- max. normal use 450 m³/h, intensive 710 m³/h
- Power rating: 285 W
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 61 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
- Intensive: 70 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
- Noise max. Normal Level: 61 dB*
- Average Energy Consumption: 110.1 kWh/year*
- Energy Efficiency Class: C*
- Blower Efficiency Class: C*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Dimensions (HxWxD): 651 x 912 x 351 mm
- Dimensions exhaust air (HxWxD): 651-1052 x 912 x 351 mm
- Dimensions recirculating (HxWxD): 651-1052 x 912 x 351 mm
- Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
- Light Intensity: 200 lux
- Colour Temperature: 4000 K
Optional accessories- For recirculated extraction charcoal filter (accessory) needed
