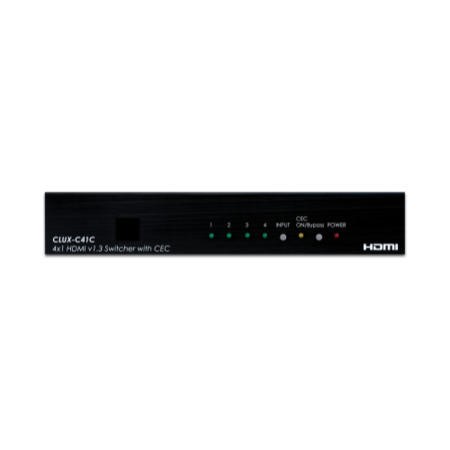

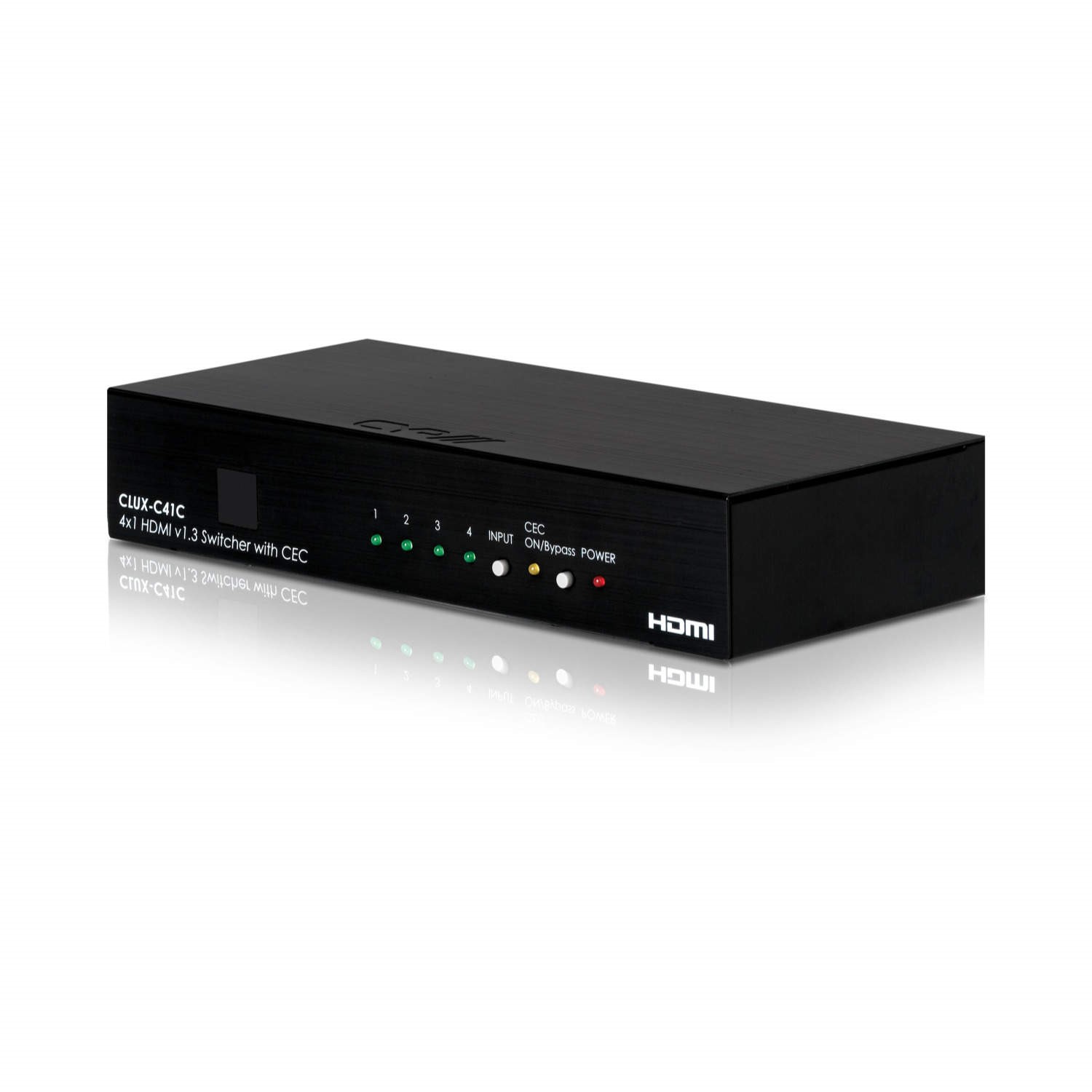

Smart 4 Way HDMI Switcher with room controller

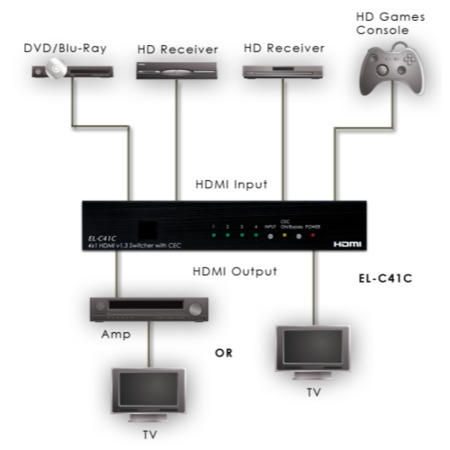

The EL-C41C switcher allows the user to input four HDMI sources and switch between these sources to provide a
single HDMI output to a display. This switcher can be controlled via the supplied remote control or by using the
input switching button on the front of the device. The EL-C41C also features a CEC command function allowing
the device to Auto-Switch on source power up.

Features

• HDMI 4-Way Switcher with CEC Control
• v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
• High Definition Audio supported - Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM
• Auto signal enhancement feature can improve signal quality after long distance transmission
• RS-232 & IR Remote Control
• CEC Auto switch control function
• Supports ‘Deep Colour’ (10 & 12 bit)
• Supports xvYCC
• Supports 3D signals

Connections

• 4 x HDMI (4x HDMI Uncompressed AV and Data)
• 1 x 9pin Dsub (1x RS-232 Data)
• 1 x HDMI (1x HDMI Uncompressed AV and Data)

Dimensions

• W x H x D: 240 x 50 x 110mm
• Weight: 500g
