8 Port Gigabit PoE Switch with 4 Port PoE TL-SG1008P

Quickfind code: 780699
Was: £102.97     You save: £26
£76.97

See all delivery & collection options

We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield or East Midlands stores, or from thousands of nationwide CollectPlus collection points.

Simply enter your postcode below to see your delivery options:

Enter delivery postcode for options and prices:
click to close
Why buy me
  • Model No. - TL-SG1008P
  • POE Support - Y
More Info » Tech Spec »
click
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 0871 984 4416 and we will try and price match where possible! Terms & Conditions apply.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro, Solo and American Express, as well as Amazon payments and Paypal - making placing an order with us as easy and convenient as possible.

payment options
click

Popular Bundles

Product Information

8 Port Gigabit PoE Switch with 4 Port PoE

What This Product Does

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

How This Product Works

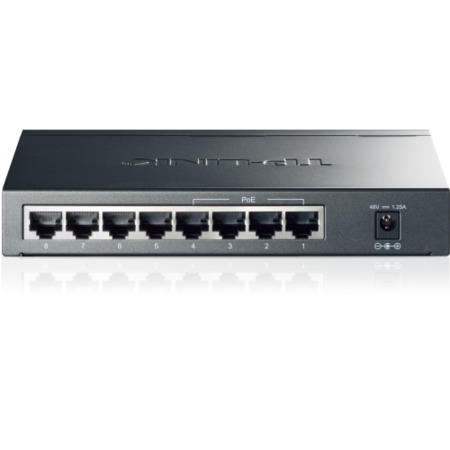

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Overload Arrangement

TL-SG1008P has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function

*Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.

Easy To Use

TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.



Tech Spec

Data transmission
MAC address table 8000 entries
Store-and-forward
Switching capacity 16 Gbit/s
Design
Case design freestanding
Certification FCC, CE
Colour of product Grey
LED indicators Status
Rack mounting
Management features
Switch layer -
Switch type -
Networking
10G support
Auto MDI/MDI-X
Flow control support
Full duplex
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
Performance
Stackable -
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology 1000BASE-T,100BASE-TX,10BASE-T
DC-in jack
Gigabit Ethernet (copper) ports quantity 8
SFP ports quantity 0
SFP+ ports quantity 0
Power
Energy Star certified -
Number of power supply units 1
Power consumption (typical) 53 W
Power Over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet (PoE) Support
Operational conditions
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Packaging data
User Guide
Weight & dimensions
Depth 98 mm
Height 27 mm
Width 171 mm
