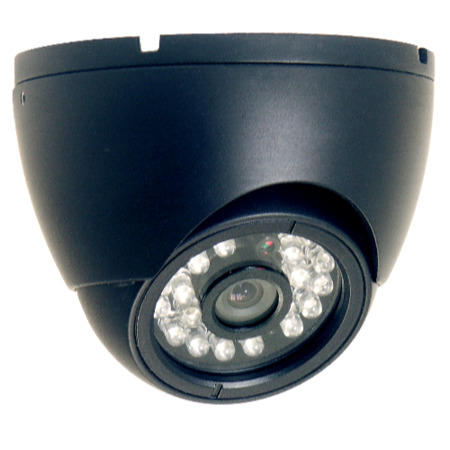

UTC 520TVL Fixed Lens Dome CCTV Camera with 20m Night Vision UTC-2

Quick Find: 506236
SAVE 50%
UTC 520TVL Fixed Lens Dome CCTV Camera with 20m Night Vision
  • 520TV Lines dome camera with 3.6mm fixed lens
  • Sturdy metal construction suitaible for indoor outdoor installations with IP65 weatherproof rating
  • The camera offers a high quality image both day and night with it's night vision range of up to 20m
  • Power supply and BNC video power cable not included
More Info...
Was: £99.97     You save: £50.00
£49.97

UTC 520TVL Fixed Lens External Dome Camera with 20m Night Vision

Designed for areas that are prone to attack, the camera is enclosed in a vandal resistant and weatherproof housing. The robust design of the camera makes it a highly visible camera that serves as an effective deterrent in hostile environments.

This high-resolution ball dome comes complete with 24 inbuilt IR LEDs and CDS sensor, for effective night time surveillance.

Key Features:

  • 520TV Lines dome camera with 3.6mm fixed lens
  • Sturdy metal construction suitaible for indoor & outdoor installations with IP65 weatherproof rating
  • The camera offers a high quality image both day and night with it's night vision range of up to 20m
  • Power supply and BNC video & power cable not included




Video
Optical sensor size 1/3" Sony Colour High Resolution CCD
Horizontal Resolution 520 TV Line
Signal System NTSC/PAL
Effective Pixels NTSC: 811H 508V PAL: 795H 596V
Scanning System 2:1 Interlace
Minimum illumination 0Lux (24 Pieces IR LED ON)
S/N Ratio >50d
Lens
Focal Length Fixed Lens models 3.6mm
Video
Scanning Frequency H: NTSC: 15.734KHz PAL: 15.625KHz / V:NTSC: 60Hz P
Lens
Gamma Correction 0.45
Operational
Camera Shutter Mode NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
Gain Control (AGC) On
White Balance (WB) Auto
Night Vision Range 20M
Environmental
Camera Operating Temperature -30~+40°
Camera Storage Temperature -30~+60°
electrical
Camera Input Voltage DC12V ±5%
Camera Power Consumption 270mA(MAX)
General
Camera Dimensions & Weight / Height 80mm
Camera Dimensions & Weight / Weight 460g
Camera Diameter 94

Customer Questions and Answers

19/11/2012 Stephen Carlin: Im looking to add 2 discrete outdoor cameras to run off my existing PC based system with 4ch BNCx4 connections on a TD3004 pci card from DIGITAL SURVEILLANCE SYSTEM using superDVR 4.2 SOFTWARE can you tell me if compatible and what cabling i would need approx 20m - 30m each thanks

Gavin: Hi, you will need BNC cables, either VCC2 (20m) or 36MEXT (36m).

Thanks
