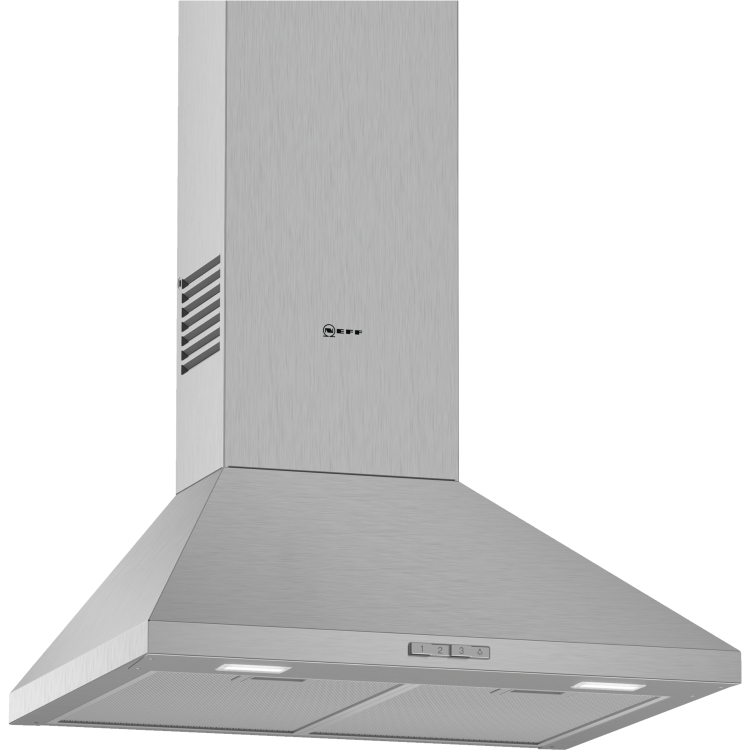

The pyramid hood is a traditionally designed hood and a trademark design of Neff's collections.
Key Features
- LED lighting: a clear illumination whilst cooking thanks to the energy-saving LED lights
Key performance features:
- Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
- Max. extraction rate: 360 m3/h
- Noise max. Normal Level: 66 dB*
Features

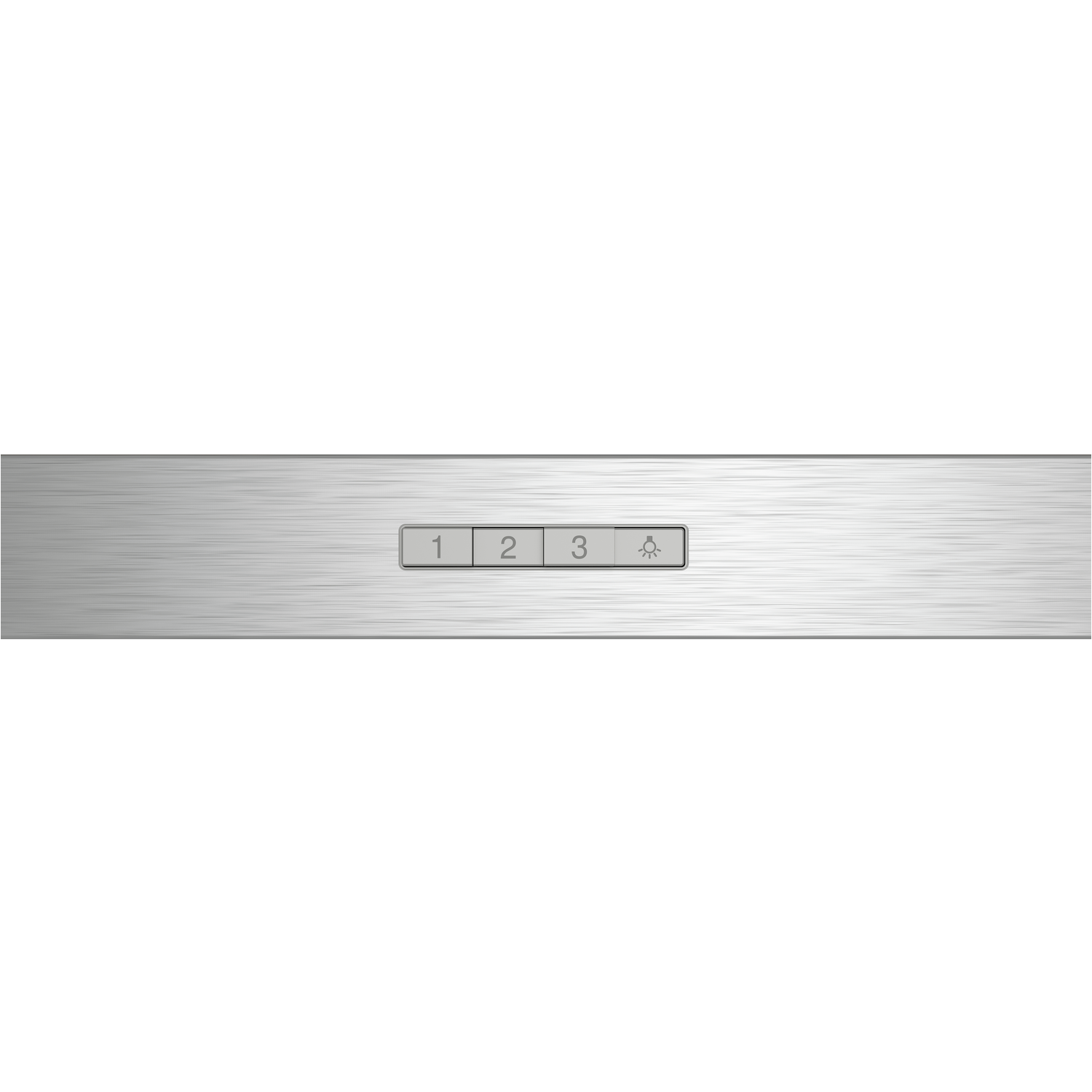

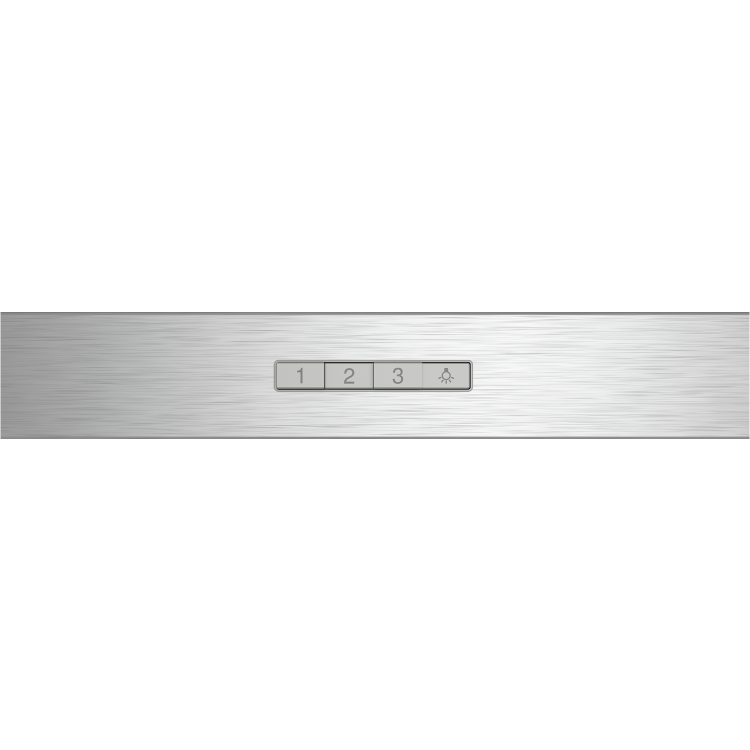

- Push button control operation
- 3 power levels
- 2 x 1.5w LED Light
- Colour Temperature: 3500 K
- 2 metal grease filter cassettes

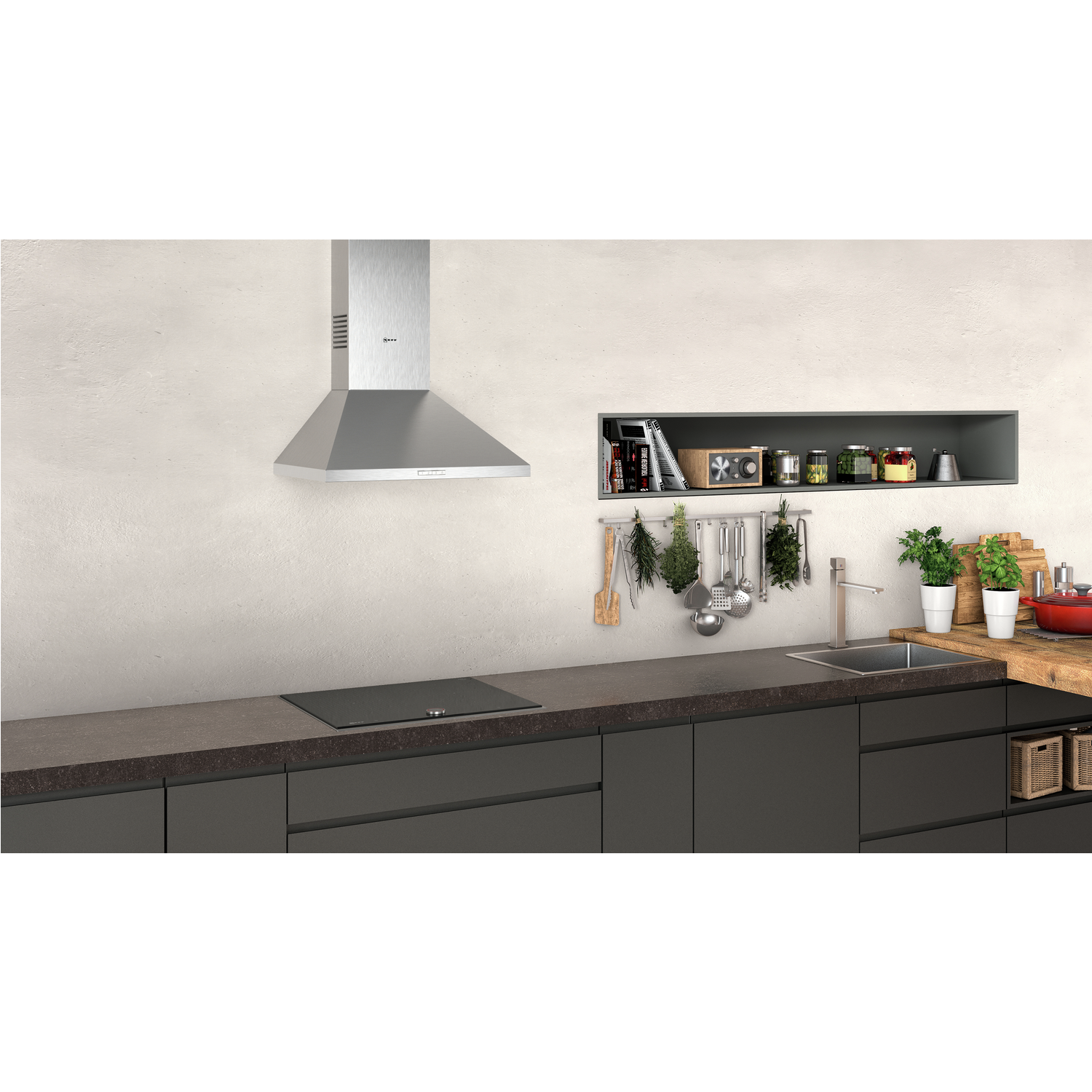

- For wall mounted installation
Design
- Stainless steel
- Pyramid
- Chimney hood
- Push button control operation
- Mechanical controls
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit (accessory) needed
- Max. extraction rate: 360 m3/h
- Maximum extraction rate exhaust air 360 m³/h according to EN 61591
- Extraction rate in recirculation mode:
- Max. normal use: 200 m³/h
- Noise max. Normal Level: 66 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 66 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
- Noise level in recirculation mode:
- Max. normal use: 67 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
- Power rating: 100 W
- Light Intensity: 104 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

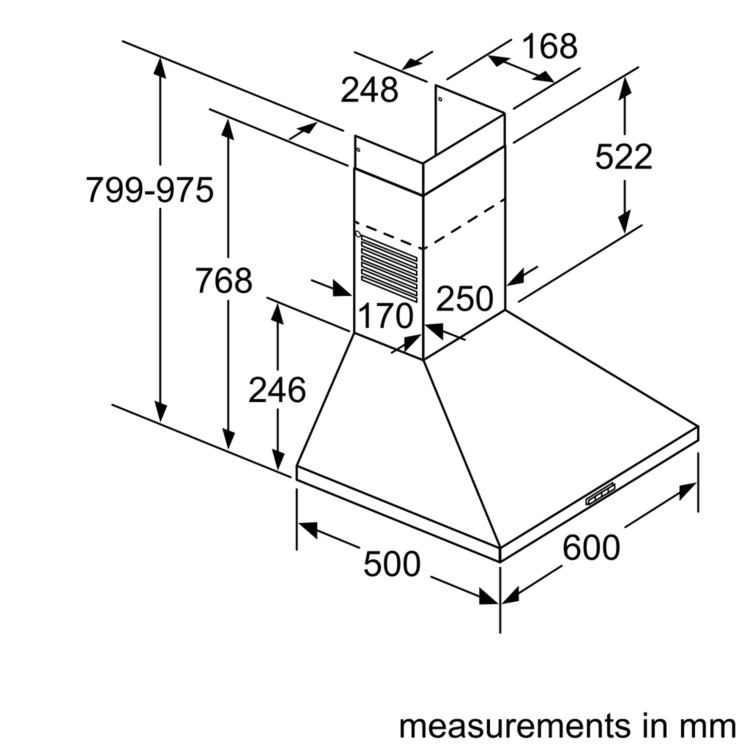

- Dimensions exhaust air (HxWxD): 799-975 x 600 x 500 mm
- Dimensions recirculating (HxWxD): 799-975 x 600 x 500 mm
- Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 51.4 kWh/year*
Optional accessories
- Recirculating kit Z5138X5
