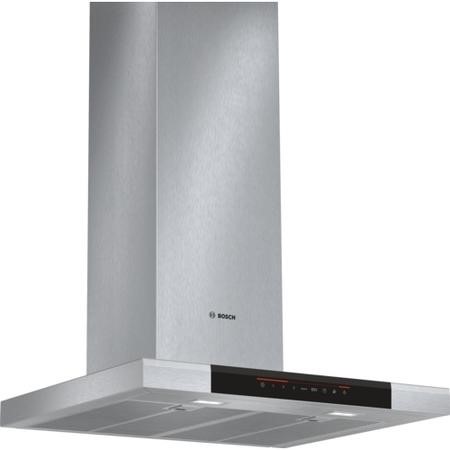

- Electronic control via TouchControl
- Designed for wall mounted installation
- 60 cm wide
- Brushed steel
- Inner frame
- TouchControl with lightline
- 3 power levels and 2 intensive settings
- Automatic intensive revert (6mins)
- Automatic after running: 10 min
- 2 x LED lights
- Softlight dimmer function
- Florescent mood lighting
- Light Colour: warm white
- 2 removable metal grease filter cassettes
- Removable metal grease filters
- Suitable for ducted or recirculating operation
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 430 m³/h
- Intensive 760 m³/h
- Extraction rate exhaust air according to EN 61591:
- max. normal use 430 m³/h, intensive 760 m³/h
- Power rating: 166 W
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 60 dB(A) re 1 pW (46 dB(A) re 20 µPa sound pressure)
- Intensive: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
- Noise max. Normal Level: 60 dB*
- Average Energy Consumption: 29.3 kWh/year*
- Energy Efficiency Class: A+*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Dimensions exhaust air (HxWxD): 628-954 x 600 x 500 mm
- Dimensions recirculating (HxWxD): 628-1064 x 600 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD): 809-1139 x 600 x 500 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Light Intensity: 745 lux
- Colour Temperature: 3500 K
- Efficient BLDC-technology
- Optional accessories
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
