UTC 800TVL Mini Eyeball CCTV Camera with 15m Night Vision in Black UTCC-DSIR

Quick Find: 903747
SAVE 13%

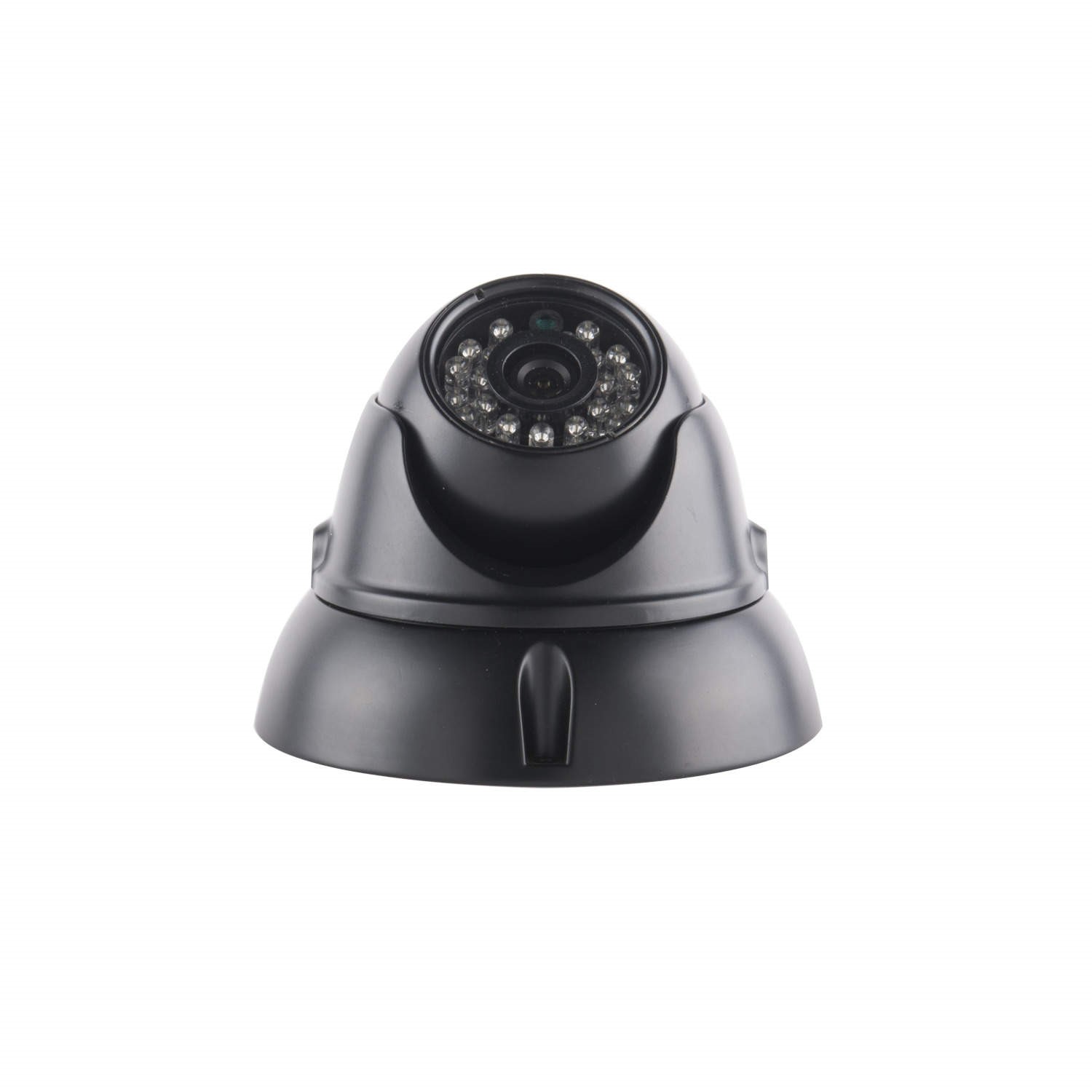

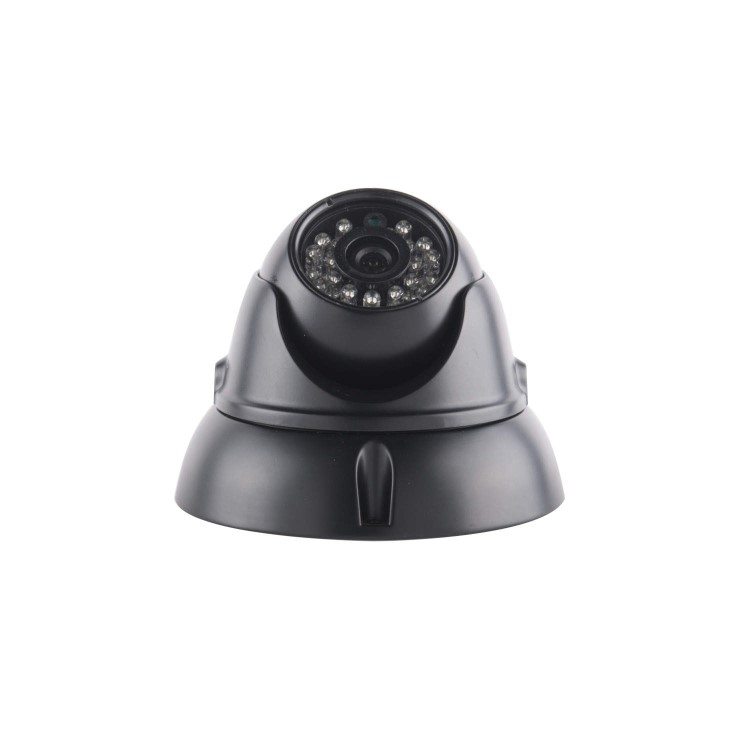

UTC 800TVL Mini Eyeball CCTV Camera with 15m Night Vision in Black

UTC 800TVL Mini Eyeball Camera with 15m Night Vision

Fixed lens mini "eyeball-style" dome camera. Metal case weatherproof (IP65 rated) vandal resistant camera for internal or external use, comes fully equipped with 23 Infra-red LED’s providing a 10-15metre range for images in even the darkest of conditions. Available in both black and white. Comes with stand off base to make your connections in.

Click Here to download PDF datasheet.

Key Features:

  • 800TV Lines dome camera with 3.6mm fixed lens
  • Sturdy metal construction suitaible for indoor & outdoor installations with IP65 weatherproof rating
  • The camera offers a high quality image both day and night with it's night vision range of up to 15m

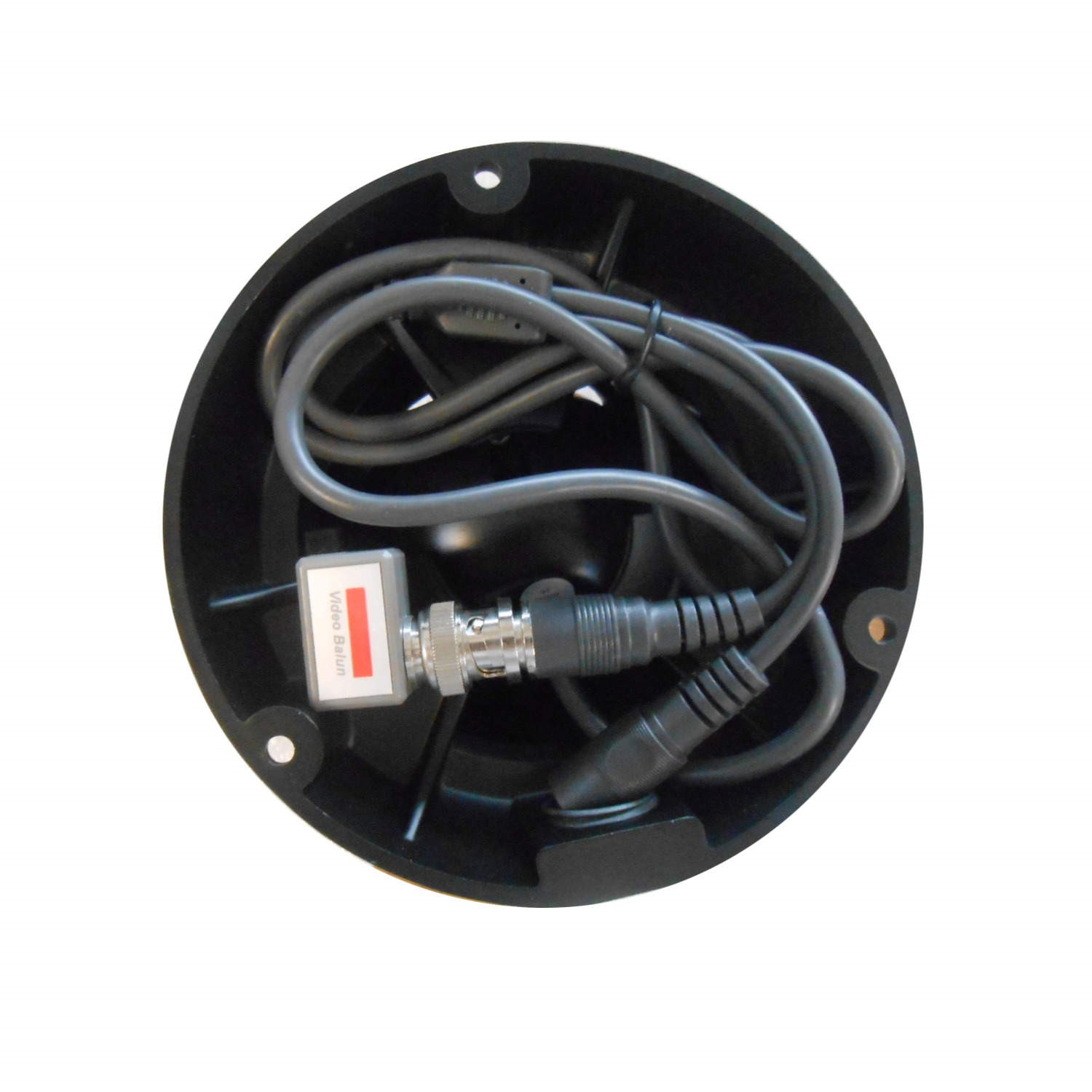

  • Install a Balun within the base of the camera, no need to order a separate base
  • Power supply and BNC video & power cable not included
Optical sensor size 1/3” CMOS
Horizontal Resolution 800TVL
Signal System NTSC /PAL
Effective Pixels 976(H) x 582 (V)
Scanning System 2:1 Interlace
Minimum illumination 0 Lux IR LED On
S/N Ratio more than 47dB (AGC OFF)
Video Output "1.0 Vp-p (75 ohm, composite)"
Focal Length Fixed Lens models 3.6mm
Scanning Frequency "15.734KHz(H), 59.95Hz(V)"
Camera Shutter Mode PAL 1/25 - 15000s ; NTSC: 1/30 - 15000s
Sync System Internal
Gain Control (AGC) On
White Balance (WB) AWB
Day & Night True Day/Night ICR (ie LED Models)
Night Vision Range 10 - 15m
Number of illumination LEDs 175mA 23pc Super Flux IR LED
Camera Operating Temperature Camera -10°C to +50°C / 14°F to 122°F
Camera Operating Humidity Camera Up to 90% (non-condensing)
Ingress Protection (IP) Rating "IP65, Weatherproof"
Camera Input Voltage Regulated DC 12V
Camera Power Consumption 100mA (275mA IR LED On)
Camera Dimensions & Weight / Height 99mm
Camera Dimensions & Weight / Weight 433g
Camera Diameter 118mm (base)
Miscellaneous / Colour Black
Warranty 1 year
