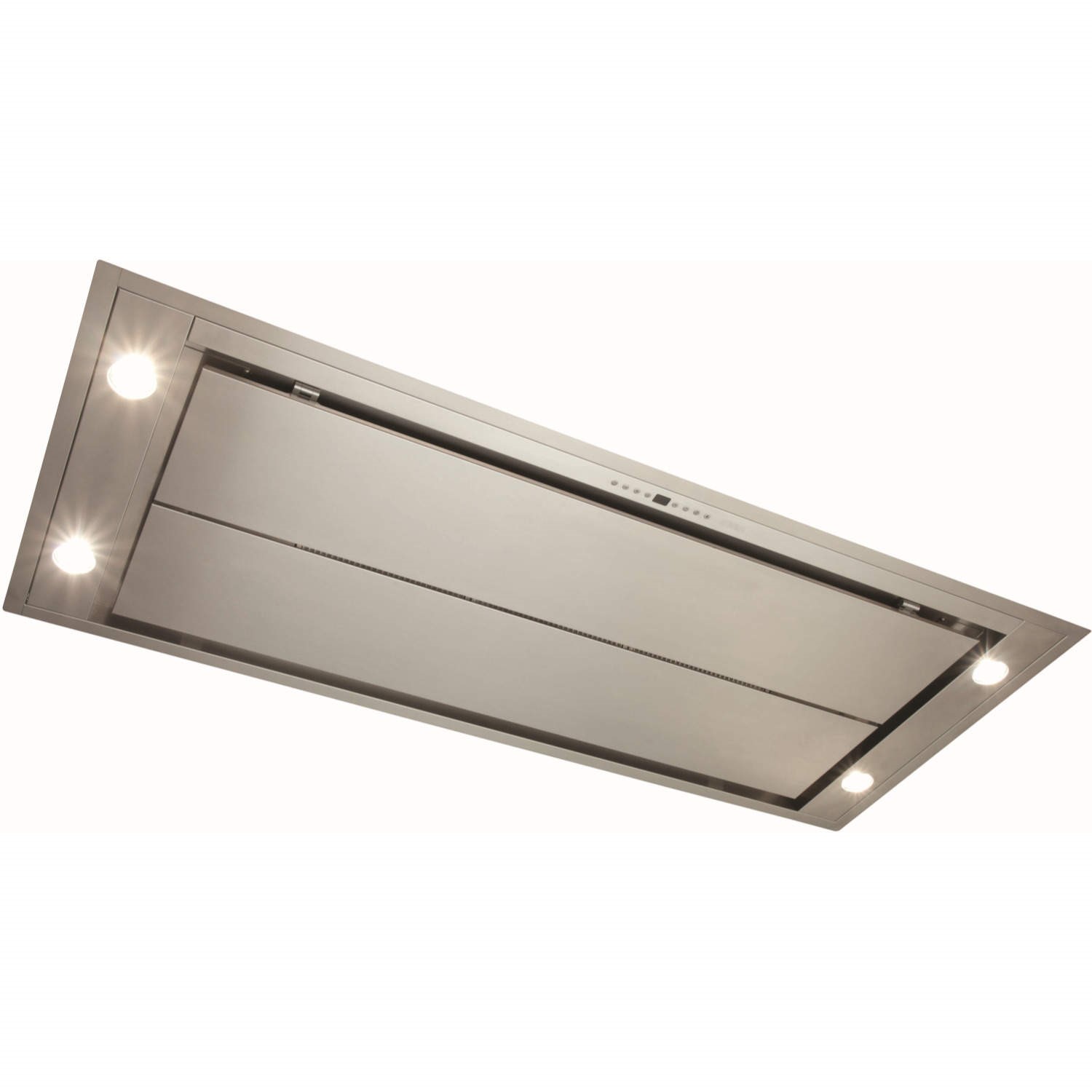

The EVX140SS ceiling extractor makes the most of your kitchen space. By being installed in the ceiling you are left with free space above your hob and discreet, yet powerful extraction above. The remote control allows for easy and practical function. It comes with many extra features such as a filter saturation indicator, clean air function, metal grease filters, 4 halogen lights for clear illumination and a boost function for when extra extraction is required.
Key Features
- Ducted or re-circulating installation
- 3 speed + intensive speed
- Soft touch buttons
- Aluminium grease filter
- Filter saturation warning light
- Clean air function
- 30 Minute timer
- Motor included
- Remote control
- Dishwashable grease filter
- Quick start
- Boost function
Lighting
- 4 x 35 Watt lights
Filters
- 2 Charcoal filters required
- Charcoal filter code: CHA18
Extraction Rate And Noise
- Extraction rate: 680 m³/hr
- Noise level: 68dB(A)
- Extraction rate at first speed: 319m³/hr
- Noise level at first speed: 52dB(A)
- Extraction rate at second speed: 530m³/hr
- Noise level at second speed: 63dB(A)
- Extraction rate at third speed: 680m³/hr
- Noise level at third speed: 68dB(A)
- Extraction rate at fourth speed: 770m³/hr
- Noise level at fourth speed: 70dB(A)
Technical Specification
- Recommended height above gas hobs: 750 mm
- Recommended height above electric hobs: 650 mm
- Motor Input: 270 W
- Power supply: 3 A
- Mains lead length: 1800 mm
- Mains lead rating: El-202
- Protection class: I

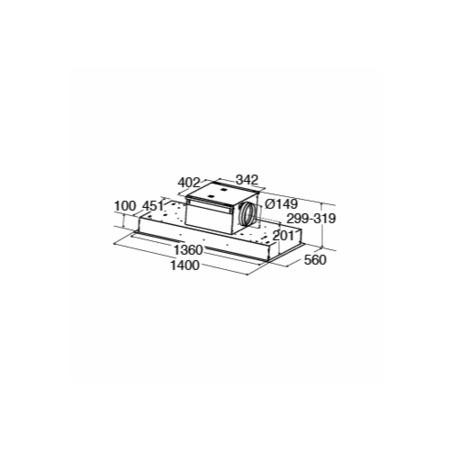

Fitting Notes
Recommended ceiling height: 1500-1800 mm.
The extraction outlet can be rotated through 90, 180 or 270, allowing for flexible installation.
