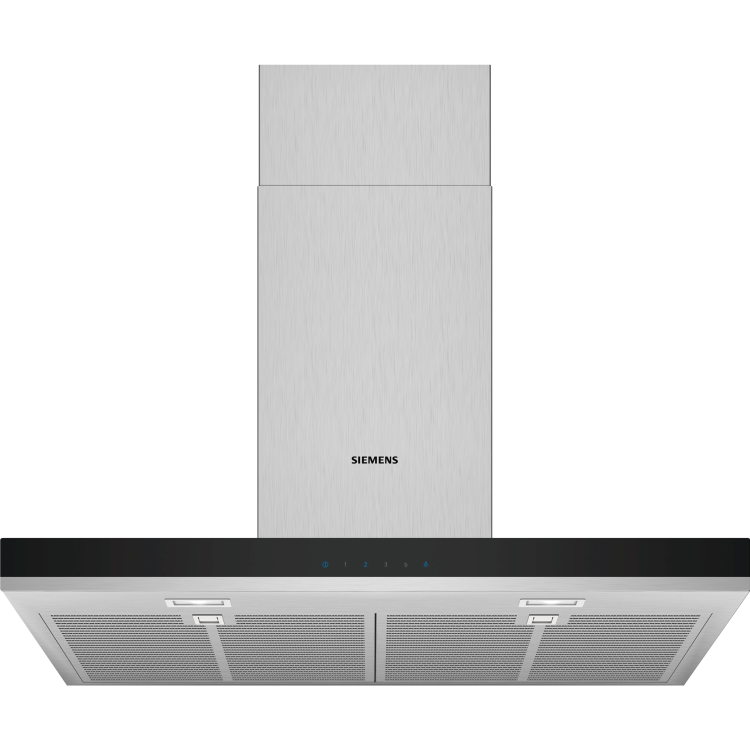

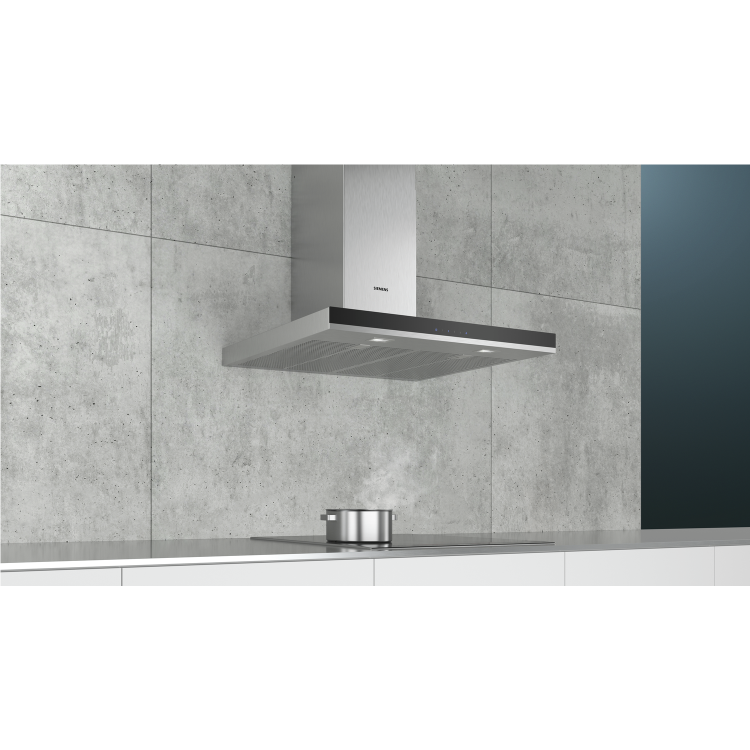

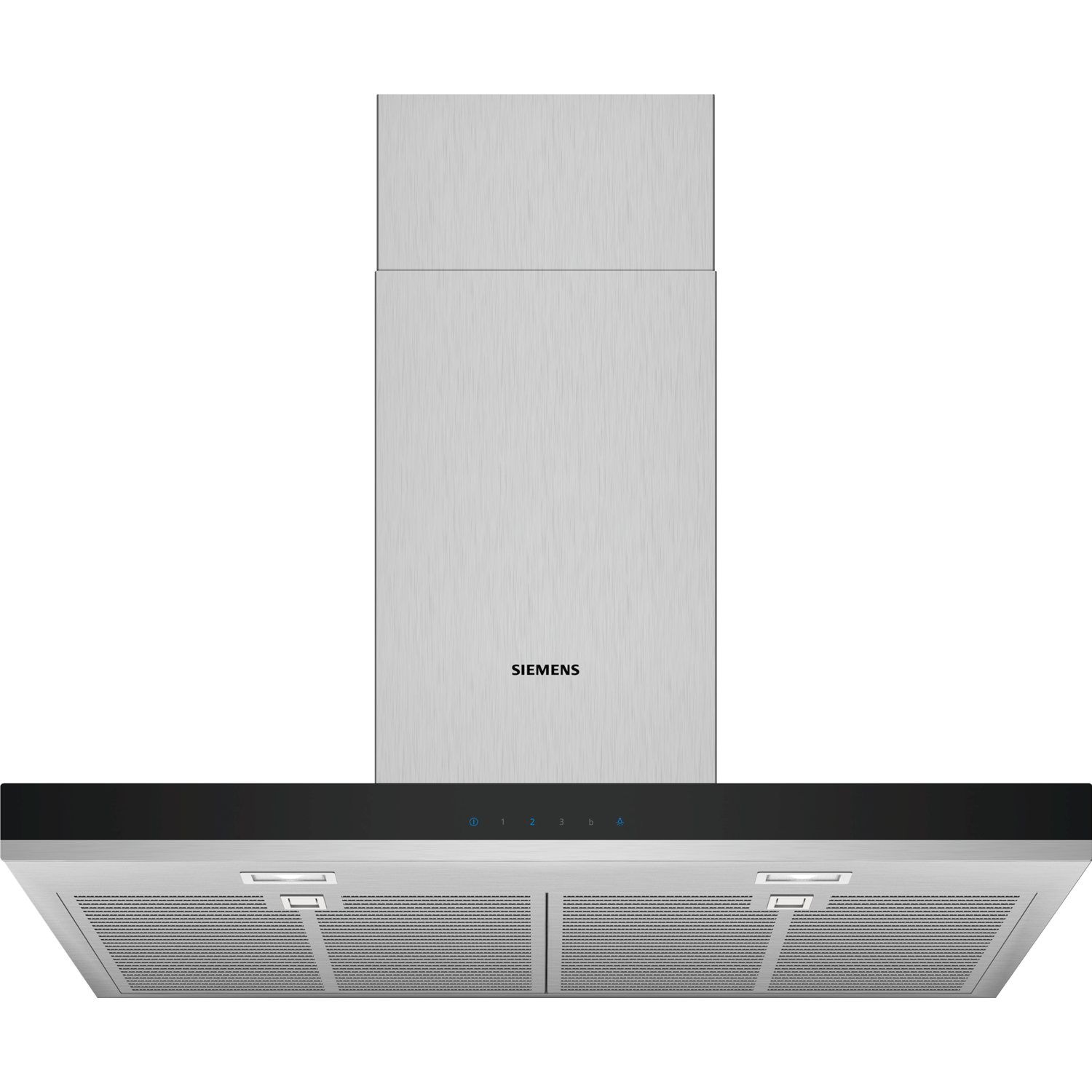

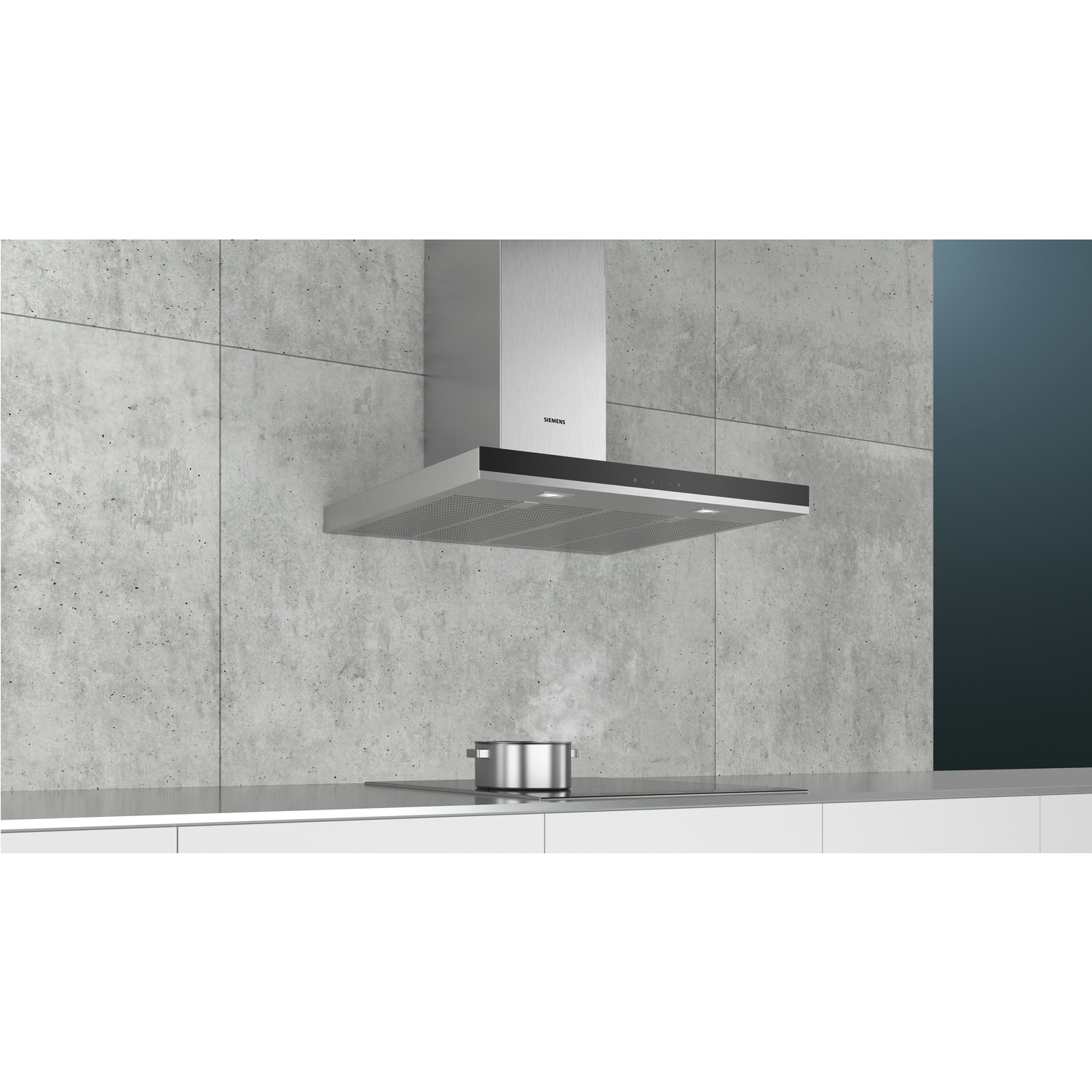

Siemens LC77BHM50B iQ300 75cm Box Design Chimney Cooker Hood - Stainless Steel LC77BHM50B

Quickfind: 1281095 SKU: LC77BHM50B

Sorry, I’m out of stock!

For help finding something similar, just give us a call on 0871 984 4416, we can email you if it comes back into stock »

Similar products

Other customers search for...

Product Information

Intensive setting with automatic after revert setting
The intensive setting temporarily increases the extraction rate when kitchen vapour is especially intense, with automatic revert after 6 minutes.

Key performance features:

  • Energy Efficiency Class: B (at a range of energy efficiency classes from A++ to E)*
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use 450 m³/h
  • Intensive 710 m³/h
  • Noise max. Normal Level: 65 dB*

Features

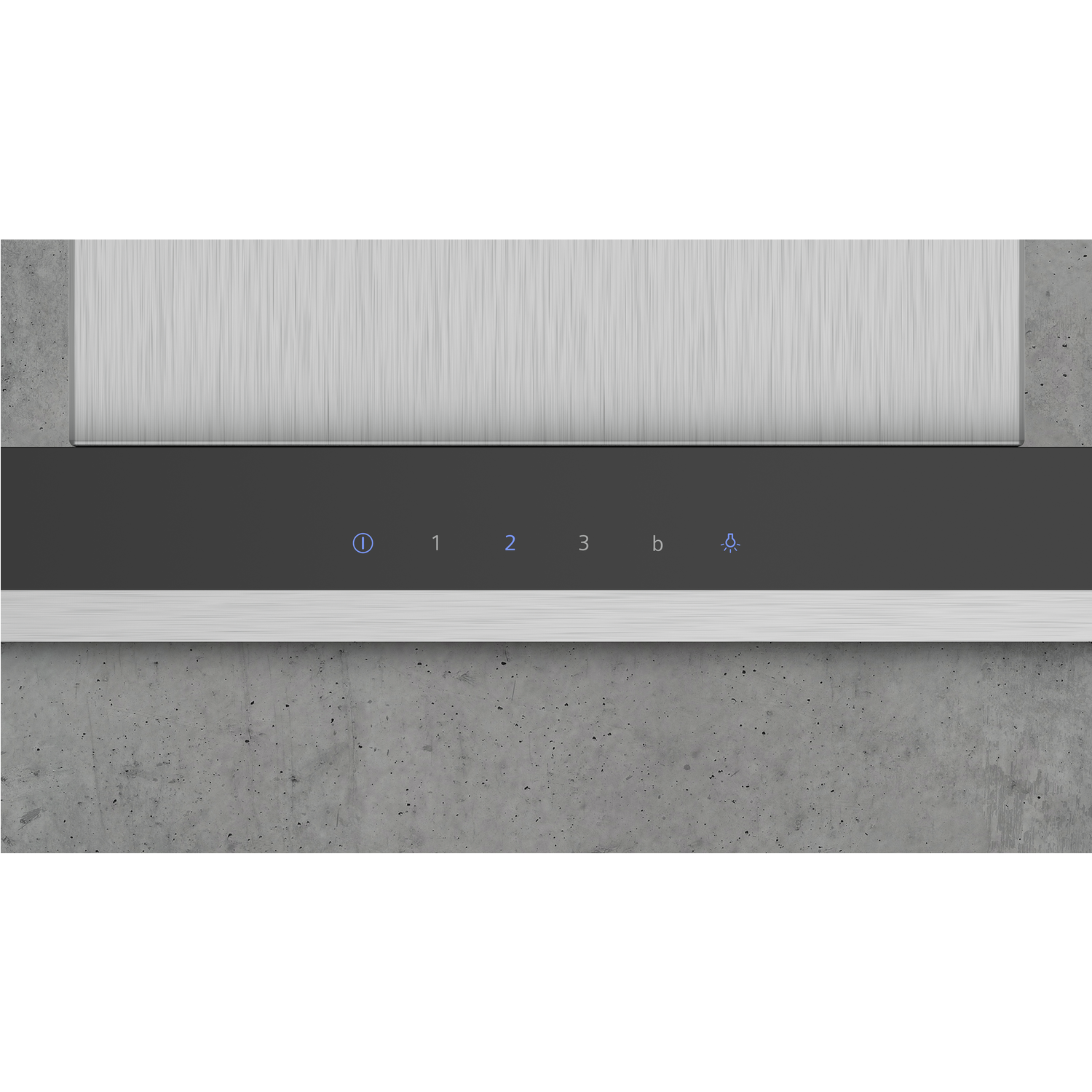

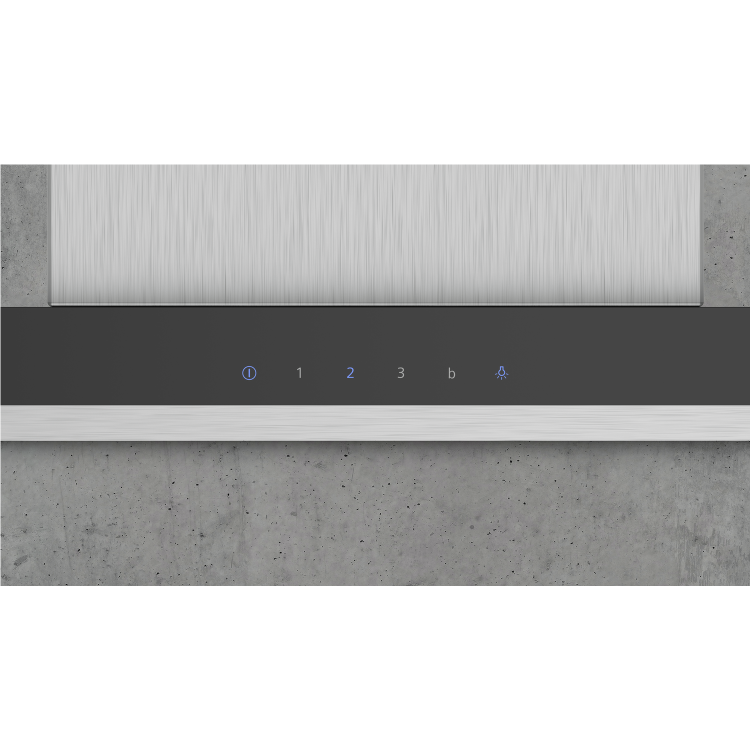

  • touchControl for extractor speeds and light
  • touchControl with Electronic display
  • 3 x power levels plus intensive setting
  • Twin channel high performance fan motor
  • 2 x 1.5W LED
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6mins)

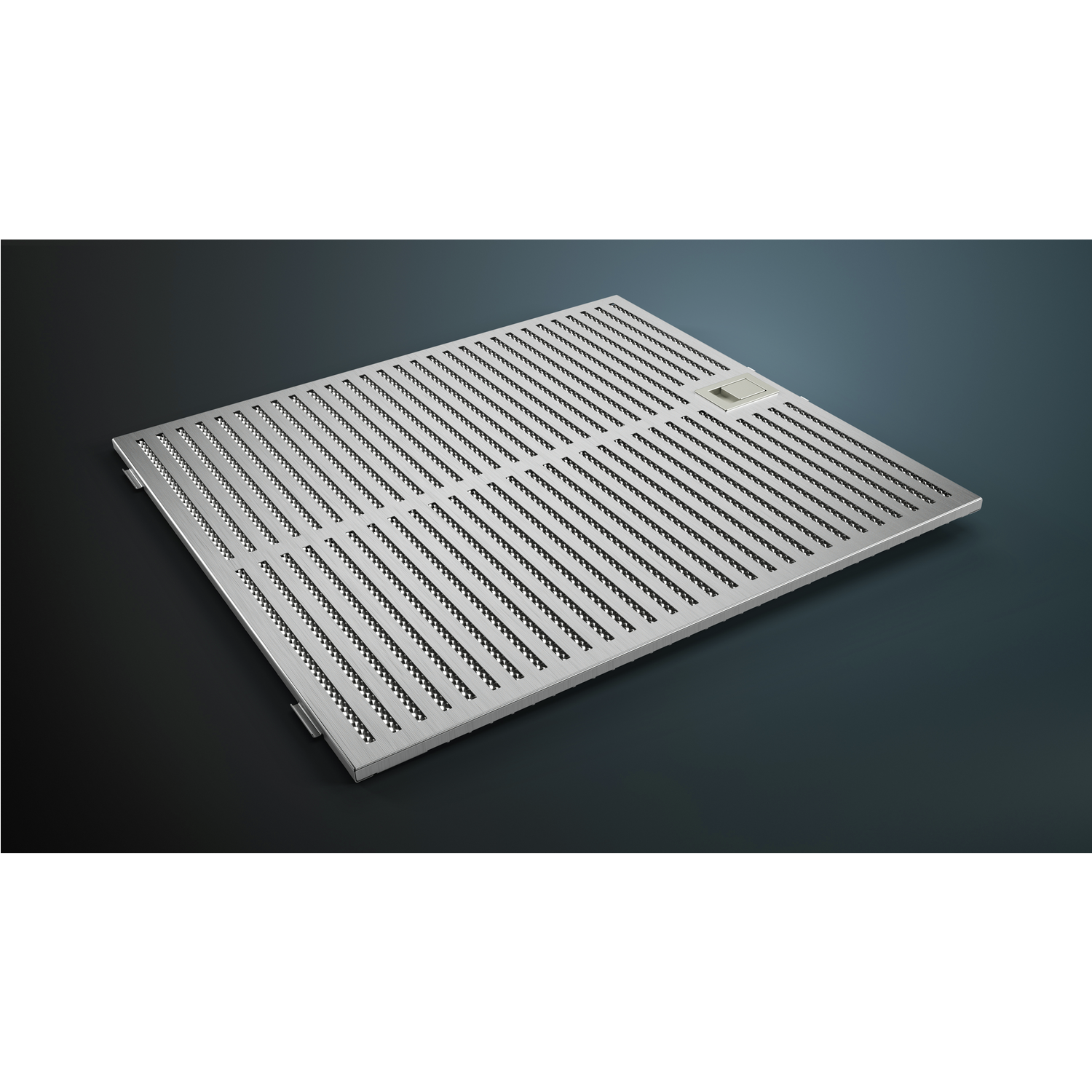

  • 2 x metal grease filter cassettes
  • Steel filter cover
  • For wall mounted installation

Design

  • Box design
  • Chimney hood
  • Electronic control

Performance/technical information

  • Suitable for ducted and re-circulating operation
  • For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
  • Max. extraction rate: 710 m3/h
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use 450 m³/h
  • Intensive 710 m³/h
  • Extraction rate in recirculation mode:
  • Max. normal use: 320 m³/h
  • Intensive: 370 m³/h
  • Noise max. Normal Level: 65 dB*
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use: 65 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
  • Intensive: 74 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
  • Noise levels in recirculation mode:
  • Max. normal use: 74 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
  • Intensive: 77 dB(A) re 1 pW (65 dB(A) re 20 µPa sound pressure)
  • Power rating: 255 W
  • Light Intensity: 221 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 635-965 x 750 x 500 mm
  • Dimensions recirculating, chimney (HxWxD): 635-1075 x 750 x 500 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
  • 703 x 750 x 500 mm - mounting with outer chimney
  • 833-1163 x 750 x 500 mm - mounting with telescopic chimney
  • Energy Efficiency Class: B (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 59.5 kWh/year*

Optional accessories

  • Recirculating kit



Tech Spec

General information
Cooker Hood Type Chimney Hood
Colour Stainless steel
Air Extraction Type Extraction & recirculation
Control Type Touch
Number of lights 2
Type Of Light Used LED
Grease filter material Washable stainless steel
Warranty 2 year warranty
Dimensions & Weight
Height 64cm
Width 75cm
Depth 50cm
Weight 9.0kg
Minimum Height 635mm
Maximum height 1075mm
Diameter of Air Outlet 120/150mm
Performance
Speed Settings 3 + Intensive
Maximum Extraction Rate 450m³/hr
Maximum Noise Level 65dB
Annual energy consumption 710kWh
Efficiency Information
Energy Rating B
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class B
Installation
Vent Location Top
Supplied With Plug
Cable length 130cm
Current 10A
Connected load 255W
Frequency 50-60
Voltage 220-240
Product Detail
Approval certificates CE, VDE
EAN code 4242003824184
