Key performance features:
- Energy Efficiency Class: D*
- Extraction rate according to EN 61591: max. 350 m³/h
- Noise max. Normal Level: 72 dB*
Features
- Push button control operation
- 3 power levels
- 2 x LED 4W
- Colour Temperature: 3000 K
- 2 metal grease filter cassettes
- For wall mounted installation or suspended beneath a reduced height wall cupboard
Design
- Stainless steel
- Conventional hood
- Push button control operation
- Mechanical controls
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction charcoal filter (accessory) needed
- Extraction rate according to EN 61591: max. 350 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
- Noise max. Normal Level: 72 dB*
- Power rating: 146 W
- Light Intensity: 45 lux
- Colour Temperature: 3000 K
- Electrical cable length 1.45 m
- Diameter pipe Ø 120 mm (Ø 100 mm enclosed)

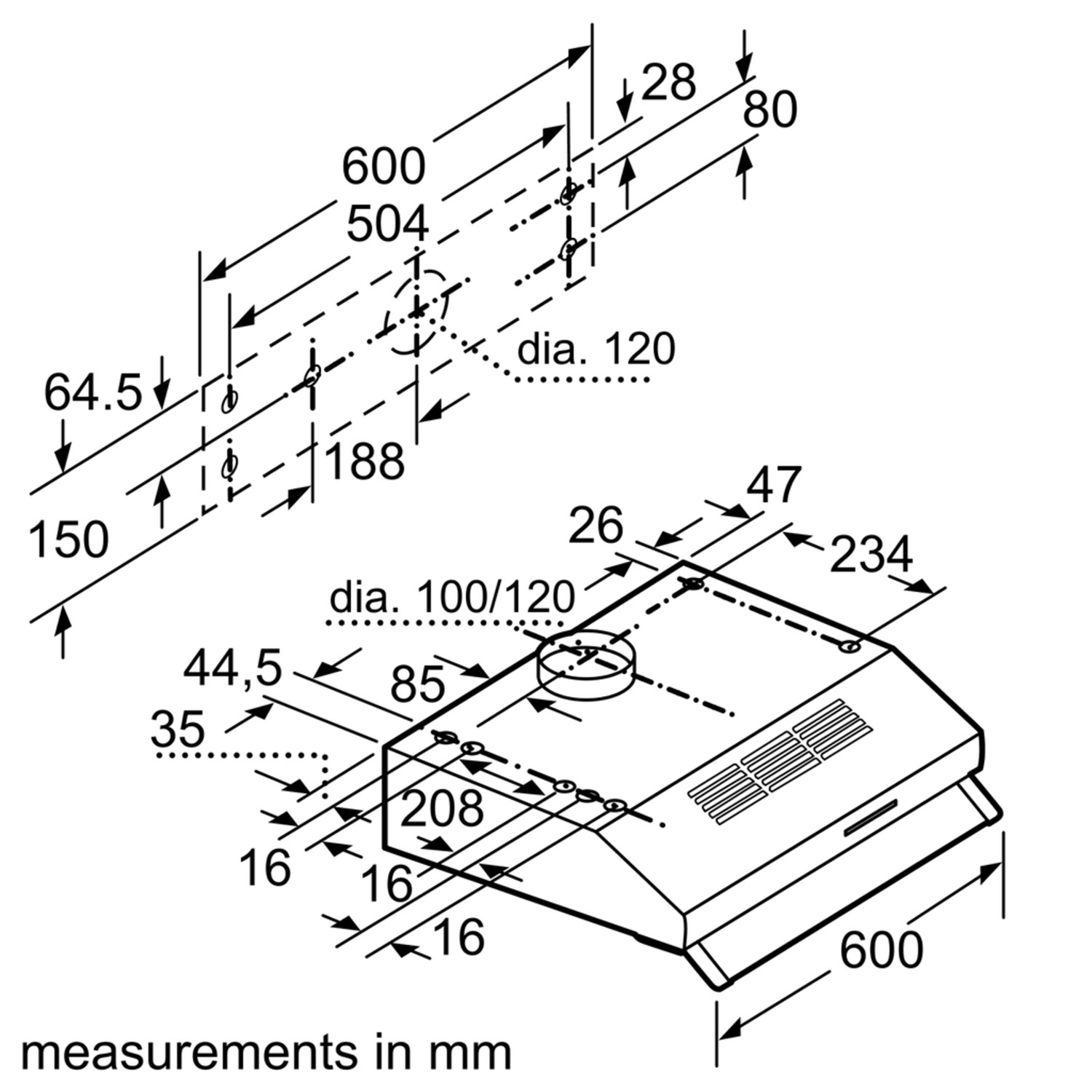

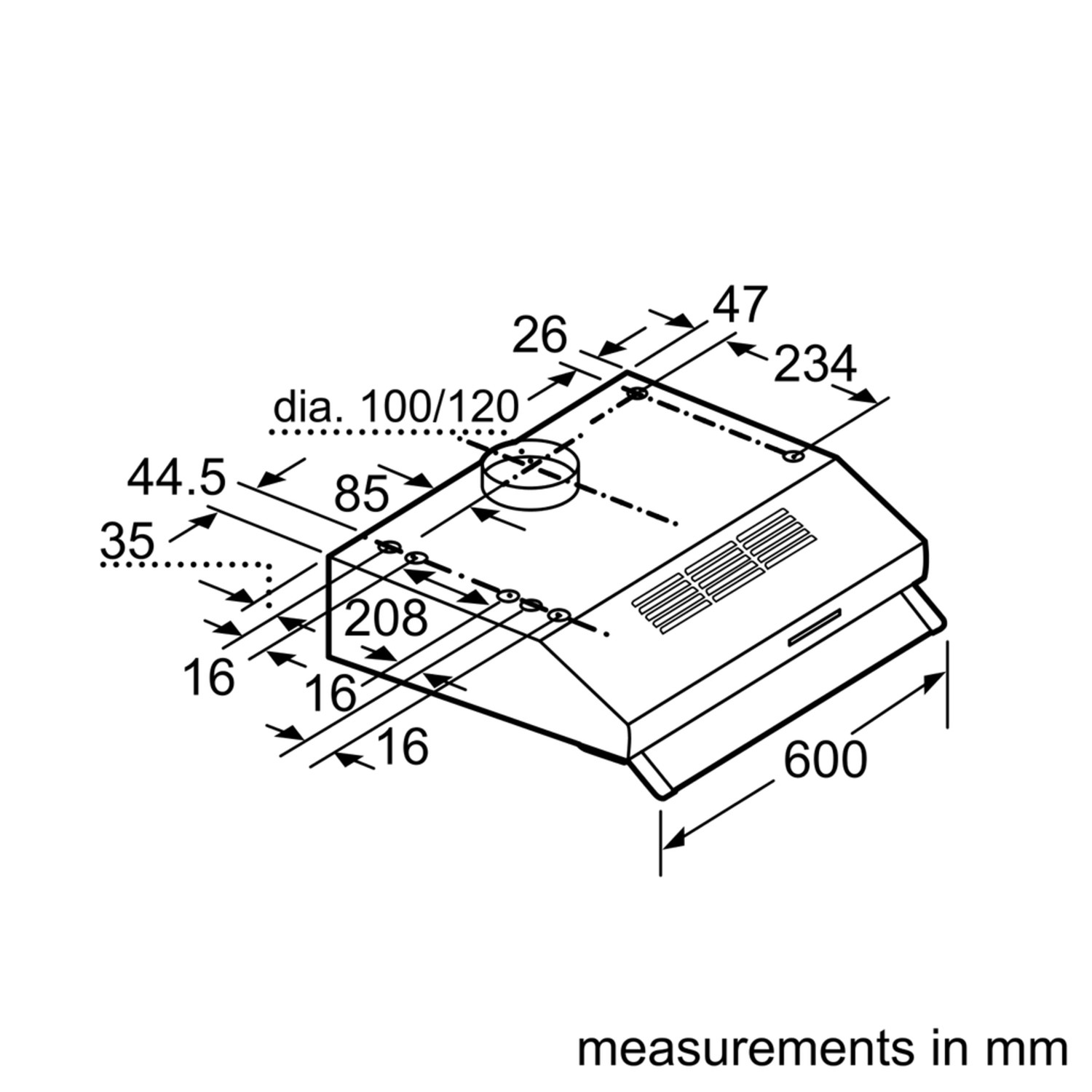

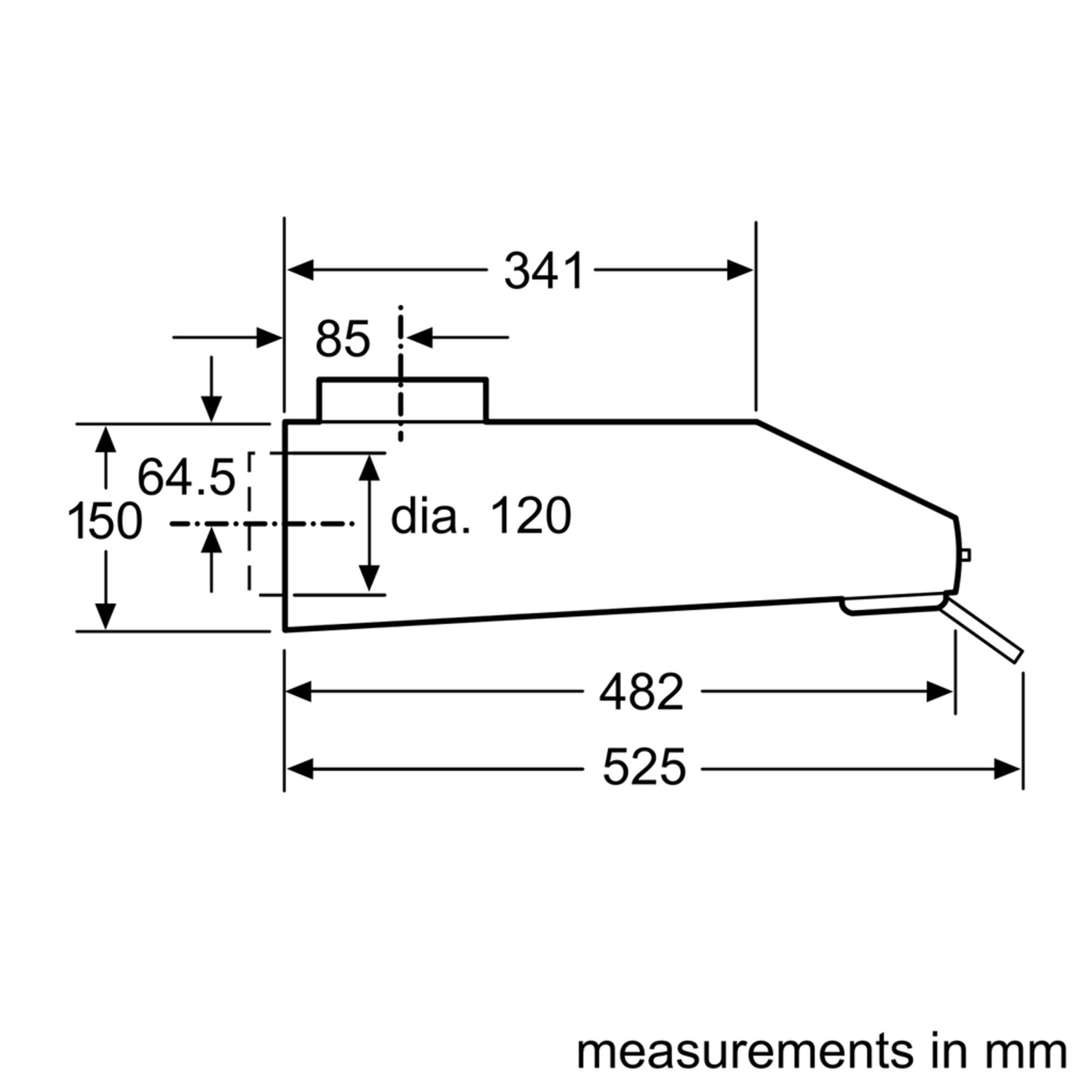

- Dimensions exhaust air (HxWxD): 150-150 x 600 x 482 mm
- Energy Efficiency Class: D*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: E*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 93.6 kWh/year*
* In accordance with the EU-Regulation No 65/2014
