The curved glass canopy hood combines two design styles: transparent glass as well as the classic box hood design.
Key Features
- LED lighting: a clear illumination whilst cooking thanks to the energy-saving LED lights

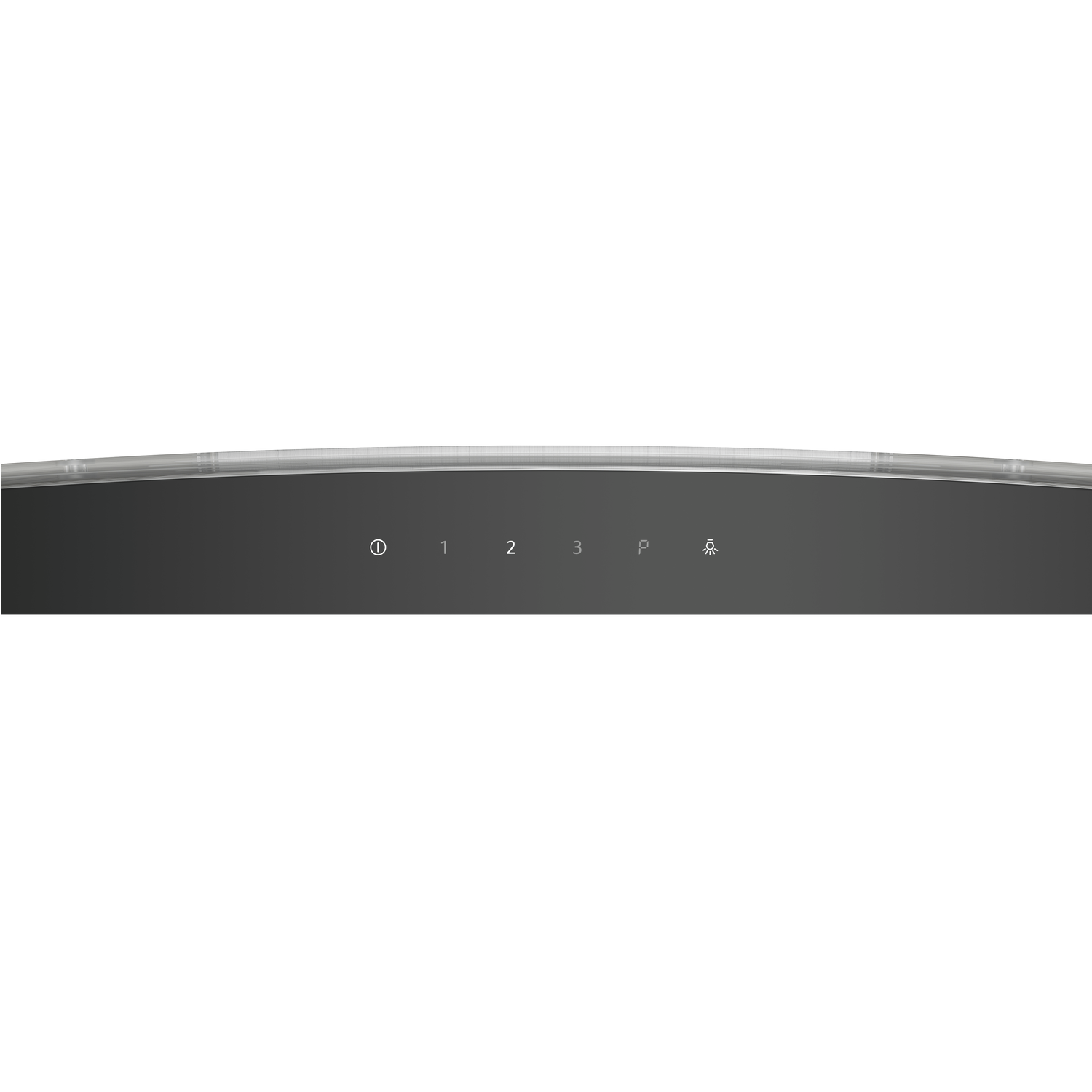

- TouchControl: thanks to the integrated flat surface of the control panel, adjustments can be easily made with just one finger
- Intensive speed setting: increases the extraction rate when the steam gets intense
- CleanAir: nothing but clean air thanks to the premium recirculation filter with high odour reduction (ca. 95%)
- High extraction rate: Ensures a clear view while cooking thanks to efficient motor technology as either a ducted or recirculating solution
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 390 m³/h
- Intensive 600 m³/h
- Noise max. Normal Level: 59 dB*
Features
- Touch control
- LED display
- 3 speeds plus intensive
- 2 x 1.5w LED Light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)
- 1 metal grease filter cassette
- For wall mounted installation
Design
- Stainless steel
- Glass design
- Chimney hood
- Touch control
- Electronic controls
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 390 m³/h
- Intensive 600 m³/h
- Max. extraction rate: 600 m3/h
- Extraction rate in recirculation mode:
- Max. normal use: 290 m³/h
- Intensive: 350 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 59 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 59 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
- Intensive: 69 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 59 dB (A) re 1pW
- Noise max. Normal Level: 59 dB*
- Noise levels in recirculation mode:
- Max. normal use: 71 dB(A) re 1 pW (59 dB(A) re 20 µPa sound pressure)
- Intensive: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure)
- Power rating: 220 W
- Light Intensity: 285 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 617-947 x 600 x 488 mm
- Dimensions recirculating (HxWxD): 617-1057 x 600 x 488 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 686 x 600 x 488 mm - mounting with outer chimney
- 815-1145 x 600 x 488 mm - mounting with telescopic chimney
- Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 42.6 kWh/year*
Optional accessories
- Recirculating kit Z5270X0
