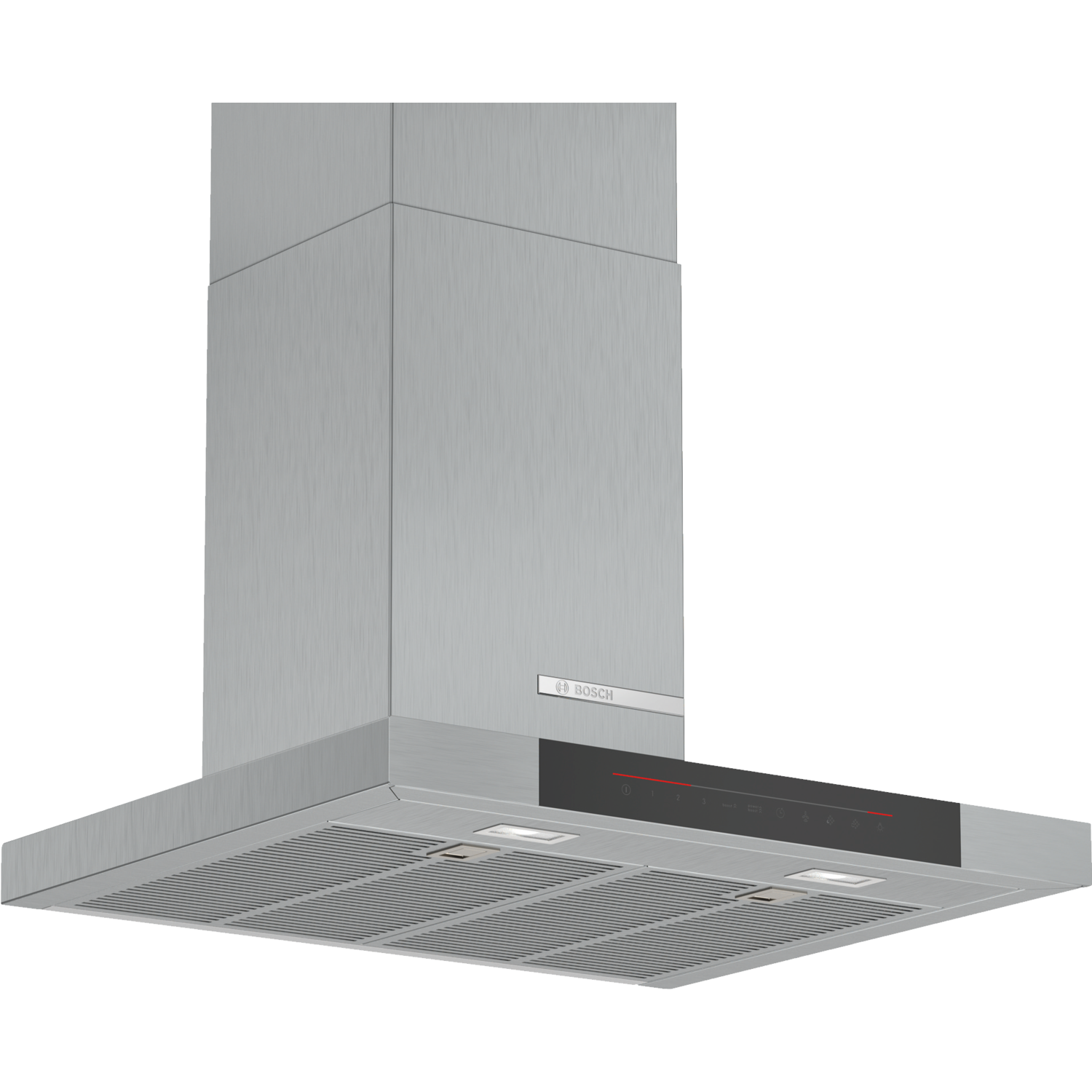

all mounted chimney hoods add style and sophistication to the kitchen and give you complete freedom in your kitchen planning
Enjoy supremely quiet operation and excellent durability
Sometimes you don't even get to enjoy the sizzling sound of the pan because the cooker hood is too loud. Using a high-powered fan and optimising the air flow within the hood make Bosch cooker hoods with EcoSilence drive motor technology considerably quieter and over 80% more energy efficient*. The motor causes no mechanical friction, which not only results in less noise, but also increases the durability.
* With average fan operation of one hour on level 2 per day and with the light on for 2 hours per day.

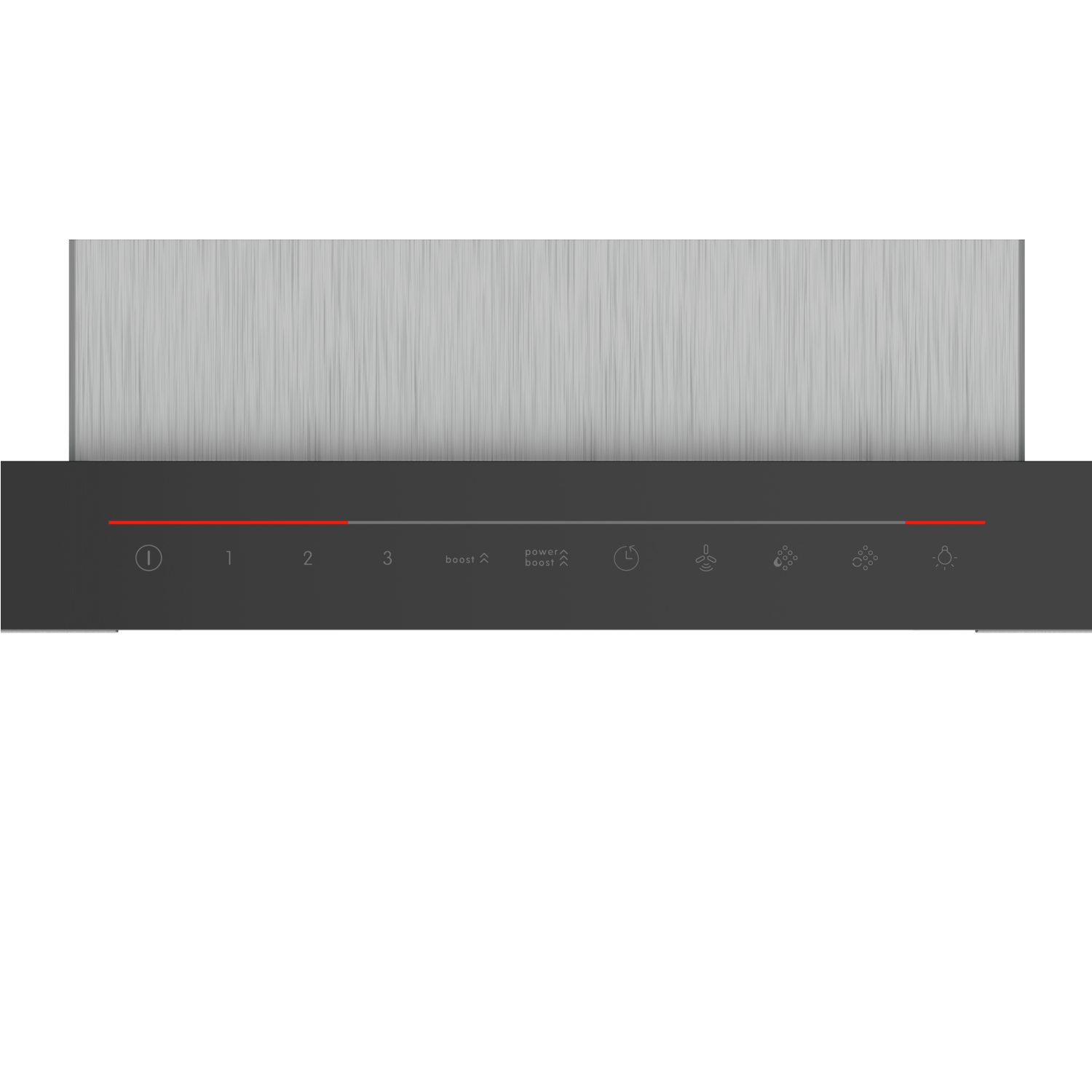

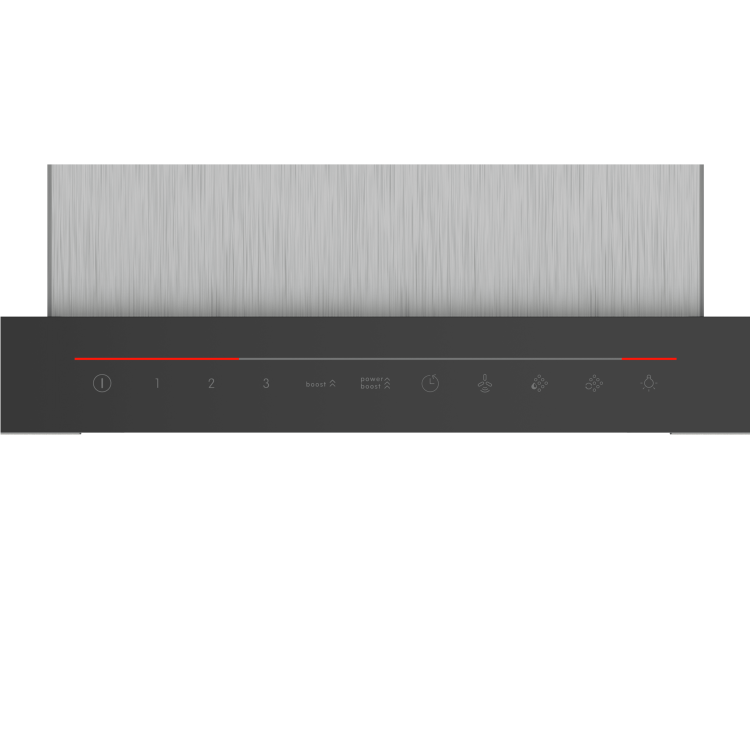

TouchControl - control at your fingertips
Set the exact power level with a single touch thanks to TouchControl and DirectSelect. It's easy to operate: simply select the right power level or turn on the lights and away you go.
DirectSelect control
the new DirectSelect control, you can set the desired power level and control such functions as the PerfectAir sensor, after-running, and lighting level directly. You can also read the filter saturation display so that you always know when the filter needs cleaning, to ensure it always operates at its best.
EcoSilence Drive
Our EcoSilence Drive brushless friction-free motor is durable and designed to last longer. The motor is highly efficient and offers exceptional performance while saving you energy.
Thanks to low noise levels you hear: nothing
Your guests are not alone in appreciating a relaxed cook. So you can chat with your guests while cooking, we have made our recirculation cooker hoods so quiet you hardly notice them. Generally, a swishing sound is generated by the noise of the motor itself and the air flow, depending on the level of counterpressure. On ducted models, 50 % of the noise is ducted to the outside. Bosch cooker hoods with the CleanAir module generate up to 3 dB(A) less noise than conventional recirculation systems while offering the same performance.
Automatically absorbs unpleasant odours
The PerfectAir sensor constantly monitors the air and automatically adapts the power level to the rising vapour and odours – continuously, precisely, and independently of the power settings. At the same time, it reduces the noise level by activating only the minimal extraction level required. A positive side effect: no more annoying finger marks on the controls. When you've finished cooking, the fan continues to run until the kitchen air is cleared of all unpleasant odours.
The optimum air volume for kitchen of all sizes
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.

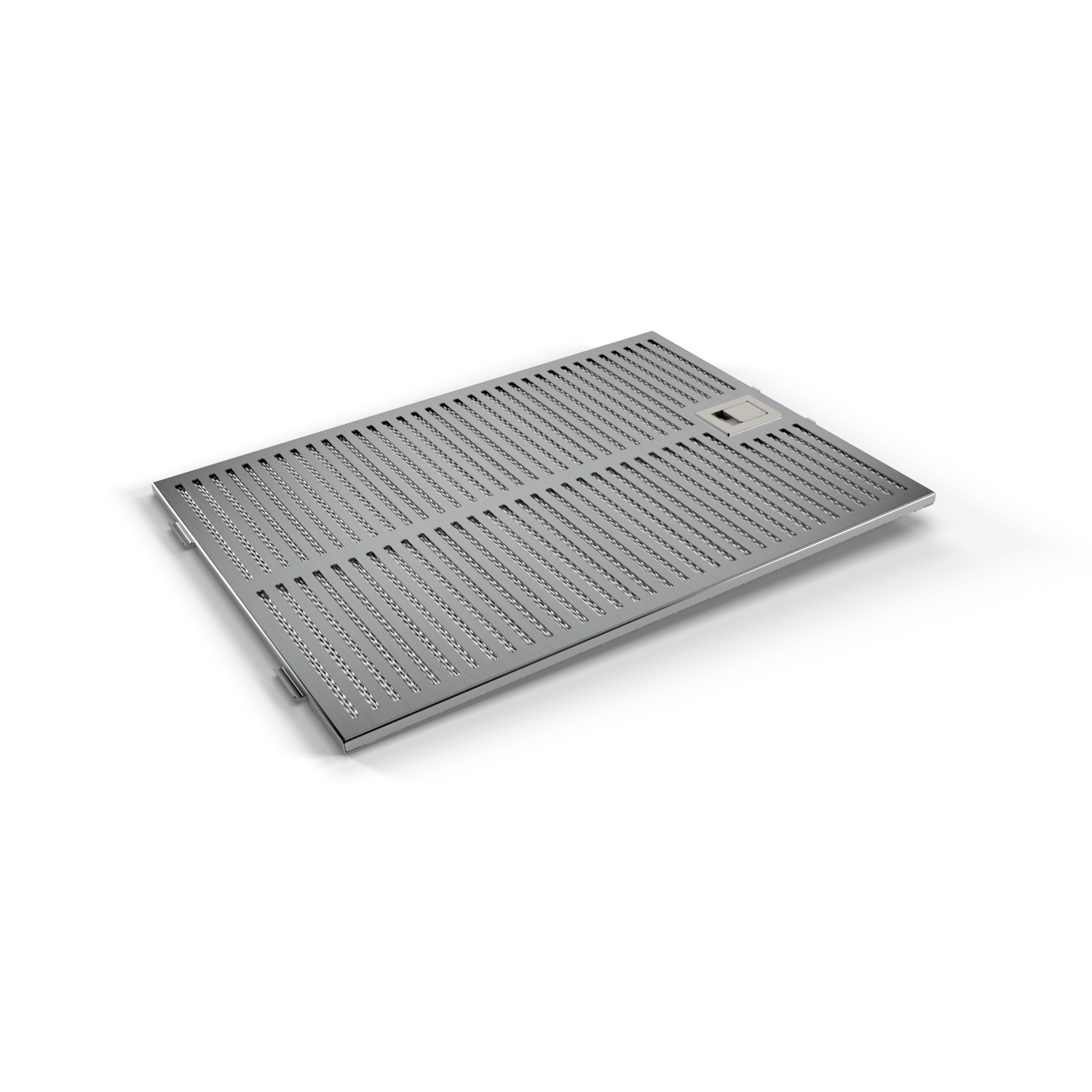

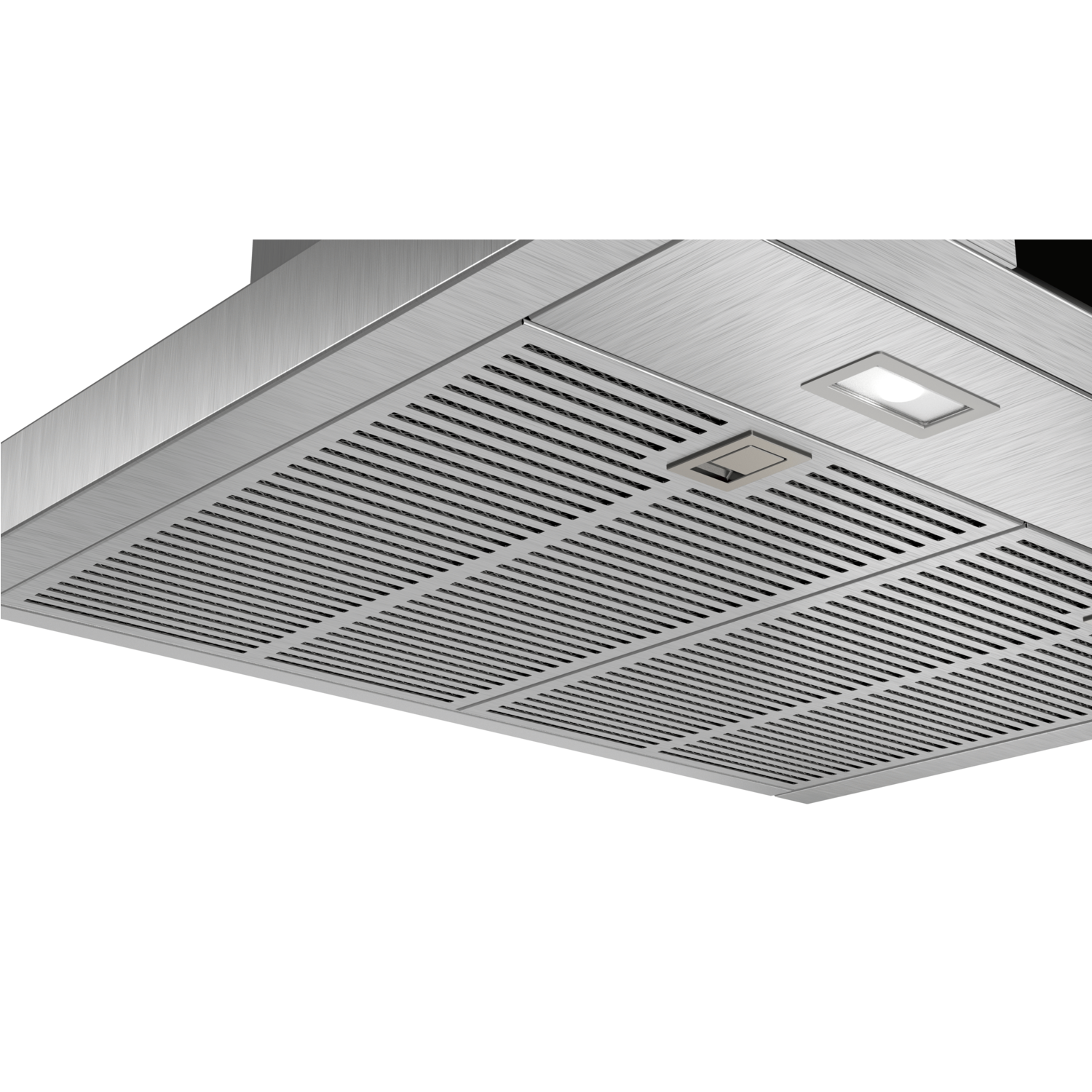

Metal grease filter
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
Key Features
- EcoSilence Drive: our highly efficient motor saves on energy, not on performance
- PerfectAir sensor: automatic control of settings for maximum extractor performance with minimal noise
- DirectSelect control: direct selection of desired settings and light
- Silent: maximum extractor performance with little noise
- High grease filtration level: filters up to 85.8% of the grease from the kitchen air
Key performance features
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 408 m³/h
Intensive 732 m³/h - Noise max. Normal Level: 60 dB
Features
- PerfectAir sensor
- TouchControl with lightline
- 3 power levels and 2 intensive settings
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Dimmer function
- Efficient BLDC-technology
- Automatic after running (10 min)
- Automatic intensive revert (6mins)
- 2 removable metal grease filter cassettes
- Saturation indicator for metal and charcoal filter
- Easy to clean Inner frame
Design
- Brushed steel
- Box design

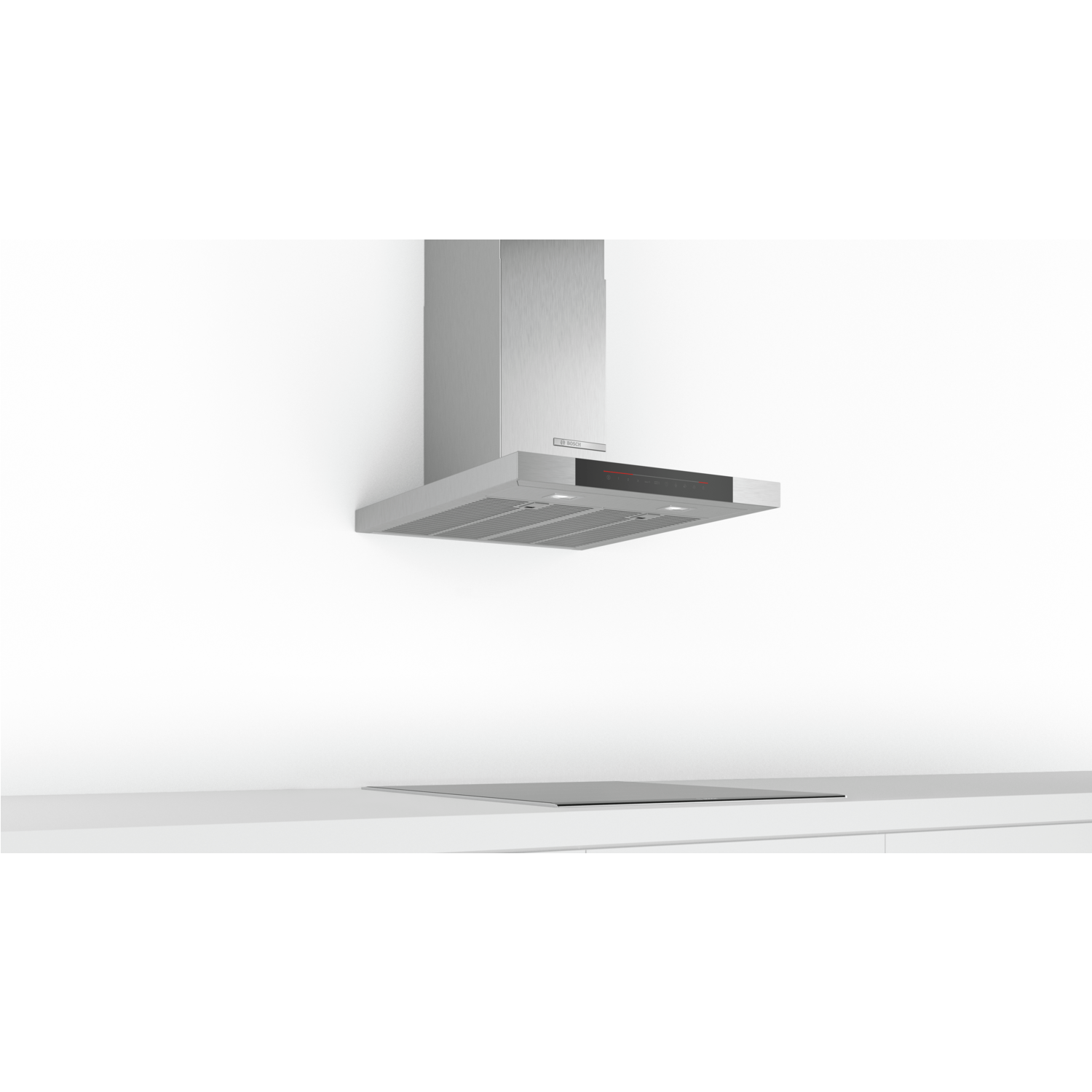

- Chimney extractor hood
- Designed for wall mounted installation

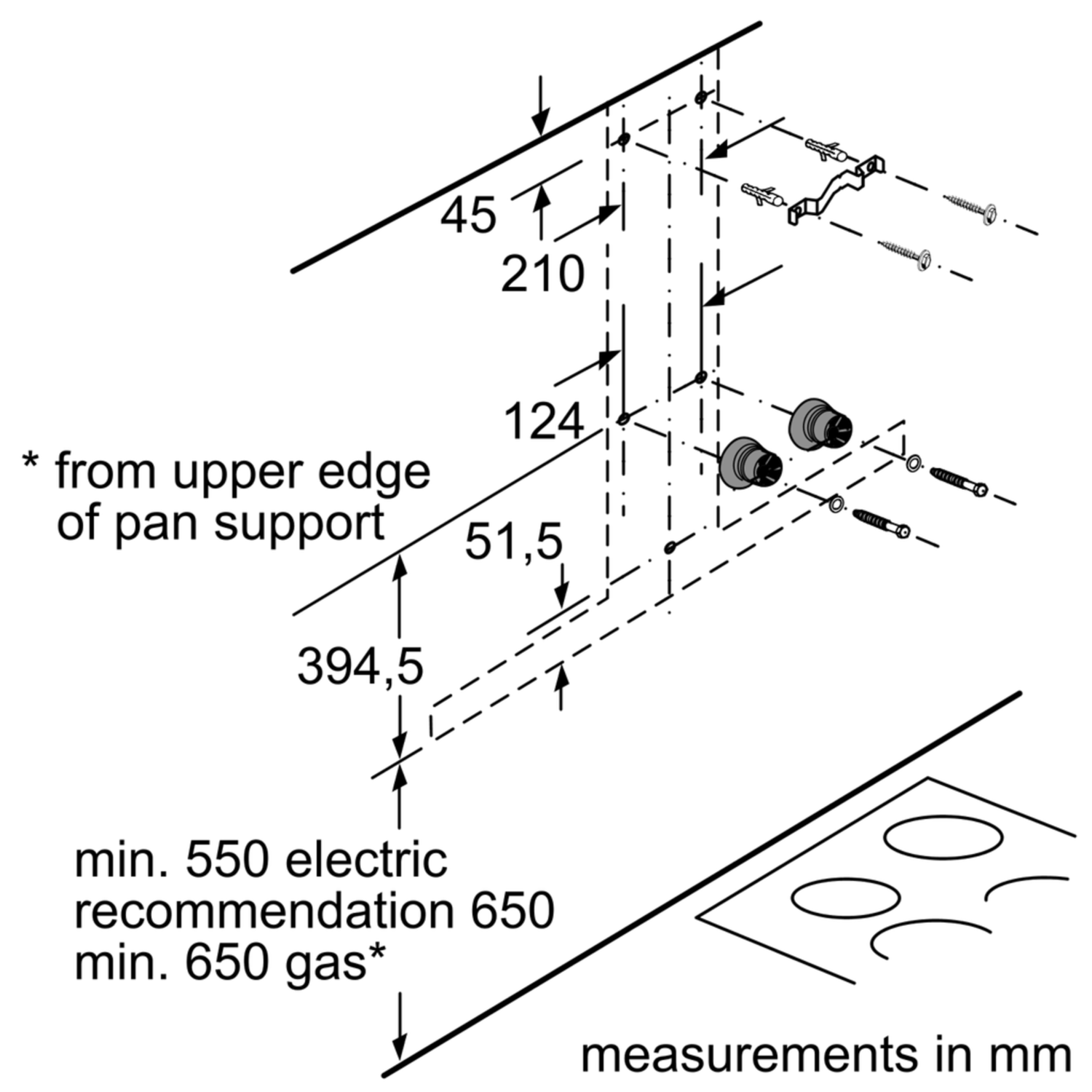

- Easy installation system
- TouchControl
- Electronic control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 408 m³/h
Intensive 732 m³/h - Extraction rate according to EN 61591 max. 408 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 60 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 60 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
Intensive: 73 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure) - Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 60 dB (A) re 1pW
- Noise max. Normal Level: 60 dB
- Power rating: 163 W
- Light Intensity: 267 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m

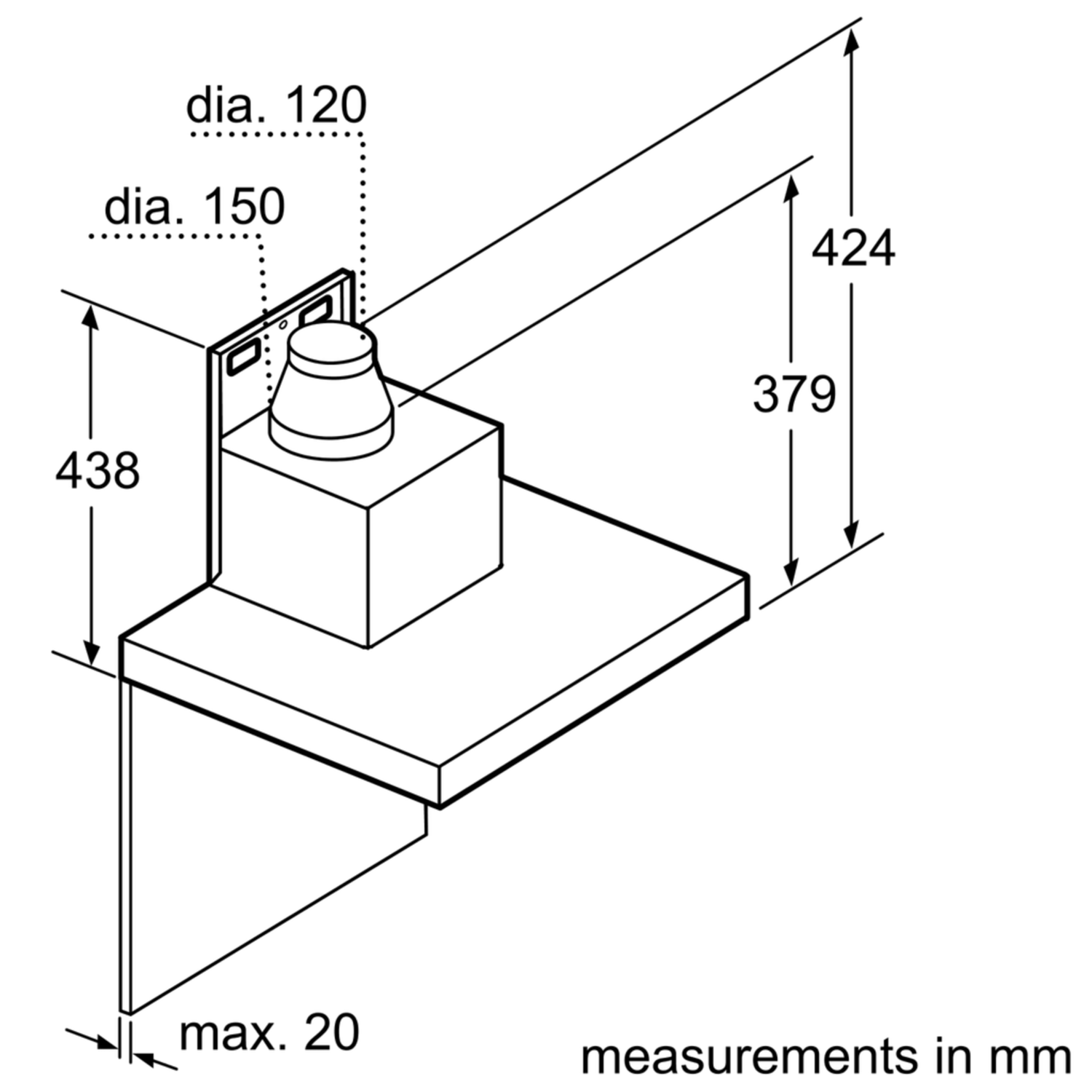

- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

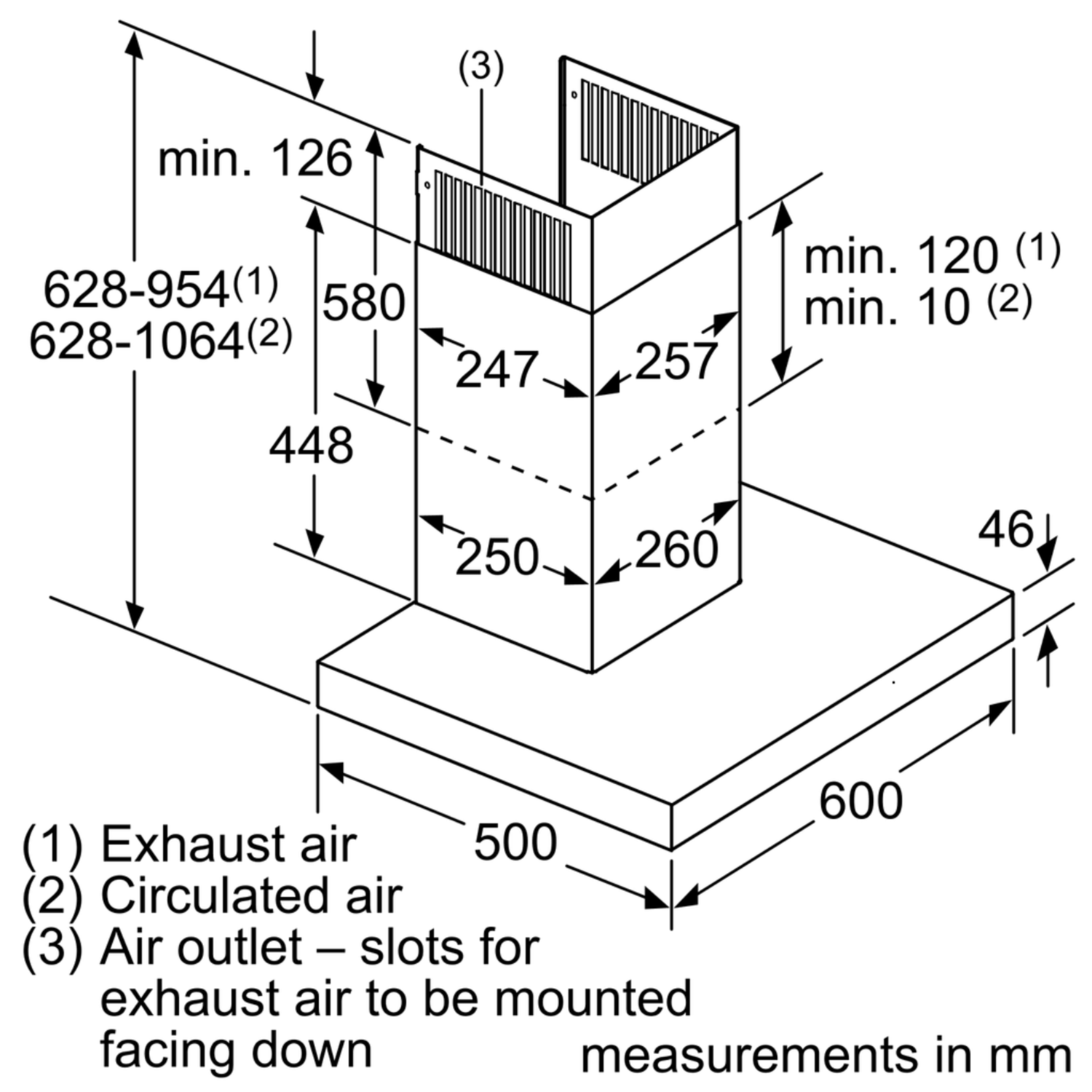

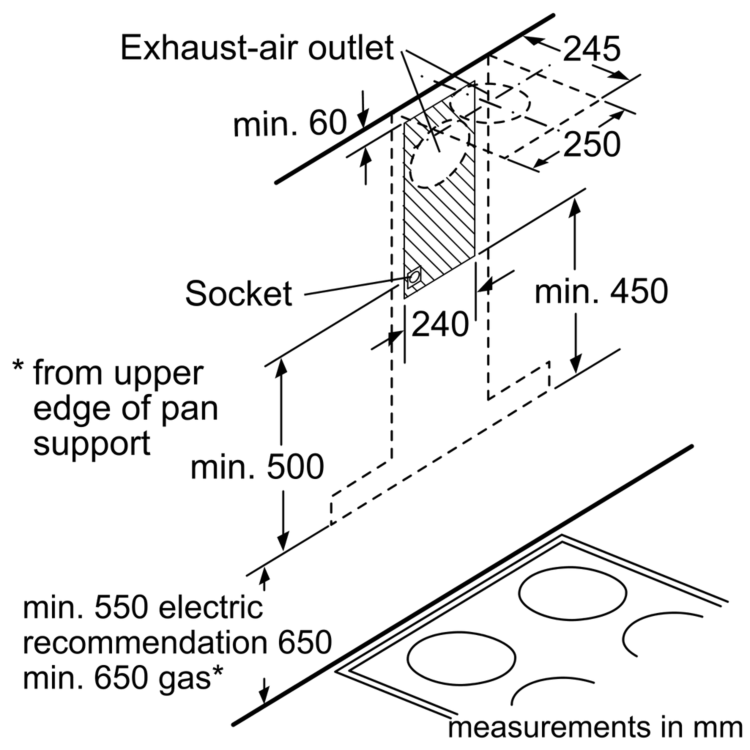

- Dimensions exhaust air (HxWxD): 628-954 x 598 x 500 mm
- Dimensions recirculating (HxWxD): 628-1064 x 598 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD): 809-1139 x 598 x 500 mm
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Blower Efficiency Class: A
- Lighting Efficiency Class: A
- Grease Filtering Efficiency Class: B
- Average Energy Consumption: 33.7 kWh/year
