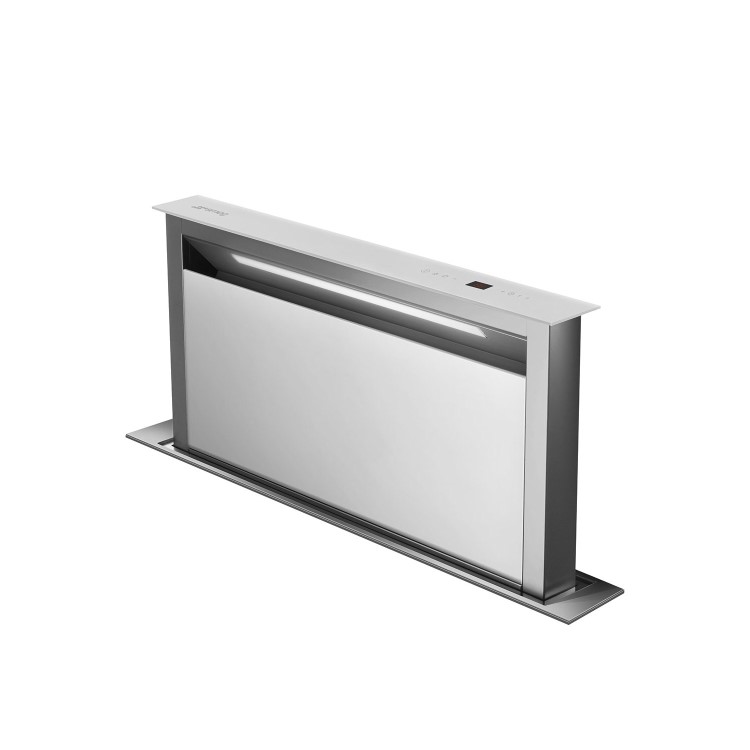

Smeg 90cm wide downdraft extractor in stainless steel and white glass
when extra fast extraction is required.
Perimeter Extraction Panels
very efficient and aid noise reduction.
All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen.
to give a visual reminder of the options selected.
24 Hour Air Refresh
When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level.
- Energy rating: A
- 1 High performance motor, 270 W
- Electronic controls
- Perimeter extraction
- 4 speeds, plus intensive (10 mins)
- 1 x 7W LED light
- 2 Aluminium grease filters
- Filter cleaning/replacement indicator
- Automatic switch-off
- Internal re-circulation possible
- Non-return valve
- Vent outlet Ø 150 mm
- Nominal power 277 W
- Extraction rates IEC 61591: 160-430 m³/hr (670 intensive)
- Noise level (dB(A) IEC 60704-2-13): 40-60 dB(A) (69 intensive)
NB: Downdraft extractors can be installed anywhere in a kitchen but are ideal for when a hob is situated in an island unit. The extractor is installed under the worktop directly behind, or to the side of, the hob so that when it is not in use, it can be completely hidden from view. A Downdraft extractor can be vented or recirculated. When it is vented the ducting has to be passed under the flooring, below the cupboards or along the back of the cupboards - it is important therefore to decide on the hood before refurbishment work begins. The length of the ducting will affect the extraction performance, if it has to travel too far to go to an outside wall or there are too many turns in the ducting you are advised to recirculate the extractor.
When using with a gas hob, the hob must have a Maximum power of 12.4kW and 5 zones.
