- Energy Efficiency Class: A*
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 400 m³/h
- Intensive 660 m³/h
- Noise max. Normal Level: 57 dB*
- 3 x power levels plus intensive setting

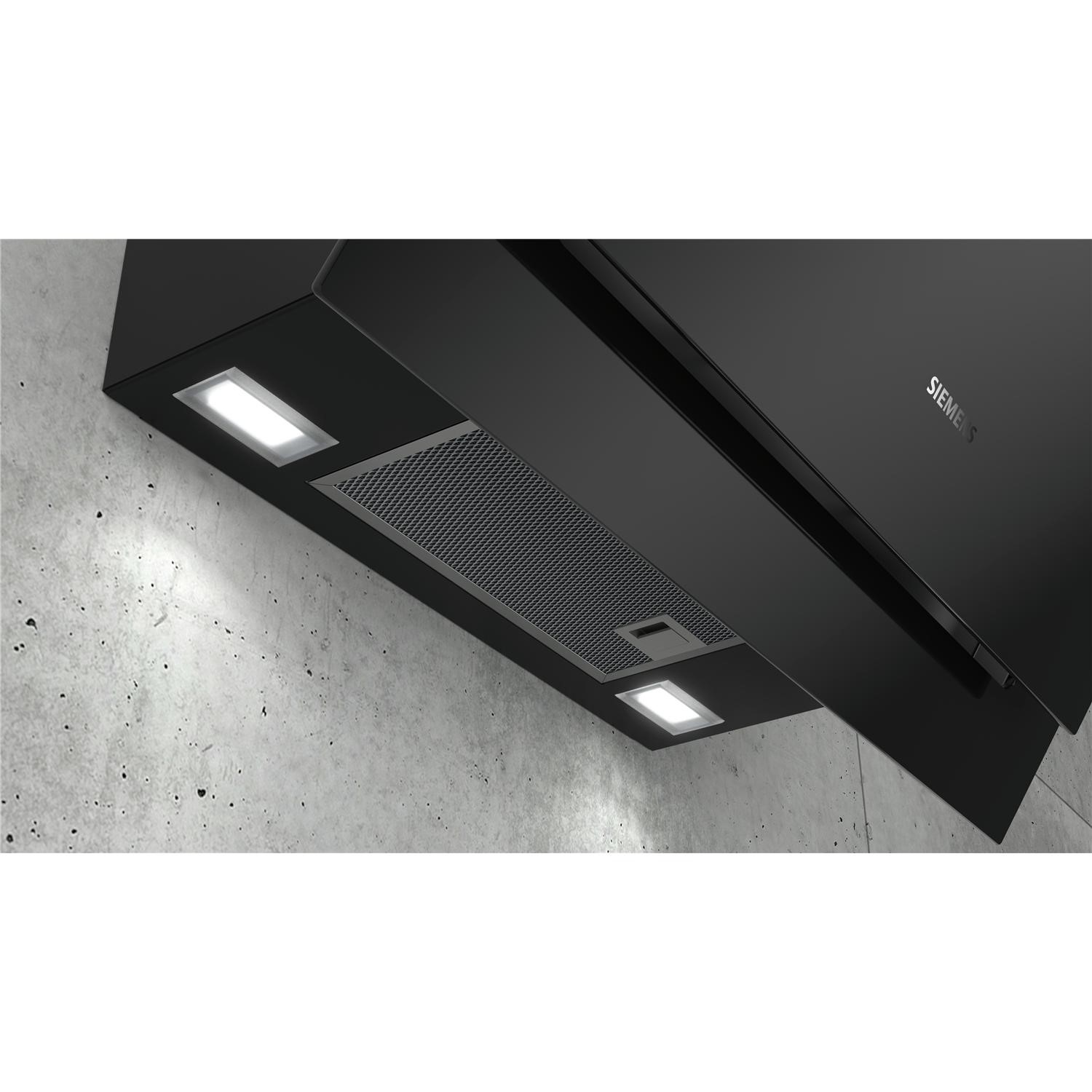

- 2 x 3W LED
- Colour Temperature: 3500 K
- Twin channel high performance fan motor
- Automatic intensive revert (6mins)

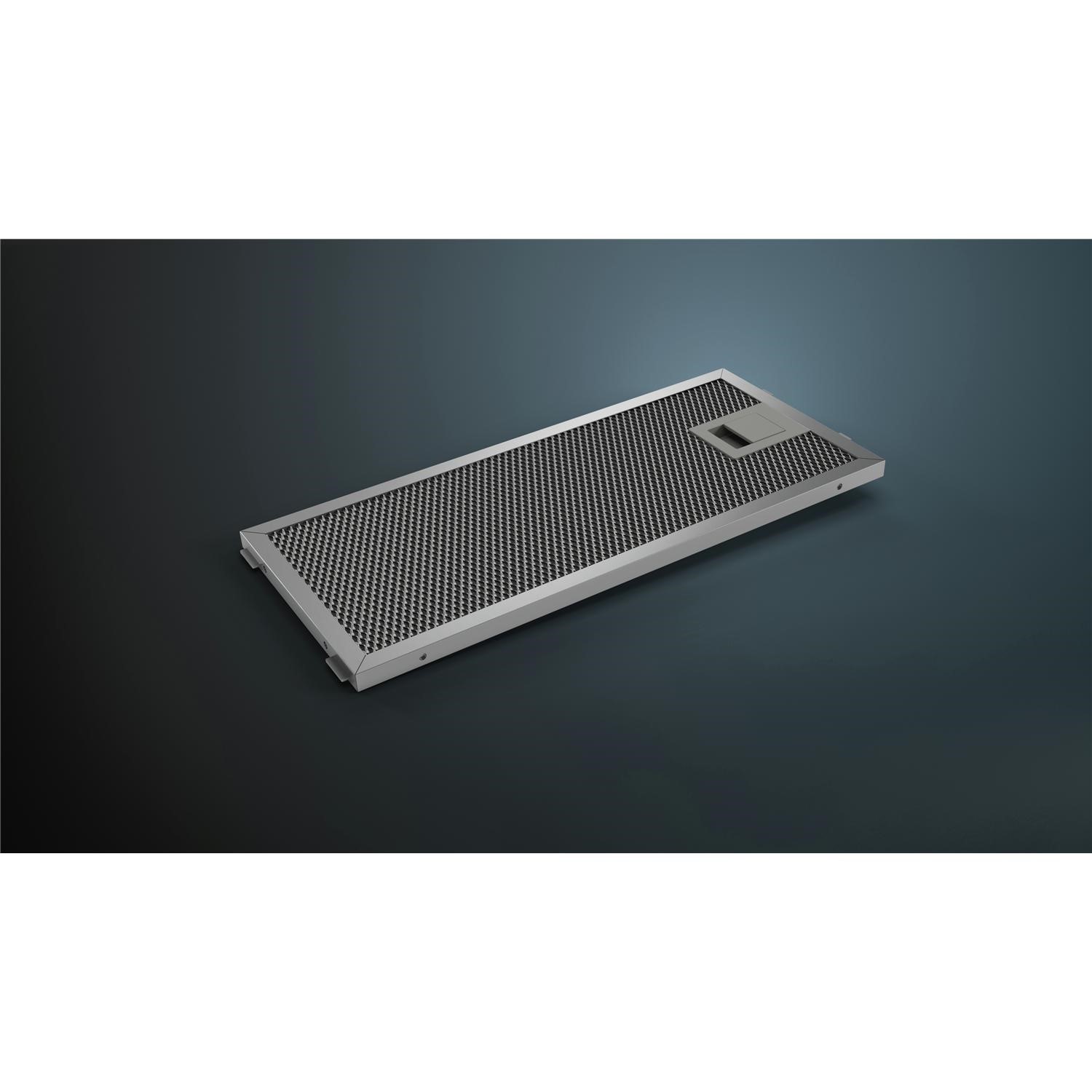

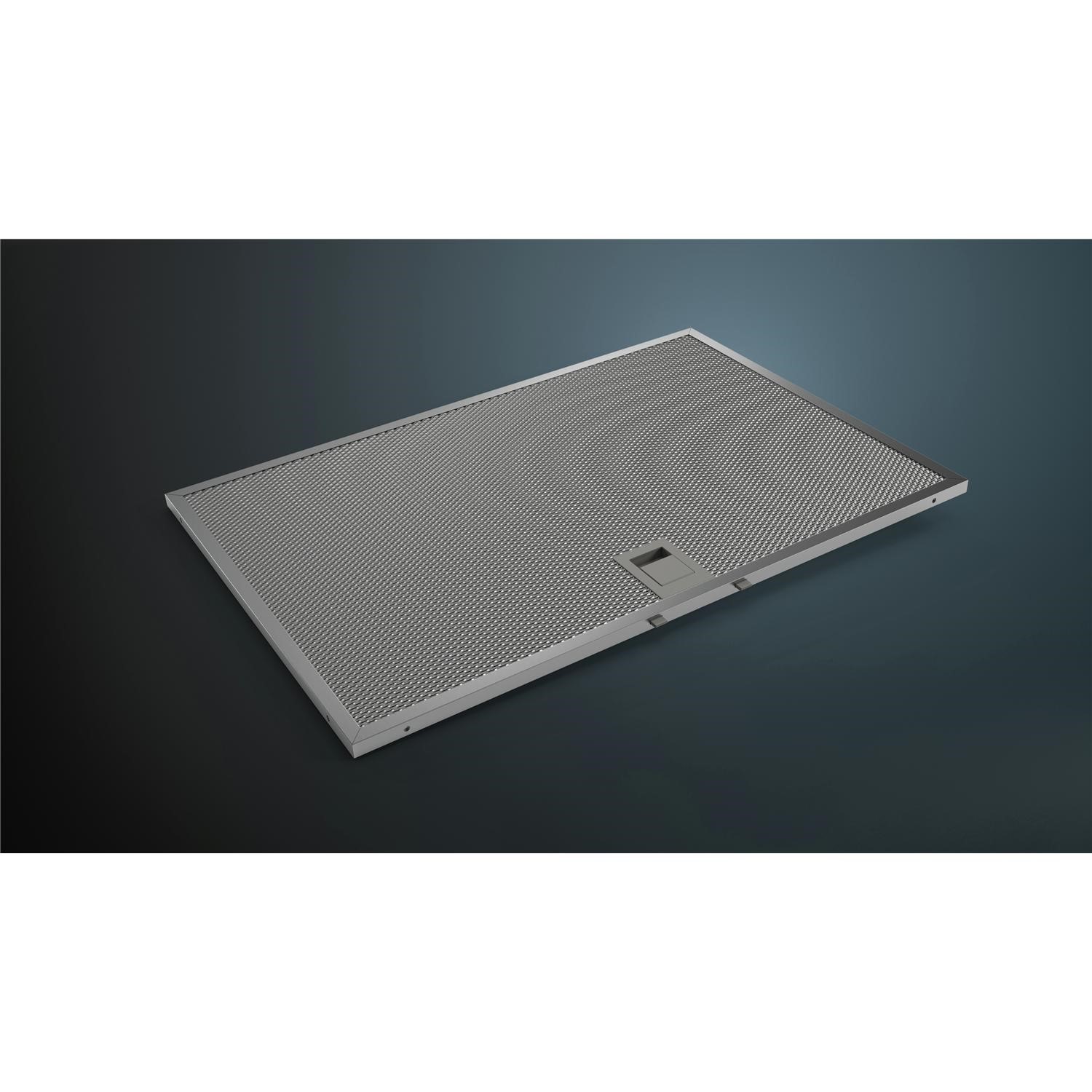

- 2 x metal grease filter cassettes
- easy to clean Inner frame

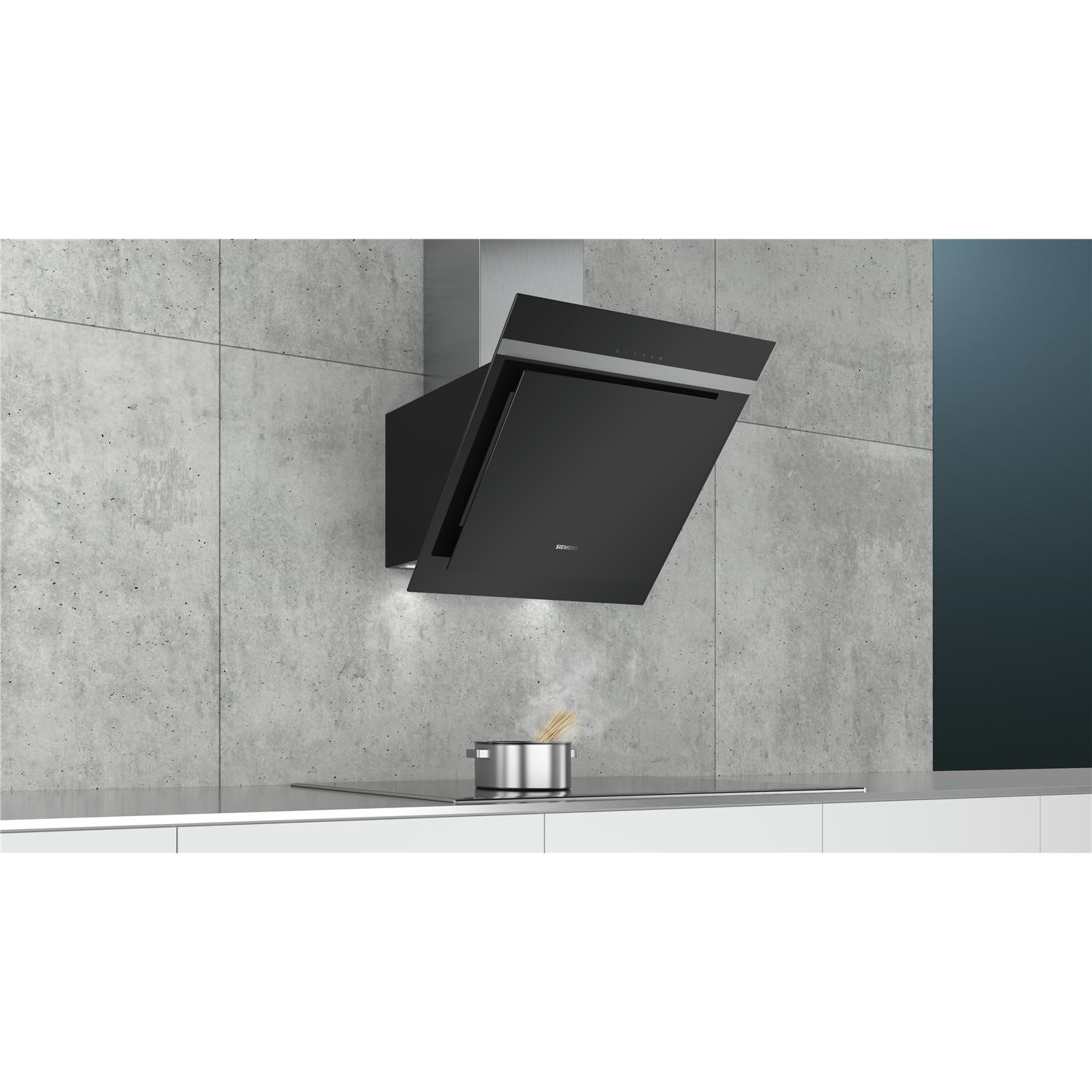

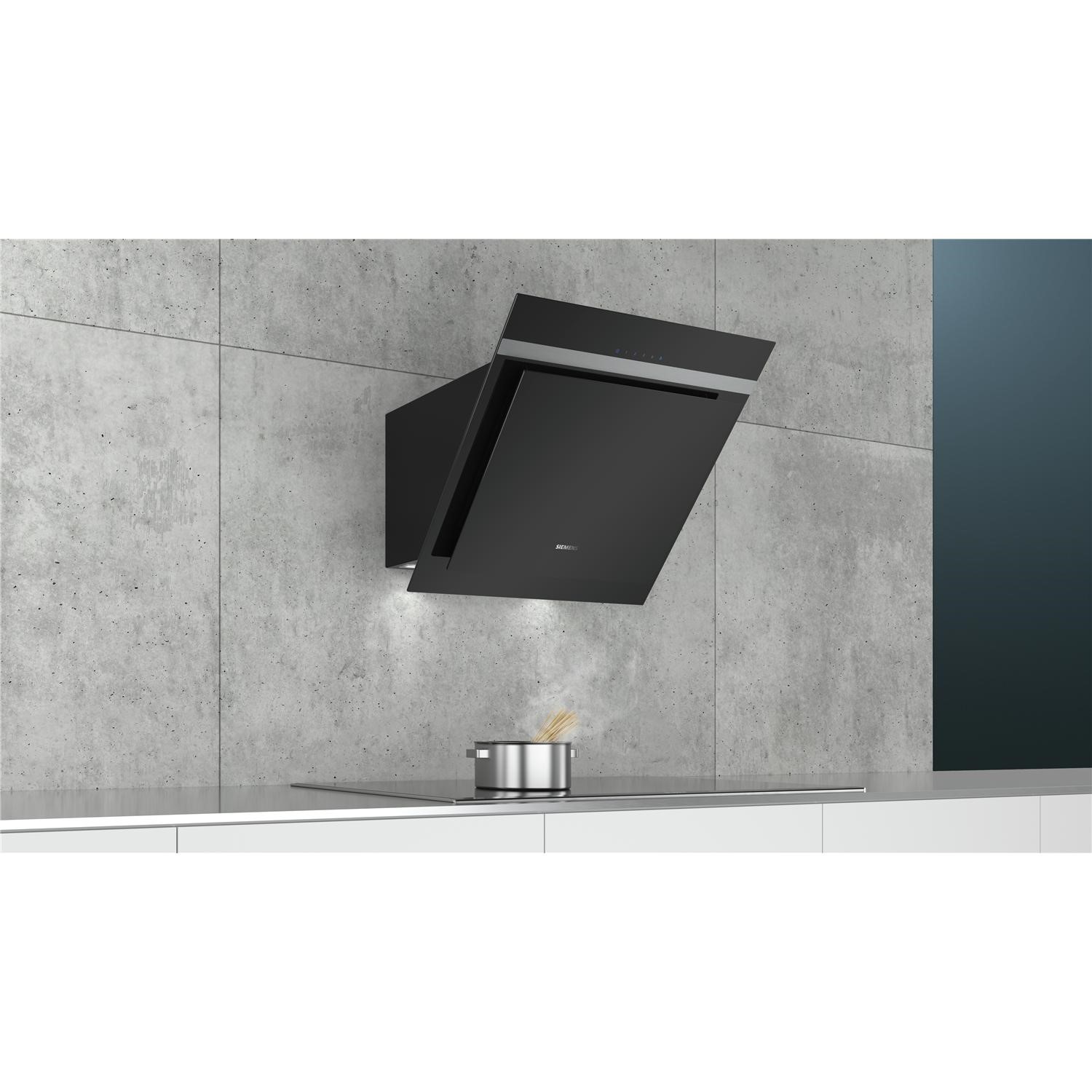

- For wall mounted installation
- Rim ventilation
- Black glass

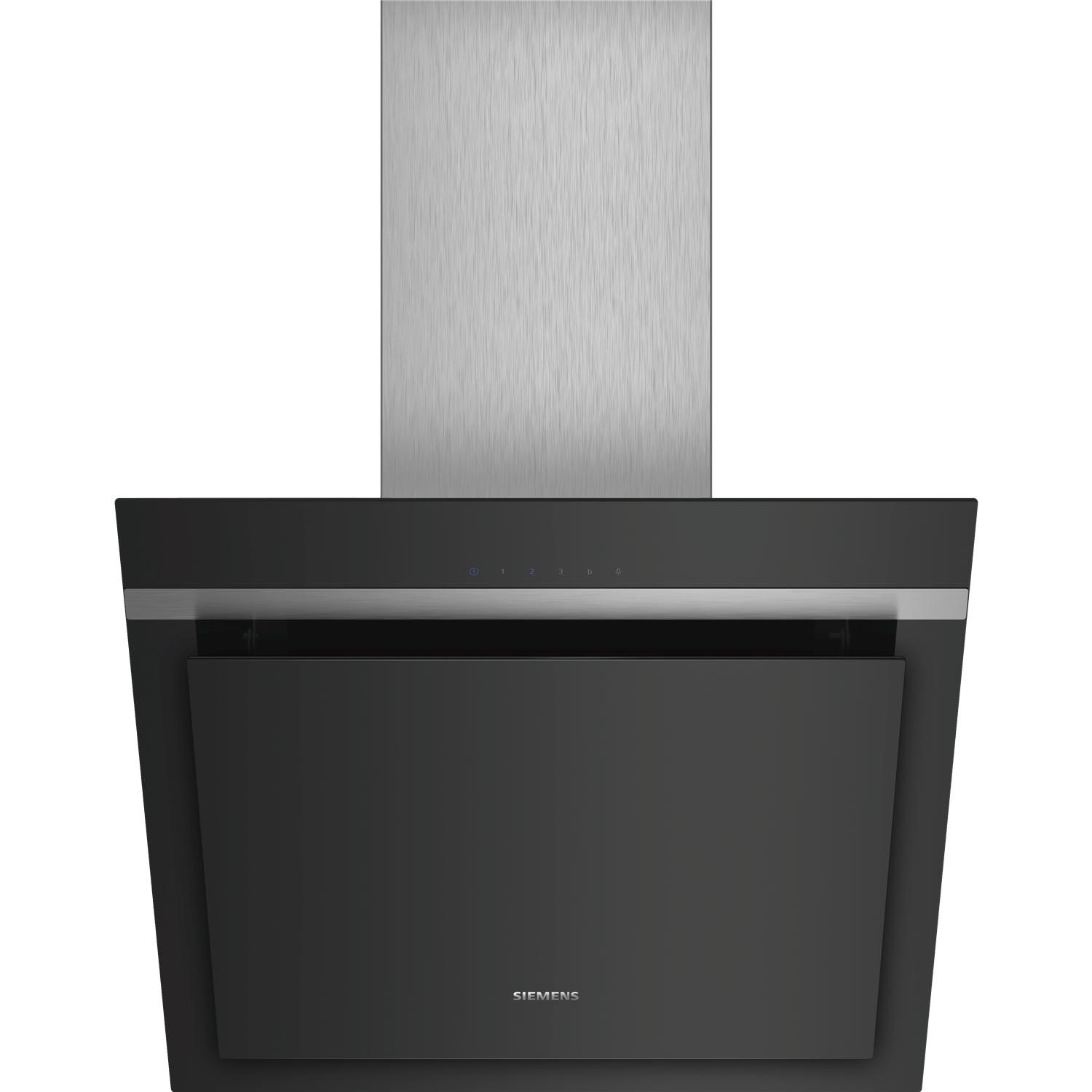

- Chimney hood

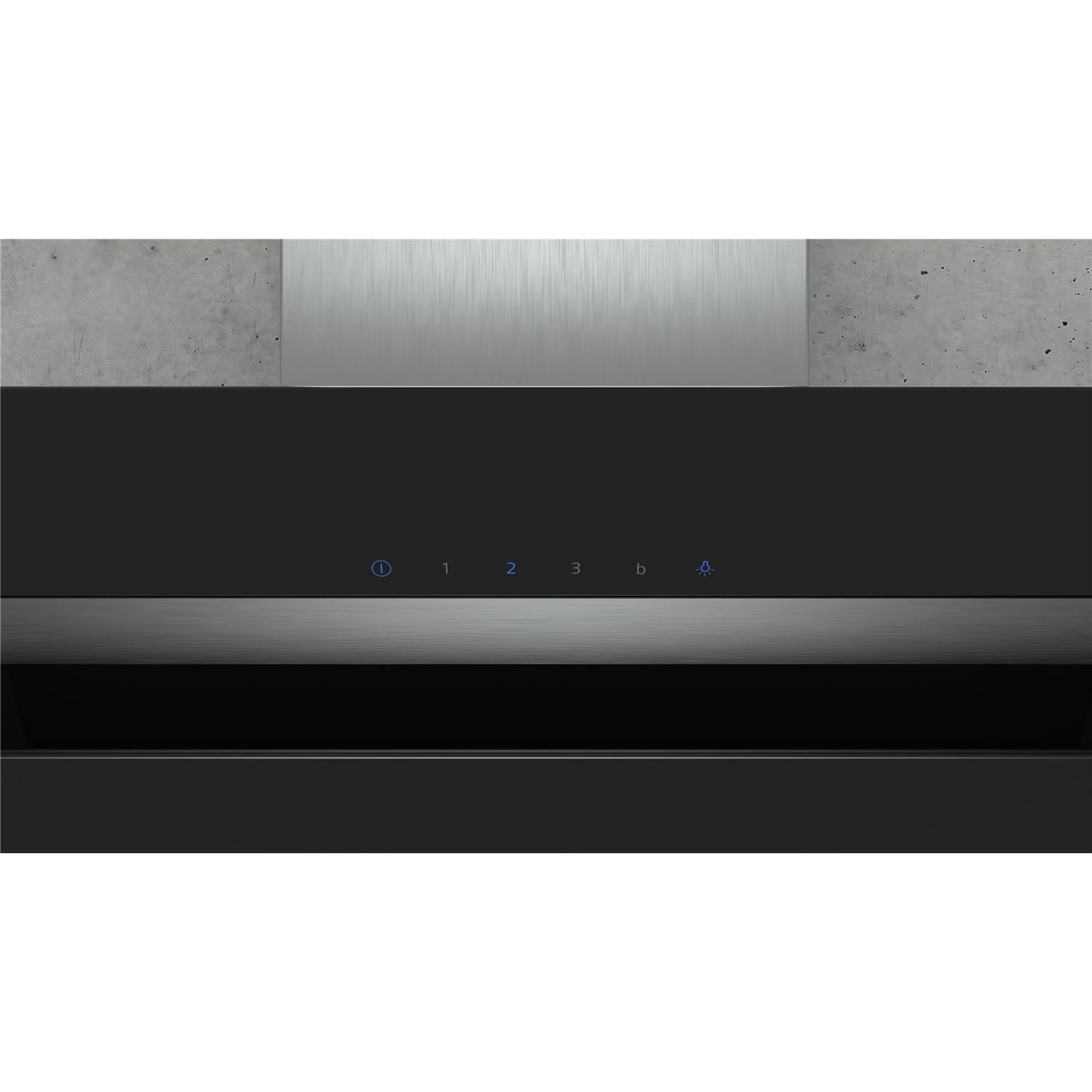

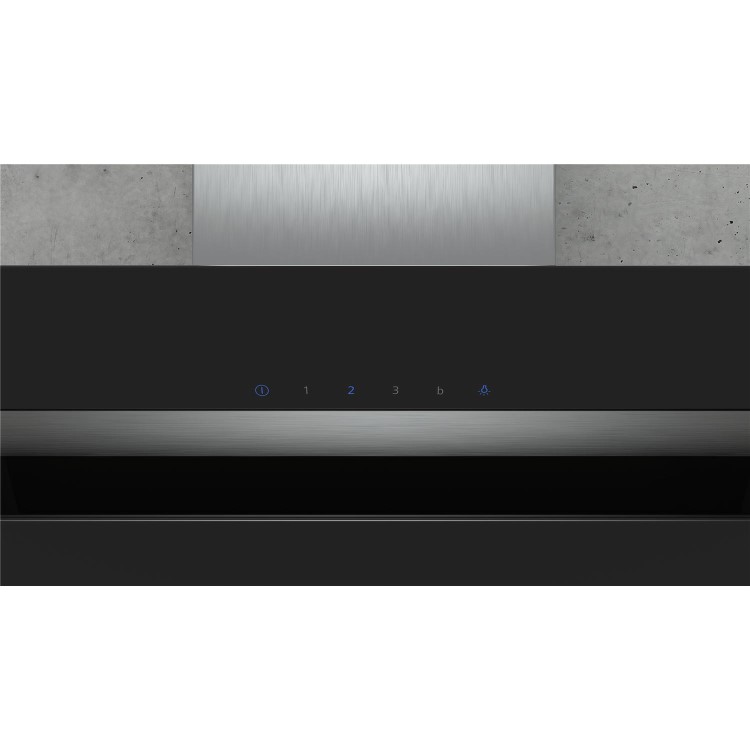

- Touch control for extractor speeds and light
- Electronic control
- Suitable for ducted and re-circulating operation
- In recirculation operation chimless use possible
- For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
- Easy installation system
- Max. extraction rate: 660 m3/h
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 400 m³/h
- Intensive 660 m³/h
- Extraction rate in recirculation mode:
- Max. normal use: 380 m³/h
- Intensive: 570 m³/h
- Noise max. Normal Level: 57 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 57 dB(A) re 1 pW (43 dB(A) re 20 µPa sound pressure)
- Intensive: 66 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)
- Noise levels in recirculation mode:
- Max. normal use: 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
- Intensive: 74 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure)
- Power rating: 263 W
- Light Intensity: 90 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 928-1198 x 590 x 499 mm
- Dimensions recirculating, chimney (HxWxD): 988-1258 x 590 x 499 mm
- Dimensions recirculating, chimless (HxWxD): 452 mm x 590 x 499 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 1118 x 590 x 499 mm - mounting with outer chimney
- 1188-1458 x 590 x 499 mm - mounting with telescopic chimney
- Energy Efficiency Class: A*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 52.5 kWh/year*
- Recirculating kit
