Dimensions - Height (25.5cm)- Width (53.0cm)- Depth (38.0cm)
Key features
- Mechanical
Design
- 55 cm wide
- Silver metallic lacquer
Features
- 3 power levels & intensive setting

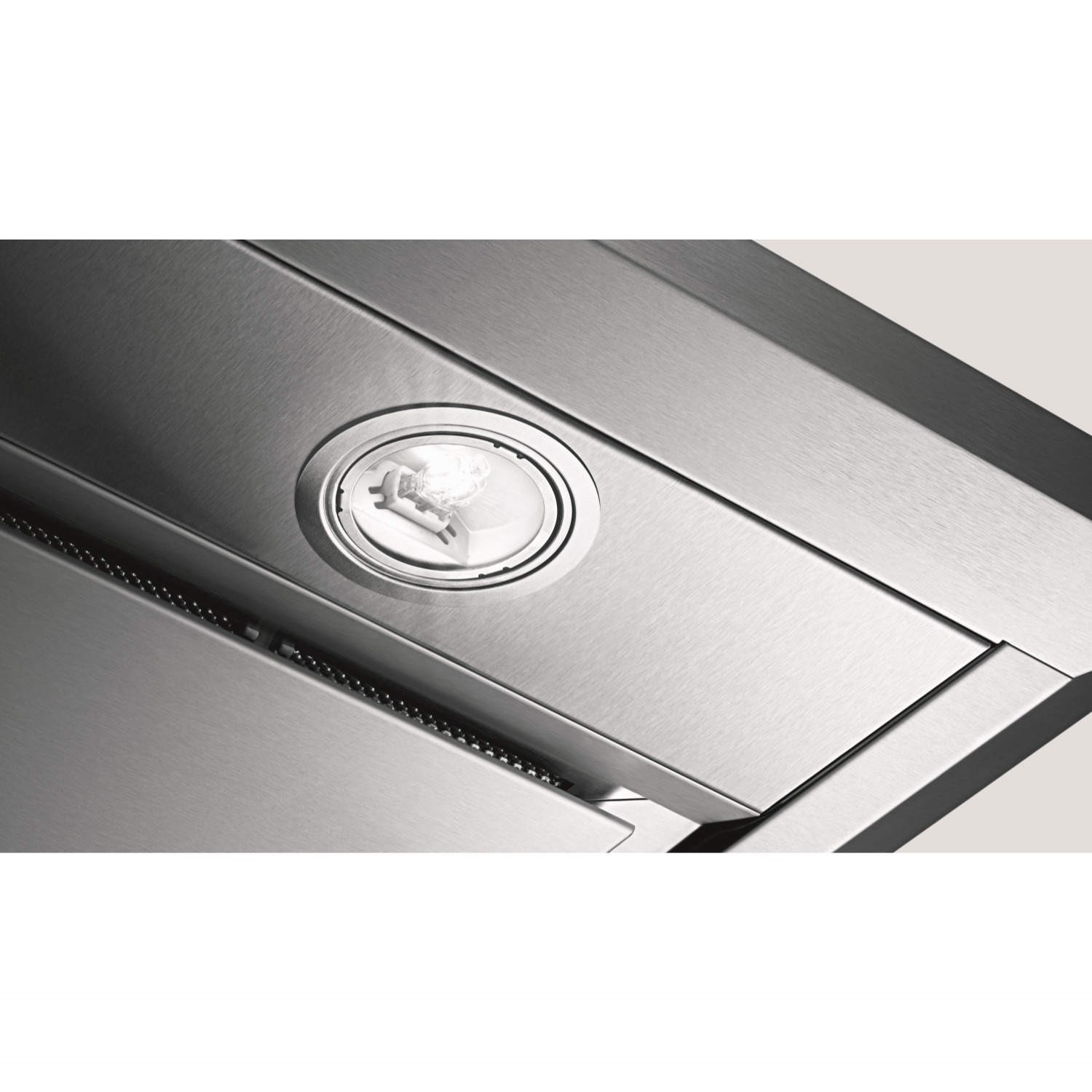

- 2 x 20W low energy halogen lights
- Light Colour: warm white
- 2 removable metal grease filter cassettes

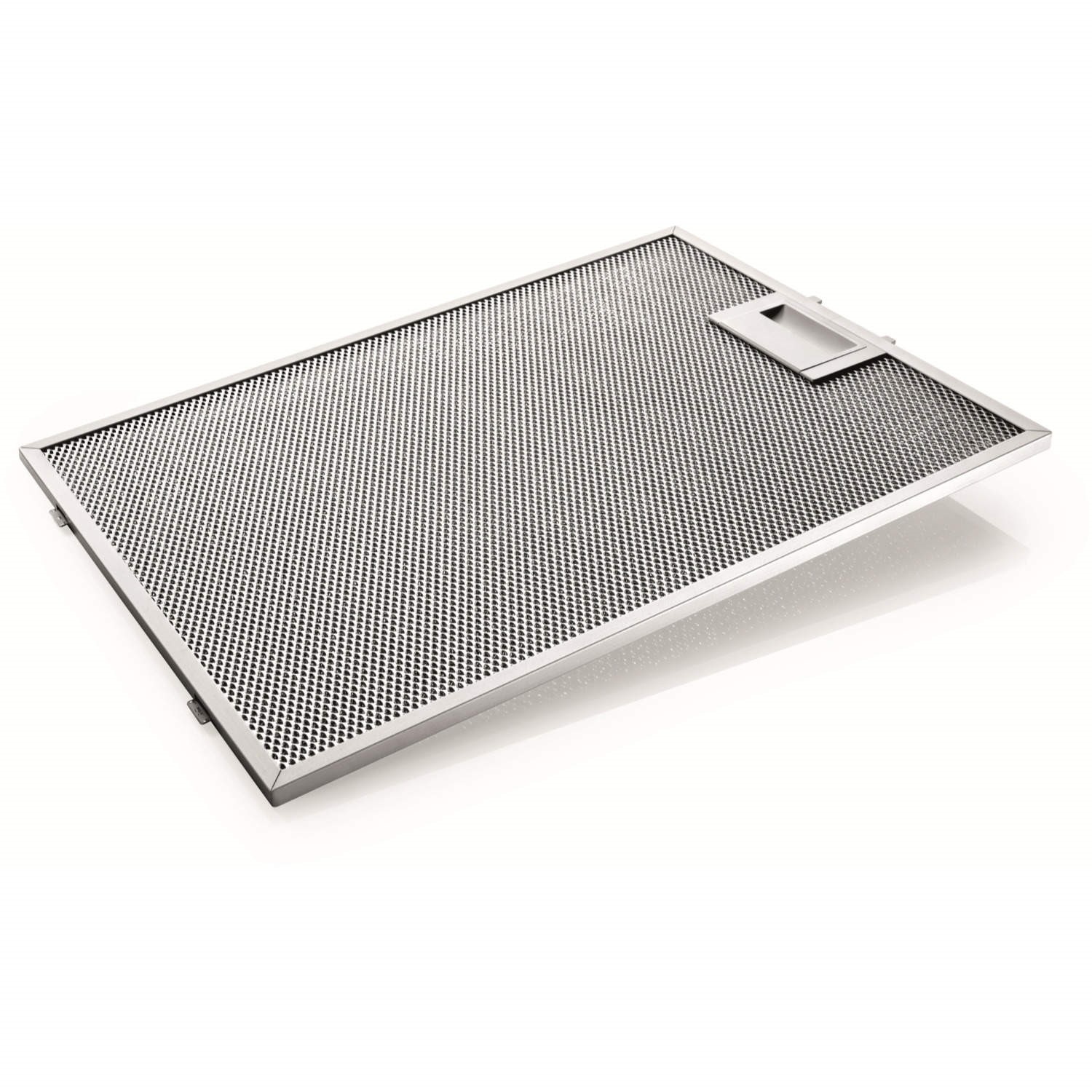

- Removable metal grease filters
Performance/technical information
- Suitable for ducted or recirculating operation
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 420 m³/h
- Intensive 650 m³/h
- Extraction rate exhaust air according to EN 61591:
- max. normal use 420 m³/h, intensive 650 m³/h
- Power rating: 240 W
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 59 dB(A) re 1 pW (45 dB(A) re 20 µPa sound pressure)
- Intensive: 69 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
- Noise max. Normal Level: 59 dB*
- Average Energy Consumption: 111.4 kWh/year*
- Energy Efficiency Class: D*
- Blower Efficiency Class: D*
- Lighting Efficiency Class: F*
- Grease Filtering Efficiency Class: B*

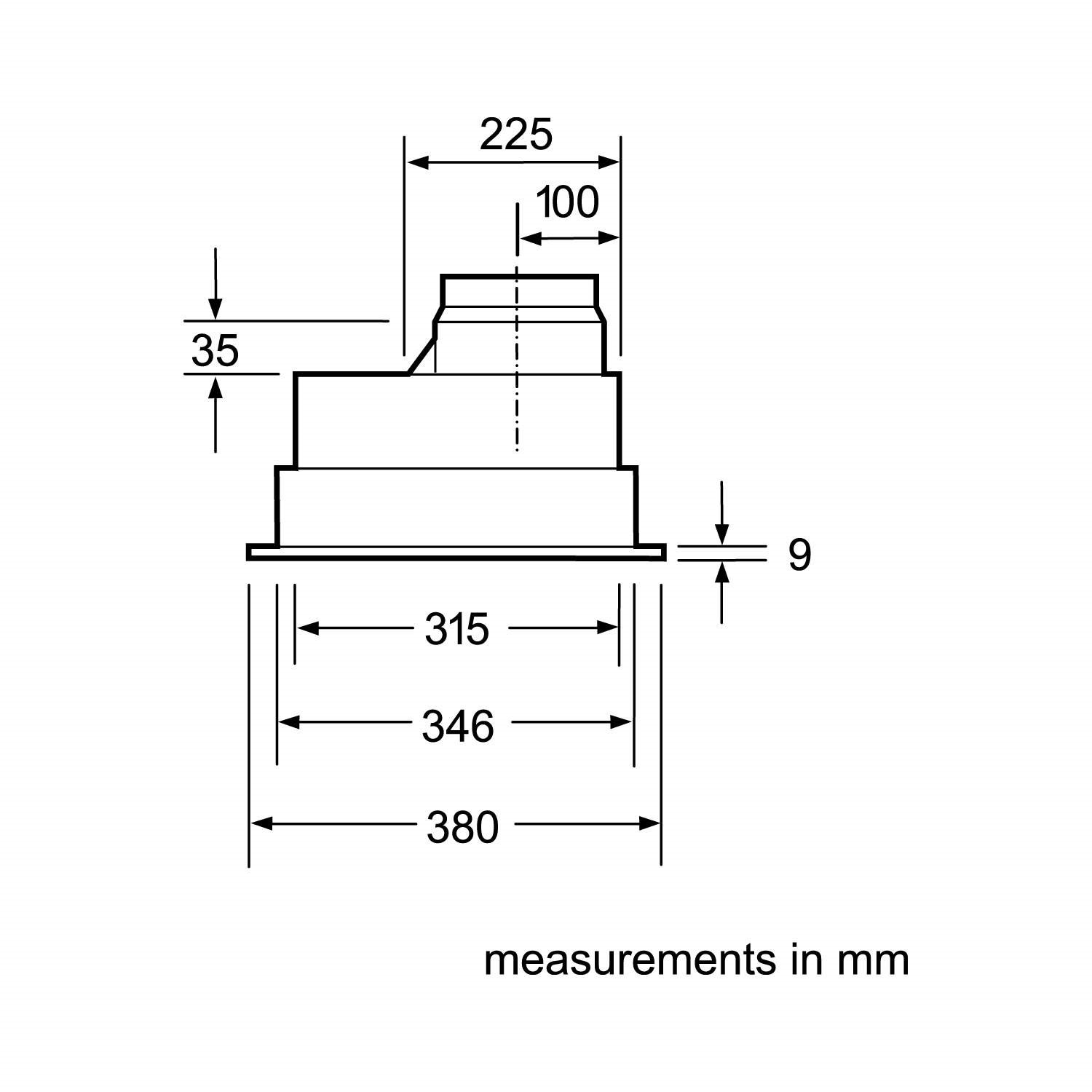

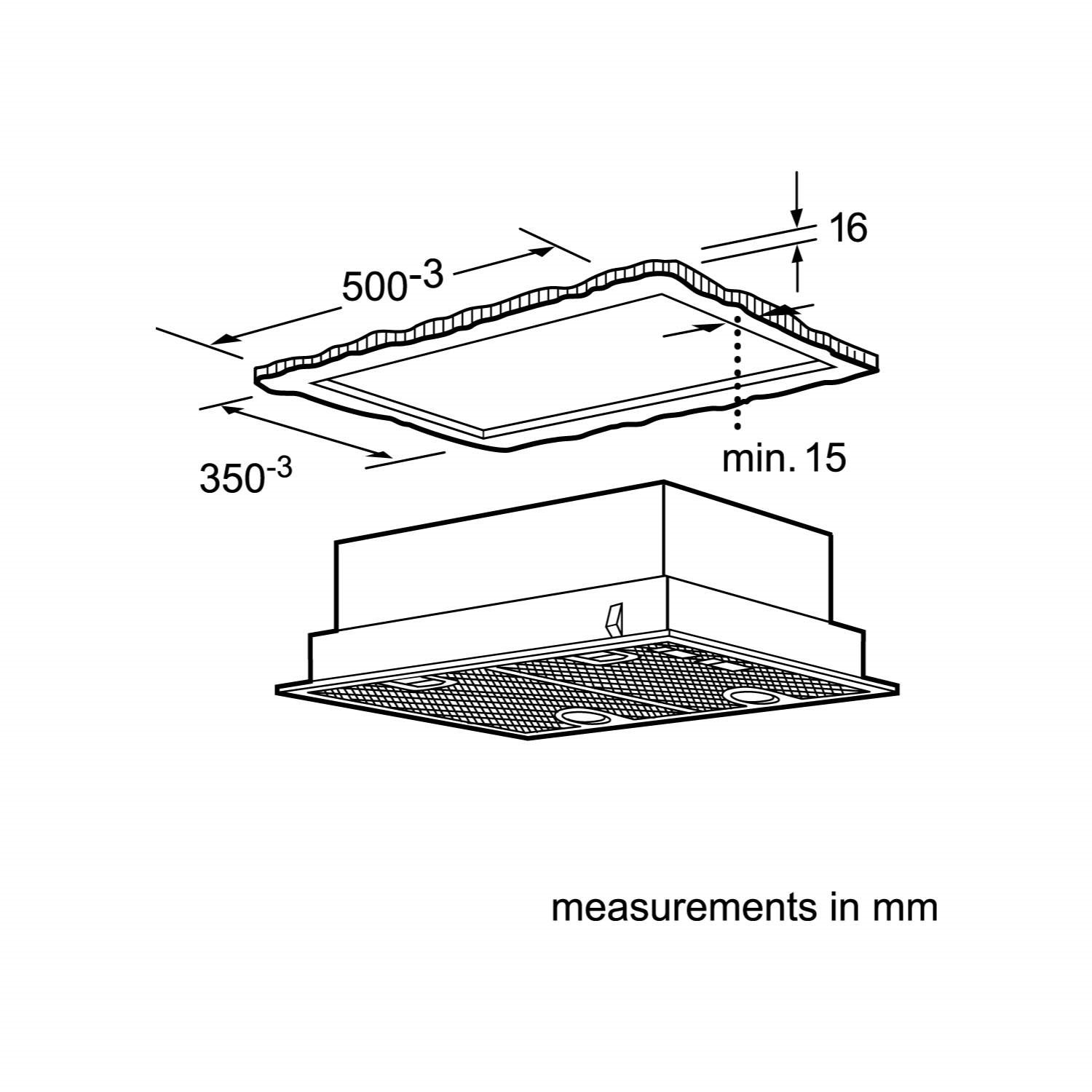

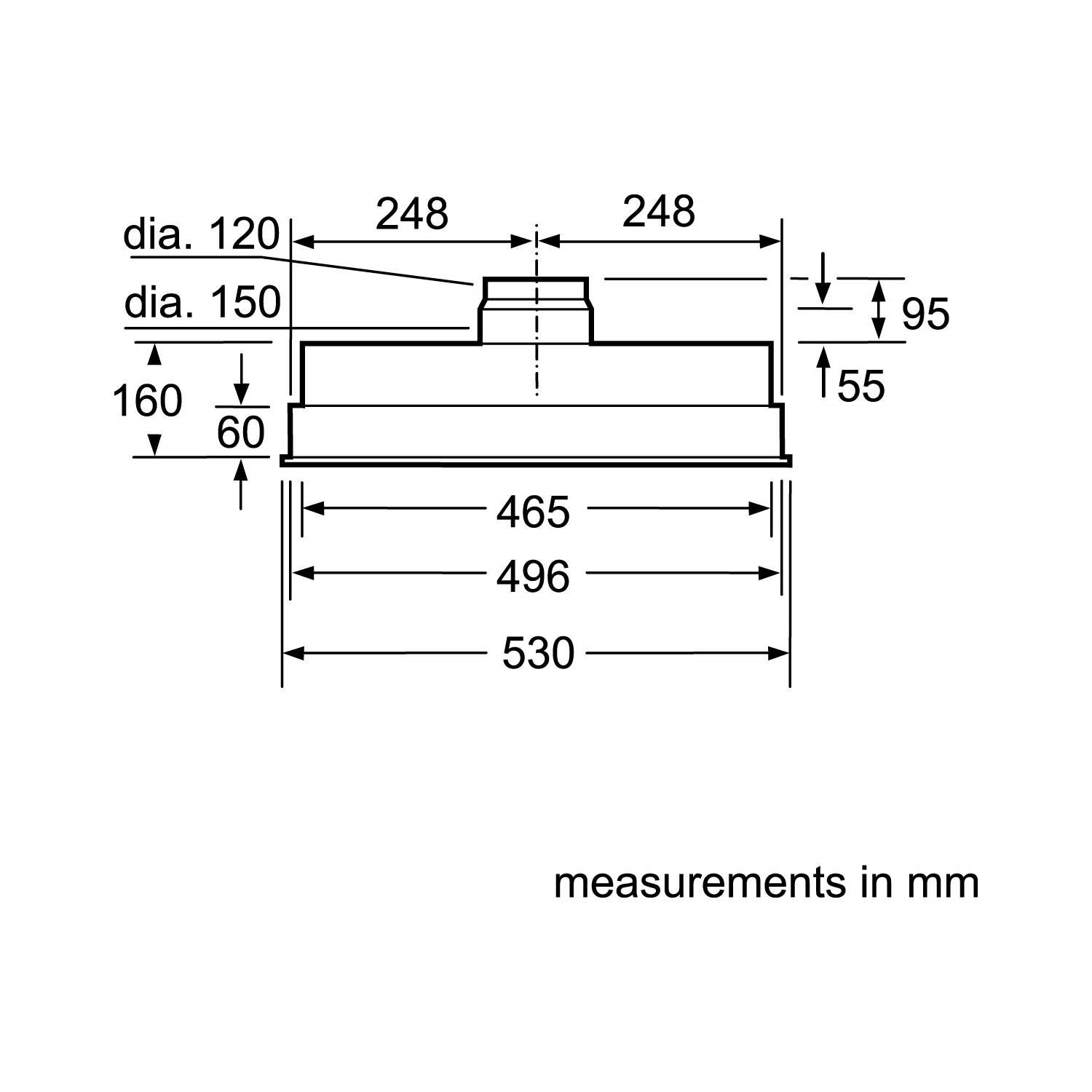

- Dimensions exhaust air (HxWxD): 255-255 x 530 x 380 mm
- Dimensions recirculating (HxWxD): 255-255 x 530 x 380 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Light Intensity: 335 lux
- Colour Temperature: 2800 K
- Optional accessories
- For recirculated extraction charcoal filter (accessory) needed
