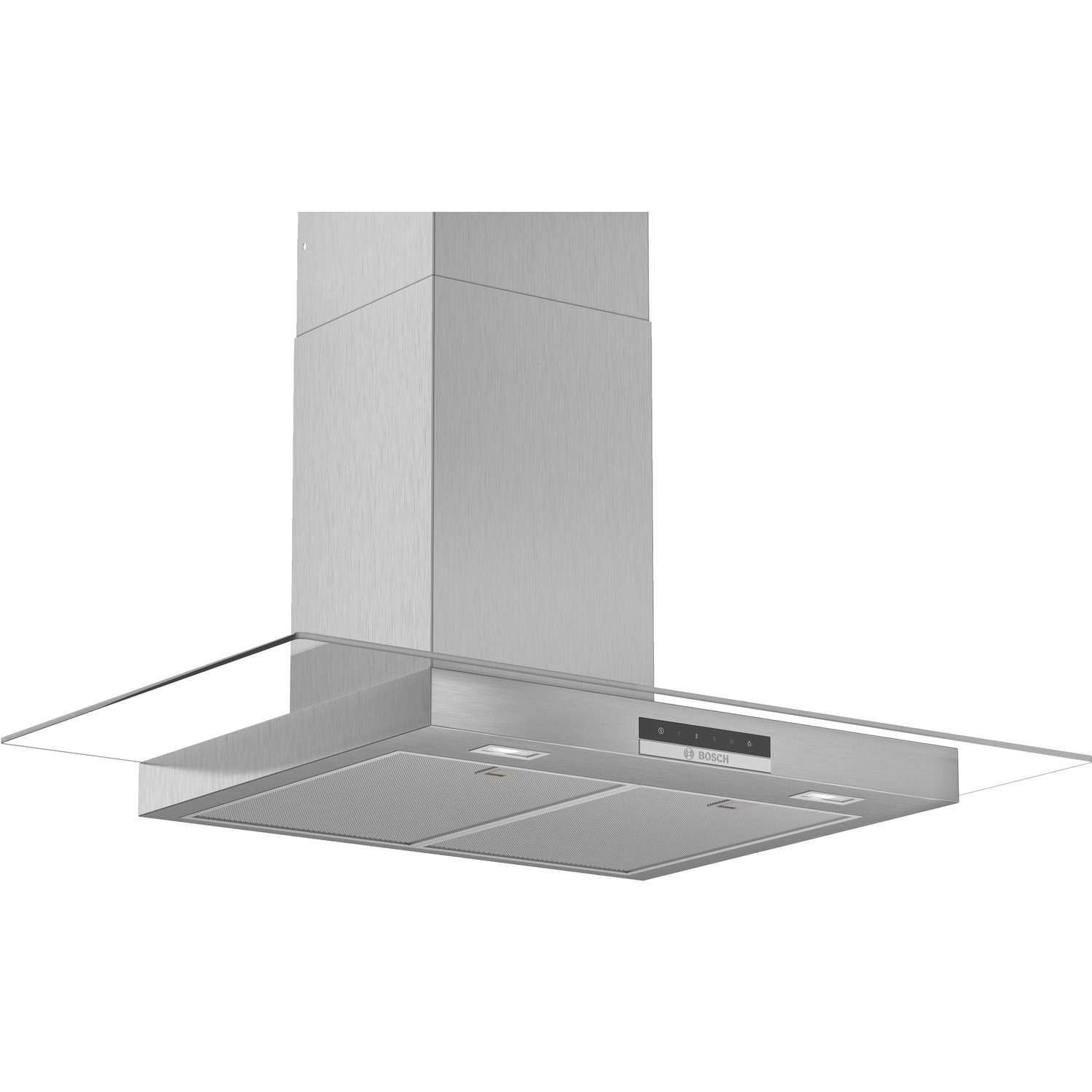

Bosch DWG96DM50B Serie 4 Touch Control 90cm Chimney Cooker Hood - Stainless Steel With Flat Glass Canopy

SKU: DWG96DM50B Quickfind Code: 1270167
SAVE 12%
Energy Label

Unsure what extraction rate you need? Use our handy calculator

Extraction Rate Calculator

Use our handy calculator, to help figure out exactly what extraction rate you require for your kitchen.

What are the kitchen dimensions?

What is an extraction rate?

Cooker hoods come with different extraction rates, which determine how quickly the air is changed in the kitchen. It’s recommended that your cooker hood should change the air around 10 times per hour. So, the larger the kitchen the higher the extraction rate.

The extraction rate your kitchen needs all depends on its size. The faster the extraction rate the faster the air will be cleaned, although the noise level may go up, so faster isn’t always better. Take a look at how to work out your extraction rate above.

This product is no longer available.

Still need help?

For help finding something similar, just give us a call on 0871 984 4416 *

* Calls cost 13p per min plus your network access charge

Key performance features:
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use 380 m³/h
  • Intensive 610 m³/h
  • Noise max. Normal Level: 61 dB*
Features

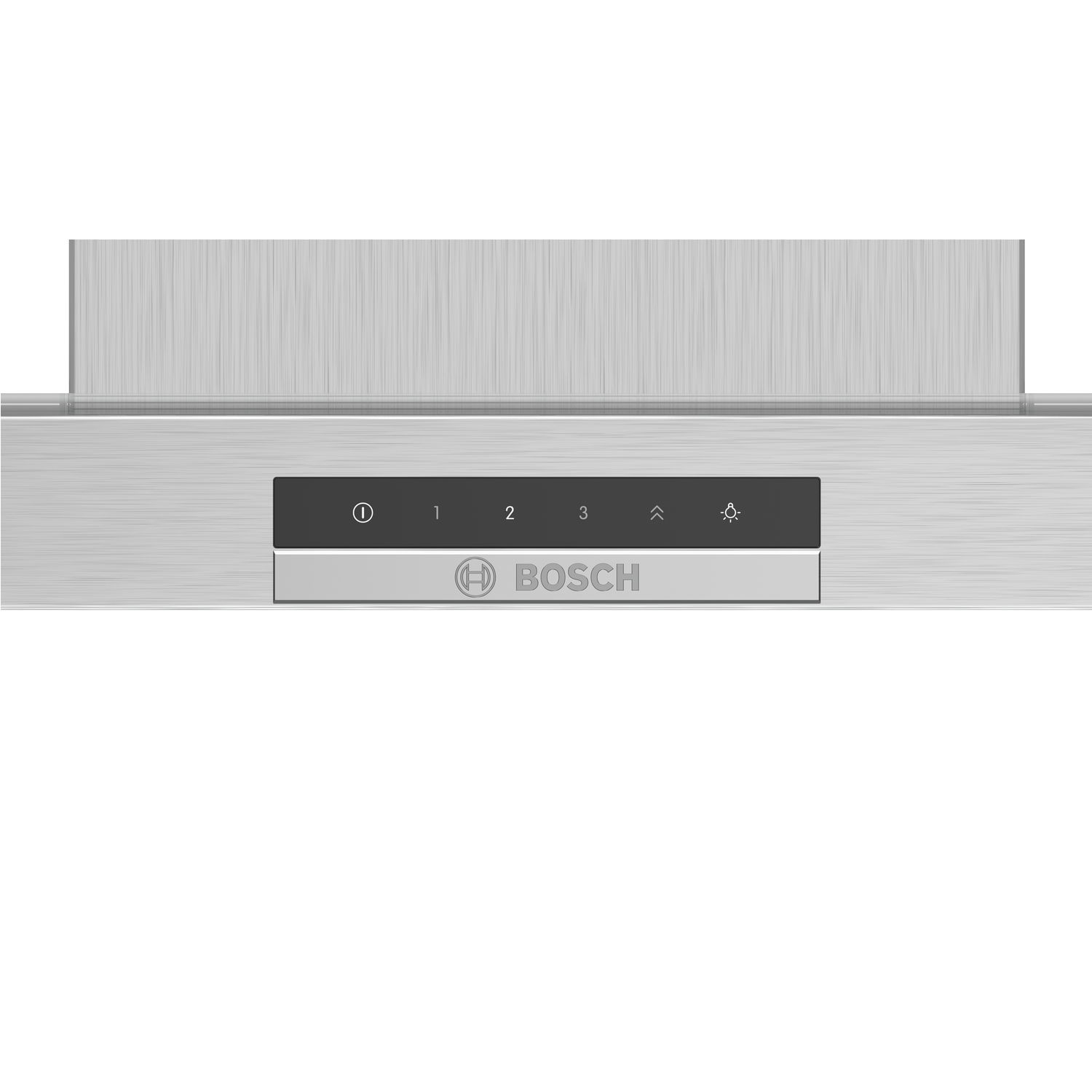

  • TouchControl with Electronic display
  • Electronic display
  • 3 power levels & intensive setting
  • 2 x 1.5W LED light
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6mins)

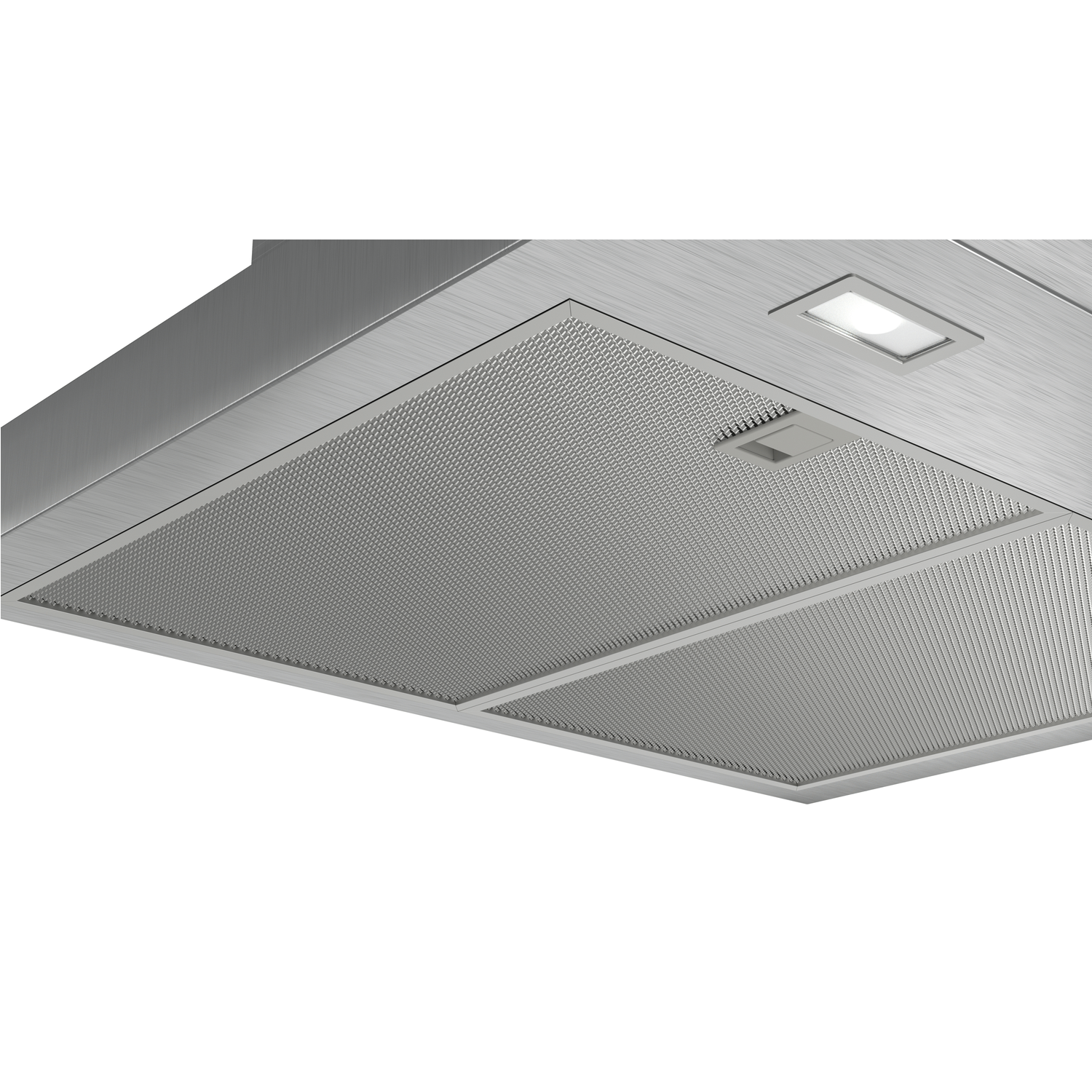

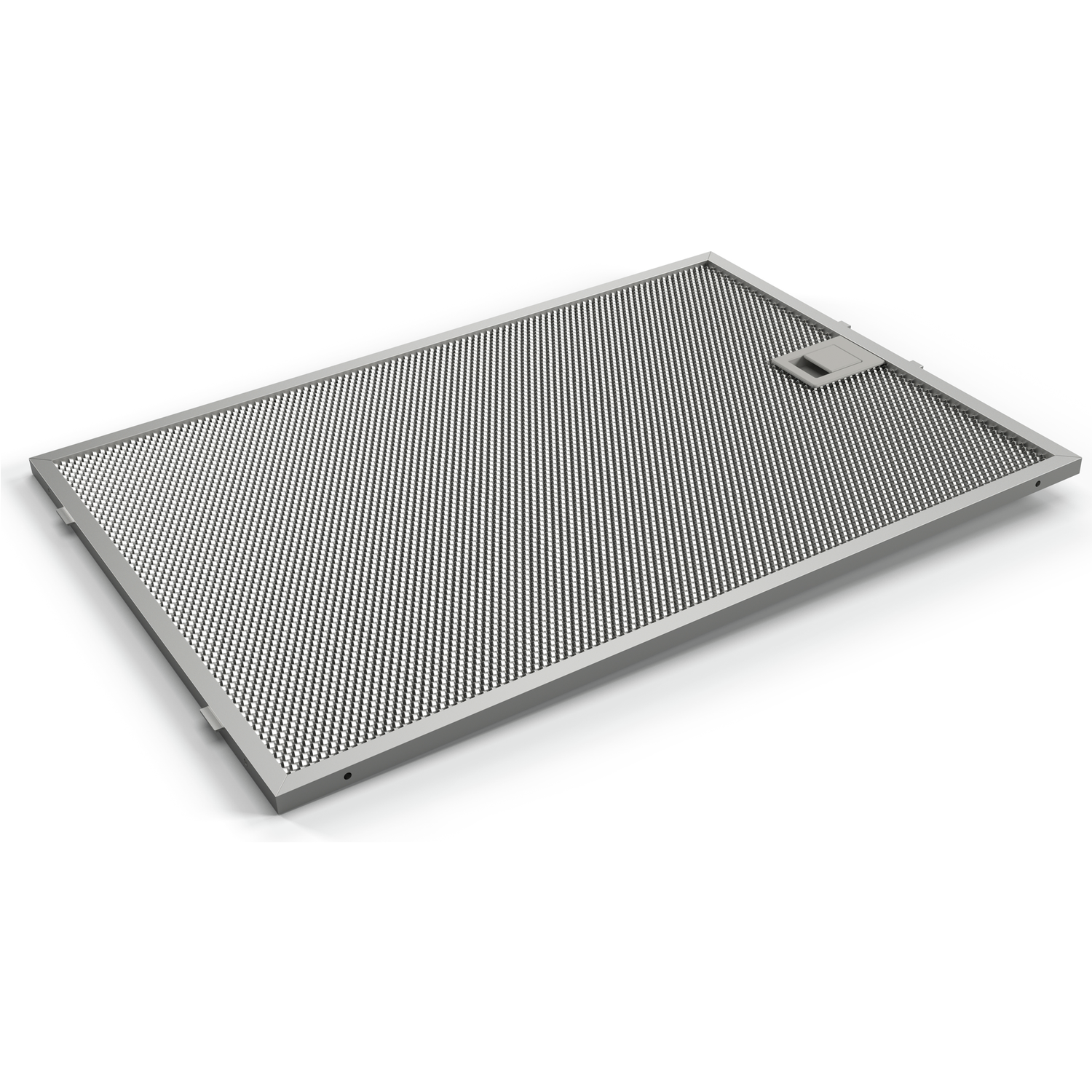

  • 2 removable metal grease filter cassettes

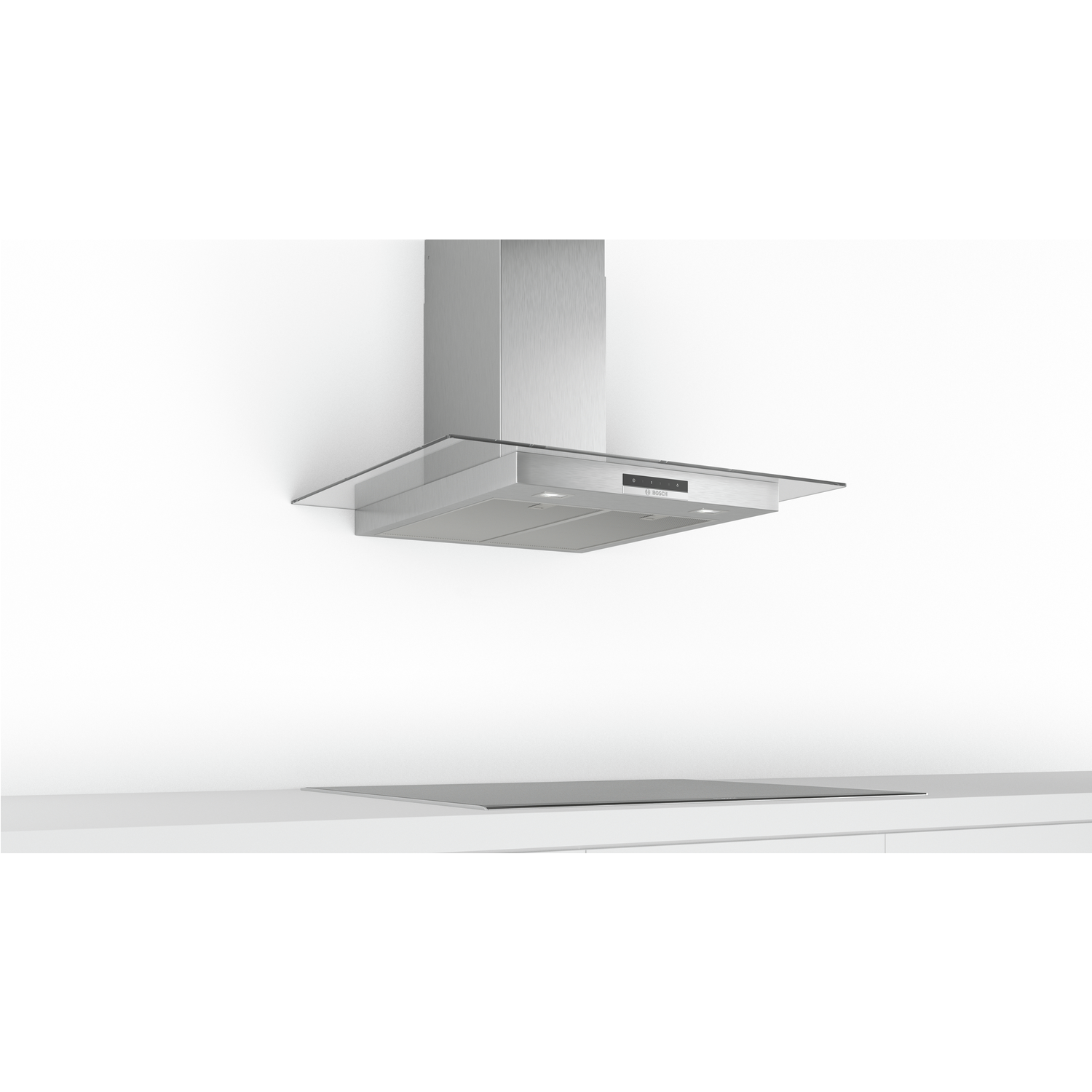

  • Designed for wall mounted installation
Design
  • Brushed steel
  • Glass design
  • Chimney extractor hood
  • TouchControl
  • Electronic control
Performance/technical information
  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
  • Max. extraction rate: 610 m3/h
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use 380 m³/h
  • Intensive 610 m³/h
  • Extraction rate in recirculation mode:
  • Max. normal use: 290 m³/h
  • Intensive: 360 m³/h
  • Noise max. Normal Level: 61 dB*
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use: 61 dB(A) re 1 pW (49 dB(A) re 20 µPa sound pressure)
  • Intensive: 69 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)
  • Noise levels in recirculation mode:
  • Max. normal use: 71 dB(A) re 1 pW (59 dB(A) re 20 µPa sound pressure)
  • Intensive: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure)
  • Power rating: 220 W
  • Light Intensity: 221 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

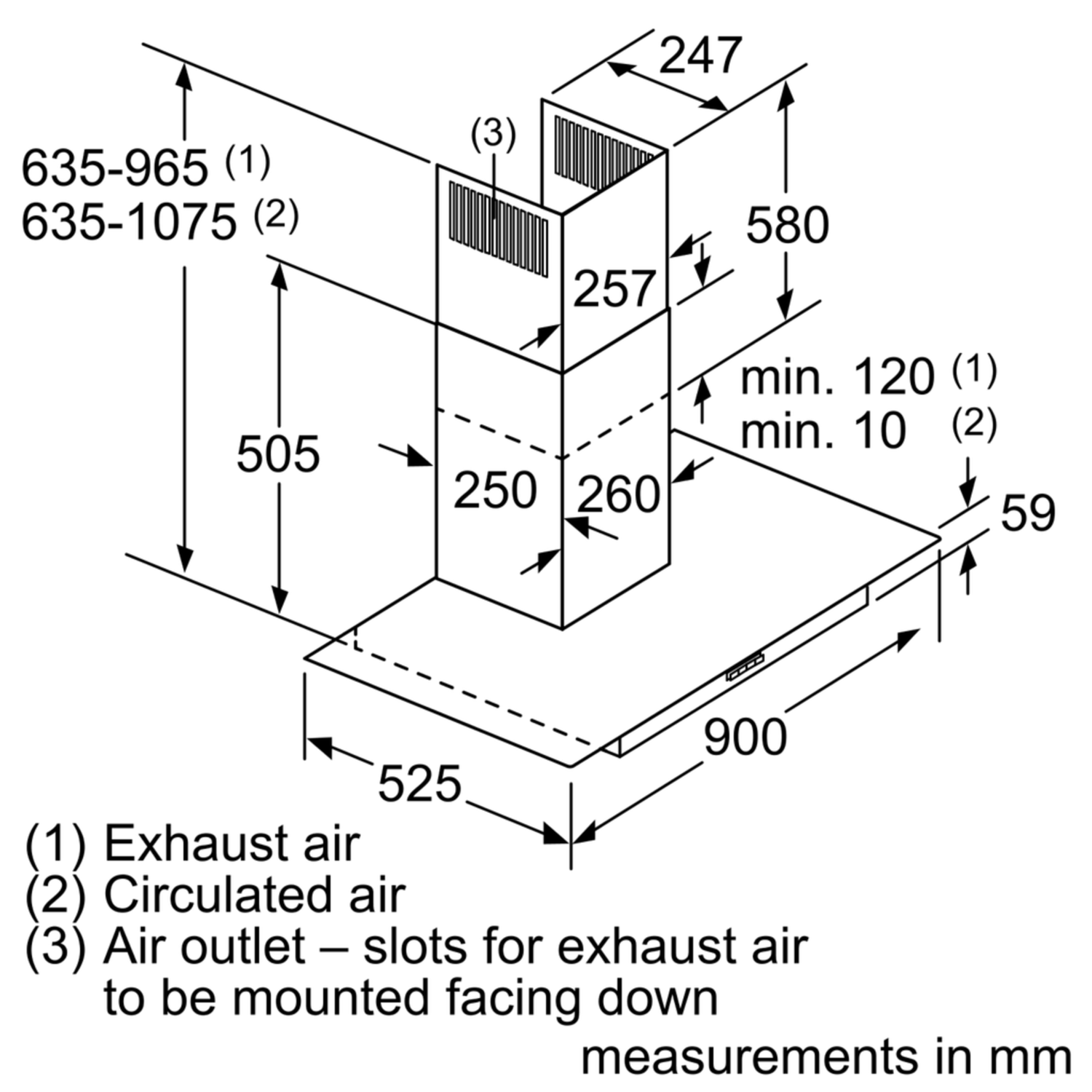

  • Dimensions exhaust air (HxWxD): 635-965 x 900 x 525 mm
  • Dimensions recirculating (HxWxD): 635-1075 x 900 x 525 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
  • 703 x 900 x 525 mm - mounting with outer chimney
  • 833-1163 x 900 x 525 mm - mounting with telescopic chimney
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
  • Average Energy Consumption: 44 kWh/year*
Optional accessories
  • Recirculating kit
