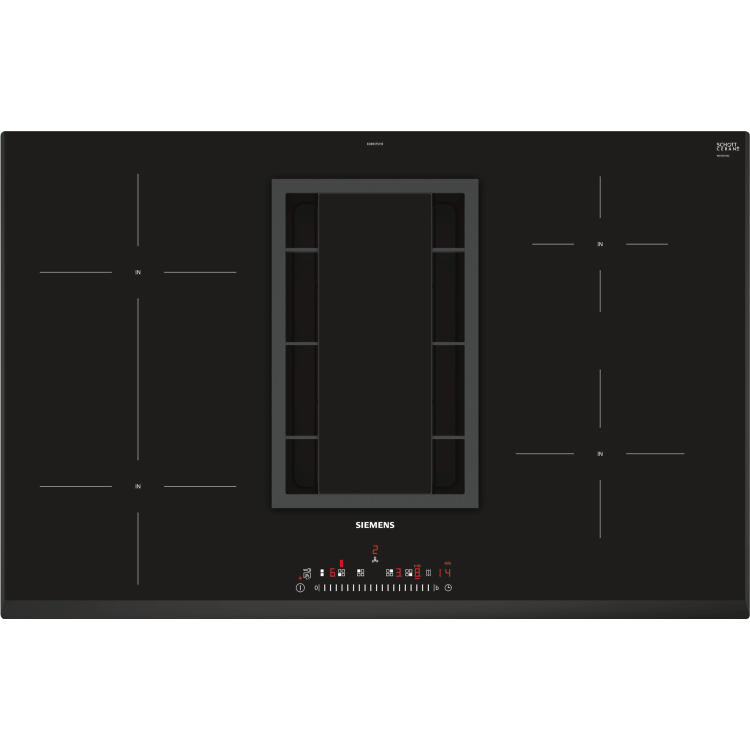

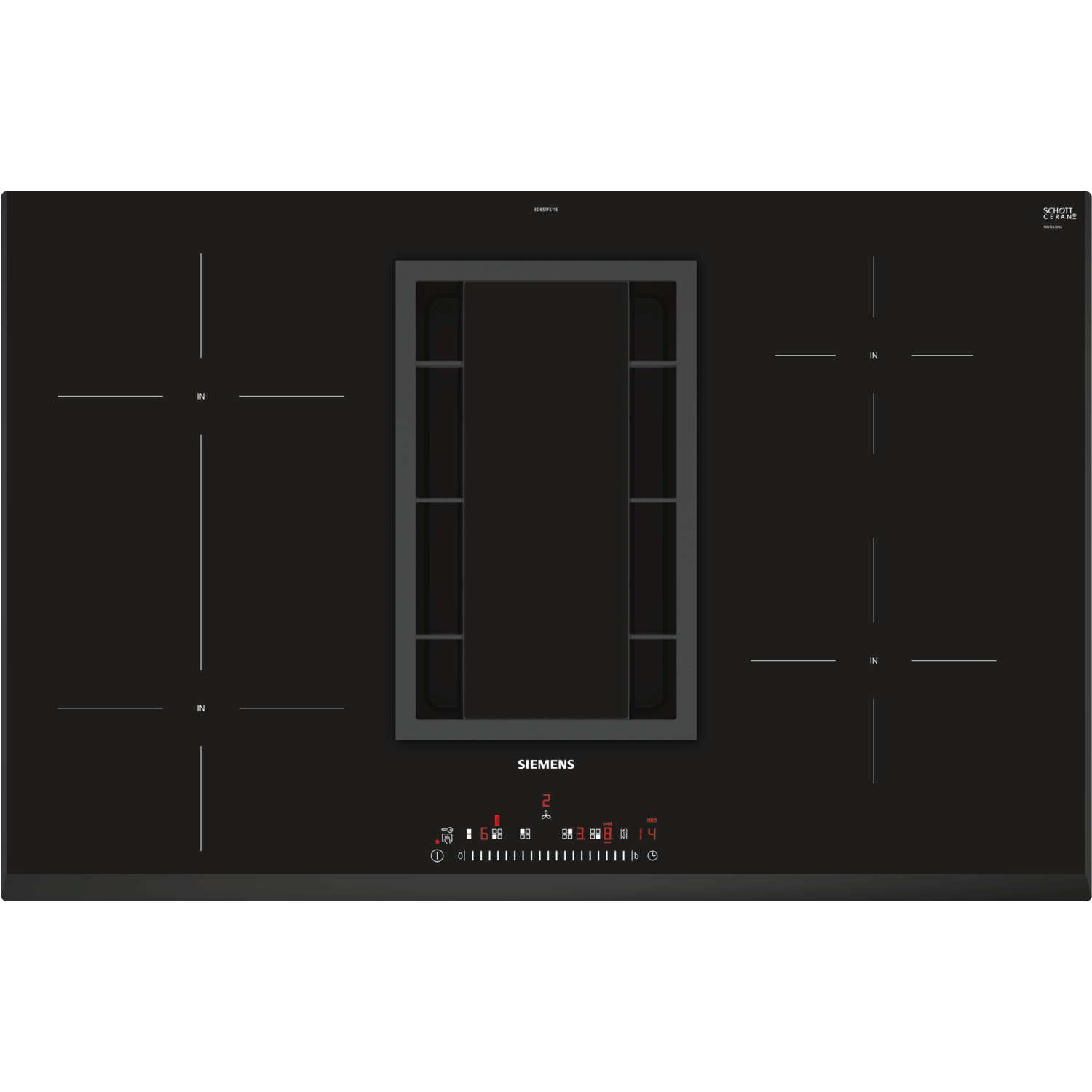

Siemens ED851FS11E iQ500 80cm Wide 4 Zone Induction Hob With Built-in Downdraft Extractor - Black ED851FS11E

Quickfind: 1283542 SKU: ED851FS11E

Product Information

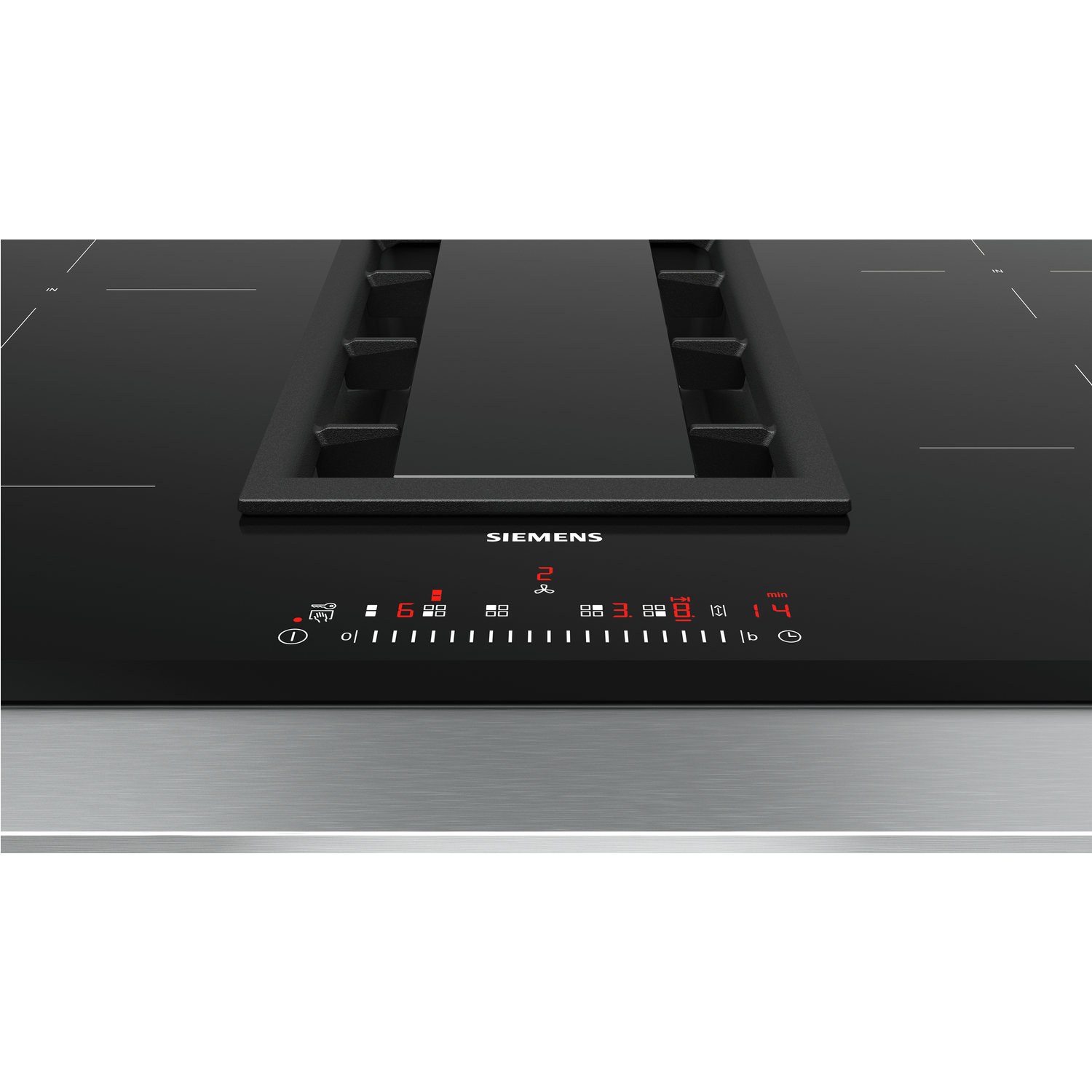

Control:

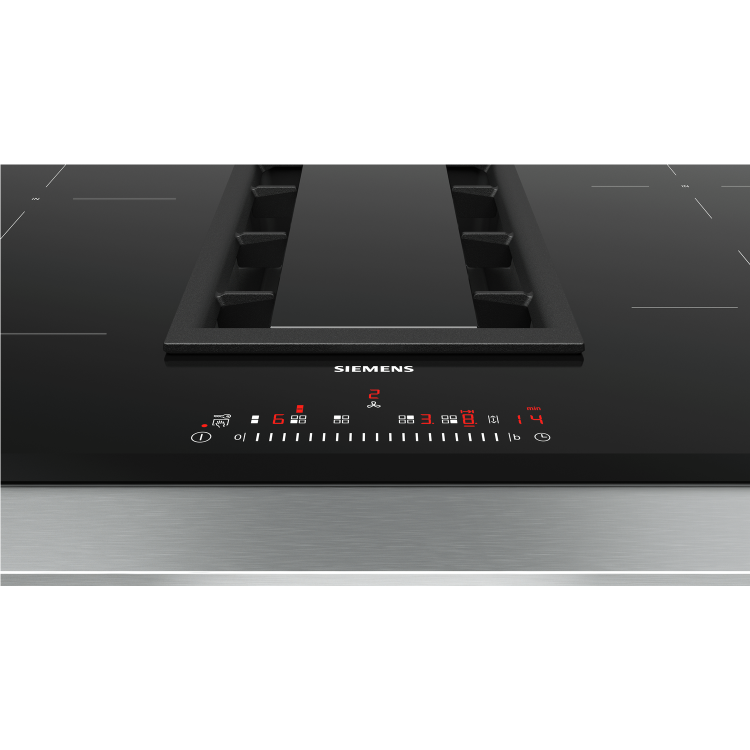

  • touchSlider control
Special features
  • combiZone
  • 4 induction cooking zones
  • reStart function
  • Timer for all zones
  • Acoustic signal
  • 17 power levels
  • Power boost setting
  • Energy Consumption Display
Performance/technical information
  • High-performance blower, Efficient BLDC-technology
  • Suitable for ducted or re-circulated extraction (Accessory is respectively needed)
  • Fully-automatic extraction functionality with climateControl sensor
  • 9 speeds plus 1 intensive
  • Automatic 30 minutes after running
  • Cast-iron air inlet grid, heat resistant, dishwasher safe
  • Saturation indicator for cleanAir odour filter
  • Removable and detachable grease filter and liquid collector unit, dishwasher safe
  • - integrated stainless steel grease filters, dishwasher safe
  • - condensate and liquid collector unit; ca. 200ml capacity; dishwasher safe
  • Polymer liquid spillover safety tank, ca. 2.000ml capacity, Twist-off lock, dishwasher safe
  • For ducted extraction kit, accessory HZ381400 needed
  • For recirculated extraction cleanAir kit, accessory HZ381500 needed
Safety Features
  • Automatic pan recognition
  • Connection current management (20, 16, 13, 10 Amps options)
  • Automatic safety switch off
  • Control panel lock
  • Control panel pause
  • 2 stage residual heat indicators
  • Main on/off switch
Technical information
  • Cooking zones: 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 145 mm, 1.4 KW (max. Power levels 2.2 KW) Induction;1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction
  • Energy Efficiency Class: A
  • Average Energy Consumption: 53.5 kWh/year
  • Blower Efficiency Class: A
  • Grease Filtering Efficiency Class: B
  • Extraction rate according to EN 61591:
  • - min. Normal use 150m³/h
  • - max. Normal use 550 m³/h
  • - Intensive setting 690 m³/h
  • Noise min./max. Normal Level: 39/69 dB
  • Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
  • - Min. normal use: 39 dB(A) re 1 pW (25 dB(A) re 20 µPa sound pressure)
  • - Max. normal use: 69 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
  • - Intensive: 76 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
  • Performance in re-circulated extraction:
  • - min. normal setting 139 m3/h
  • - max. normal setting 557 m3/h
  • - Boost-/Intensive setting 630 m3/h
  • Noise level in re-circulated extraction:
  • - min. normal setting 42 dB(A) re 1 pW (31 dB(A) re 20 µPa sound pressure)
  • - max. normal setting 74 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
  • - Boost-/Intensive setting 75 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
  • Grease filter efficiency: 90 %
  • Odour reduction rate: 85 %
  • Connection cable (1.1 M )
  • Large-scale stainless-steel grease filters with 12 layers for high grease filtration efficiency (up to 90% odour reduction)
  • Connected load: 6.9 kW
  • Cable included in packaging

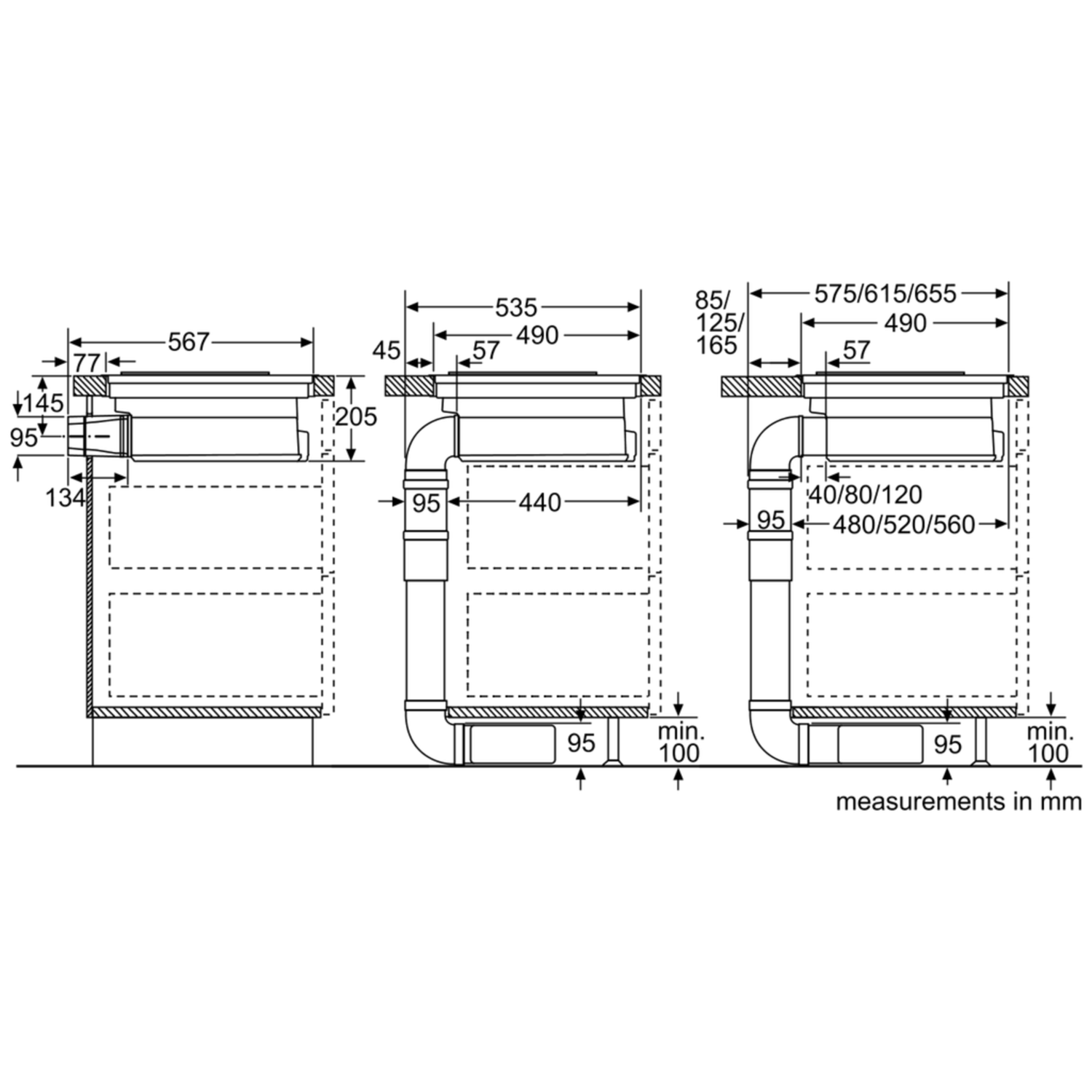

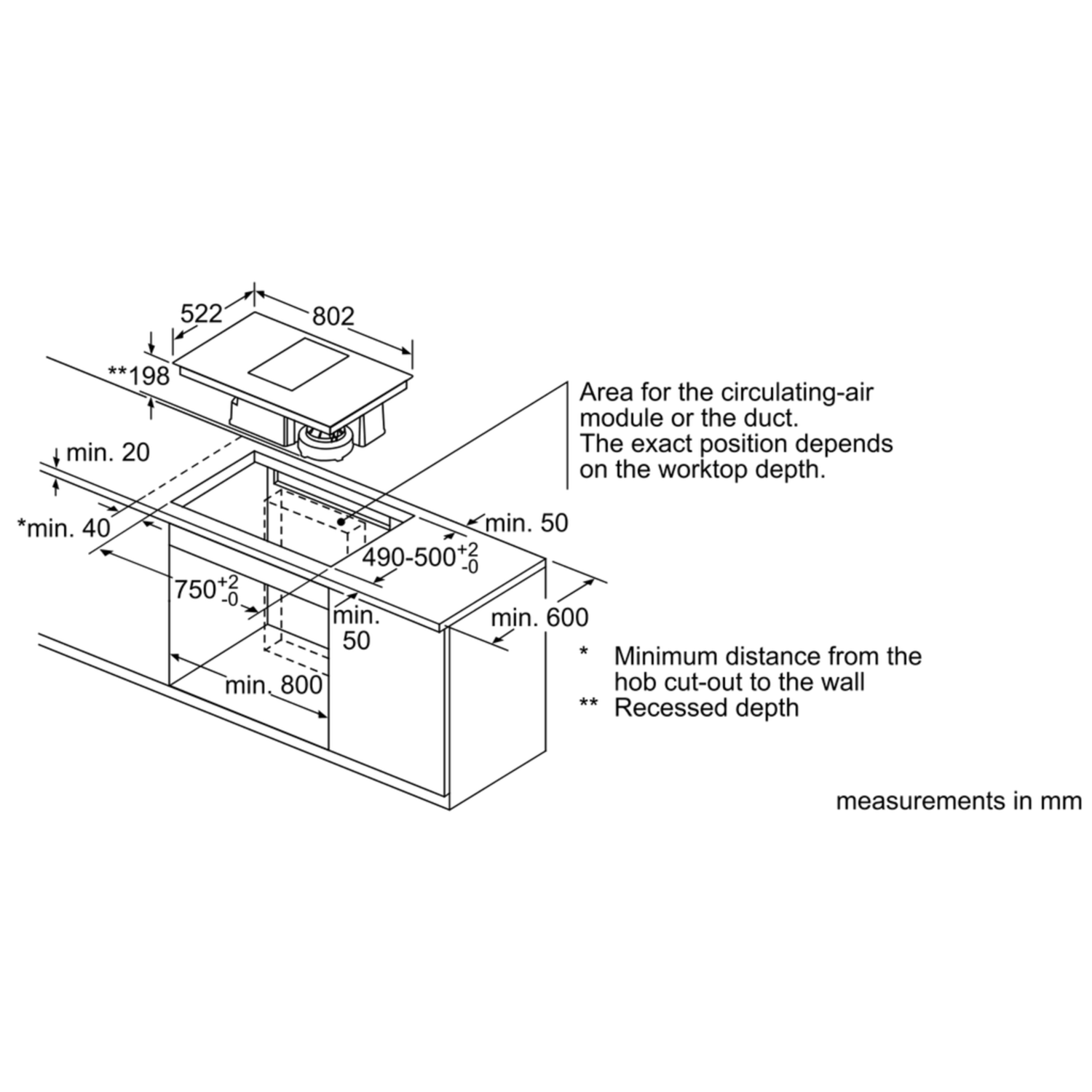

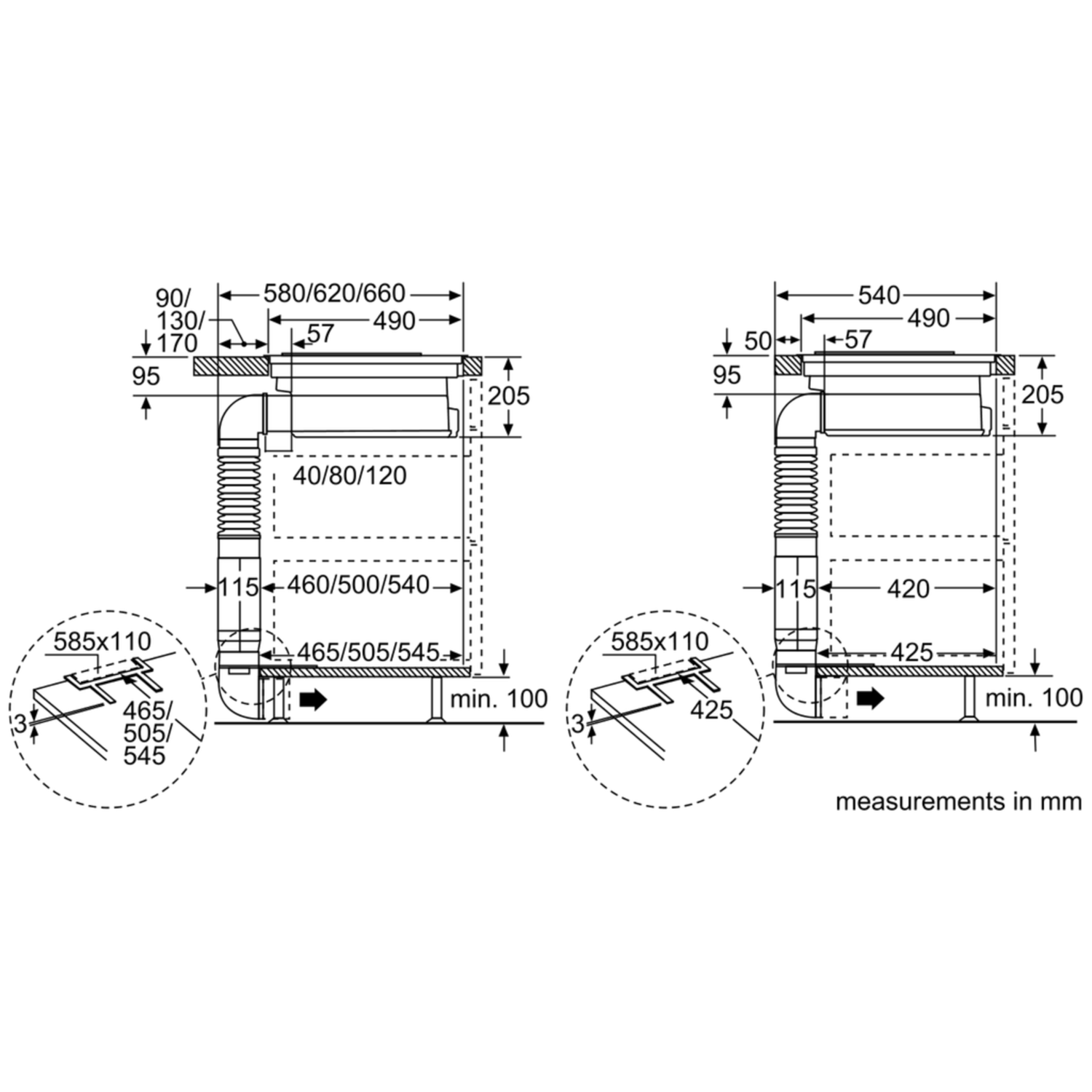

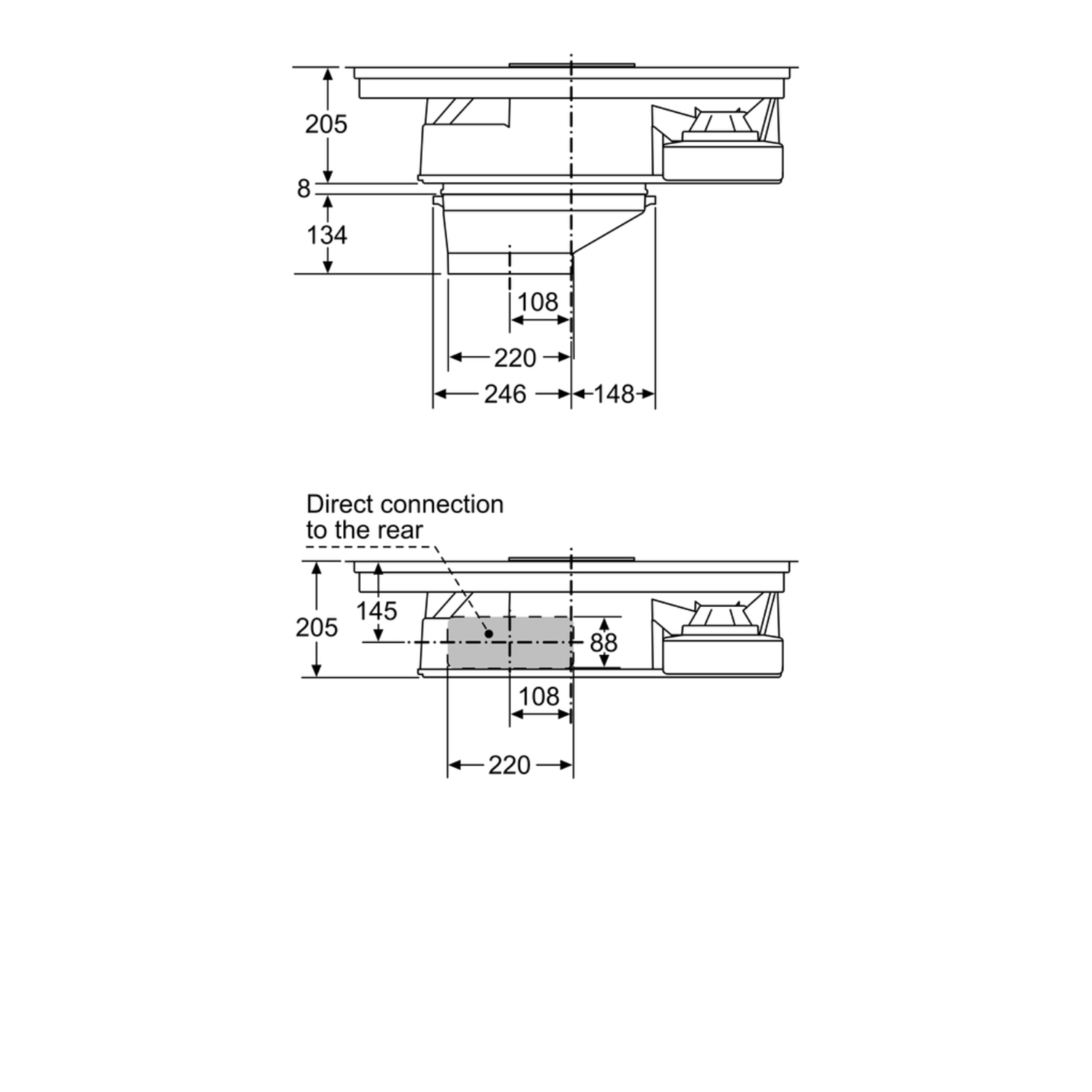

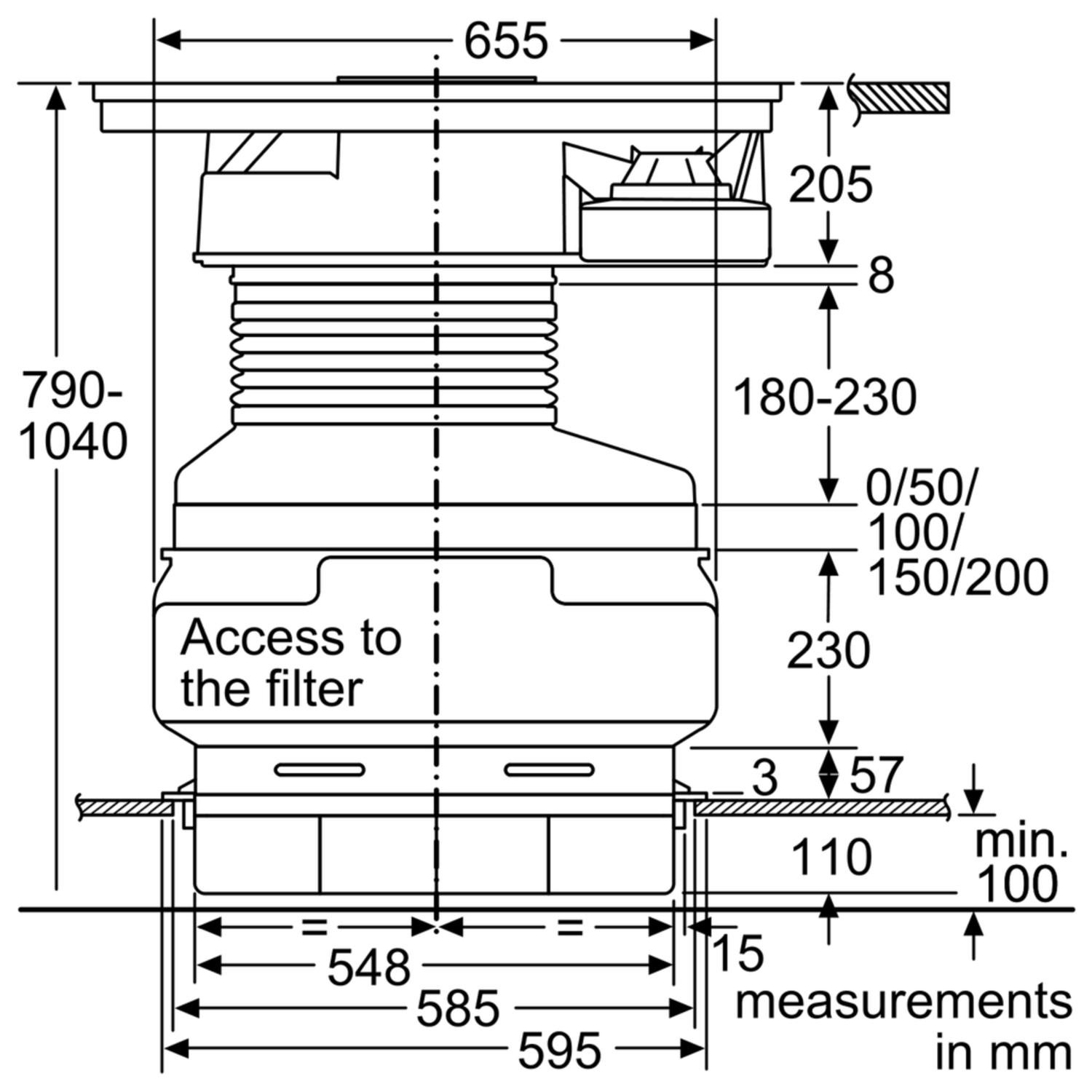

Installation Advice
  • Base cupboard width: min. 80 cm.
  • Min. worktop thickness: 20 mm
  • Worktop depth: min. 60 cm (with shortened drawers), max. drawer's depth can be used starting with a worktop depth of 70 cm.
  • Immersion depth: 19.8 cm
  • Modules for ducted extraction or re-circulated extraction must be ordered separately as special accessory.
  • Installation measurements: 750 mmx490 mm
