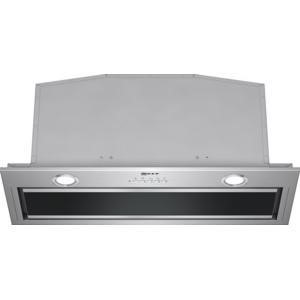

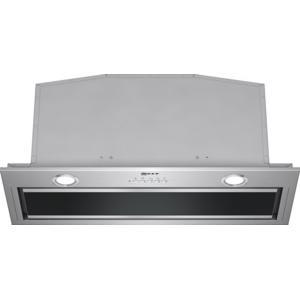

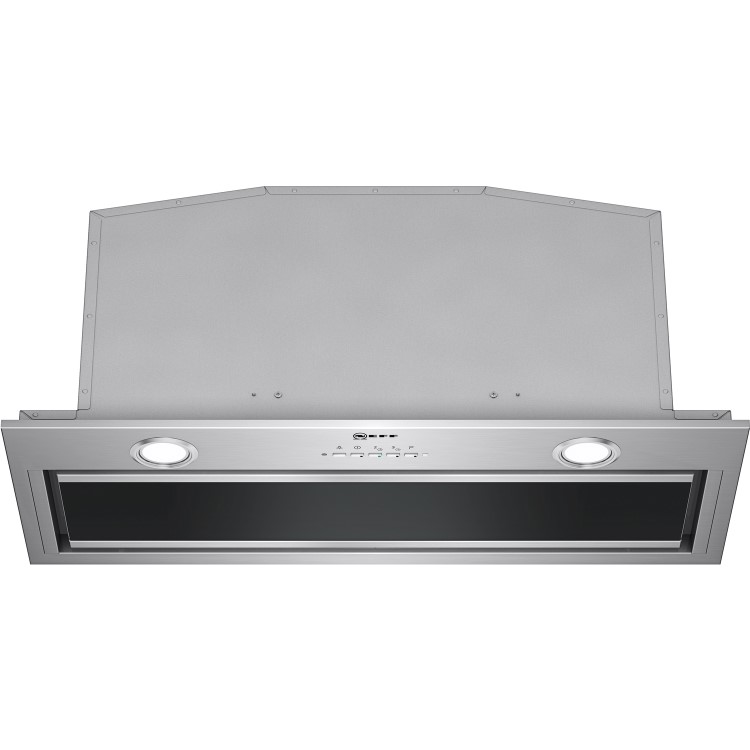

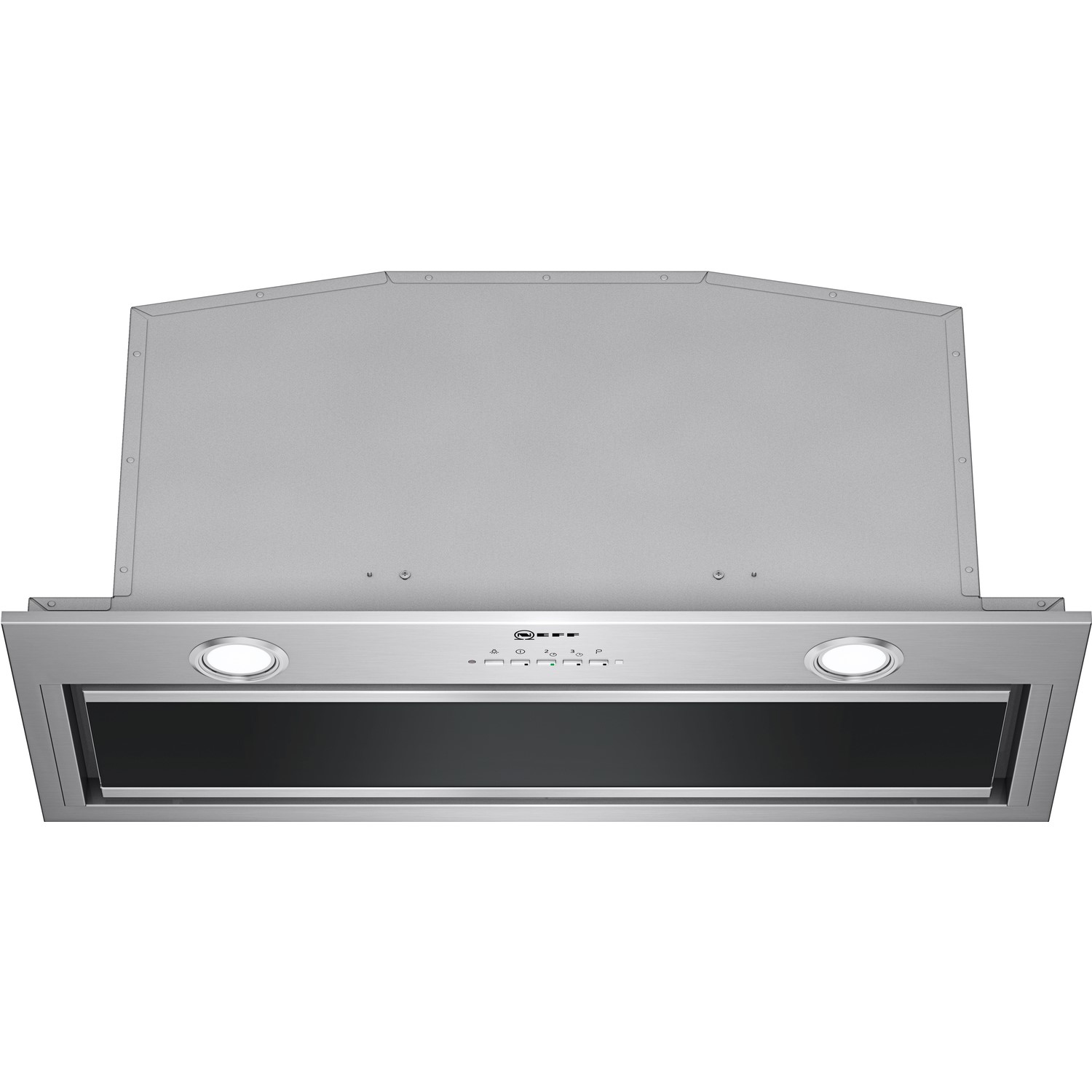

Canopy hood: designed to fit neatly under an overhead unit or cabinet. They're discreet and effectively use valuable space.
Key Features
- LED lighting: a clear illumination whilst cooking thanks to the energy-saving LED lights
- Intensive speed setting: increases the extraction rate when the steam gets intense
- High extraction rate: Ensures a clear view while cooking thanks to efficient motor technology as either a ducted or recirculating solution
Features

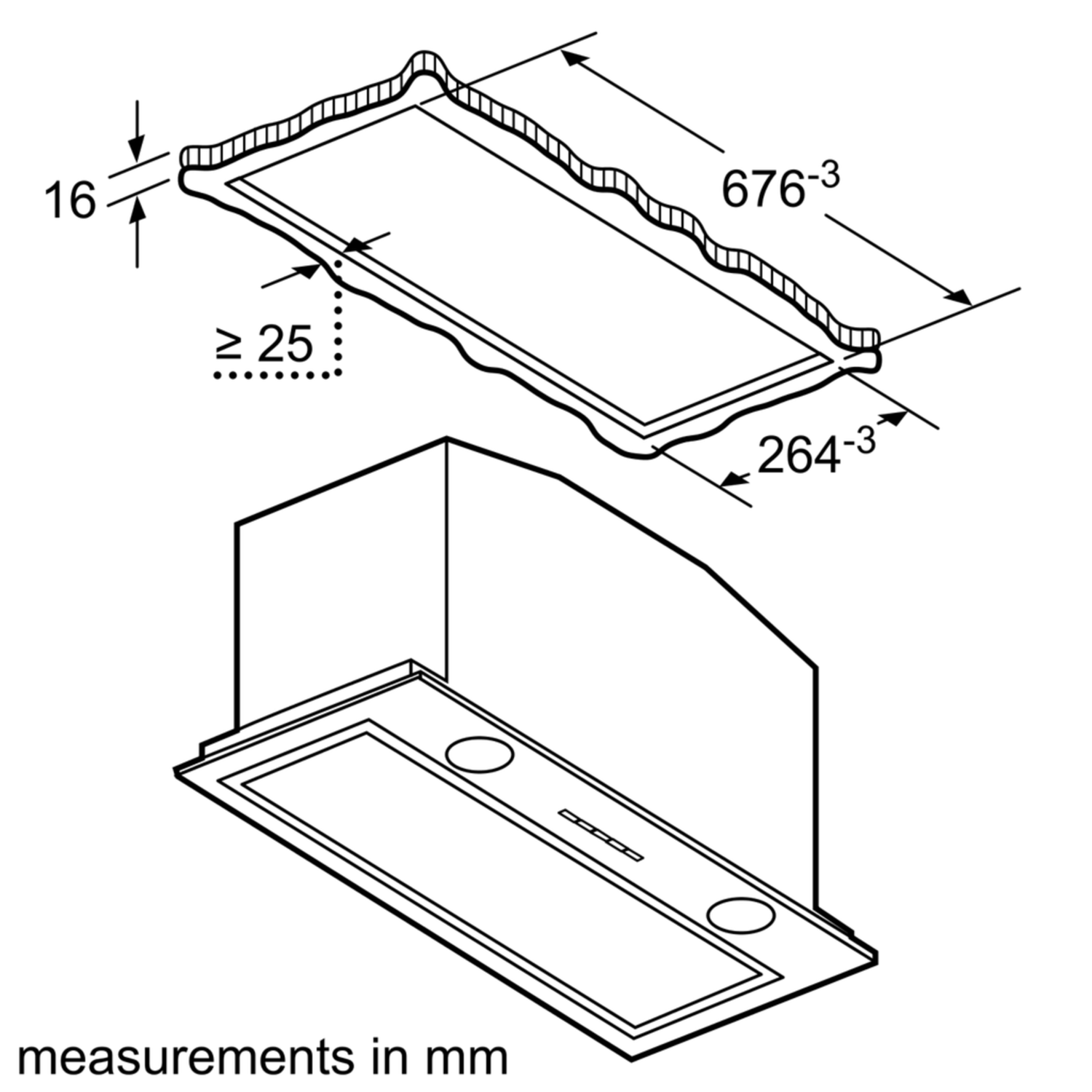

- For installation in a kitchen cabinet
- LED display
- 2 x 1W LED lights
- softLight with dimmer function
- 2 metal grease filter cassettes
- Saturation indicator for grease filter
- Filter cover glass, metal grease filter
- Interval operation
- 3 speeds plus intensive
- (30 minutes)
- Automatic intensive revert (6mins)
- EfficientDrive BLDC technology
- Rim ventilation
Design
- Stainless steel
- Stainless steel with glass canopy
- 70 cm wide Canopy hood
- Standard design
- Soft touch control
- Electronic controls
- Light Colour: warm white
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction charcoal filter (accessory) needed
- Twin channel high performance fan motor
- In recirculation operation chimless use possible
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 570 m³/h
- Intensive 770 m³/h
- Power rating: 272 W
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 65 dB (A) re 1pW
- Noise max. Normal Level: 65 dB*
- Light Intensity: 244 lux
- Colour Temperature: 4000 K
- Electrical cable lenght 1.5 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

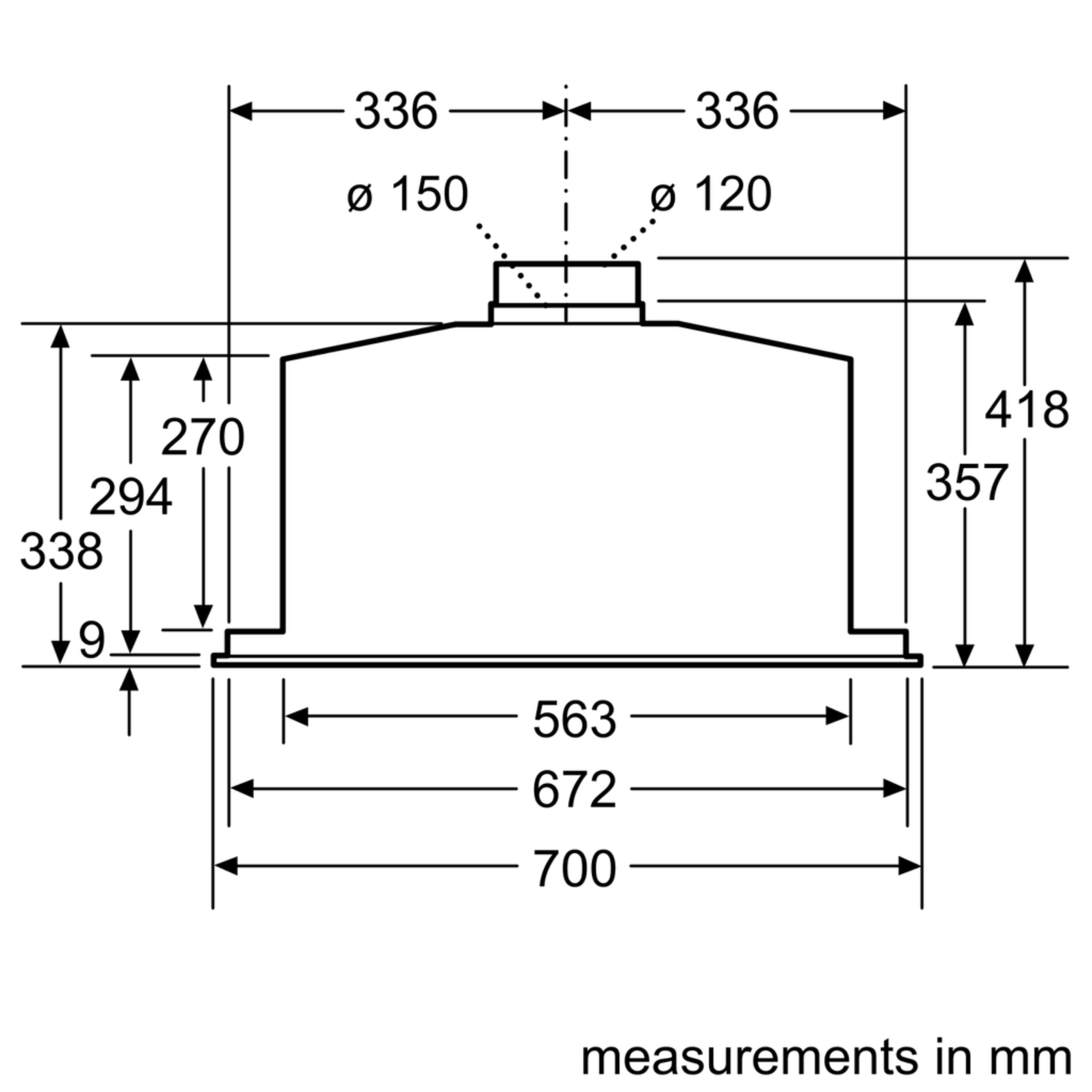

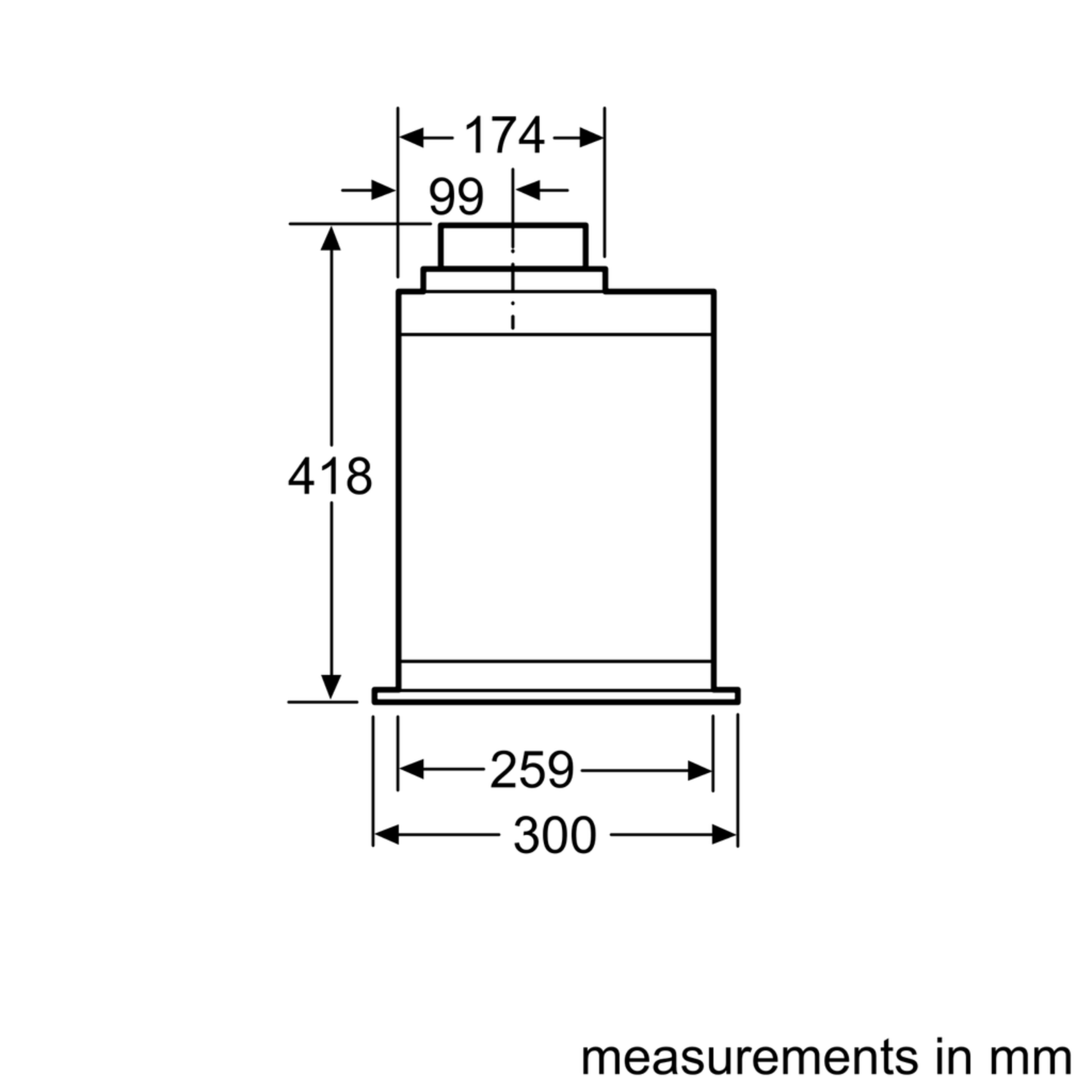

- Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm
- Dimensions recirculating (HxWxD): 418-418 x 700 x 300 mm
- Energy Efficiency Class: A*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 49.1 kWh/year*
- Optional accessories
- Recirculating kit
