All about me

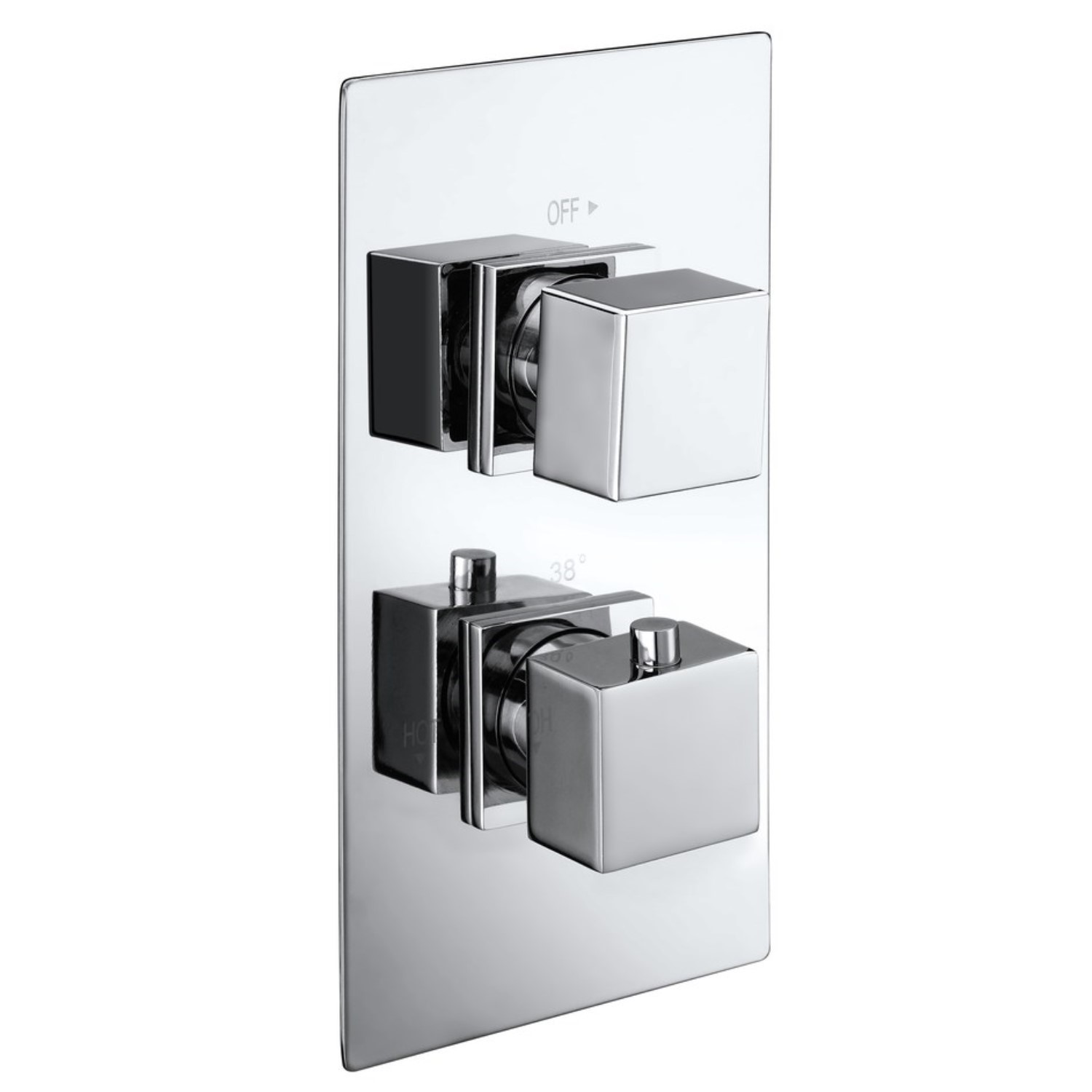

This Cube Square Twin Shower Valve adds a sleek minimalistic touch to any shower. With a modern chrome finish, this valve will suit most of our shower sets to help you build your ideal suite. The electroplated finish strengthens the tap's resistance to rust and corrosion, boosting longevity and endurance.
Need to know
- Tap Type: Shower Valve

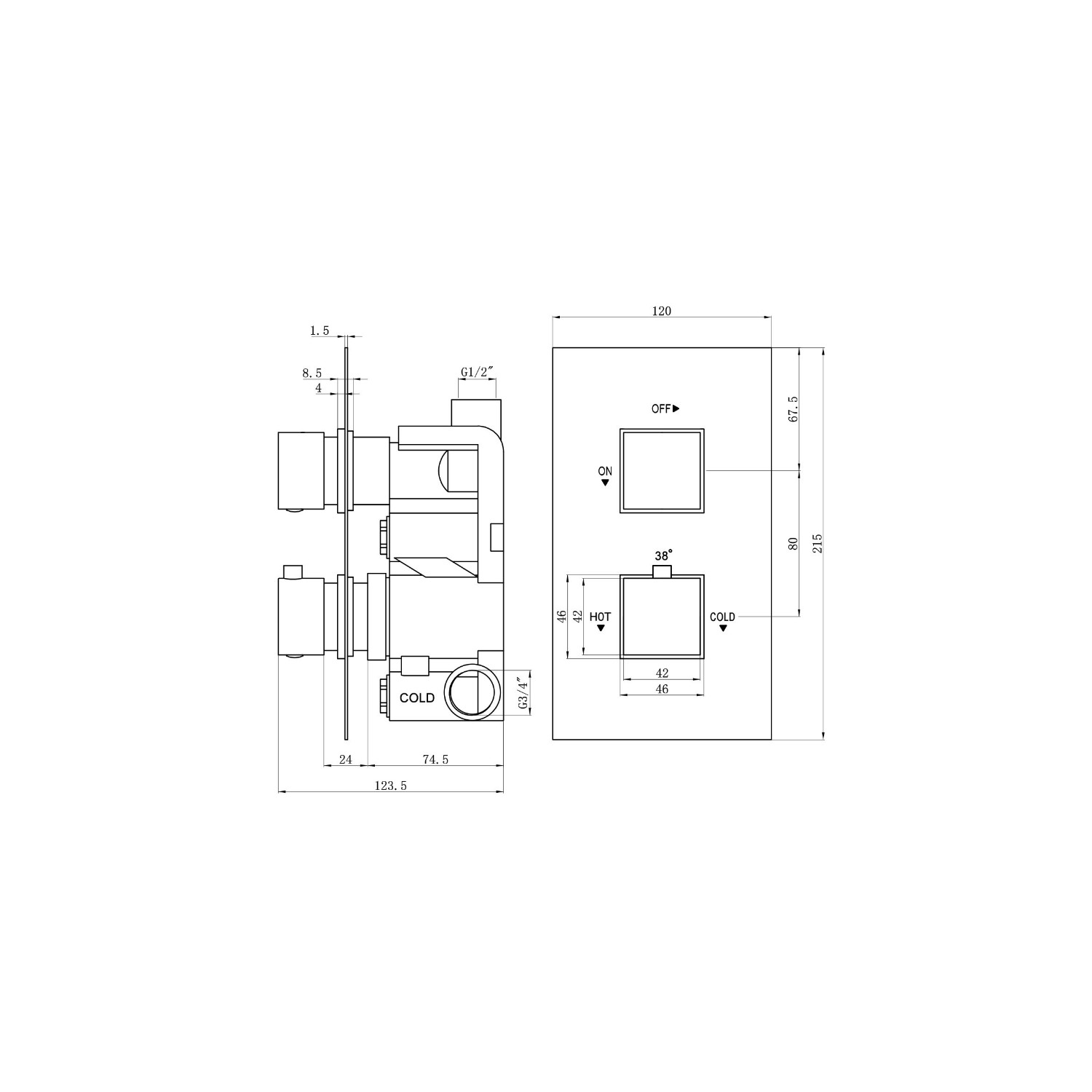

- Dimensions: H215 x W120 x D123.5mm
- Material: Brass
- Weight: 2.1kg
- Valve Type: Concealed
- Outlet Size: G 1/2"
- Inlet Size: G 3/4"
- Colour: Chrome
- Finish: Polished
- Finish process: Electroplating

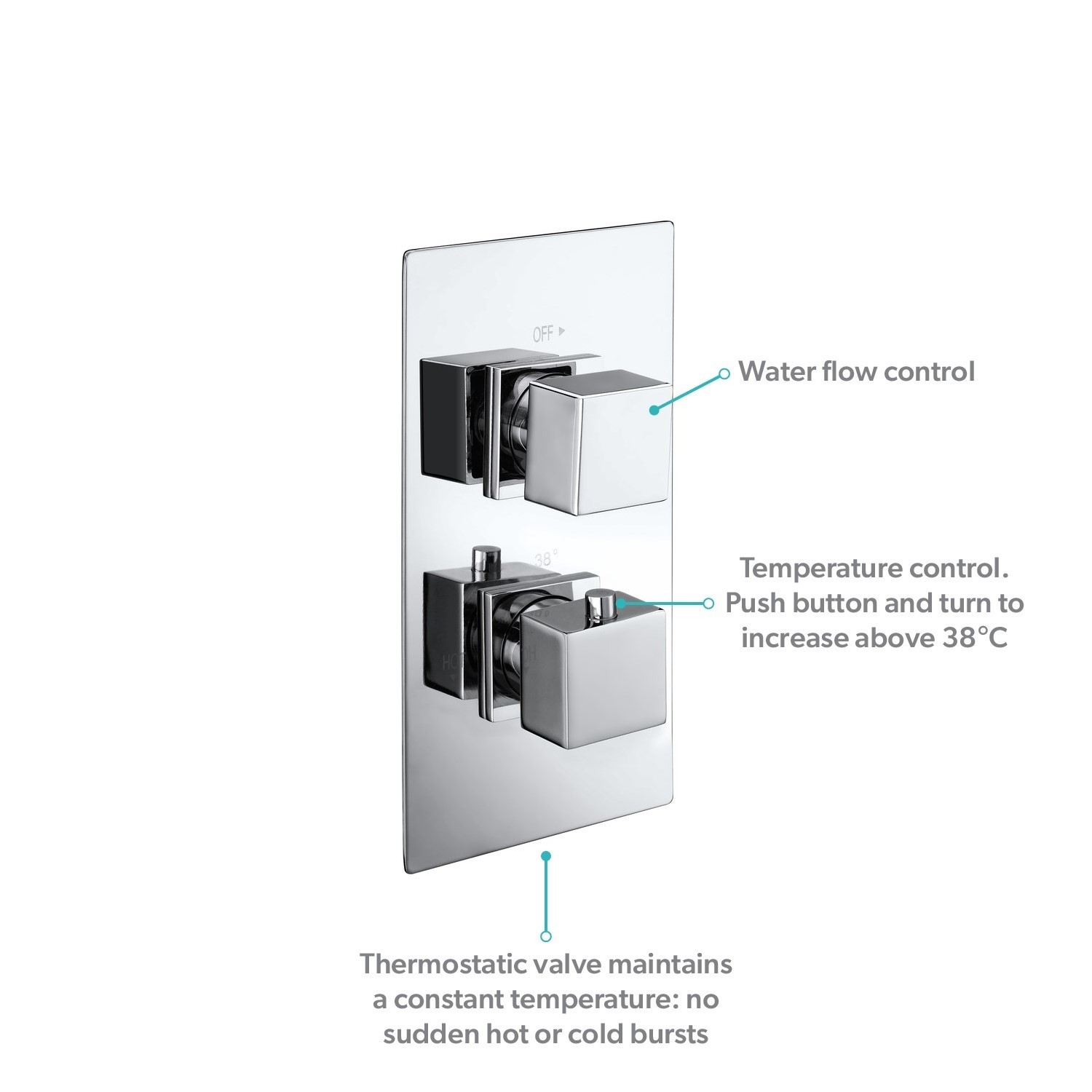

- Features: Thermostatic Cartridge
- Min Pressure & Flow Rate: 0.5 bar (flow rate of 12.3 litres per minute)
- Max Pressure & Flow Rate: 3.0 bar (flow rate of 30 litres per minute)
- Warranty: 5 years against manufacturer faults
Question from Rob: Asked on 28/01/2026 I have to replace my existing Cube Concealed Thermostatic Bar Shower due to limescale buildup. I bought the original unit (product code 7730 GR-AZ-14C) in 2014.
The current model looks similar to the older one but I notice thst the face plates are a different size: 120mm x 215mm (current model) cf. 130mm x 200mm (older one).
Are there any other differences? Are the older and current models compatible? I'm obviously concerned about the inlet/outlet spacings.
Hi Rob,The new Cube/Grohtherm concealed shower valve isn’t directly compatible with your 2014 7730?GR-AZ-14C. The faceplate is a different size, and the internal valve body has likely changed—modern units use the Rapido SmartBox. While the inlets are standard ½″ BSP, their spacing and orientation may differ, so the new valve may not fit without replacing the rough-in body.Thanks!
