Wirquin Chrono WC Frame with Chrome Flush Plate

Wirquin Chrono WC Frame with Chrome Flush Plate

All about me

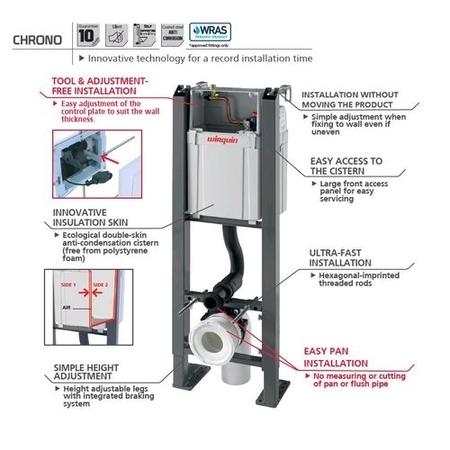

• A universal WC frame suitable for most installations
• Simple installation can save up to 50% of time
• Installation without moving the product - simple adjustments even if the wall is uneven

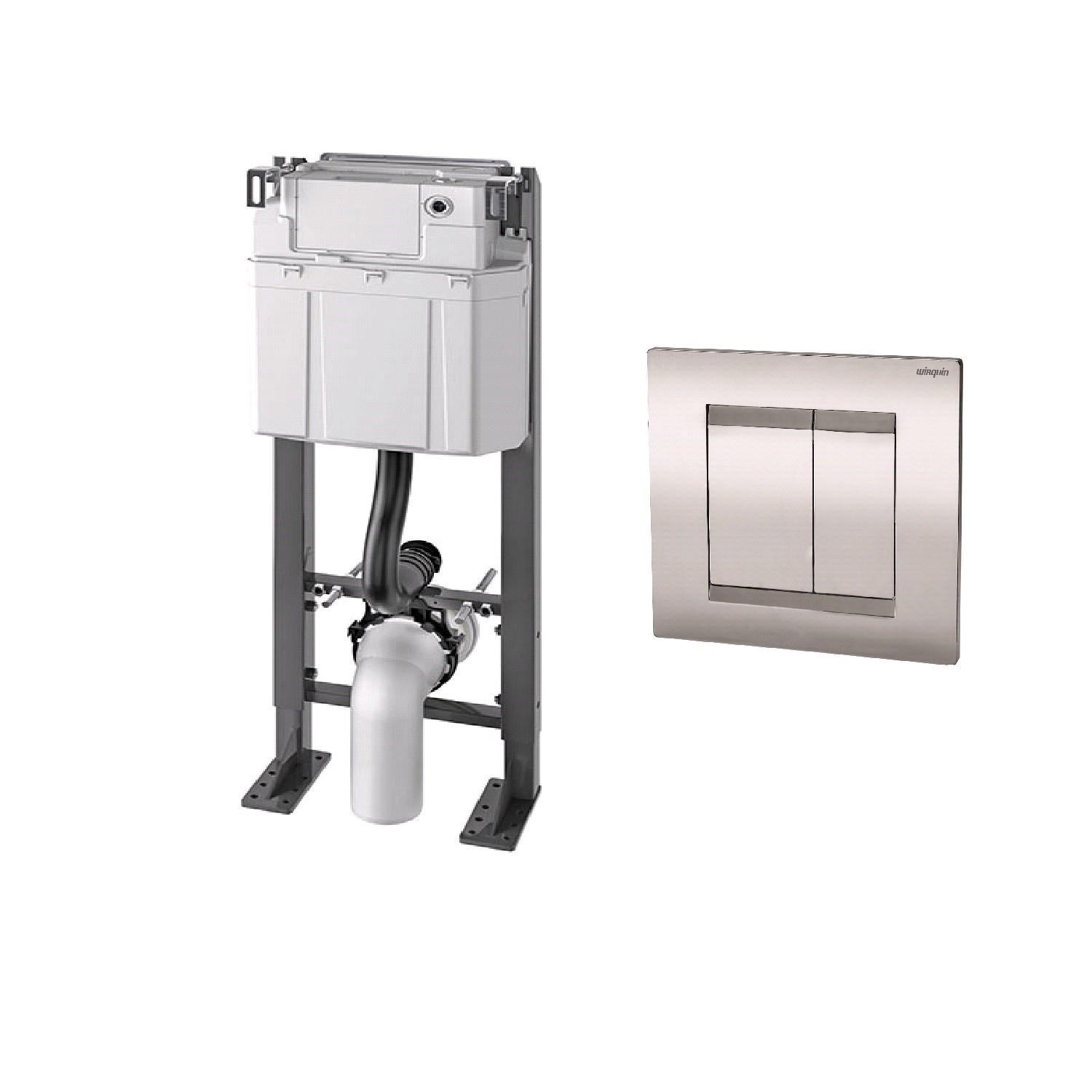

• Complete with a chrome flush plate for a neat and stylish finish
• Uses less water with its Jollyflush and delayed action Jollyfill inlet valve
• Innovative insulated skin ensures the cistern is free from condensation
• The adjustable connection means there is no cutting or measuring required
• Simple height adjustment features an integrated braking system
• Large front panel offer easy access to the cistern
• Also available with a chrome flush plate

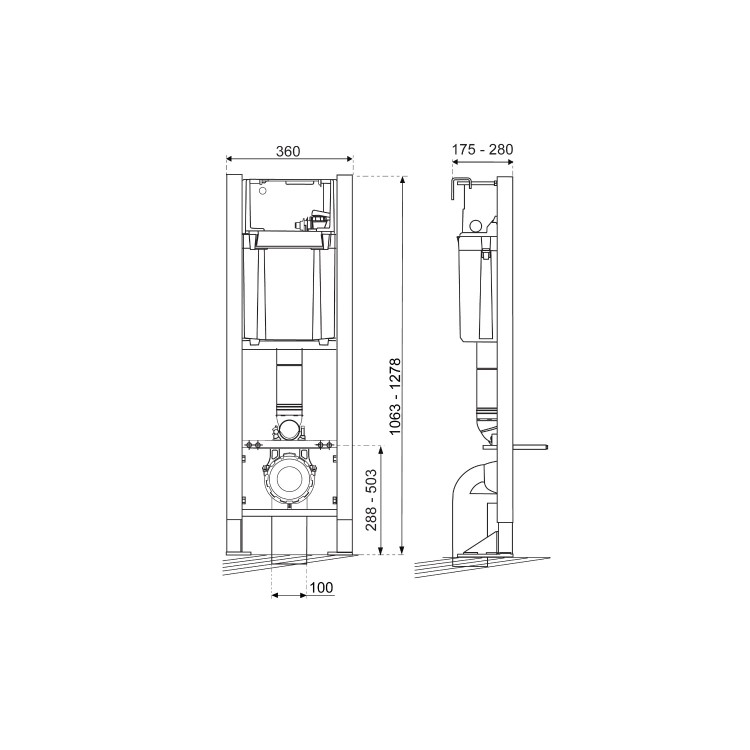

• Dimensions: W360 x H1063-1278 x D175-208mm
• Pan height adjustment: 370-580mm
• Pan centres: 180 or 230mm
• Required wall thickness: 13-50mm
• Working pressure: 0.1-16 bar (resistant to peaks up to 20 bar)
• Flushing operation: Cable
• Capacity: 7L
• Water supply: ½" (male) end fitting to top or back
• Inlet valve: Joyfill side entry ½" brass
• Flush valve: 2" Jollyflush
• Dual flush: 6/4L
• WRAS approved fitting
