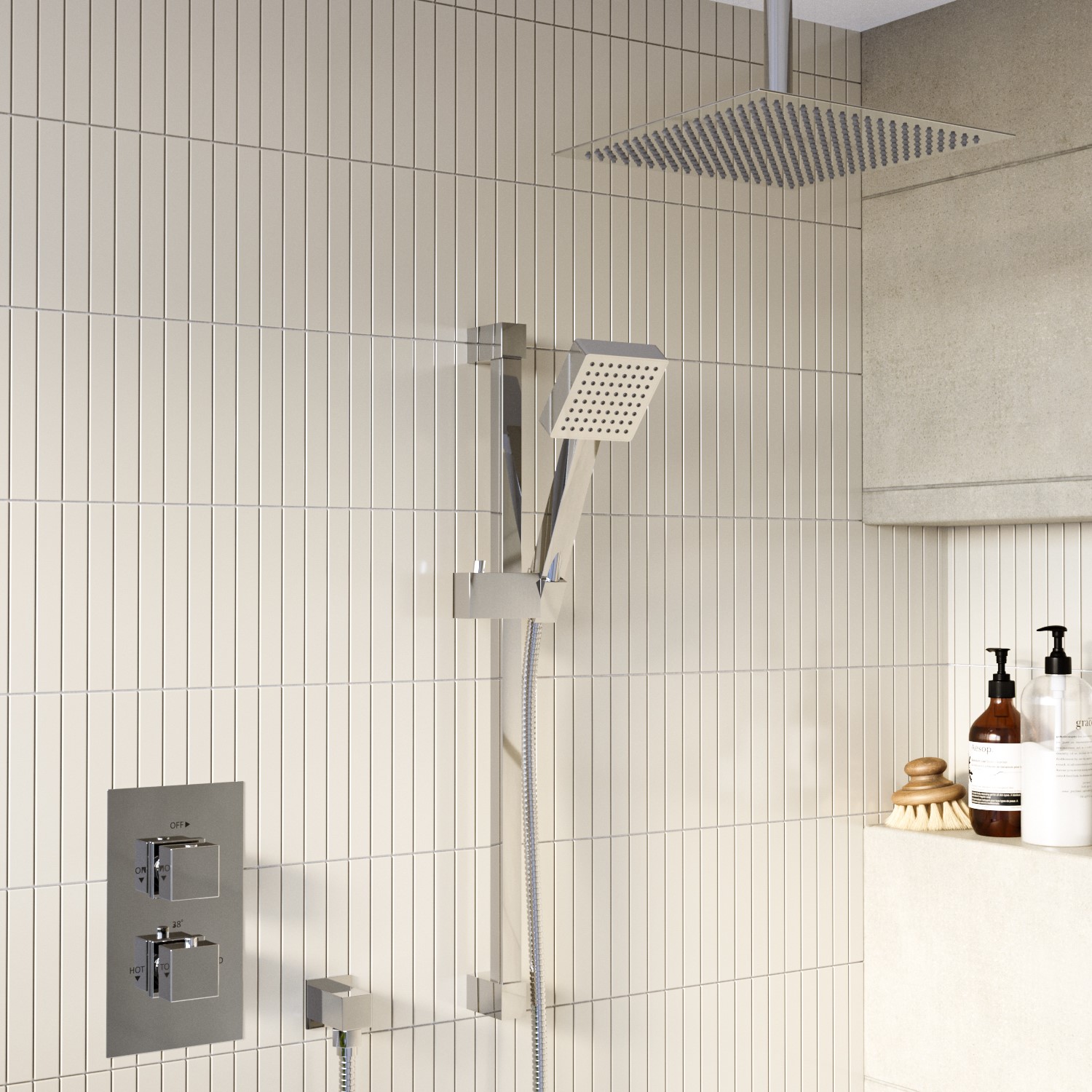

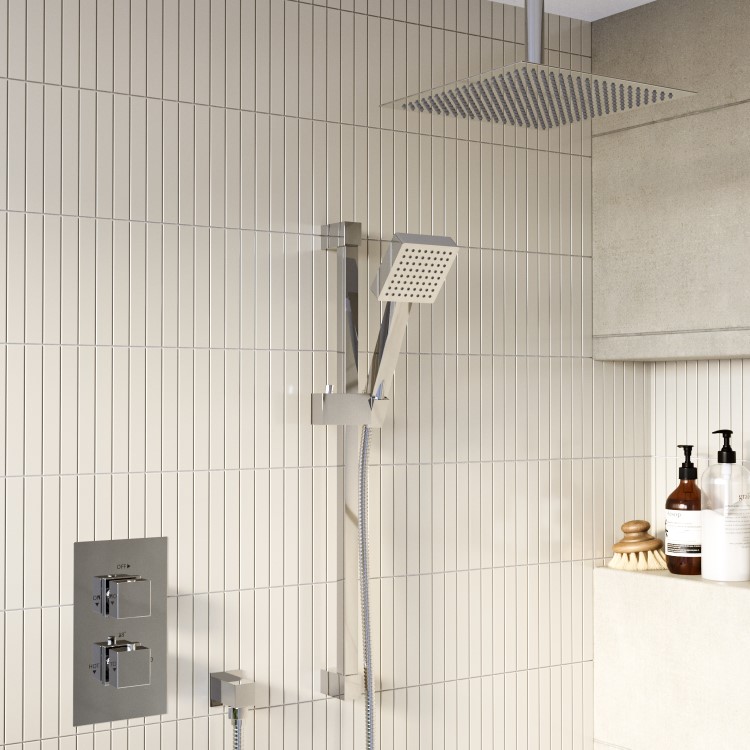

This recessed Cube Shower adds a sleek minimalistic touch to any bathroom. The two outlet shower valve comes with matching slide rail kit and overhead shower with ceiling arm, a perfect concealed shower for your new bathroom.
Suitable for combination boilers, pressurized systems, pumped systems, and gravity-fed systems (which may require a pump). The electroplated finish strengthens the shower's resistance to rust and corrosion, boosting longevity and endurance.

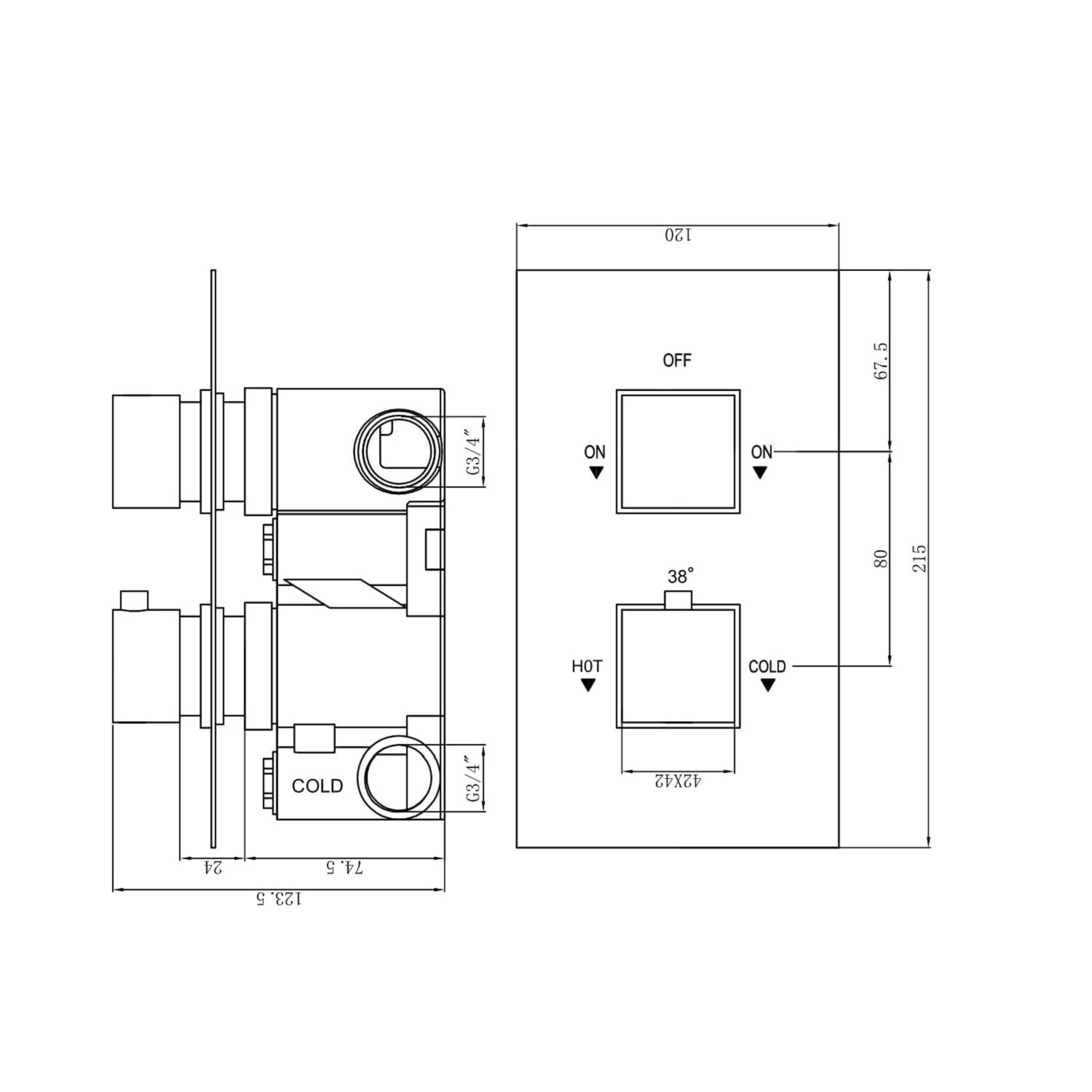

Need to know - valve
- Dimensions: H215 x W120 x D123.5mm
- Material: Brass
- Weight: 2.2kg
- Valve Type: Concealed
- Outlet Size: G 3/4"
- Inlet Size: G 3/4"
- Colour: Chrome
- Finish: Polished
- Finish process: Electroplating
- Min Pressure & Flow Rate: 0.5 bar (flow rate of 12.5 litres per minute)
- Max Pressure & Flow Rate: 3.0 bar (flow rate of 30.7 litres per minute)

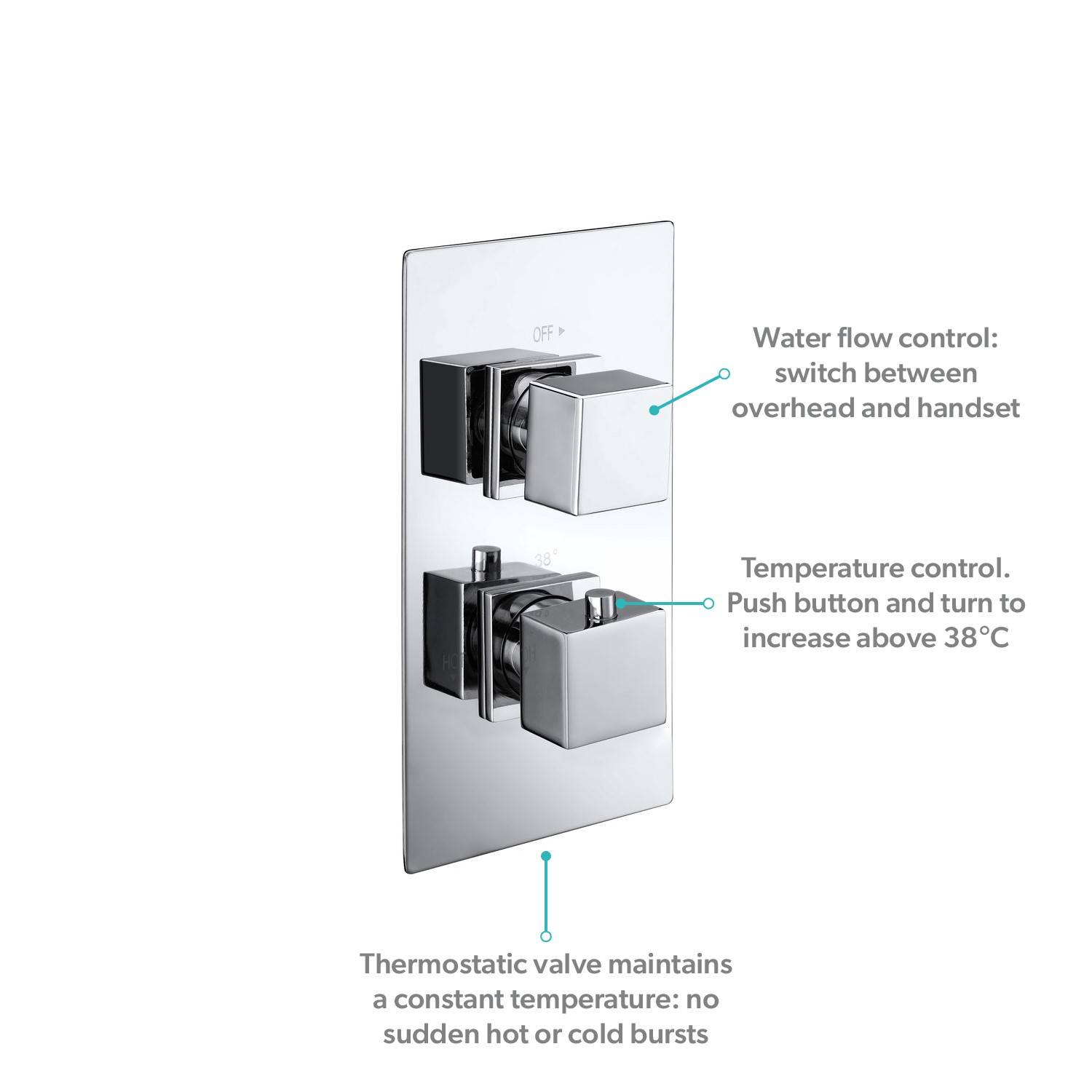

- Features: Thermostatic Cartridge Ceramic Disc
- Warranty: 5 years against manufacturer faults

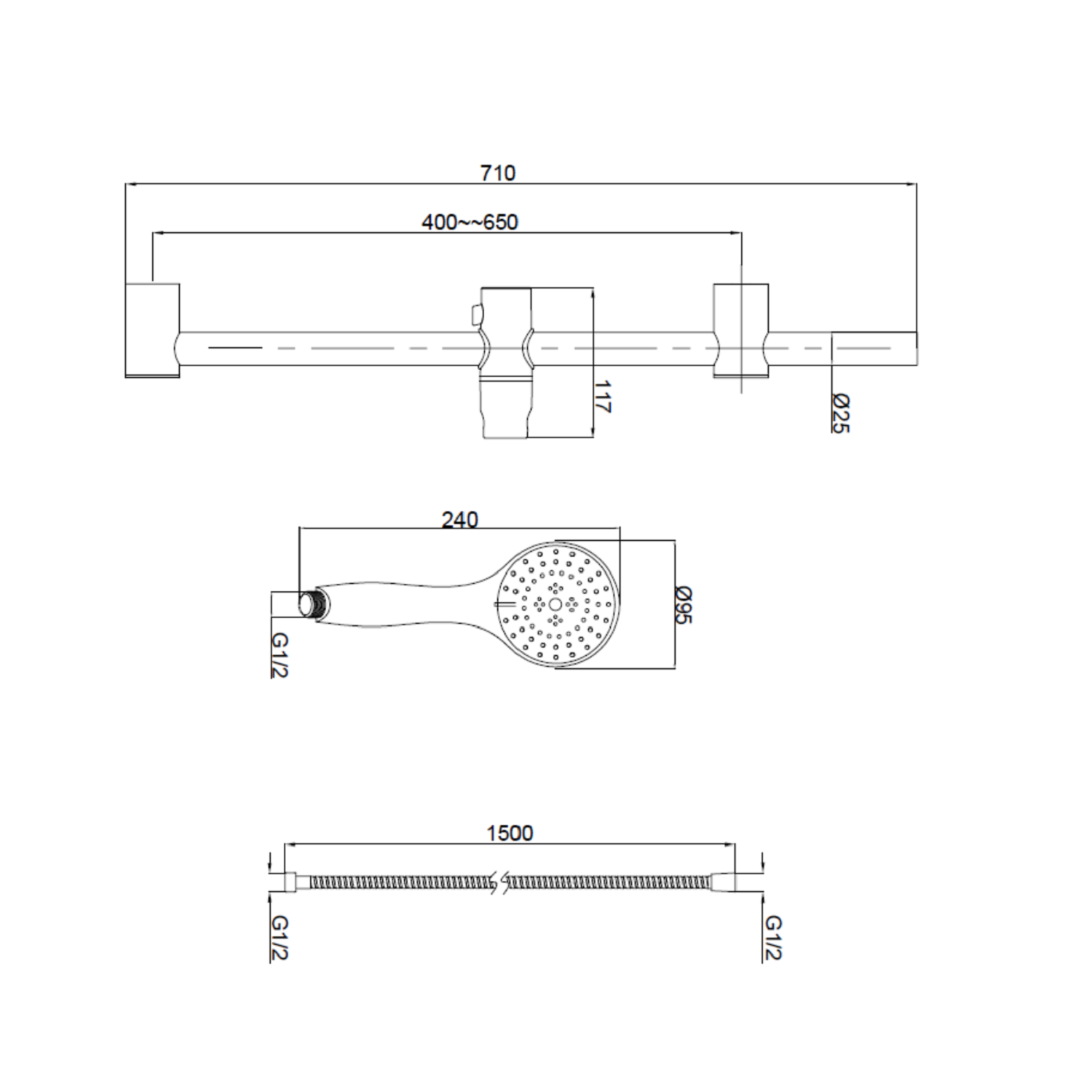

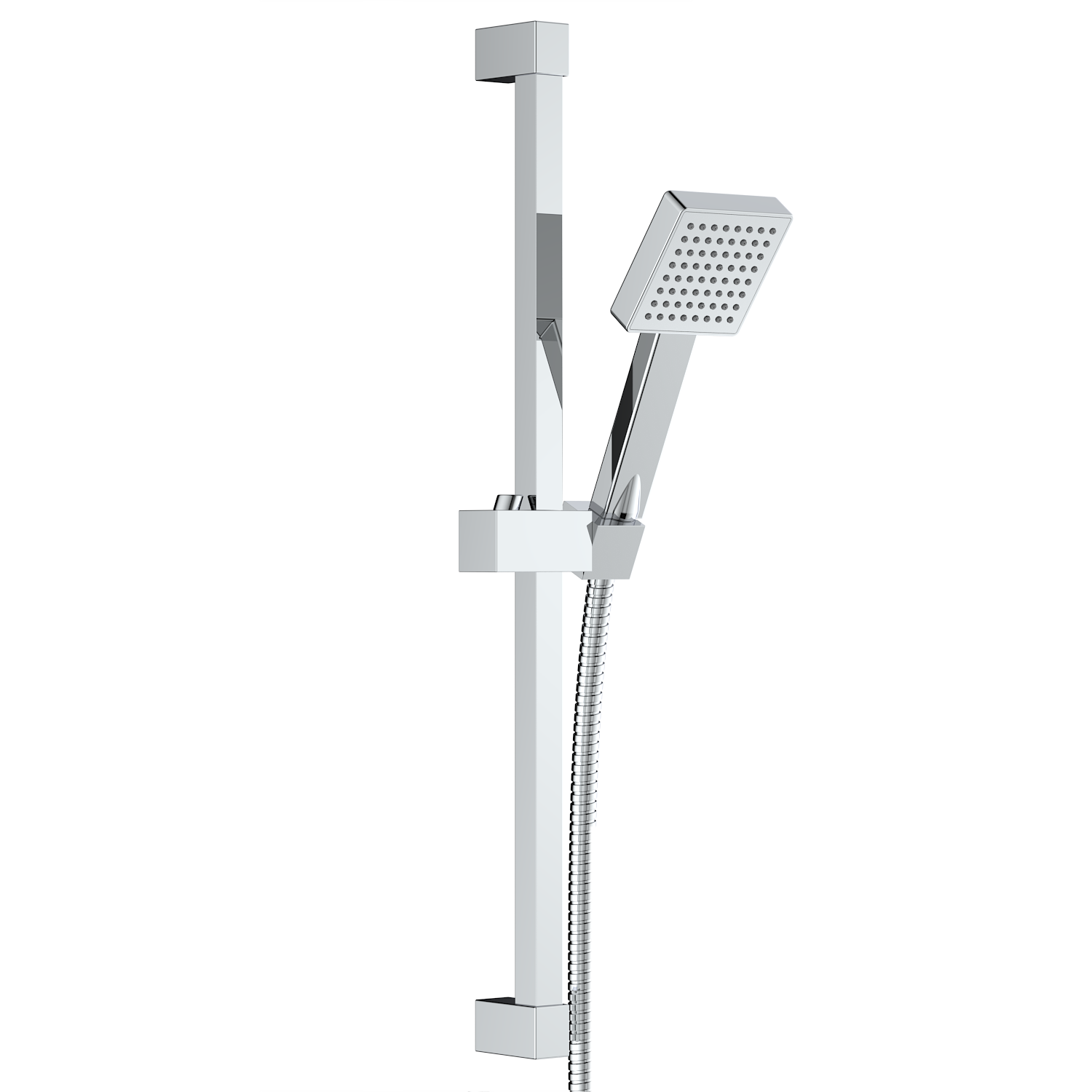

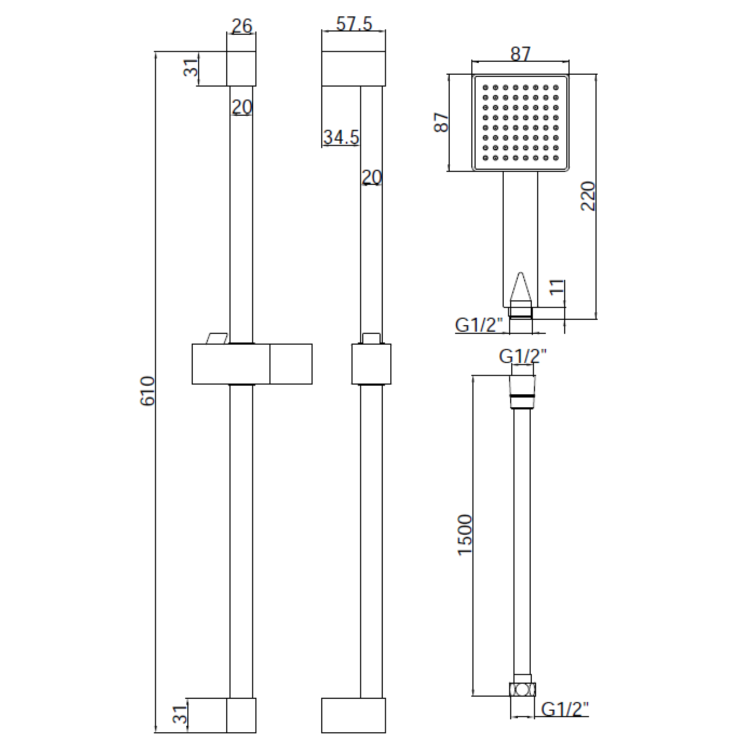

Need to know - slide rail kit
- Style: Modern
- Dimensions: H603 x W49 x D73mm
- Head dimensions: H255 x W121mm
- Hose length: 1500mm
- Material: ABS
- Weight: 0.872kg
- Colour: Chrome
- Finish: Polished
- Finish process: Electroplating
- Recommended minimum pressure: 0.5 bar (flow rate of 4.9 litres per minute)
- Recommended maximum pressure: 3.0 bar (flow rate of 11.5 litres per minute)
- Inlet size: G1/2"
- Warranty: 5 years

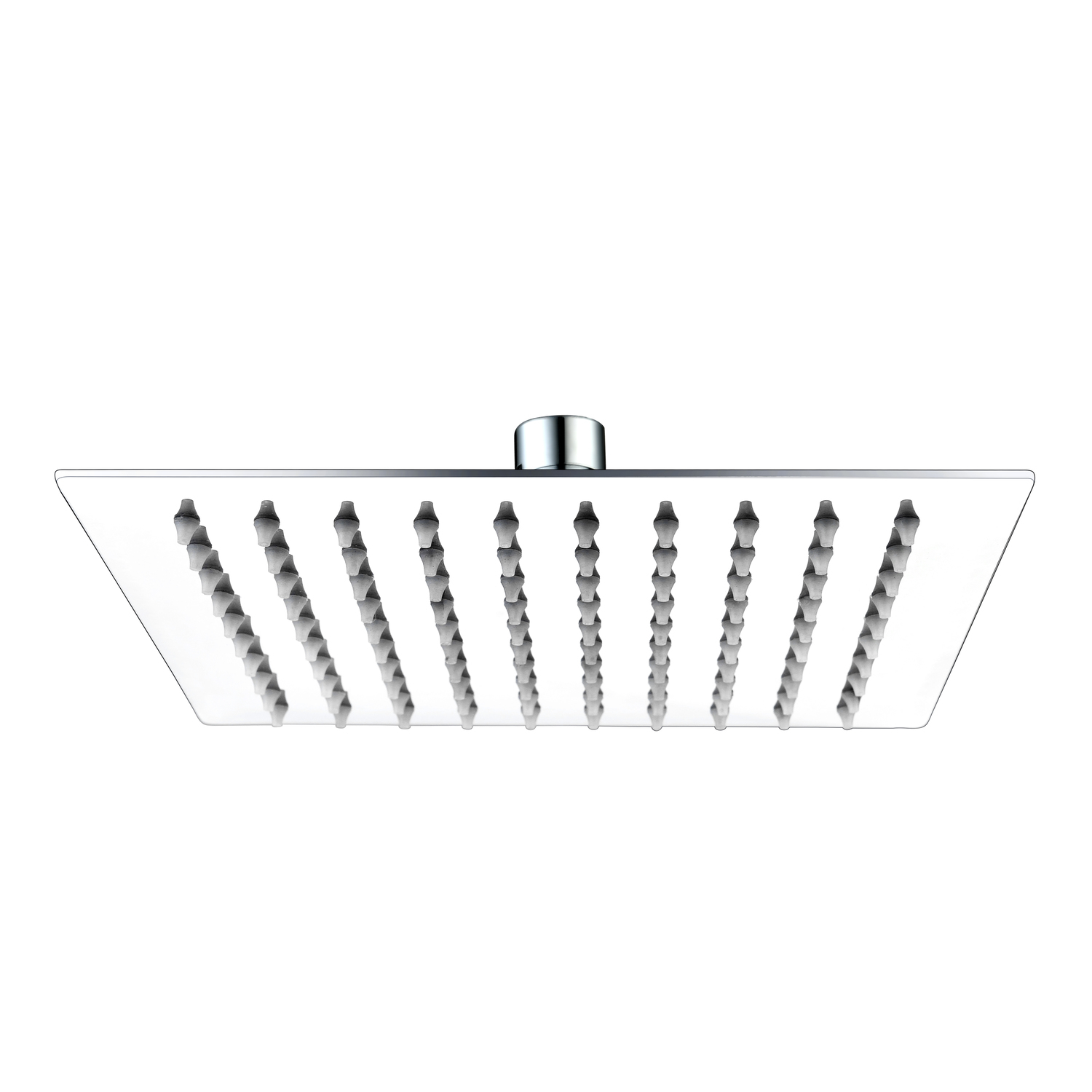

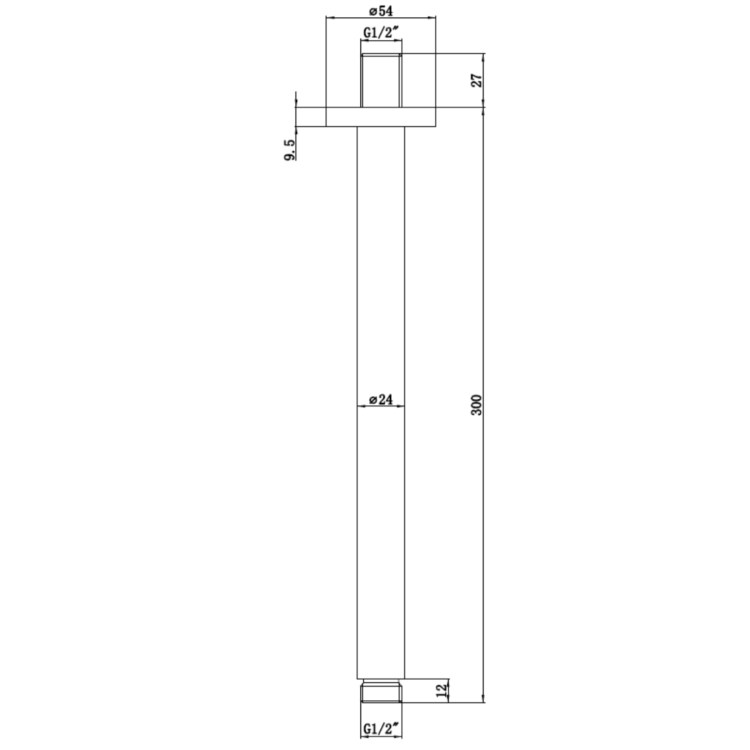

Need to know - head & arm

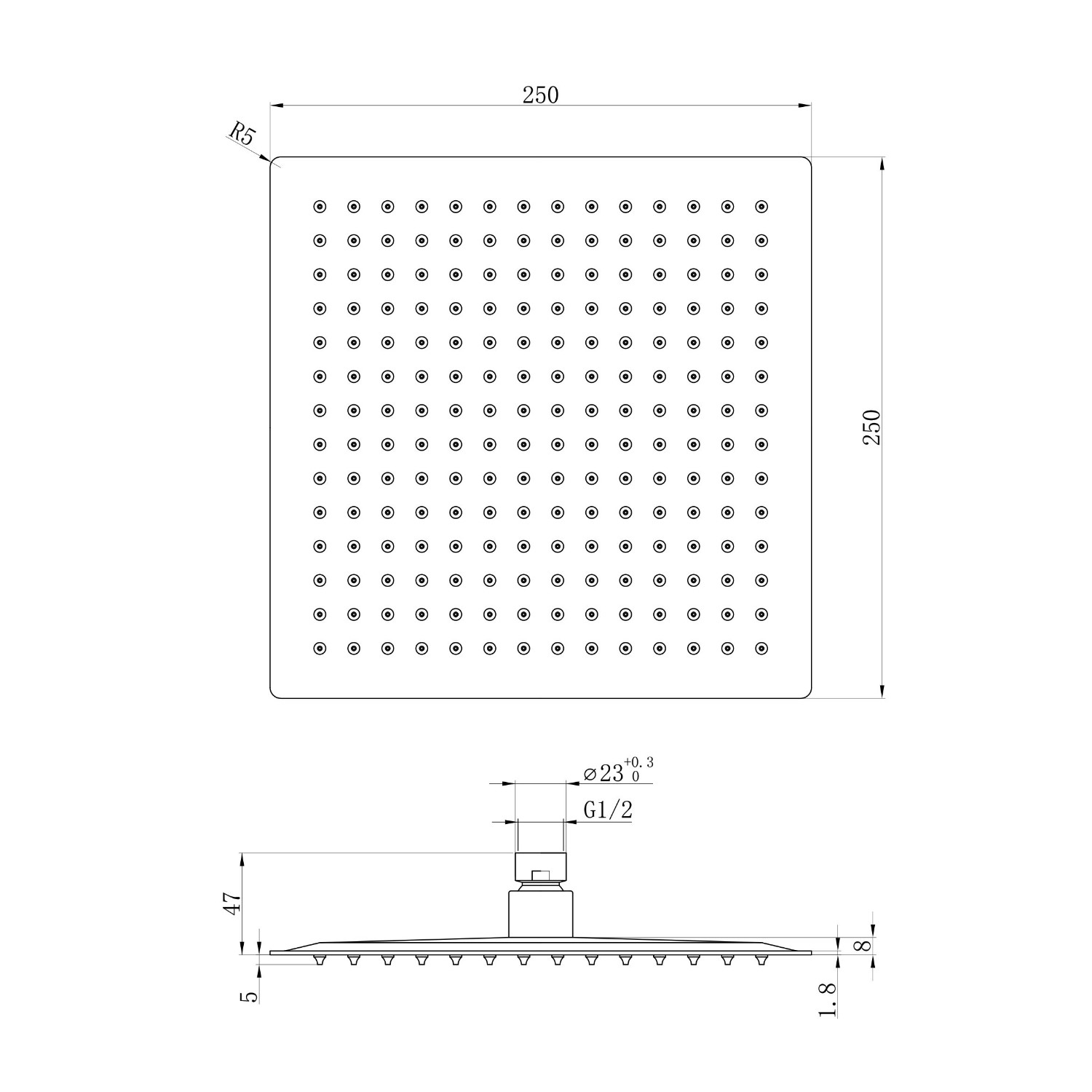

- Head Dimensions: 250x 250mm

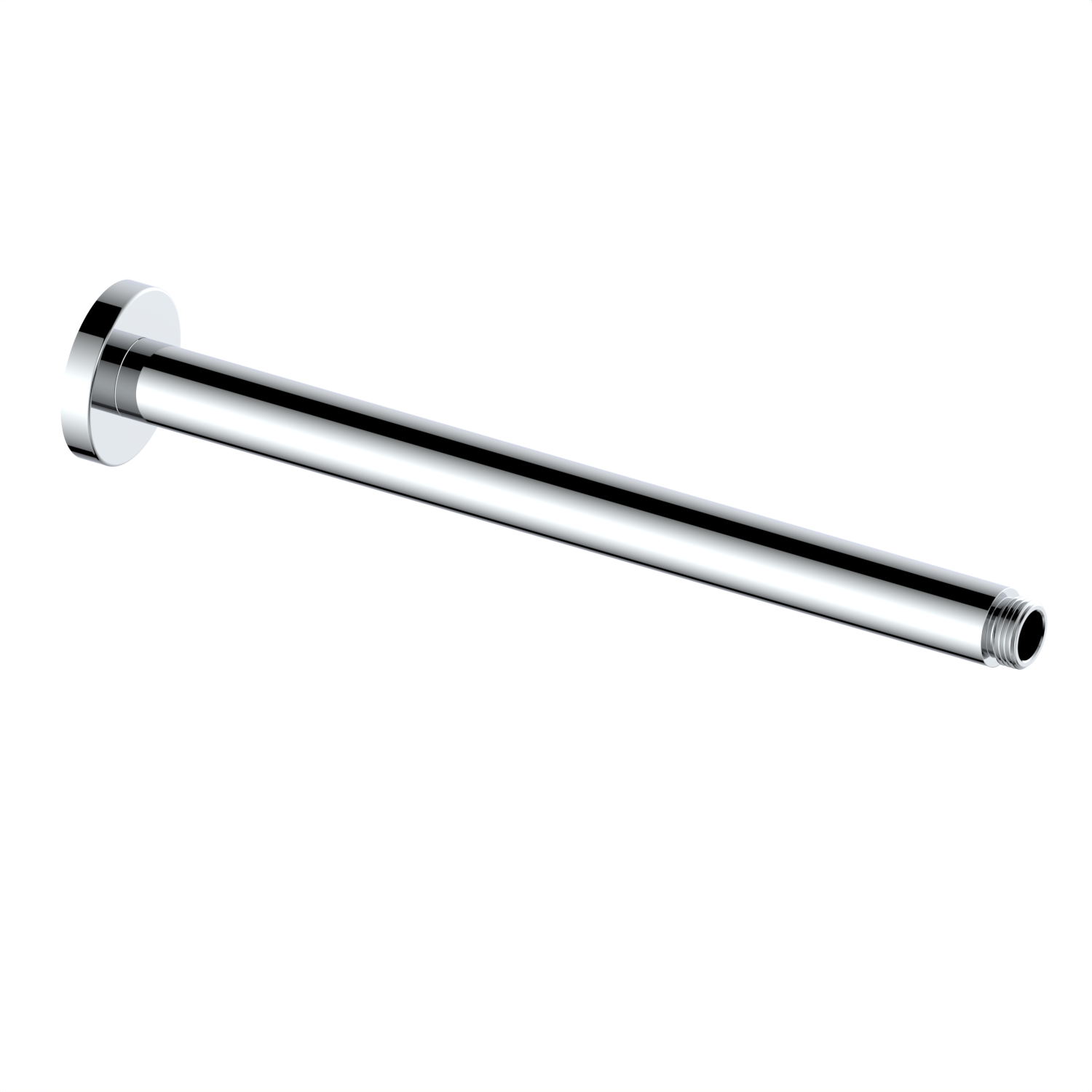

- Arm Dimensions: H300 x W54mm
- Colour: Chrome
- Finish: Polished
- Finish process: Electroplating
- Material: Brass
- Minimum pressure: 0.5 bar
- Easy clean rubber inserts on head
