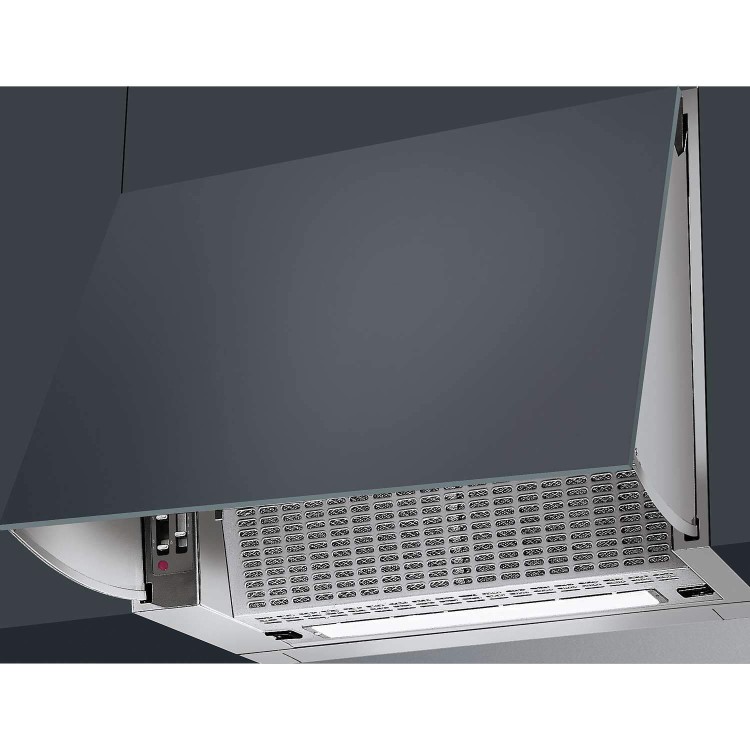

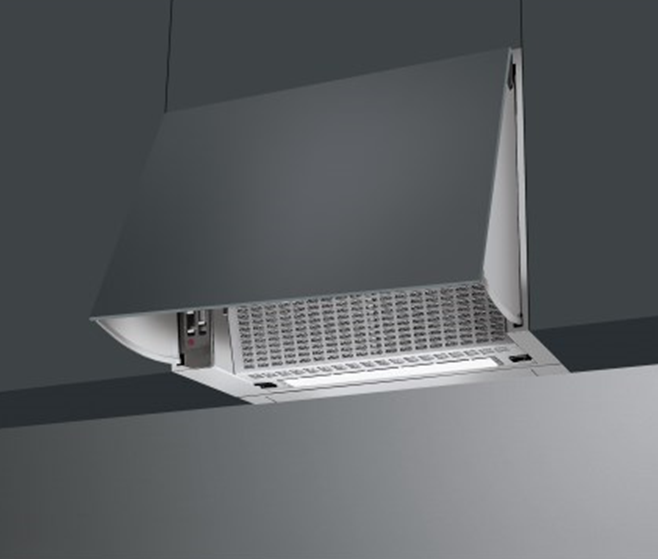

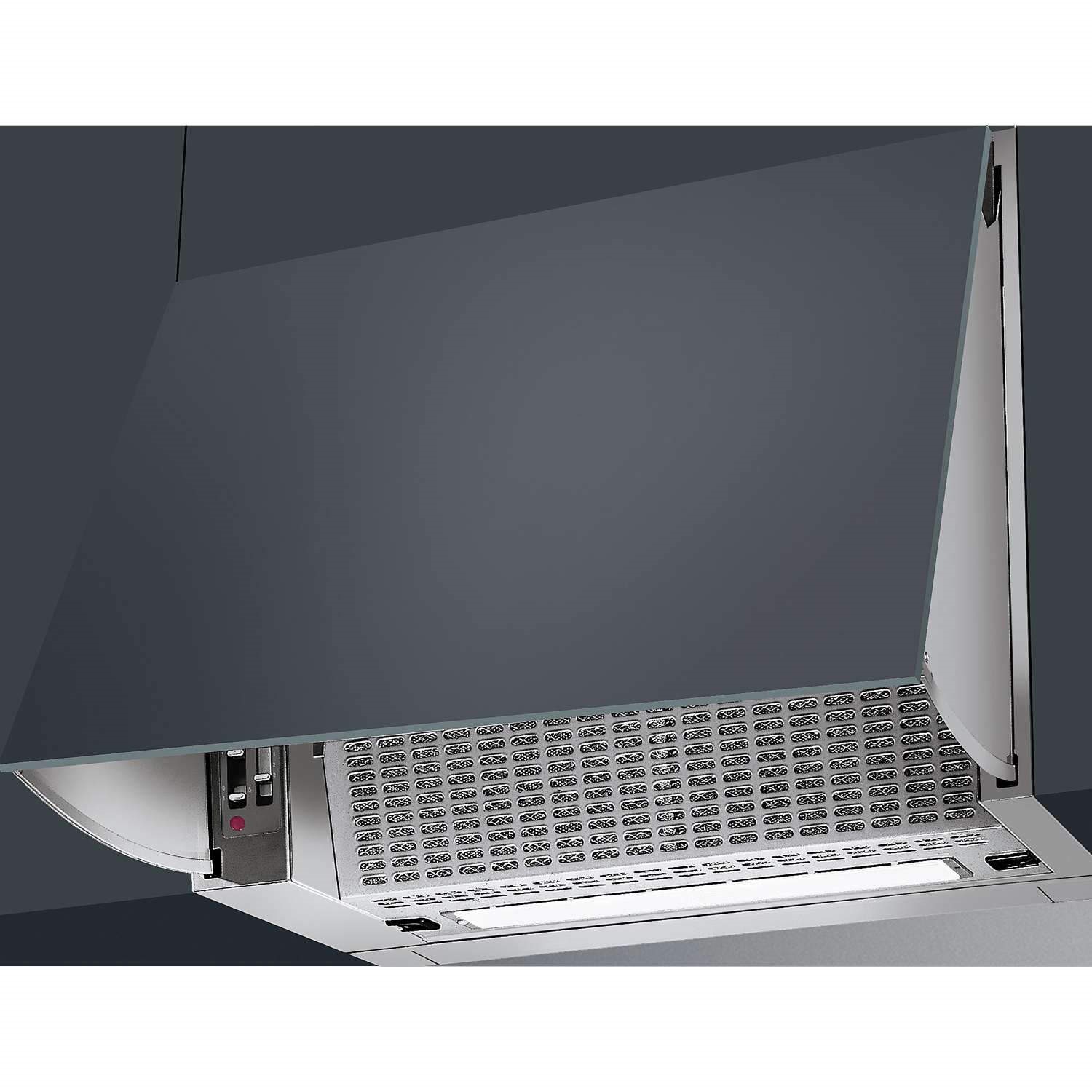

The Smeg integrated hood is easy to use, extracts cooking odours and fumes from your kitchen and hides behind a kitchen cupboard door when not in use for a streamlined look to your kitchen – effortless, efficient and subtle.
How will this look in my kitchen?
This cooker hood is designed to be installed into a kitchen cabinet above your hob or cooker top. The front is designed to have a kitchen cabinet door that matches your own fixed to the front so when the extractor is not running, it integrates into the unit for a smooth look to your kitchen.
Please measure the dimensions of the hood carefully against your kitchen space and cabinets to ensure it will fit:

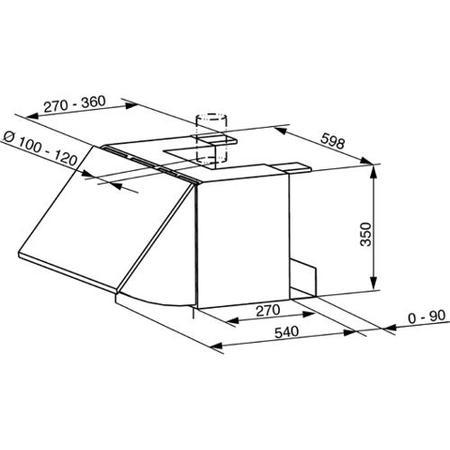

Dimensions: (W) 598mm x (H) 350mm x (Depth when closed) 270mm (Depth when in use) 540mm
Suitable for ducting out or recirculated extraction
If your kitchen is not suitable for ducting out extraction then internal re-circulation is possible. If you decide to duct out then you will need a ducting kit, and if you choose to recirculate you will need charcoal filters.
Whichever method of extraction you install, both use the metal multilayer grease filter to catch airborne grease and food splatters. The filter is dishwasher safe, so you can quickly clean it and keep the fan at optimum performance.
Light it up
Two 28 W lights are built into the cooker hood to provide a clear light over the hob to make it easier to cook.
Adjustable extraction speed
The 150 W motor gives a maximum extraction rate of 260 m³/hr which is ideal for smaller kitchens. The extraction rate can be set to 3 speed settings to suit the level of odours, grease and steam emitted by the cooking.
These 3 extraction speeds are controlled by easy to use slider controls that make it effortless to control the hood during the heat of cooking.
Technical information
- Energy rating: F
- Vent outlet: Ø 120 mm
- Nominal power 206 W
- Extraction range: 120-260 m³/hr
- Noise range: 56-67 dB(A)
Key Features:
- Integrated cooker hood for compact kitchens
- Extraction range: 120-260 m³/hr
- Suitable for ducting or recirculation extraction
- 2 x 28W lights
- 3 speed settings
Question from June Phillips: Asked on 03/03/2015 Is this rear vented instead of top vented, if not do you have a integrated hood that is top vented.
Question from Brad: Asked on 15/05/2013 What size door/panel is needed for the front of this please?
the minimum height would be 300mm
Question from Steve B: Asked on 31/12/2012 can this be used with a wooden unit panel attached to front, to blend in with units ?
