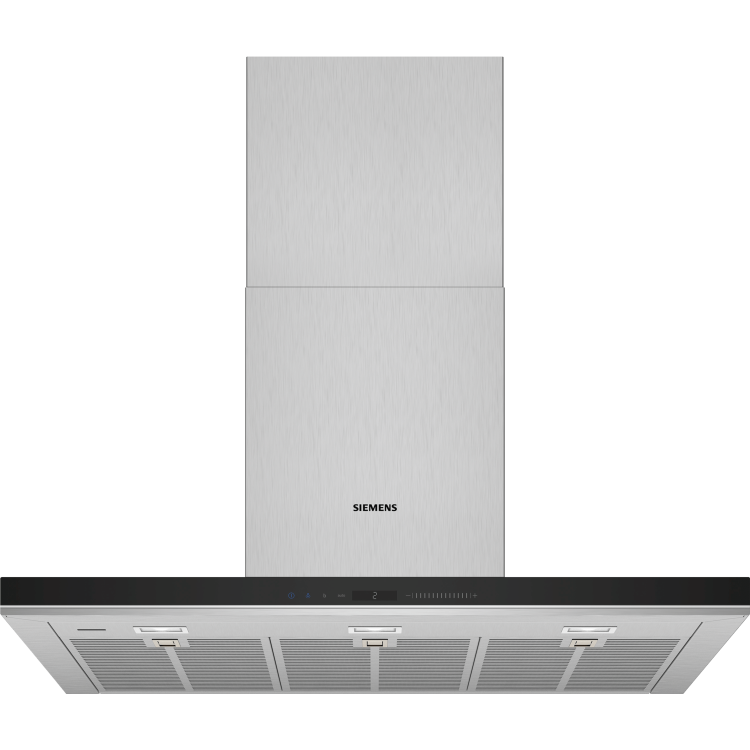

The wall mounted chimney hood features a very high extraction rate in a distinguished design that coordinates with a range of Siemens appliances, as well as your kitchen
Intensive setting with automatic after revert setting
The intensive setting temporarily increases the extraction rate when kitchen vapour is especially intense, with automatic revert after 6 minutes.
Perfect cooperation: cookConnect system and climateControl sensor
Your cooktop and hood now get along well with each other. When you start cooking, the hood activates itself and the power level and the light can be adjusted right on the cooktop or automatically by the climateControl sensor that detects the amount of steam and odours.
Key Features
- Impressive extraction rate (964 m³/h) for efficient odour and steam removal
- The power level and the light of your hood can be adjusted by your hob with the cookConnect system or via the Home Connect App
- The climateControl Sensor monitors steam and odours and adjusts the power level automatically
- LED lights: For optimal visibility and ambience when cooking
- The hood is expertly designed to be extremely quiet when being used (64 db(A))
- 2 year warranty for peace of mind

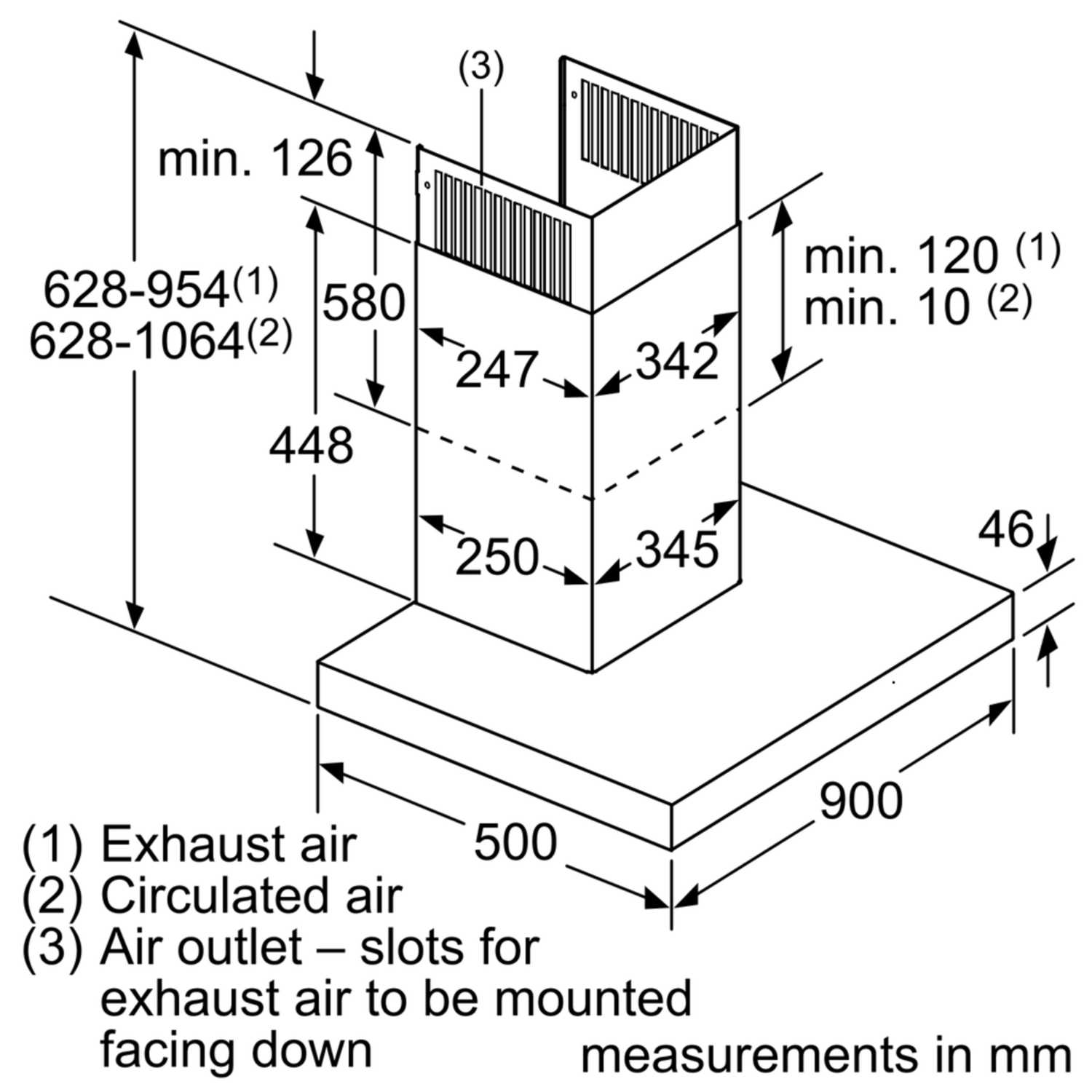

- Dimensions (mm): H628-1064 x W900 x D500
Key performance features
- Energy Efficiency Class: A+ (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 601 m³/h
- Intensive 964 m³/h
- Noise max. Normal Level: 64 dB*
Home Connect: Remote Monitoring and Control (only in countries where Home Connect service is available)
- Home Connect: Remote Monitoring and Control for connected home appliances and operation via smartphone or tablet (only in countries where Home Connect service is available)
- The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)
- Voice Control enabled via popular voice assistants (only in countries where this service is available)
- Interval function: available via Home Connect
- Silence function: available via Home Connect
Features
- climateControl sensor
- cookConnect hob based hood control

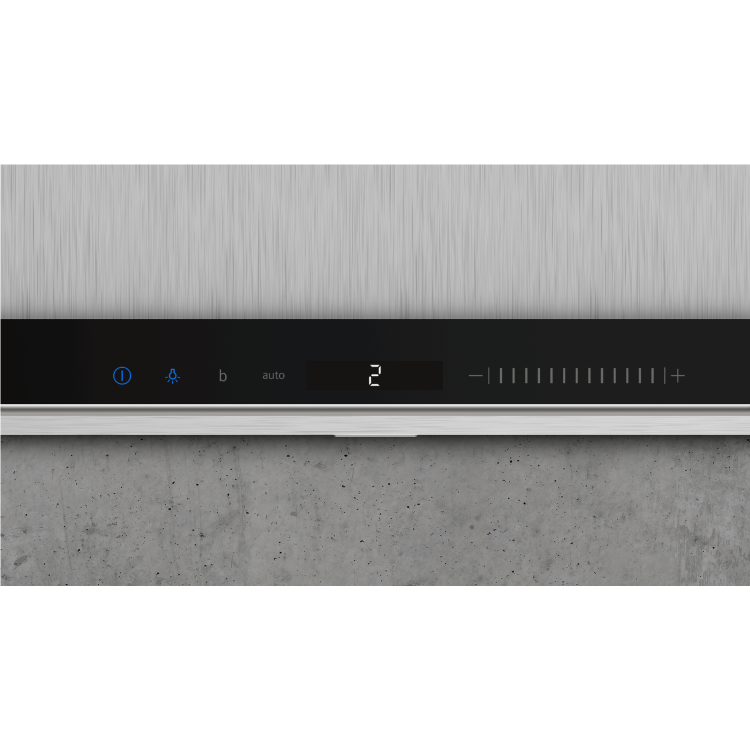

- touchControl with 7-segment display
- softLight with dimmer function
- 3 x 1.5W LED
- Fully automatic hood
- 3 power levels and 2 intensive settings
- Efficient BLDC motor
- Twin channel high performance fan motor
- Automatic after running (10 minutes)
- Automatic intensive revert (6mins)
- Steel filter cover

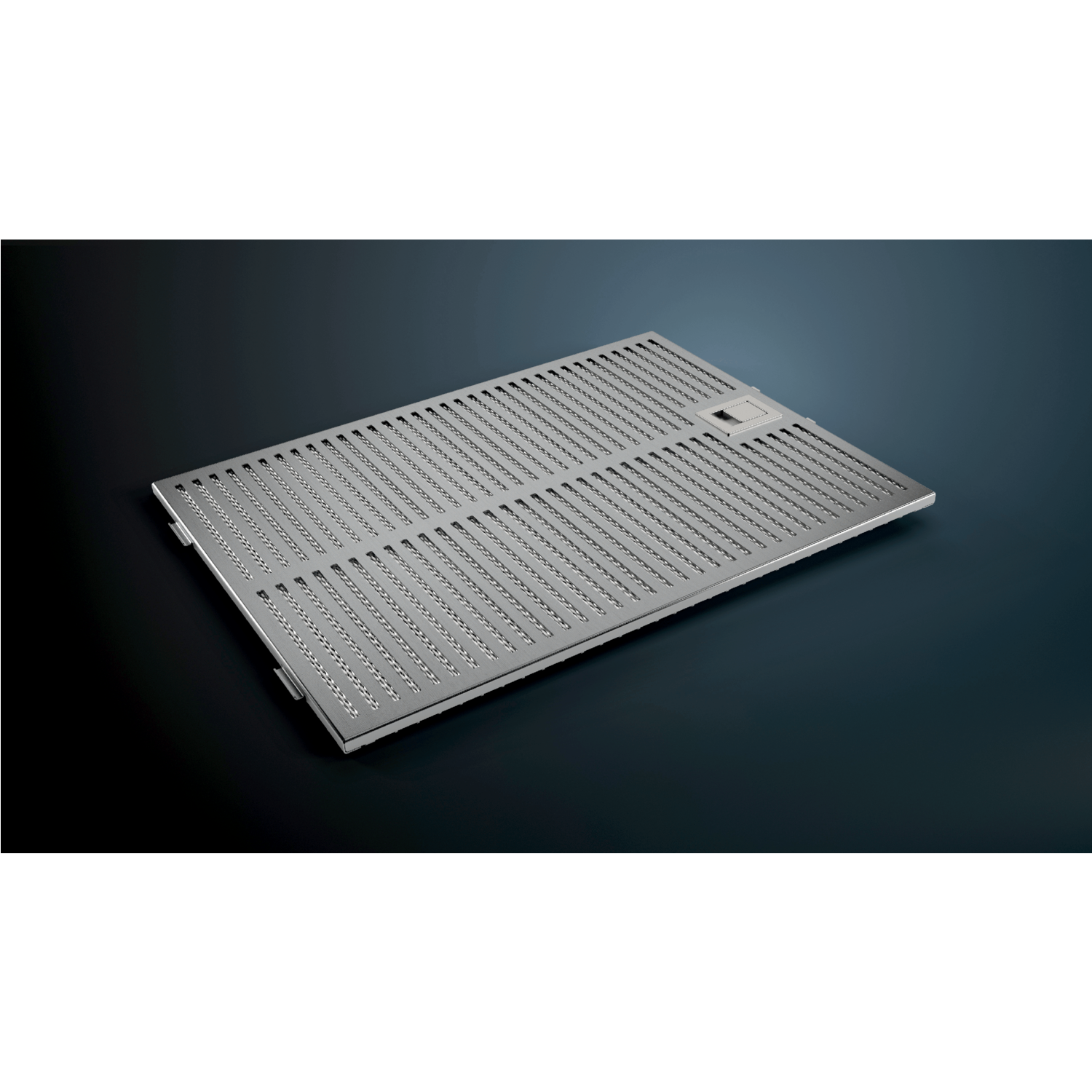

- 3 x metal grease filter cassettes - dishwasher safe
- Grease and charcoal filter saturation indicators
- Additional noise reduction insulation
Design
- 90 cm
- Chimney hood
- Stainless Steel
- For wall mounted installation
- Electronic control
Performance/technical information
- Suitable for ducted and re-circulating operation
- For recirculated extraction a recirculating kit or a CleanAir recirculation kit (accessory) is needed
- Max. extraction rate: 964 m³/h
- Extraction rate according to EN 61591 ø 15 cm:
- Extraction rate in recirculation mode:
- Noise max. Normal Level: 64 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Noise levels in recirculation mode:
Max. normal use: 73 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)
Intensive: 76 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure) - Power rating: 265 W
- Light Intensity: 374 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m

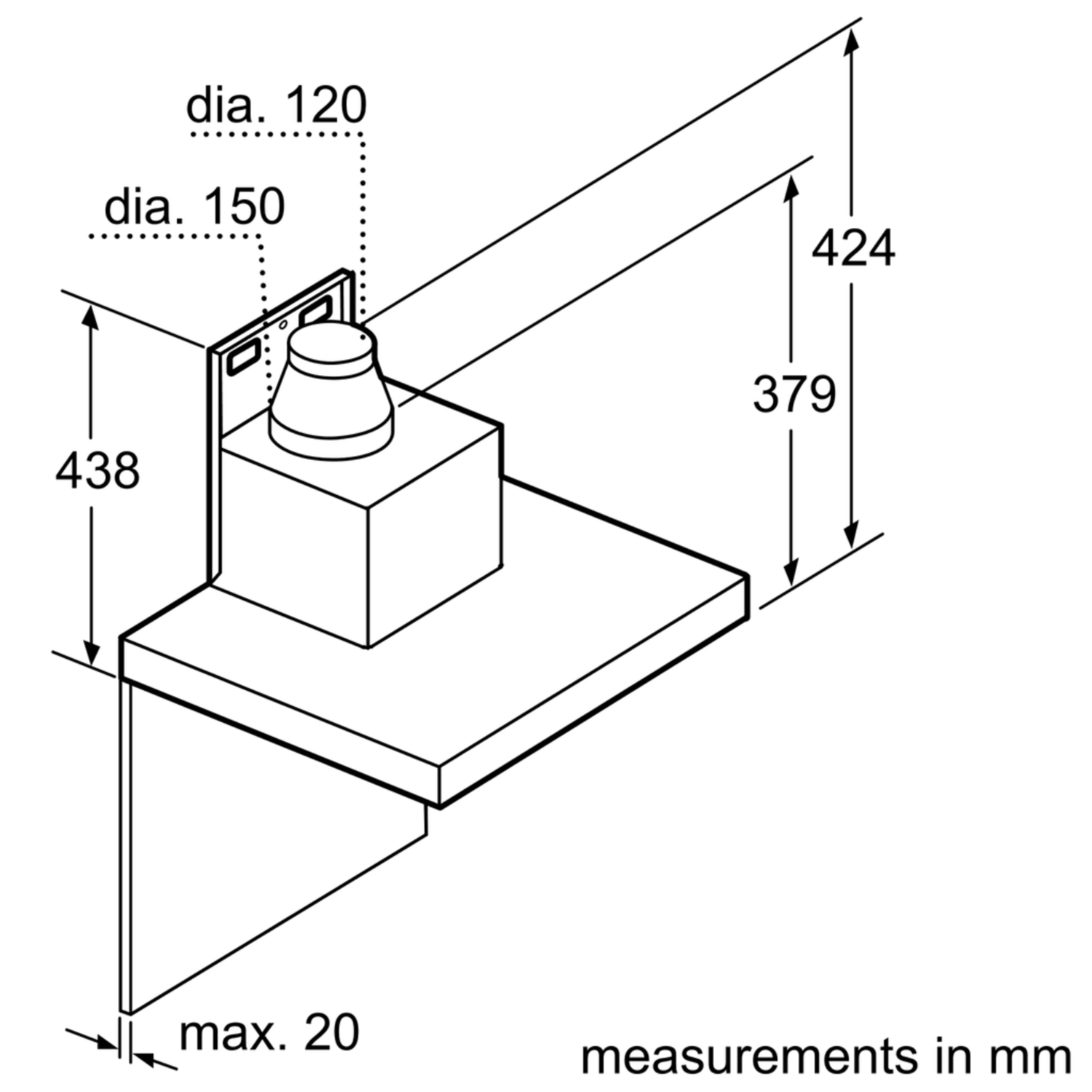

- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 328-954 x 898 x 500 mm
- Dimensions recirculating, chimney (HxWxD): 628-1064 x 898 x 500 mm
- Energy Efficiency Class: A+ (at a range of energy efficiency classes from A+++ to D)
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 33.9 kWh/year*
max. Normal use 601 m³/h
Intensive 964 m³/h
Max. normal use: 362 m³/h<
Intensive: 428 m³/h<
Max. normal use: 64 dB(A) re 1 pW (51 dB(A) re 20 µPa sound pressure)
Intensive: 73 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)
