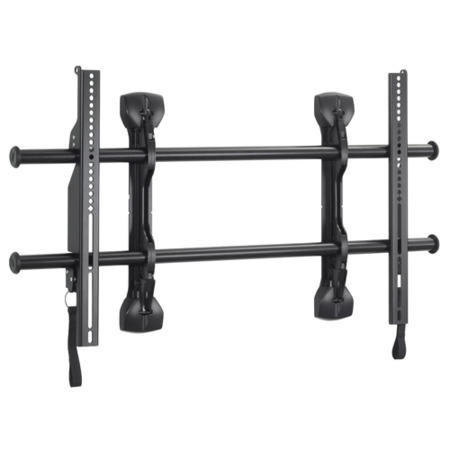

The installer-inspired fixed display mount solves top flat panel installation problems, offering flexible adjustments and post-installation fine tuning for large flat panel screens.
Features
- Provides an ultra low-profile mounting solution
- Post-installation height adjustment and lateral shift
- ControlZone™ Leveling for post-installation fine tuning of height and leveling
- ClickConnect™ offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options, including 16", 20" and 24" centers
Specifications:
Depth from Wall: 1.96" (49.8 mm)- Max Lateral Shift: 17.5" (445 mm)
- Manual Height Adjustment: 1
- Orientation: Landscape
- Dimensions: H x W x D: 16.5" x 34.4" x 2.0"" (419 x 875 x 50mm)
- Max Mounting Pattern: 100 x 100mm - 879 x 505mm
- Weight Capacity: 90.7Kg
