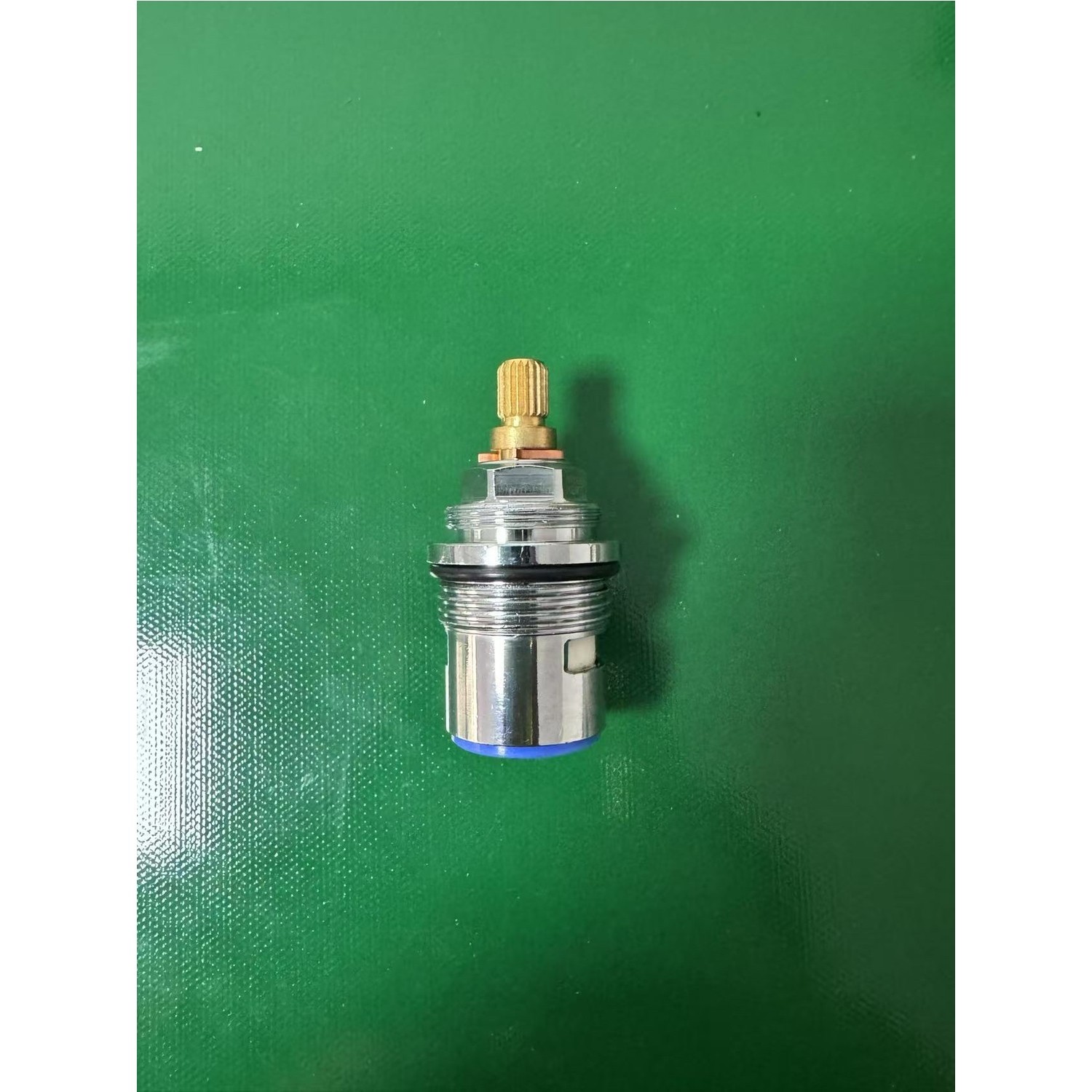

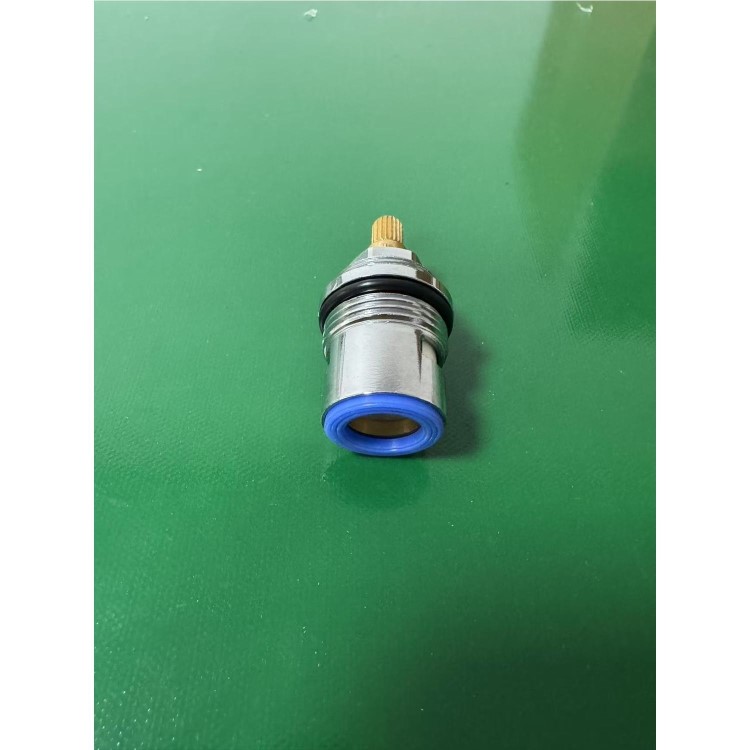

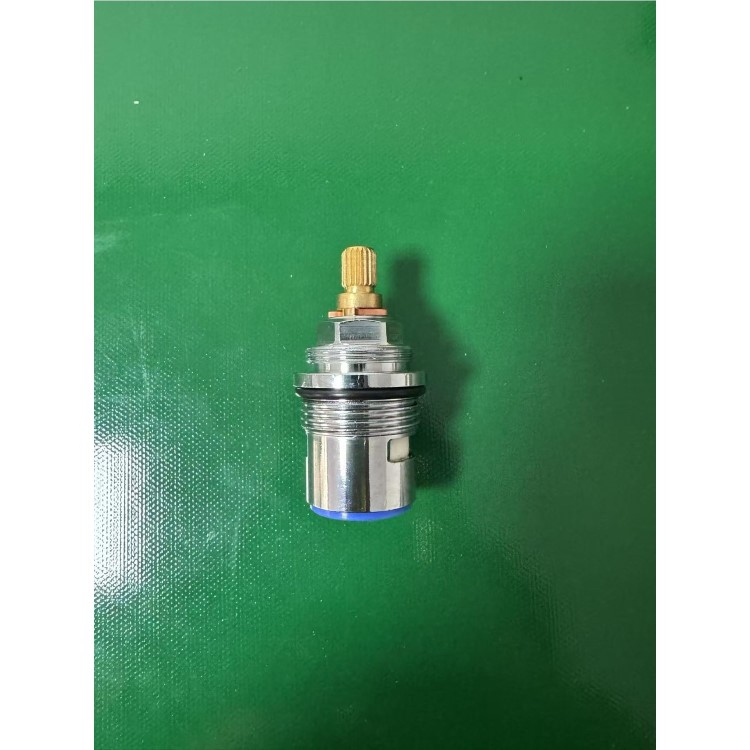

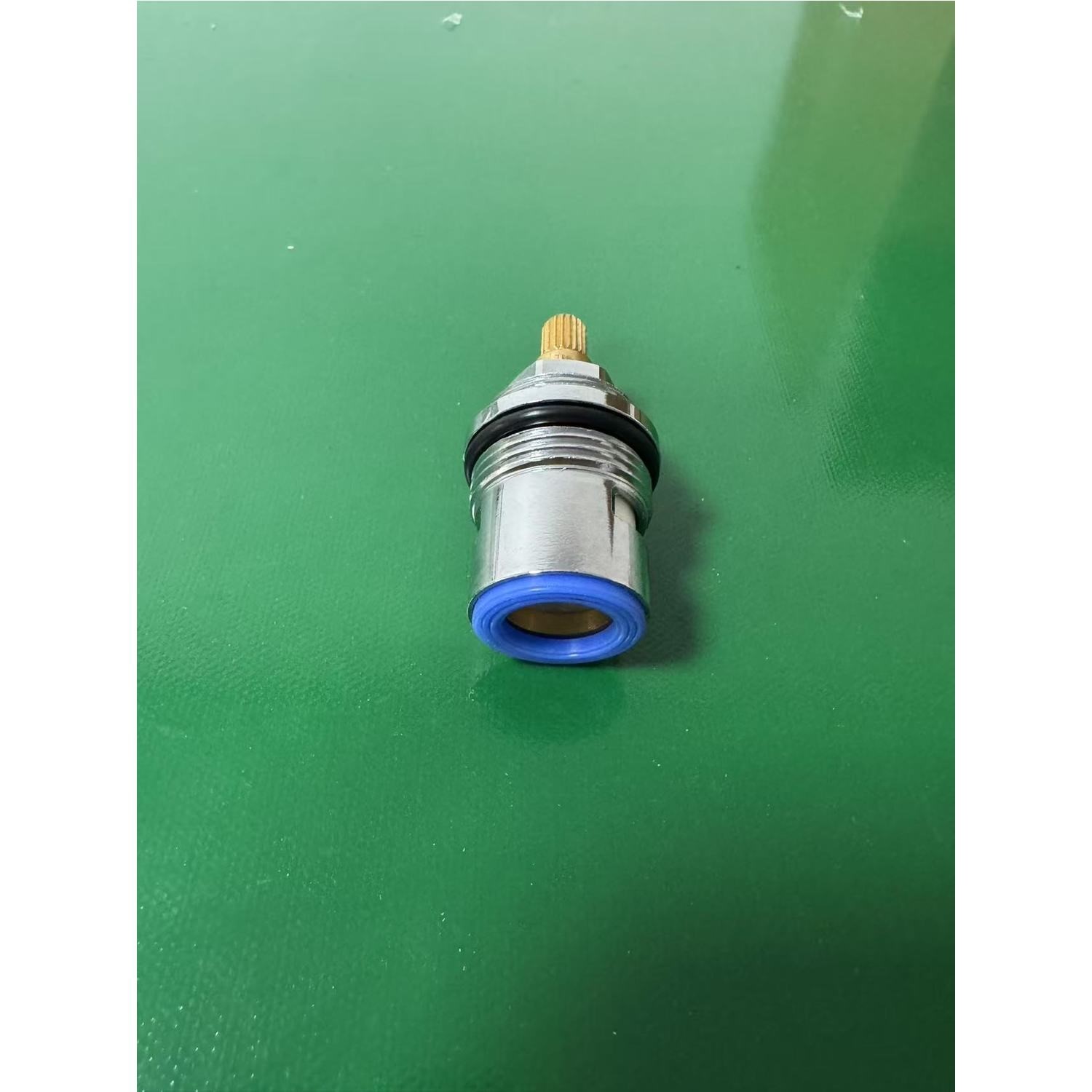

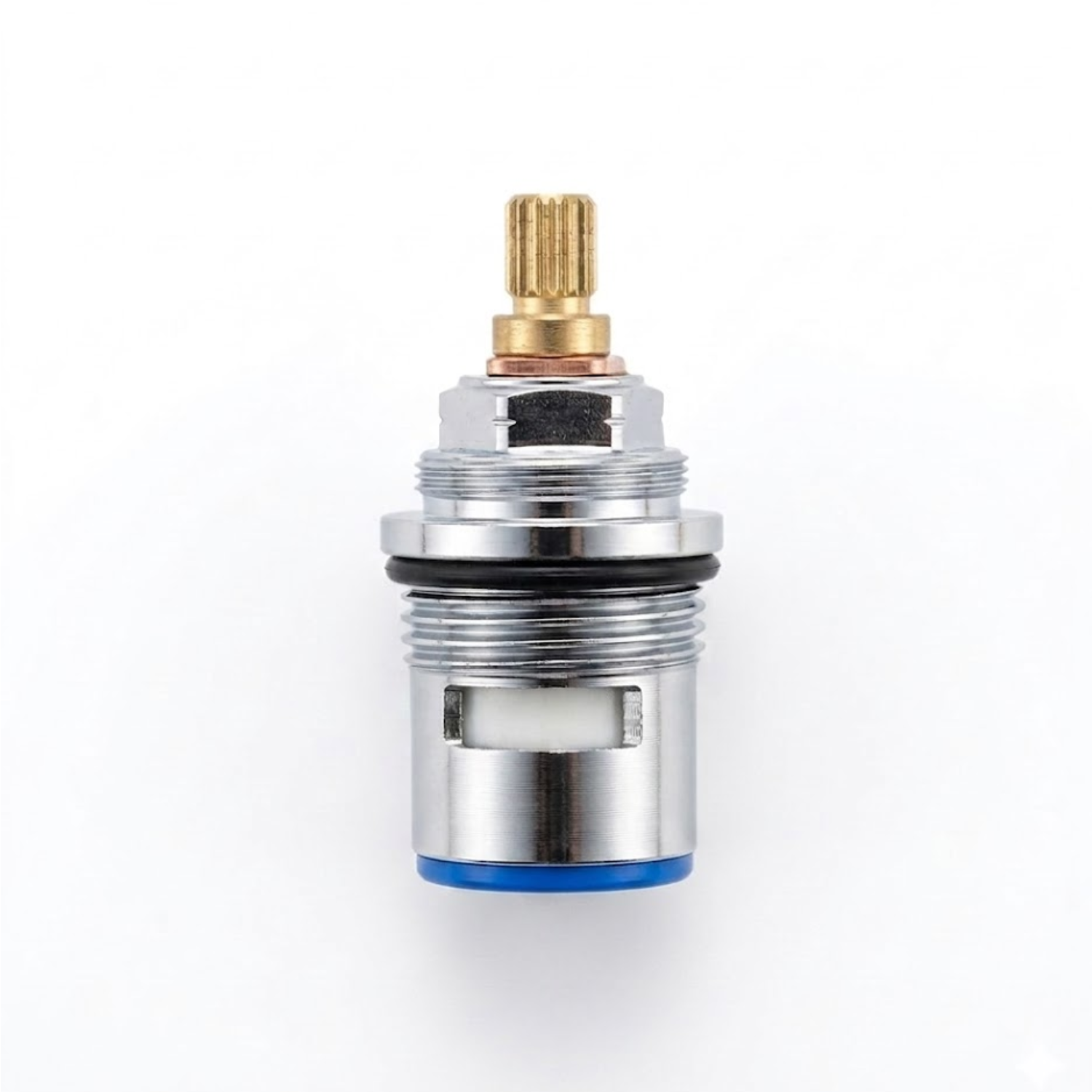

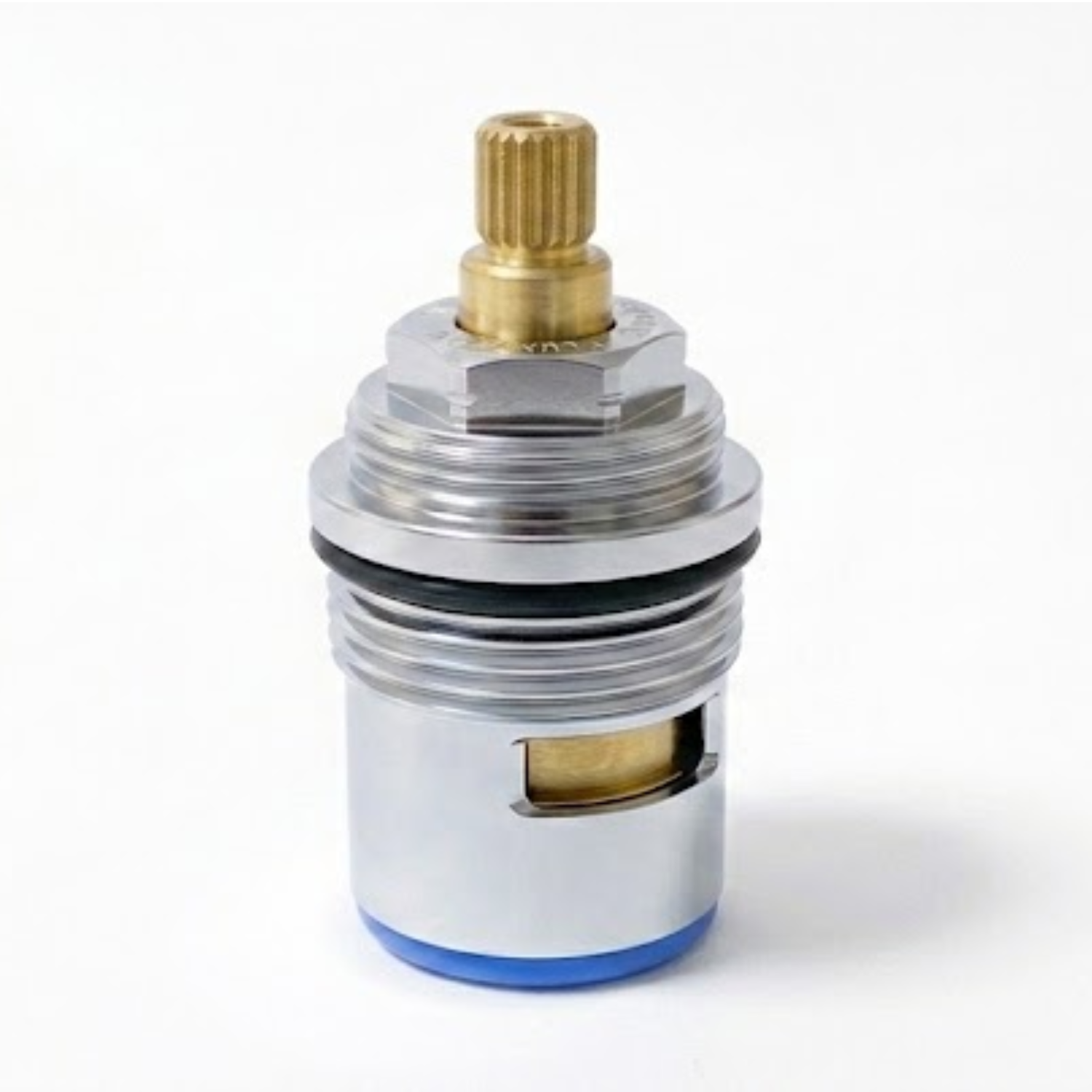

Cold Flow control valve to Suit Arissa.
Compatible with: ARIMB005,ARIBB005,ARICH005,ARIMB006,ARIBB006
Always check the spare part size to ensure it fits your product.
Need to know

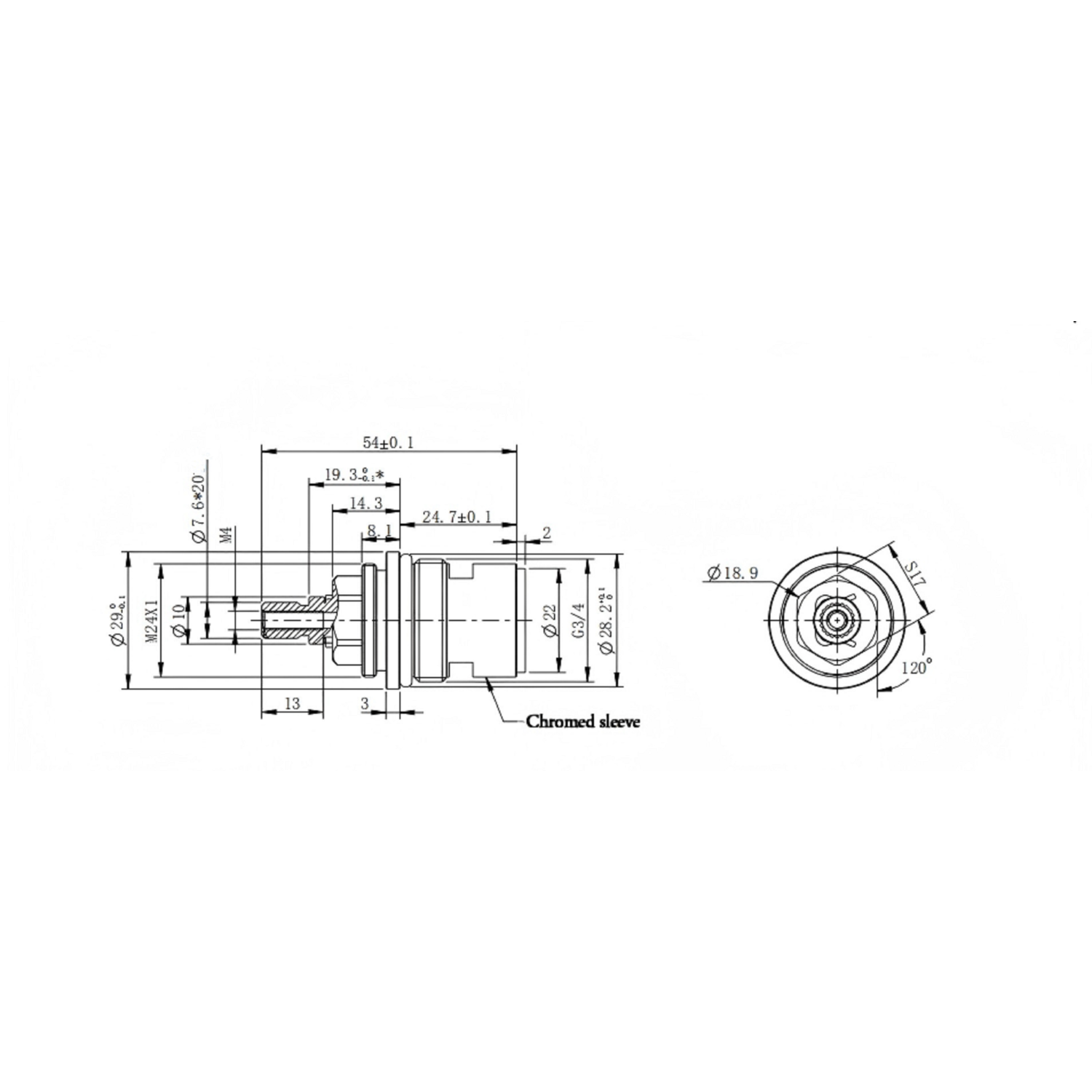

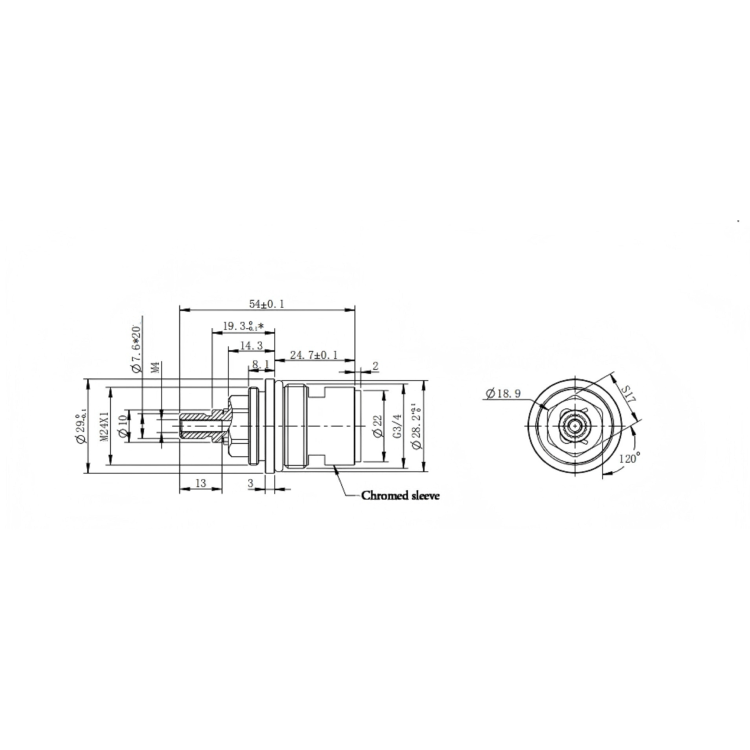

- Overall length: 54 ±0.1
- Thread: M12 × 1
- Outer diameter (front): Ø7.6 ± 0.2 mm
- Outer diameter (connector end): Ø9.2 ± 0.2 mm
- Diameter before sleeve: Ø22 mm
- Sleeve diameter: Ø23.2 ± 0.1 mm
- Sleeve section length: 24.7 ± 0.1 mm
- Sleeve thickness: 2 mm
- Sleeve type: Chromed sleeve
- Outer diameter (rear face): Ø18.9 mm
- 3-hole arrangement: Ø5.17 mm holes spaced 120° apart
