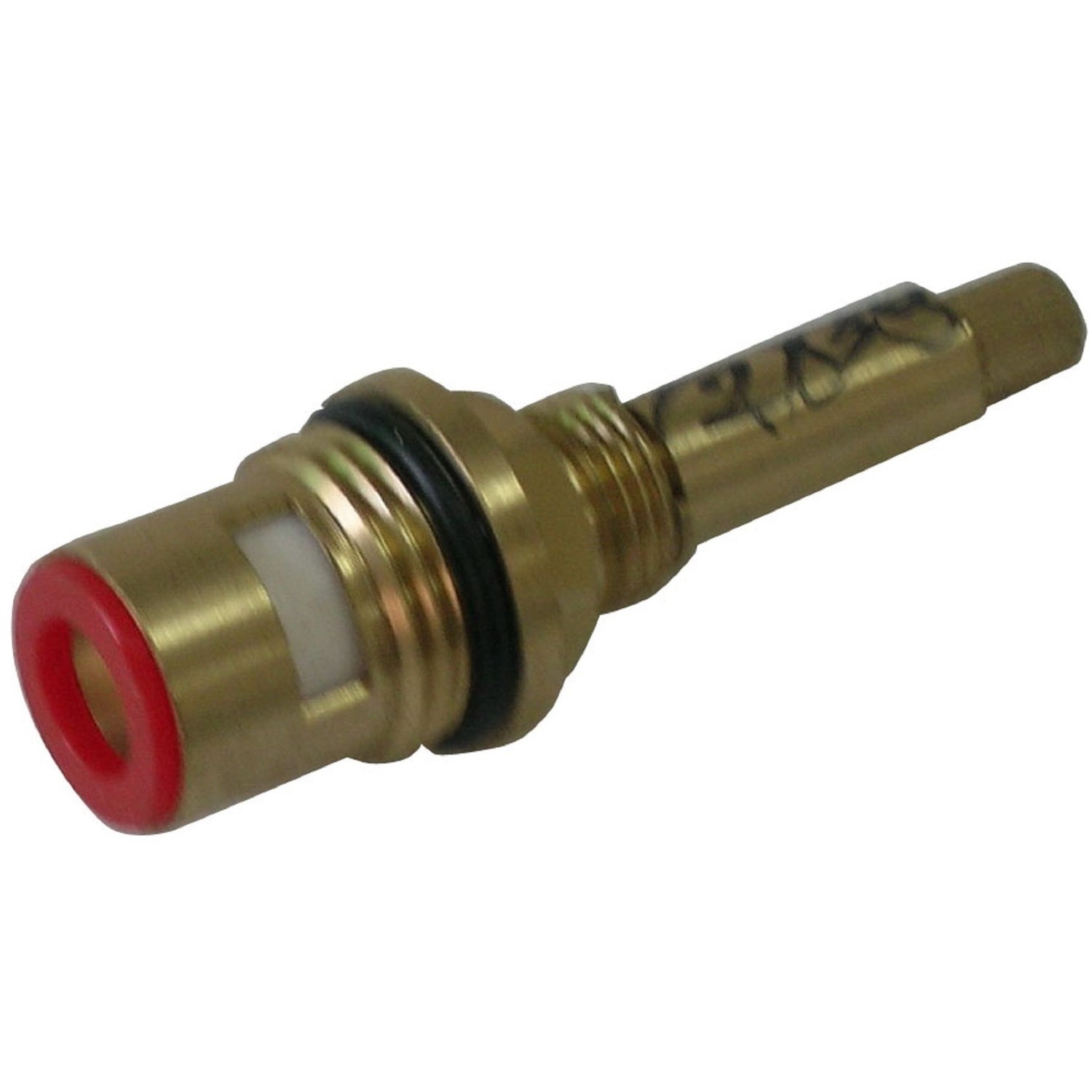

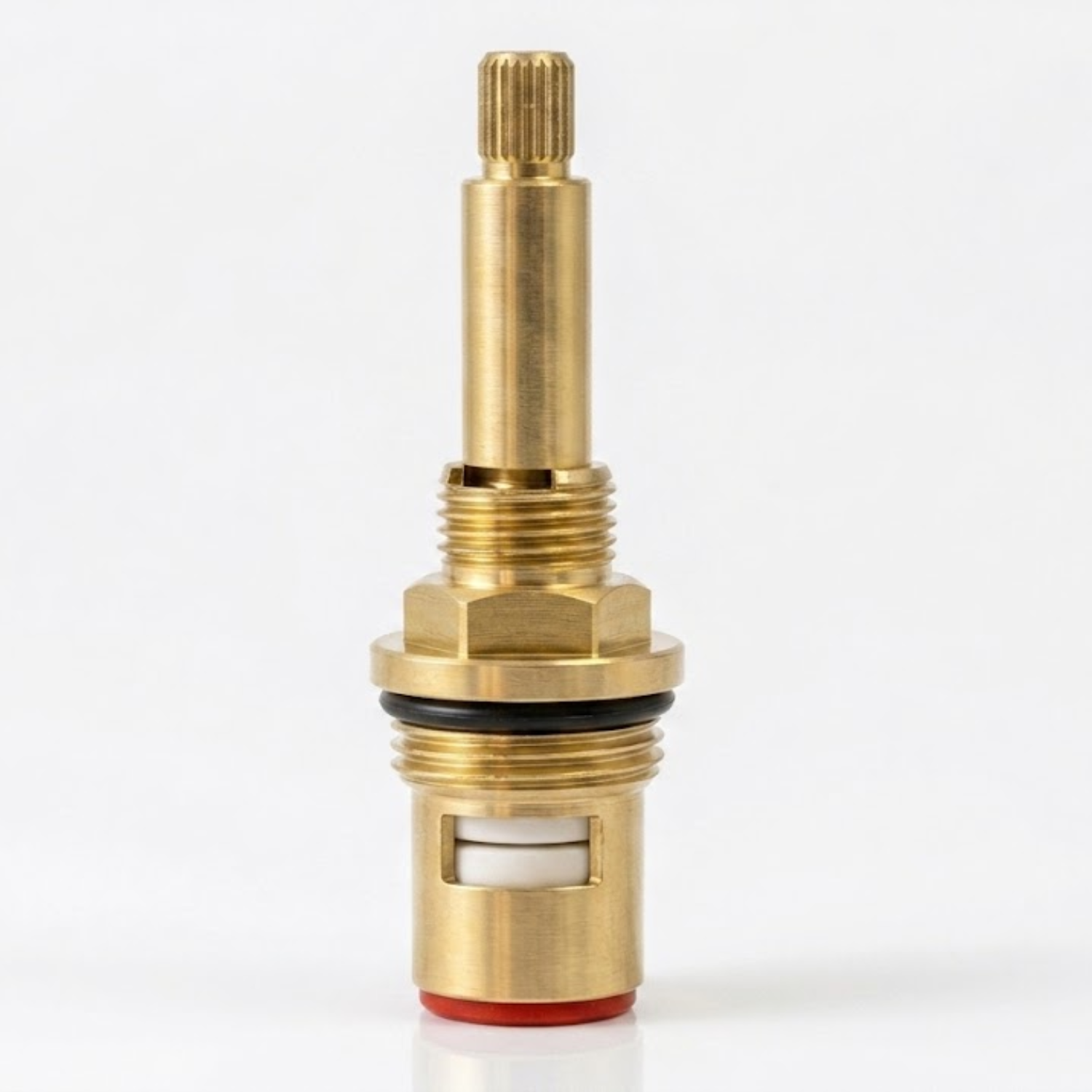

Hot Flow control valve to Suit Camden.
Compatible with: BeBa_25960, BeBa_25961, BeBa_25962, BeBa_25964, BeBa_25965, BeBa_25966, BeBa_25967, BeBa_25969, BeBa_25970, BeBa_25971, BeBa_25972, BeBa_25974
Always check the spare part size to ensure it fits your product.

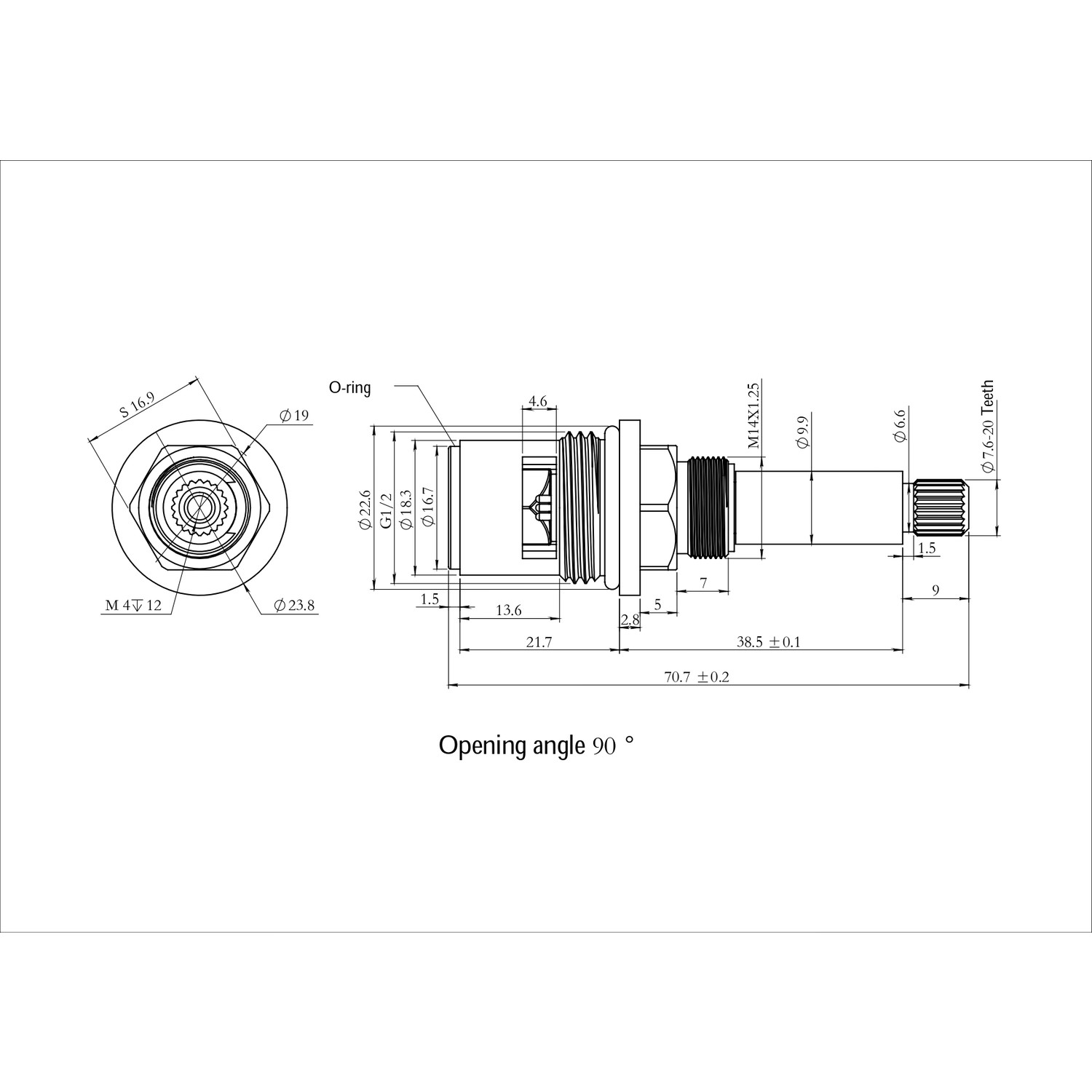

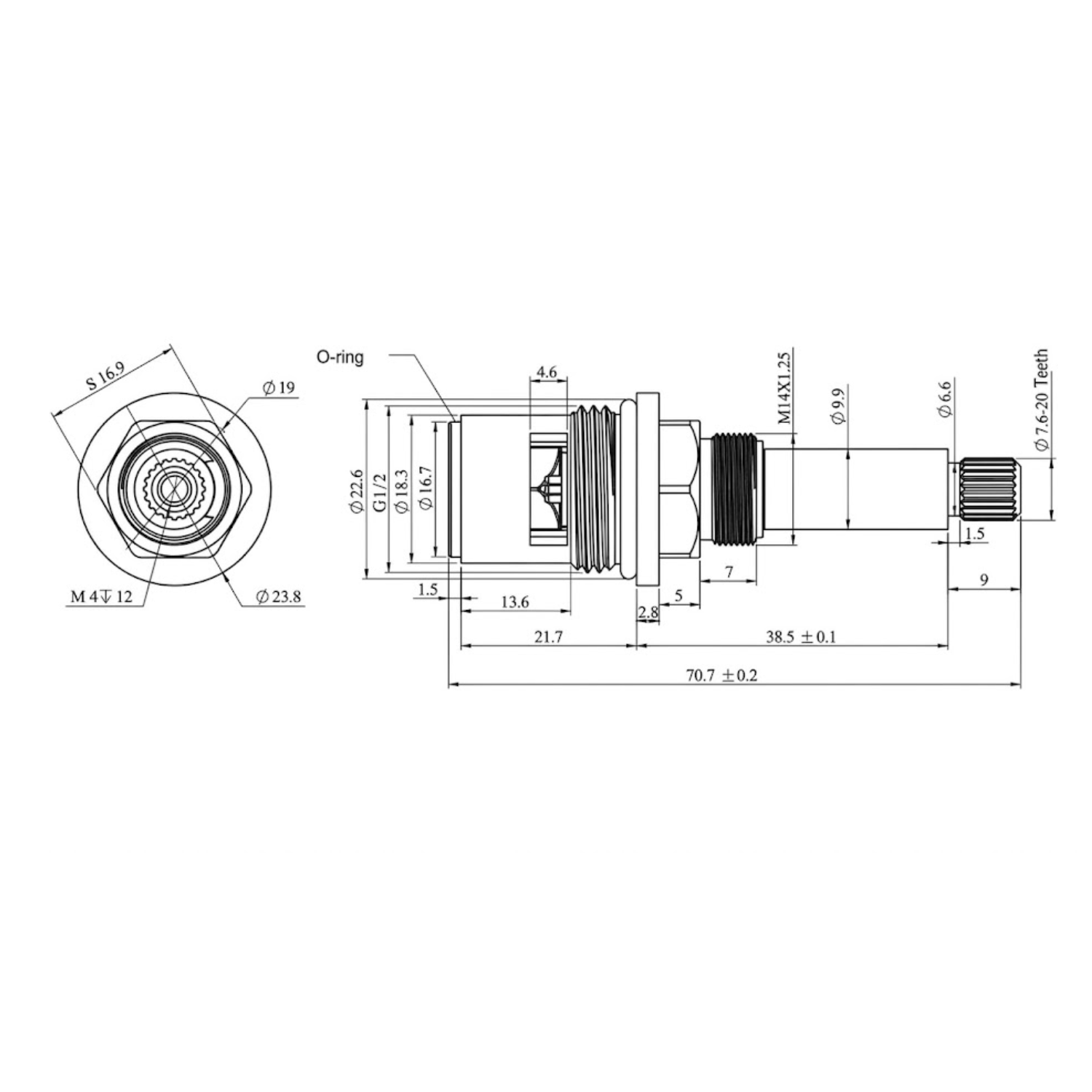

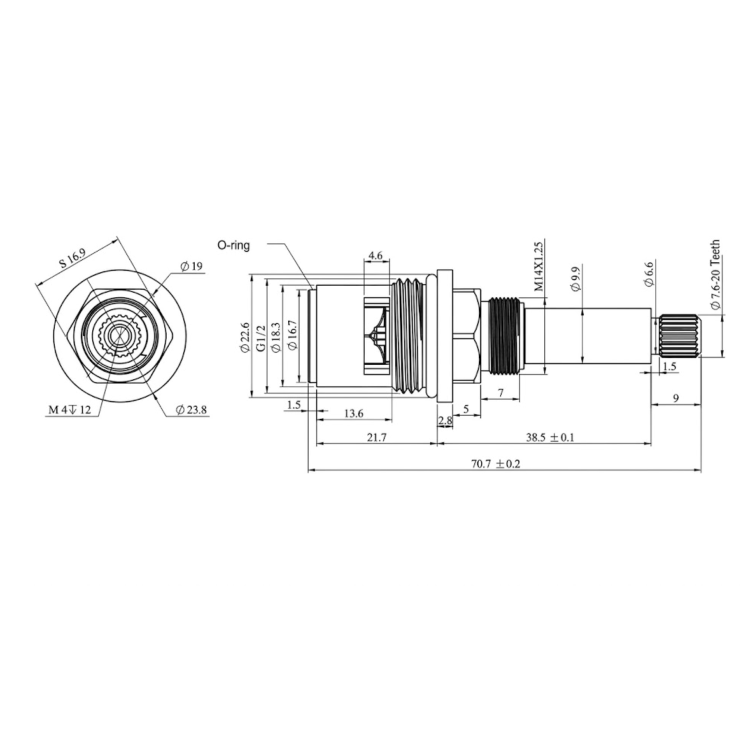

Need to know
- Total length: 70.7 ± 0.2 mm
- Main body diameter: Ø22.6 mm
- Front hex width: S = 16.9 mm
- Outer front diameter: Ø23.8 mm
- Inner splined end diameter: Ø7.62 mm (20 teeth)
- Spline shaft diameter: Ø6.6 mm
- Spline shaft length: 9 mm
- Threaded section (front): M14 × 1.25
- Threaded section (rear): M4 × 12
