SMEG Topline SPH515S Pass Through Hood Dishwasher 500mm Basket With Built In Water Softener - 7 Wash Programs - 9.7kW -3 Phase or 30A 1ph Hardwired / Multiphase
SMEG SPH515S 500mm Basket Pass Through Hood Dishwasher – High-Capacity. Built for Demanding Environments. This fantastic machine offers up to 70% energy efficiency against otehr commercial dishwashers.
The SMEG SPH515S Topline Pass Through Hood Dishwasher is the ideal solution for busy bars, pubs, restaurants, and commercial kitchens that require fast, reliable, and hygienic cleaning of large volumes of dishes. With its spacious 500mm basket, the SPH515S can accommodate up to 1080 plates per hours or 2160 glasses , making it perfect for peak service periods. It can also take GN pans too for cleaning ! The 14ltr wash tank and 10ltr boiler tank ensure maximum capability for continuous wash cycles.
Designed and manufactured in Italy, this professional grade commercial pass through hood dishwasher delivers the premium performance and long-lasting durability that SMEG is known for across the foodservice industry.
Fitted with multi-phase electrics, this means it can be installed on a 3ph 26A or 1ph 16amp or 30amp supply on installation. The unit is supplied as standard on a 3 phase supply, but can be downgraded and altered at installation by a professional commercial dishwasher engineer. If phasing is changed upon installation, it must be done by a professional dishwasher engineer in order to maintain the manufacturers warranty.
Equipped with a range of intelligent features, the SPH515S ensures spotless results every time. This model features a built in water softener to help give sparkling clean dishes. Its double skinned Hood helps to reduce noise and heat emissions, enhancing operator comfort while improving energy efficiency. The machine includes thermostatically controlled wash and rinse cycles, a built-in electronic controlled rinse booster pump, and integrated electronic detergent and rinse aid dosing – all of which work together helping to extend the life of crockery while maintaining pristine cleanliness. Supplied with a plate basket, a cutlery basket and a flat basket. The easy to use electronic control panel provides straightforward operation, with multiple cycle options tailored for different dish types and soiling levels.
For added convenience and hygiene, the SPH515S has 7 programs and includes features like an automatic self-cleaning cycle, removable stainless steel wash arms, and an internal KIWA approved break tank for compliance with WRAS regulations. Whether you're washing delicate crockery or kitchenware, this machine ensures impeccable hygiene and presentation, every time. The SMEG SPH515S is the perfect combination of high-capacity performance, reliability, and Italian engineering excellence, making it a standout choice for any busy hospitality environment.
The SMEG SPH515S has a patented easy lift hood for maximum operator comfort.
Soft Start System
Effective management of the wash pump to protect your dishes. The Soft Start function initiates the wash cycle gently and gradually, progressively increasing the water pressure. This system has been designed to provide optimal protection for the most fragile items, significantly reducing the risk of chipping or damage. At the same time, it ensures excellent cleaning performance, combining efficiency and safety in every wash cycle
Easy Lift Hood
The patented easy lift hood allows for maximum operator comfort, ensuring it is possible to do multiple cycles without added discomfort.
5 Stage System

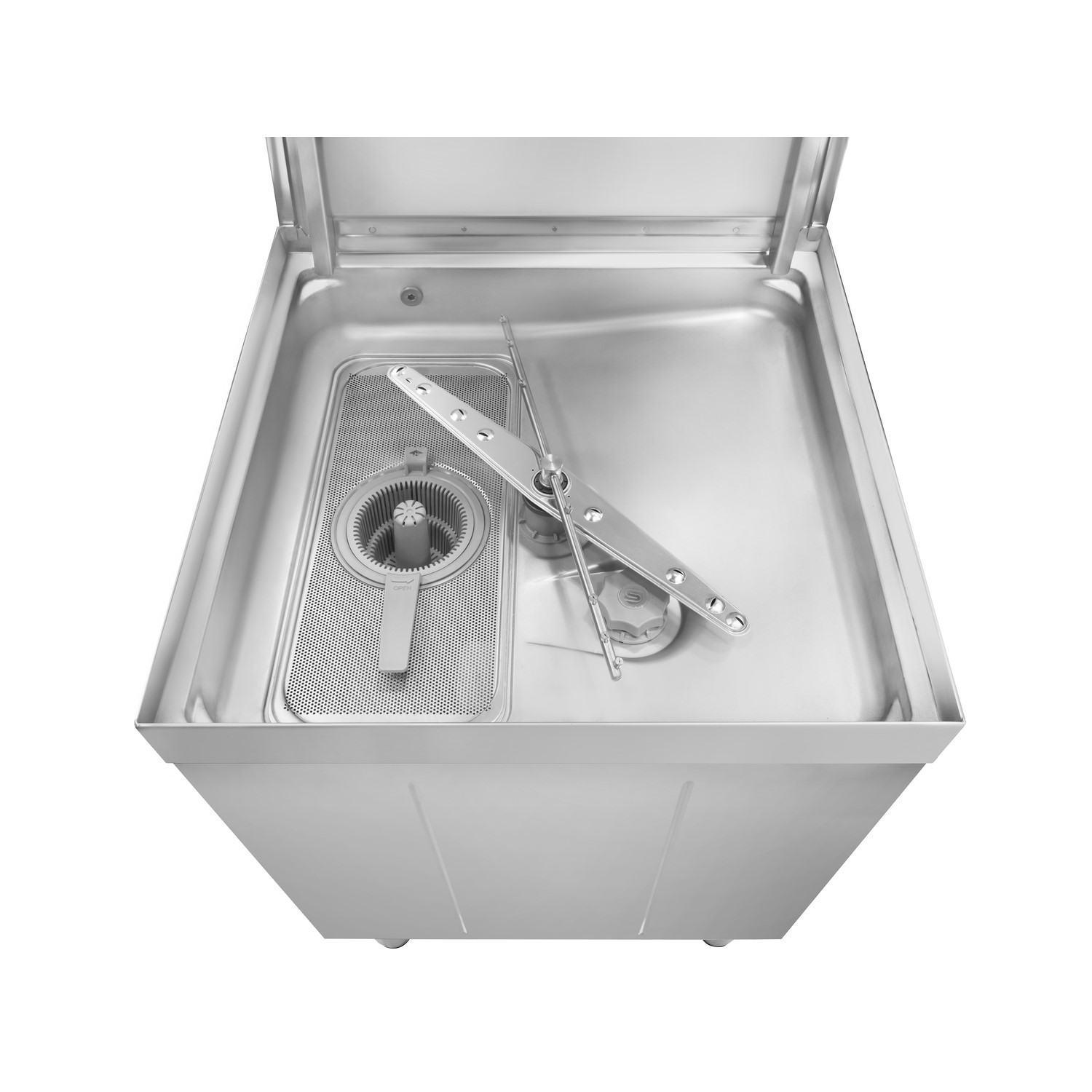

Deep cleaning and spotless washes with the patented filtration system The innovative SMEG filtration system consists of 5 stages to minimise impurities: the 1st stage captures larger food residues; in the 2nd and 3rd stages, finer particles are captured at this filtration stage; the 4th stage features a pre filtration grid to prevent debris from entering the tank and clouding the water. Finally, the last stage is designed to further protect the wash and drain pumps from any debris that may accidently enter the tank during filter cleaning.
HTR System
Consistent temperatures and pressures for uniform and effective dishwashing Thanks to the HTR system (High Temperature Rinse) and the presence of the atmospheric boiler combined with the Thermostop, the cold inlet water does not enter the boiler during rinsing, ensuring a constant temperature of 85°C. The HTR system keeps the water hot for deep sanitisation and quick drying, ensuring constant pressure for uniform and effective cleaning.
Double Skin Thermal and Acoustic Insulation
The double wall hood is designed to optimise energy efficiency by reducing heat loss and accelerating water heating, resulting in lower energy consumption and faster cycle start up times. Additionally, it provides effective acoustic insulation, helping to reduce noise and ensuring a quieter, more comfortable working environment for the staff.
Drain Pump
Partial water replacement during the wash cycle for clean and hygienic dishes The standard drain pump, equipped with a partial water exchange system, ensures that the dirtiest water is automatically removed at every wash cycle. This mechanism allows for continuous renewal of the water used, ensuring that each phase of the washing process is carried out with clean water. The result is optimal dishwashing performance, with outstanding efficiency and an impeccable level of hygiene.
Built In Water Softener
Ideal in all situations, especially hard water areas, to help give sparkling clean dishes.
- Insulated double skinned hood
- Reduced rinse water consumption and detergent usage
- Built in water softener to help give sparkling clean dishes
- Includes detergent and rinse aid pumps / dispensers
- 7 programs to suit all types of businesses
- Advanced wash system for optimal cleaning results
- Removable stainless steel wash arms
- Easy to use electronic control panel
- Self diagnosis system with fault warning
- 500mm basket
- Supplied with a plate basket, a cutlery basket and a flat basket
- Throughput up to 60 baskets an hour - 1080 plates - 1500 pint glasses / 2160 glasses
- Can also accomodate GN 1/1 trays for washing
- Fitted drain pump
- Usable loading height 470mm
- Self cleaning cycle
- Rinse booster pump & break tank
- Interlocking 5 stage filtration system
- 14ltr wash tank capacity and 10ltr boiler tank
- Made in Italy
- 2 years manufacturers onsite parts and labour warranty
- Weight: 127kg
- Power: 9.7kW
- Standard 3 phase connection hardwired – can be altered onsite to single phase
- Multi phase electrics means it can be installed on a 3ph 26A supply (supplied as standard) or 1ph 16amp or 32amp at installation
- Dimensions: 634mm W x 750mm D x 1523mm H
