All about me

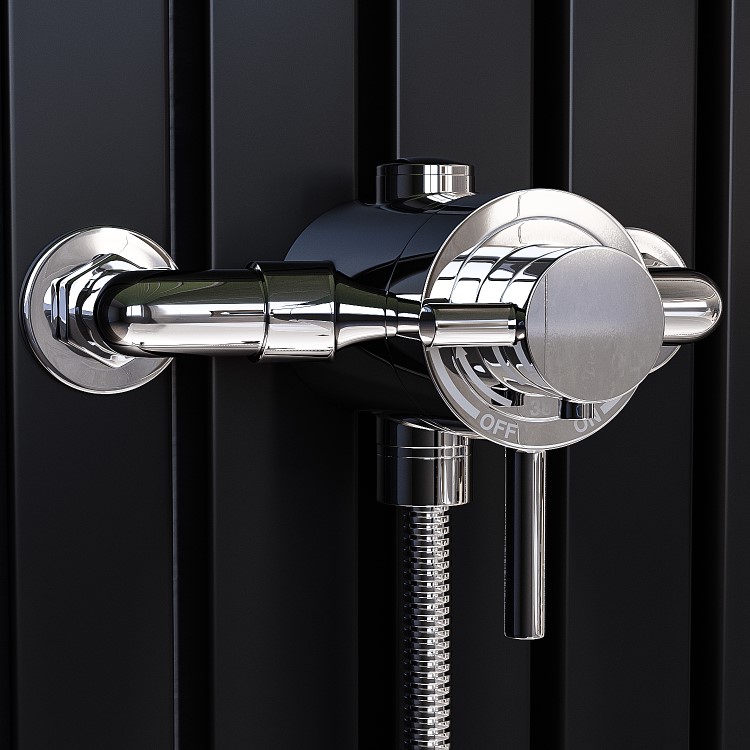

This exposed modern concentric valve adds a sleek minimalistic touch to any shower. With a modern chrome finish, this valve will suit most of our slide rail kits to help you build your ideal suite. Connect the bottom outlet to the shower hose and your shower is ready! The electroplated finish strengthens the tap's resistance to rust and corrosion, boosting longevity and endurance.
All about me

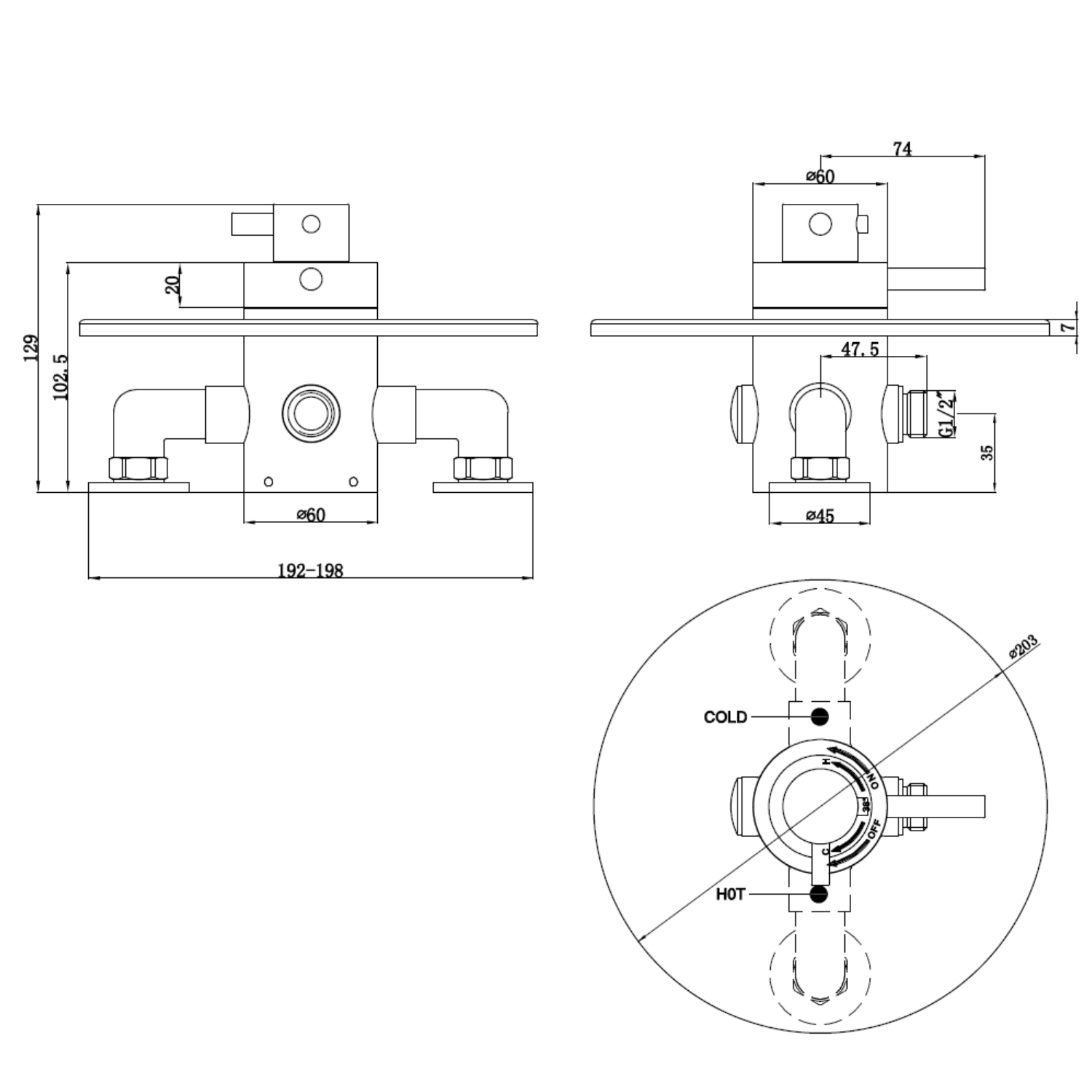

- Dimensions: W192-198 (adjustable elbows) x D129 mm
- Tap Type: Shower Valve
- Style: Modern
- Material: Brass
- Weight: 2kg
- Valve Type: Exposed
- Outlet Size: G 1/2"
- Inlet Size: 15mm
- Colour: Chrome
- Finish: Polished
- Finish process: Electroplating
- Features: Thermostatic Cartridge
- Min Pressure & Flow Rate: 0.5 bar (flow rate of 8.5 litres per minute)
- Max Pressure & Flow Rate: 3.0 bar (flow rate of 22 litres per minute)
- Warranty: 5 years against manufacturer faults
Question from paul: Asked on 01/04/2026 Hi . Do I need good pressure to fit this valve. Paul
Hi, This Volta 1-Outlet Exposed Thermostatic Shower Valve does not require high water pressure to operate. It is designed to work on systems with a minimum pressure of 0.5 bar, so it is suitable for most standard domestic plumbing setups, including many low-pressure systems.
For best performance, the hot and cold water supplies should be reasonably balanced, and the system should not exceed a maximum working pressure of 3.0 bar.
Thank you.
Question from Martin: Asked on 17/03/2026 Can the inlet Hot/Cold pipes be turned 90 degrees for external to wall pipes
Hi, The BeBa_26819 (Volta exposed thermostatic shower valve) has fixed rear hot and cold inlet connections and cannot be rotated 90°, as the valve body is not designed to swivel; however, if your pipework runs externally along the wall, it can still be installed by using suitable 15mm fittings (such as 90° elbows) to redirect the pipework into the valve, provided the pipe centres and installation requirements match the manufacturer’s specification.
Thank you.
