electriQ 12000 BTU Easy Fit Inverter Wall Split Air Conditioner and Condenser Wall Mounting Bracket Bundle

SKU: BUN/eIQ-12WMINV/68788 Quickfind Code: 869237
SAVE 9%

Calculate how many BTUs you need »

Air Conditioner Calculator

Use our handy calculator, which will help you figure out exactly what size of unit you require for your office or home.

What are the room dimensions?

How many people and heat sources are in the room?

What is BTU?

A BTU (British Thermal Unit) is a rating used to determine the heating or in the case of an Air Conditioner the cooling capacity of an appliance.

Typically a minimum of 7000 BTU is needed to cool a small room, whereas commercial units can reach up to 25,000 BTU and beyond. Simply, the greater the BTU, the larger the space that the unit can cool.

This product is no longer available.

Still need help?

For help finding something similar, just give us a call on 0871 984 4416 *

* Calls cost 13p per min plus your network access charge

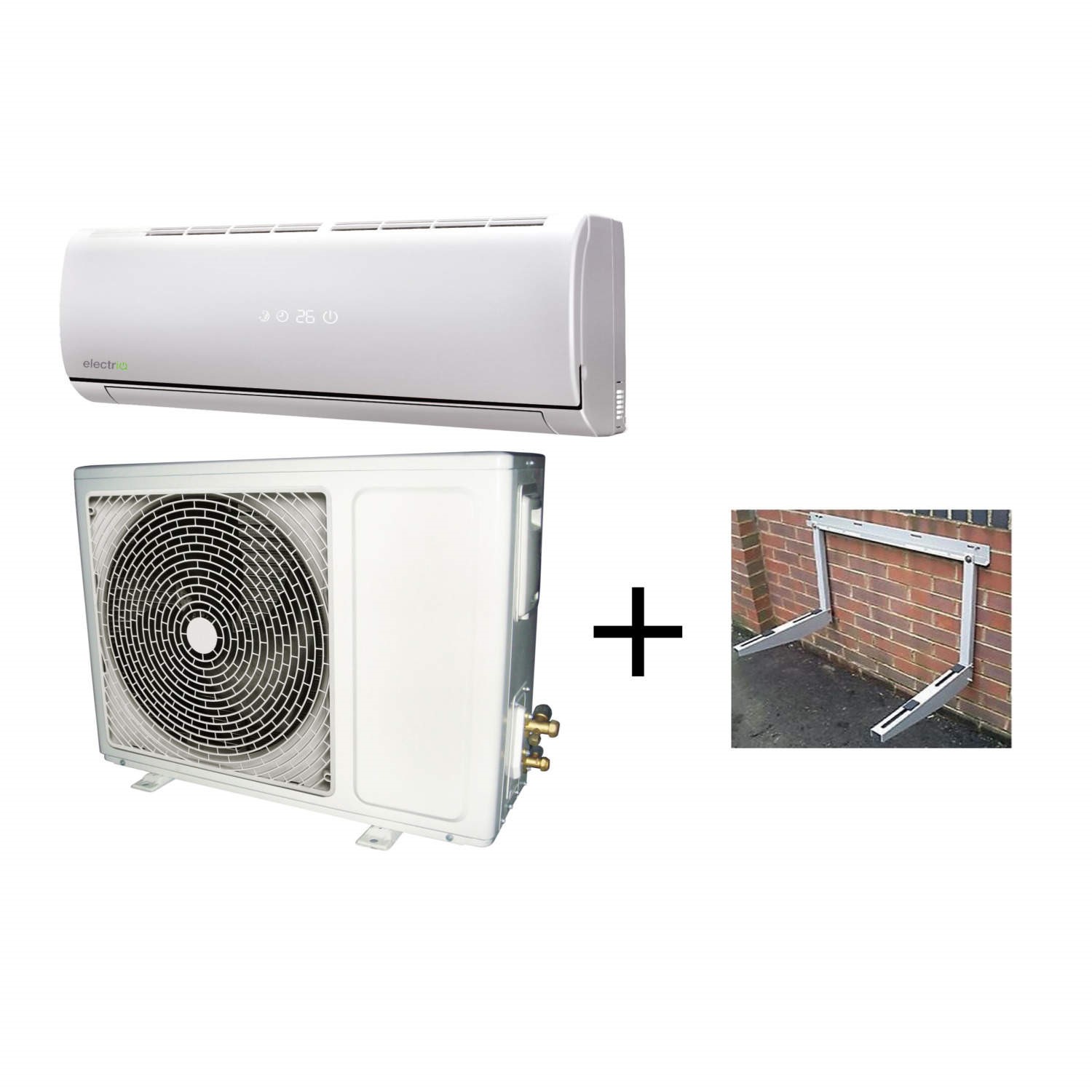

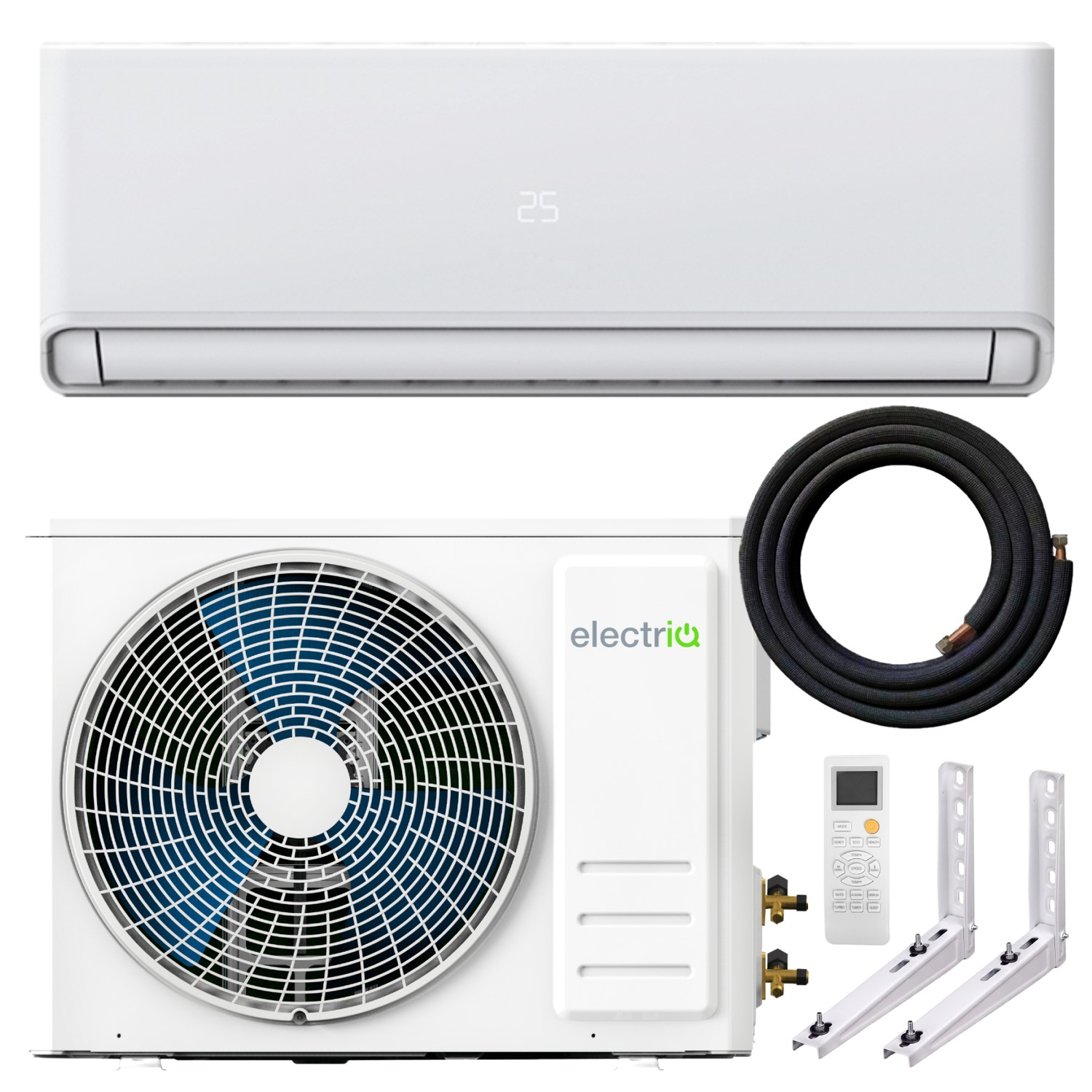

This bundle includes :

electriQ Easy-Fit 12000 BTU A++ WiFi Smart Wall-Mounted Split Air Conditioner Heat Pump and 4.5-Meter Pipe Kit


1 x Air Conditioning Condenser Wall Mounting Brackets up to 90 kgs. 9000 to 24000 BTU

What stands out

  • Manage temp & schedule via smartphone for ultimate control
  • Year-round use: cool, heat, & clean air with ease
  • Dehumidify & remove excess moisture for added comfort
  • A++/A+ rated for efficient cooling & heating all year
  • Powerful 12000 BTU for cooling large areas up to 30 SQM
  • Sleep mode: perfect for using at night when sleeping
  • Voice operated - Alexa and Google Home enabled
  • Contains everything you need for installation, does not require installation by an F-Gas registered engineer or specialist equipment
  • Eco-friendly R290 refrigeration gas with zero ozone depletion potential (ODP)
  • Titanium gold heat exchanger reduces bacteria & mould

The details

This eco-friendly electriQ air conditioners offer superior performance for cooling or heating rooms up to 30 sqm in size. It features built-in Wi-Fi functionality, so you can easily monitor and manage the air conditioner's settings from practically anywhere using your smart device, helping you save on energy bills. It boasts the very latest HFC free compressor Inverter technology, which makes it exceptionally quiet and energy efficient to run, compared to non-inverter equivalents. Plus, it also functions a dehumidifier to help remove excess moisture, improving the air quality in your room and making it more comfortable to breathe. Available in champagne, black or silver colours see (we also recommend) tab.

Essential info

  • Outputs 12000 Btu/h (variable speed inverter)
  • A++/A+ Rating
  • Super DC Inverter
  • Cooling, Heating & Dehumidifying
  • Easy Fit with 4.5 meters (1.5m+3m) pipe and cable kit supplied as standard (optional 10-meter pipe kit available)
  • Does not require installation by an F-Gas registered engineer or specialist equipment for typical installation – everything you need is supplied
  • Eco Friendly: Using latest R290 refrigeration gas with zero ozone depletion potential (ODP) and lowest possible global warming potential (GWP)
  • Maximum Pipe run: 12 meters
  • Energy Saving Inverter Technology
  • Heat Pump for efficient heating
  • Digital White Led temperature and function display
  • Cooling capacity: 3.5 kW
  • Heating capacity: 3.55 kW
  • SCOP: 4.1 / SEER: 6.1
  • 5 years warranty (see user manual)
  • 24 Hour Timer
  • Self-diagnostic function
  • Sleep Mode – ultra quiet
  • Turbo Mode for faster cooling or heating
  • Swing Up/Down function for improved cooling or heating air flow
  • Manually Adjustable Left/Right Louvres for Custom Air Direction
  • Auto Restart
  • L x W x H: 800 x 290 x 190mm (indoor)
  • L x W x H: 720 x 255 x 520mm (outdoor)
  • Weight: 10Kg (indoor)
  • Weight: 30Kg (outdoor)
  • Warranty: 2 years parts & labour+3 years parts



What is in the box?

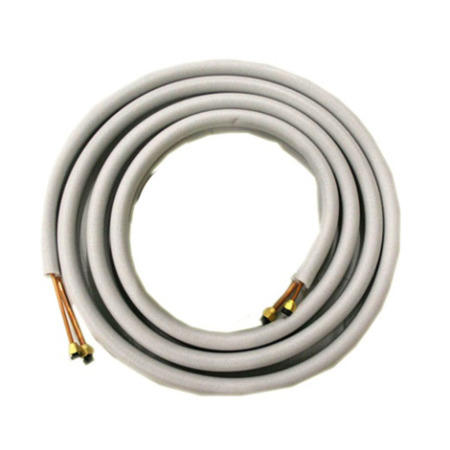

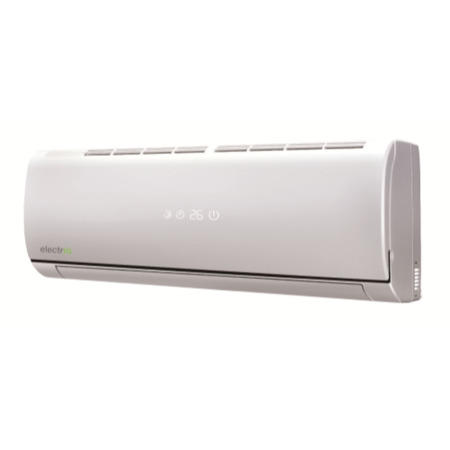

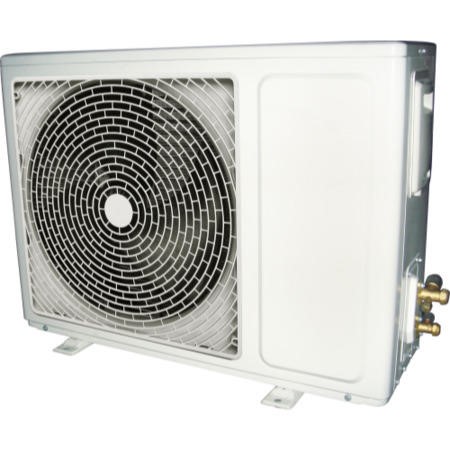

The model is an easy install DC Inverter that comprises of two units. There is the internal unit which is mounted on the wall of the room you wish to cool supplied with the supplied indoor wall bracket and the 1.5 meters set of copper pipes which connects to the corresponding external unit (called the condenser) which sits on the ground or on a wall bracket (can be purchased separately if required) on the outside. Also in the box, there is a 3-metre coil of interconnecting copper pipe, a full-length electrical cable and remote control.

How to Install

This advanced air conditioner uses environmentally friendly and efficient HFC-free refrigerant. Unlike most split air conditioners on the market, this air conditioner does not contain fluorinated gases which have high Global Warming Potential and are harmful to the environment. Therefore it does not require installation by an F-Gas registered engineer or specialist equipment for typical installation. The person installing the unit must understand the installation manual, be aware of the safety precautions required and be confident they can complete the installation before starting. Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gased and sealed and they come with a pre-flared pipe kit enabling the person to easily install them. The indoor unit should be fitted to the wall using the mounting plate supplied in the box. The condenser should be fixed on the ground or wall mounted on the outside of the wall with the optional wall-mounting bracket. The unit is supplied with 4.5 metre copper pipe and electrical cable which reduces the need to purchase additional parts.

How does it work?

The outside unit takes the heat from the room and dissipates it outside. The internal unit sets the room cooling and heating temperature to your exact requirements. You can use the supplied remote control to set your desired temperature and then let the air conditioner automatically regulate the heat throughout the day at a maintained level, without having to change settings yourself. Many of our customers are now installing these super inverter air conditioners for their impressive heating ability as well the cooling.


Key Information
Brand electriQ
Type Wall mounted
Split Type
Multi split air cons connect a number of indoor units to one outdoor unit, to cool more than one room while saving space and running costs. Single room split air con units have one indoor unit connected to an outdoor system. Air cons with no outdoor unit are vented straight through the wall, making them perfect for anywhere outdoor space is difficult to access.
Split
Refrigeration Gas
R290 is an energy-efficient refrigerant, an eco-friendly alternative with zero ozone depletion potential (ODP). R290 does also not require installation by an F-Gas certified engineer, whereas R32 requires installation by an F-Gas certified engineer.
R290
Pre-Gassed
For quicker installation
Pipe Kit Included
No need to buy an extra kit for installation
Maximum Cooling Area (m2) 30sqm
Cooling Power (BTU)
The maximum cooling power of your air con in British Thermal Units. The greater the BTU, the larger the space the unit can cool.
12,000
Cooling Power (kW)
The maximum cooling power of your air con in kilowatts. The greater the kW, the larger the space the unit can cool.
3.5kW
Power Supply (V/hz) 220-240V/50hz
Energy Rating A++/A+
Lowest Temperature 16Degrees
Noise level
How loud your Air Con is. A normal conversation is about 60dB
40dB
Colour White
Condition New
Warranty 2 years / up to 5 parts
Features
Timer Programmable
Heating Function
Heat pump for efficient heating, perfect for year round use
Quiet
controls Electronic
Fan speeds
The higher the fan speed, the more air is conditioned by the air con so the cooler the room will be.
3
Smart
Can be operated or scheduled using your smart phone or tablet.
WiFi Built-in
Dehumidifies
Removes moisture from the air in your home, for a more comfortable humidity level. Reduces mould and mildew.
Dimensions & Weight
Max. Hose Length 15Metres
Power cord length 1.2Metres
Pipe Kit Length 4.5Metres
Suitable For
Home
Office
Conservatory
Server Room
Includes venting kit for server rooms.
