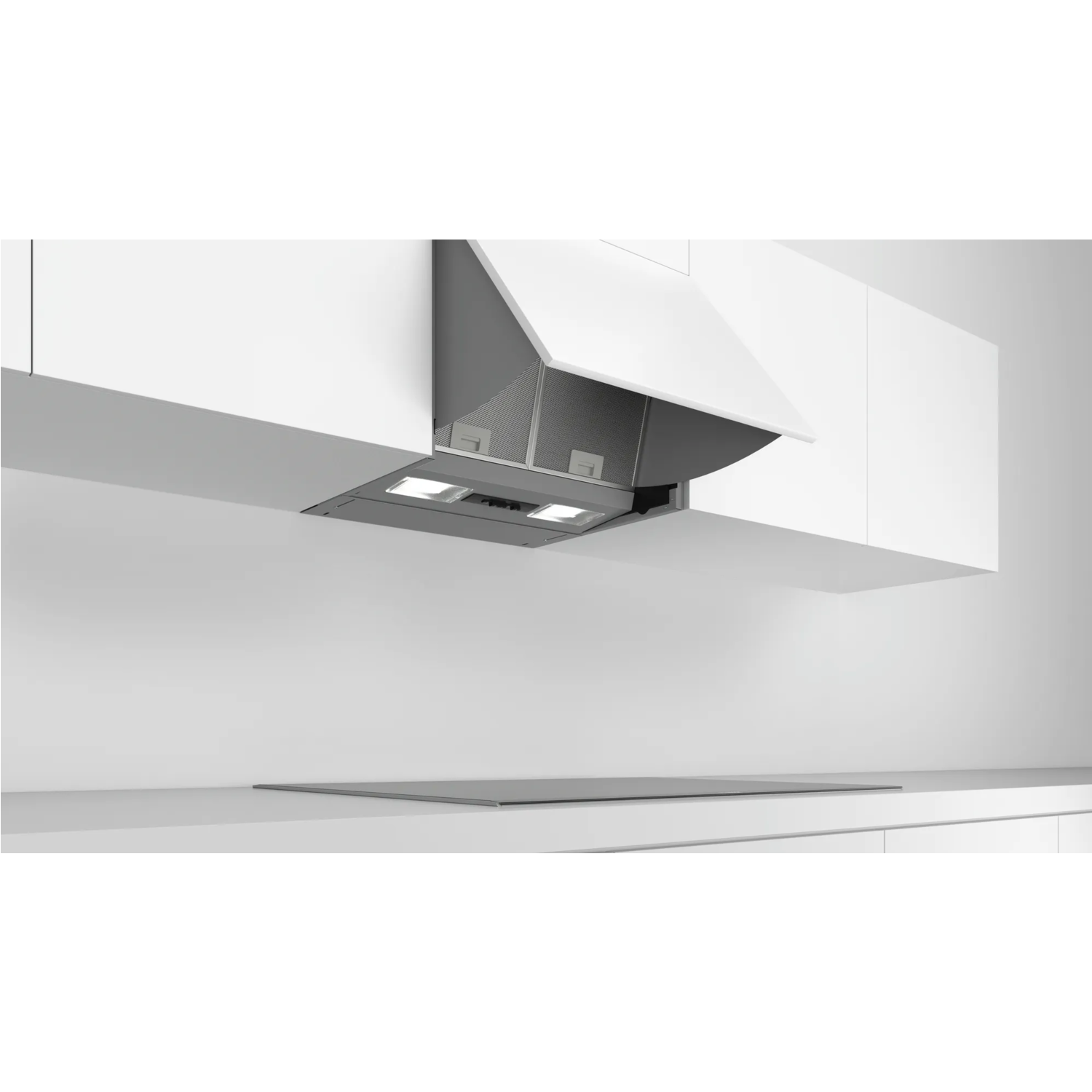

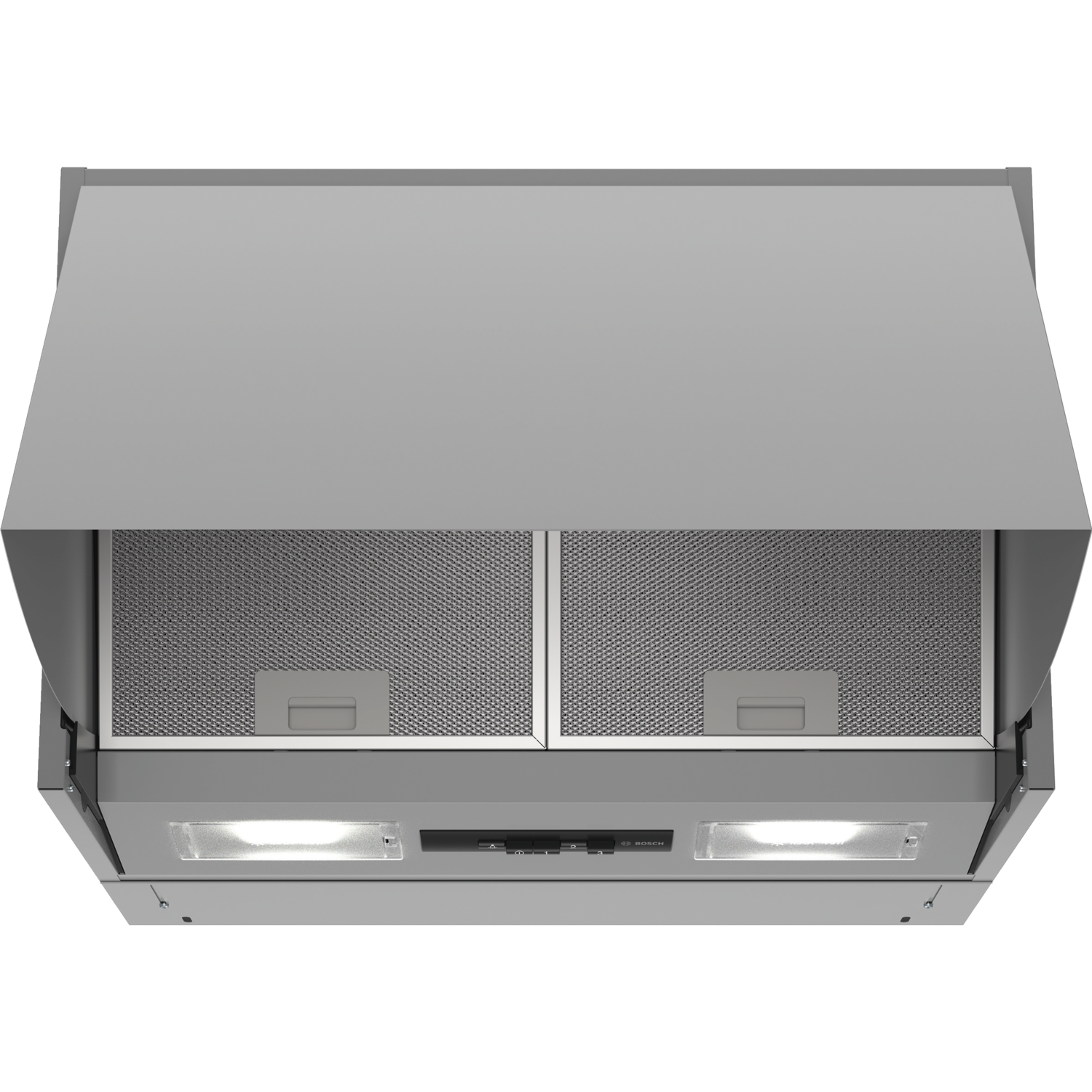

Integrated cooker hoods pull out when in use and close neatly to conceal when not in operation.
High extraction rate
The high extraction rate ensures continuously clean air in the kitchen with 3-speed power Level options to suit your cooking style and recipes.

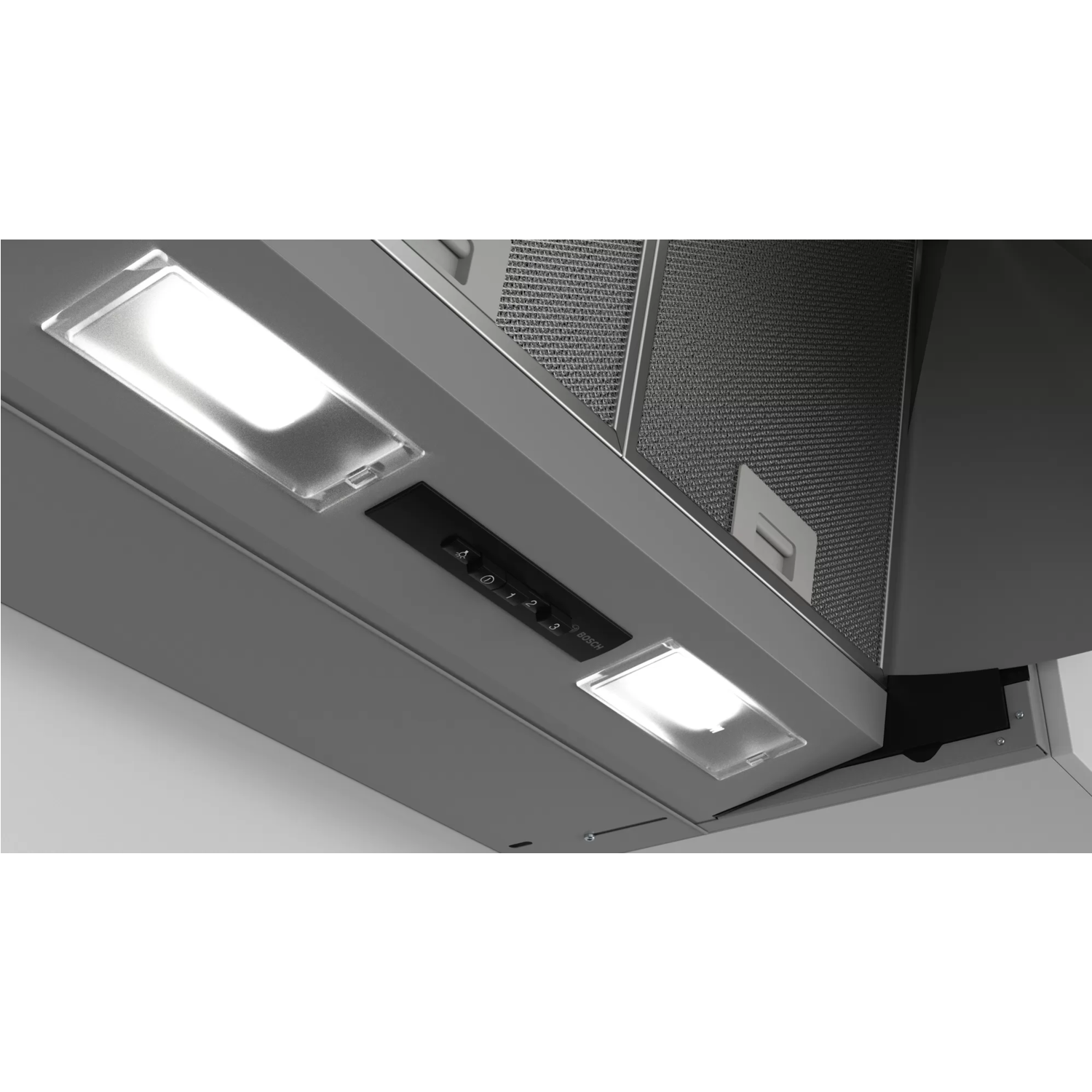

LED Illumination
The energy-saving lighting provides bright and clear lighting for the hob area.
Key performance features:
- Energy Efficiency Class: B
- Maximum Extraction Rate: 625 m³/h
- Maximum Noise Level: 70 dB*
Features

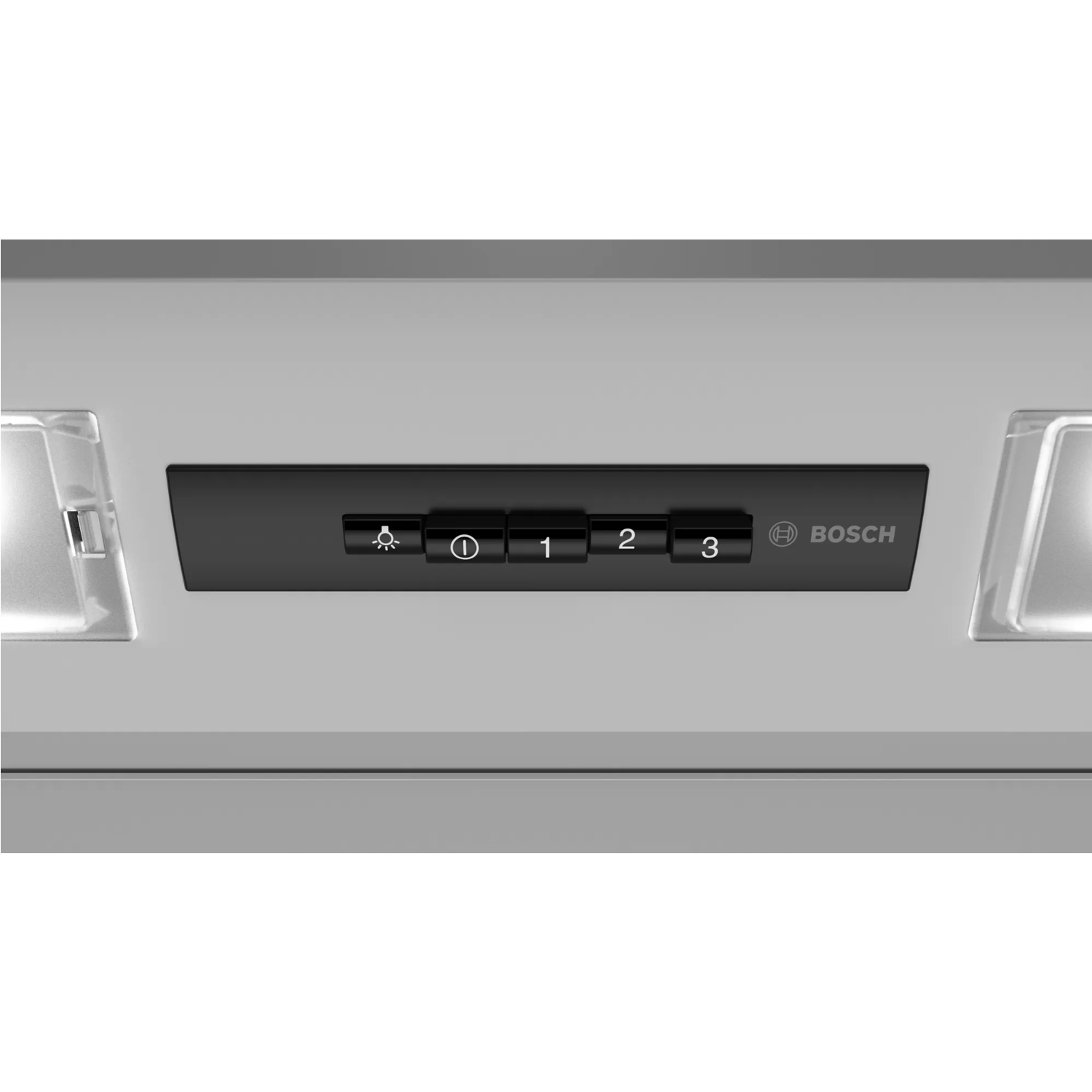

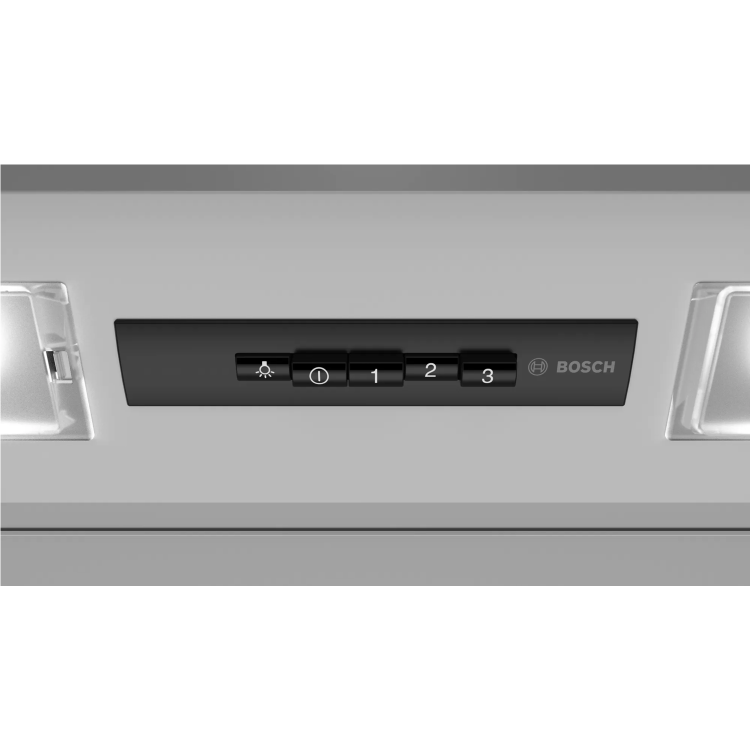

- Push button control for extractor speeds and light
- 3 power levels
- Single motor
- 2 x 3W LED
- Colour Temperature: 2700 K
- 2 removable metal grease filter cassettes
- For installation between cupboards
Design
- Silver
- Integrated extractor hood
- Push button control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction charcoal filter DWZ0IM0A0 needed
- Maximum Extraction Rate: 625 m³/h
- Noise max. Normal Level: 70 dB*
- Power rating: 256 W
- Light Intensity: 188 lux
- Colour Temperature: 2700 K
- Electrical cable length 1.5 m

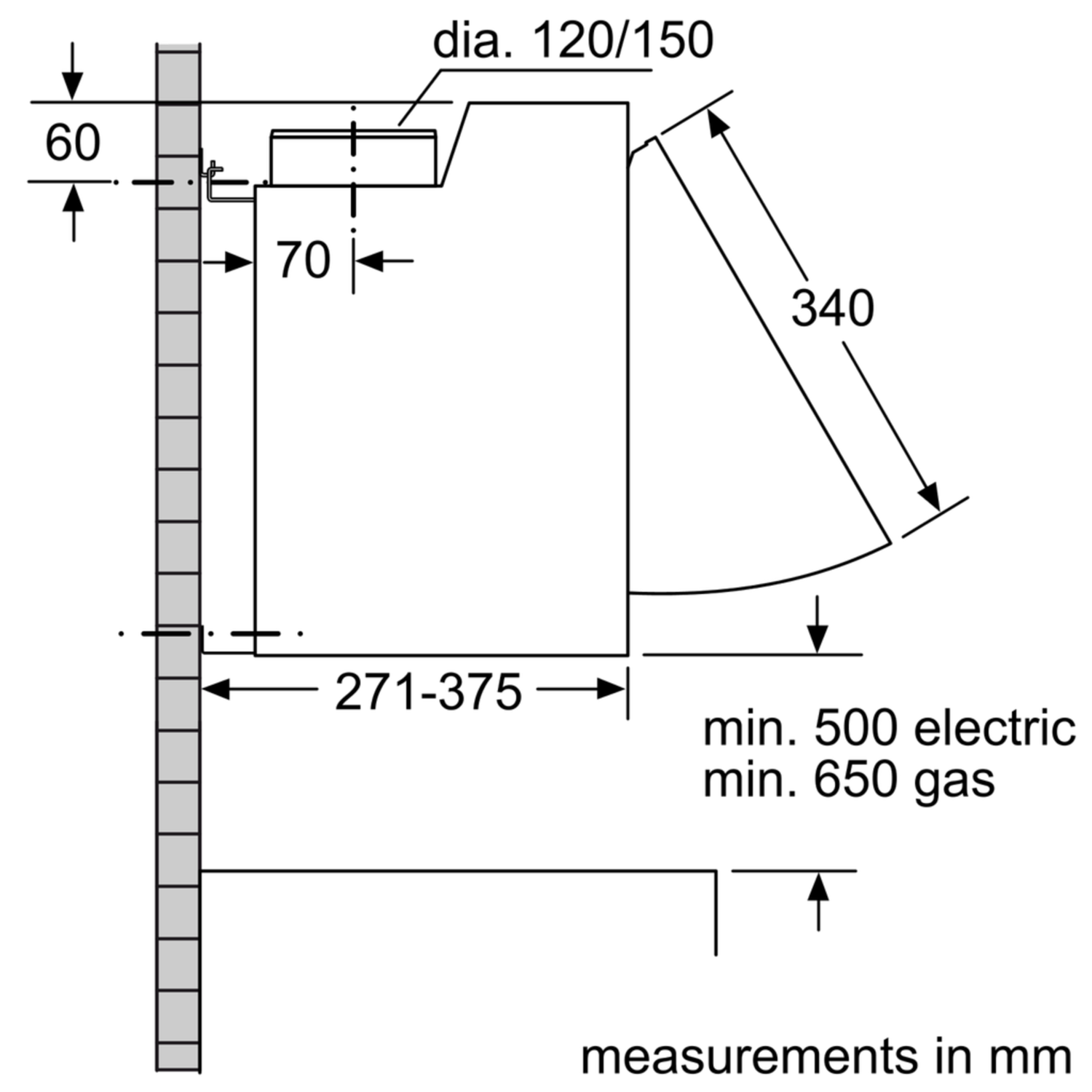

- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

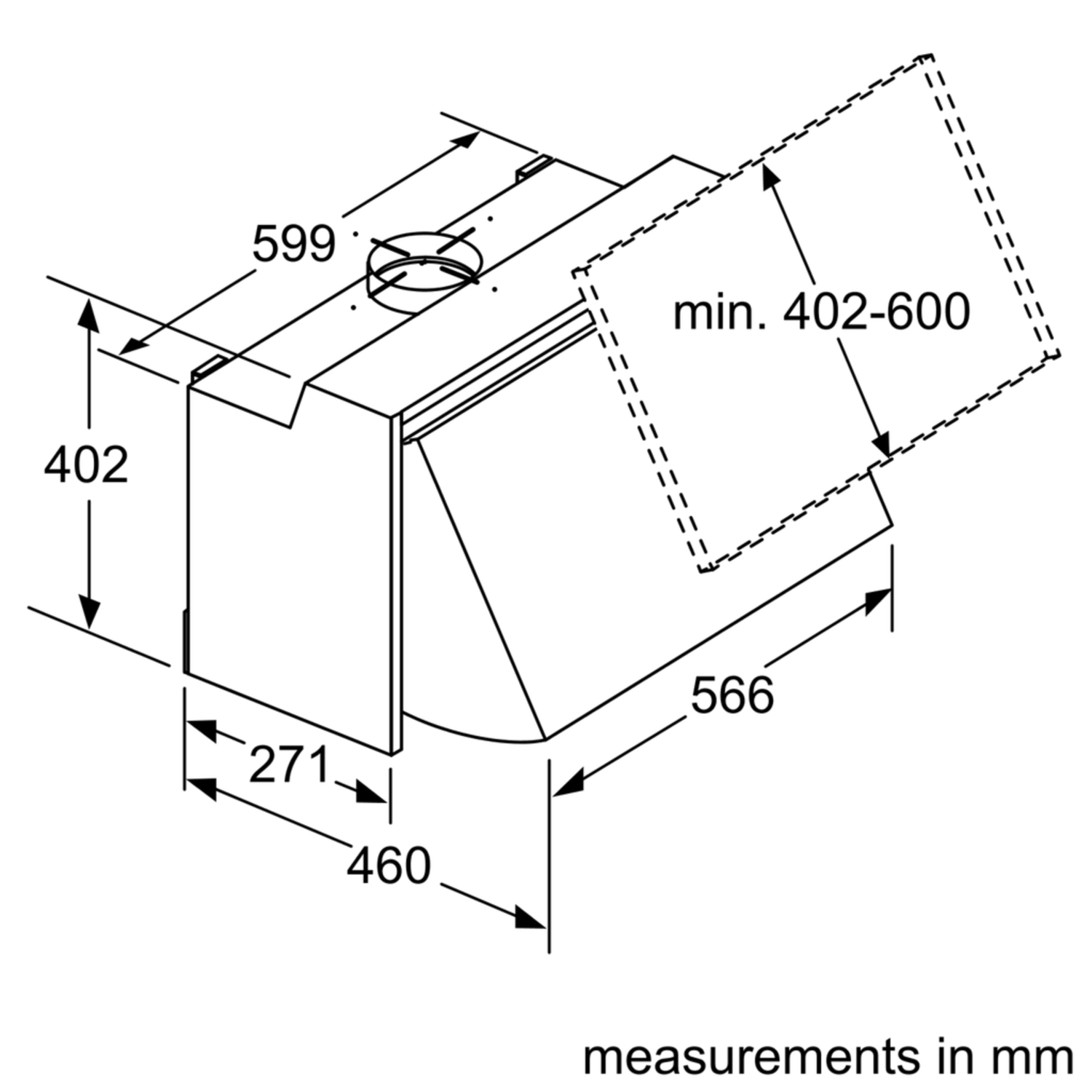

- Dimensions: H 402 x W 599 x D 271 mm
- Energy Efficiency Class: B
- Blower Efficiency Class: B
- Lighting Efficiency Class: A
- Grease Filtering Efficiency Class: C
- Average Energy Consumption: 68.4 kWh/year
Question from Elaine Malia: Asked on 12/03/2026 Is there an option to adjust the depth to fit the cupboard depth?
Hi, The Bosch Series 2 60cm Integrated Cooker Hood (DEM66AC00B) has a fixed depth of 280?mm and does not feature adjustable depth. According to Bosch’s official installation manual, a minimum internal cupboard depth of 300?mm is required for proper installation and ventilation. The cupboard front panel can be aligned to sit flush, but the hood body itself cannot be altered. If the cupboard is shallower than recommended, the hood may slightly protrude. Proper clearance for ducting and airflow must always be maintained.
Thank you.
Question from Colm: Asked on 05/01/2026 does it come with plug in system
Hi, The Bosch Series 2 60cm Integrated Cooker Hood (DEM66AC00B) comes with a plug-in power cable that fits a standard kitchen socket. The cable is about 1.5?m long, and the hood is rated for 220–240?V / 10?A. Installation should be done by a qualified electrician.
Thank you.
