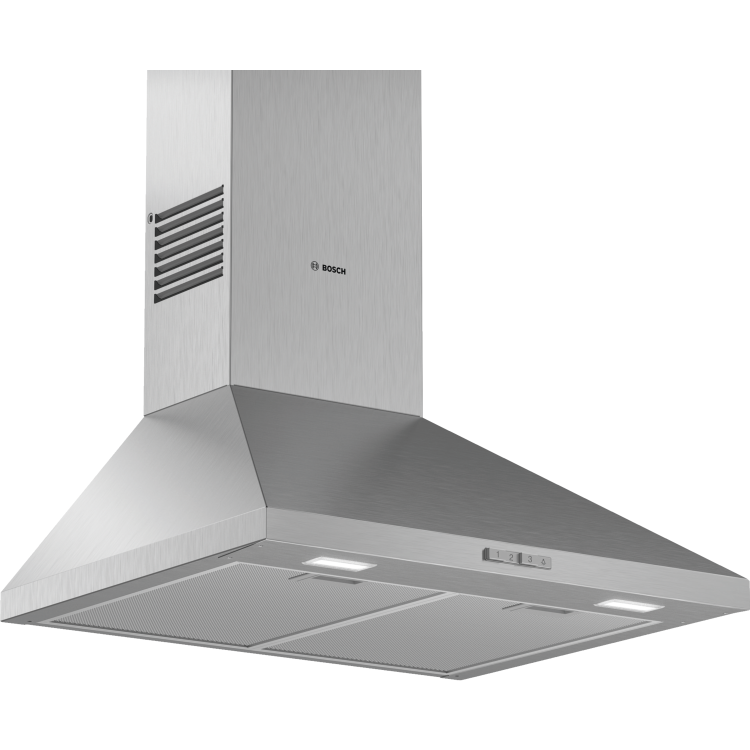

Bosch Series 2 60cm Pyramid Chimney Cooker Hood - Stainless Steel

SKU: DWP64BC50B Quickfind Code: 1270170
Energy Label

Unsure what extraction rate you need? Use our handy calculator

Extraction Rate Calculator

Use our handy calculator, to help figure out exactly what extraction rate you require for your kitchen.

What are the kitchen dimensions?

What is an extraction rate?

Cooker hoods come with different extraction rates, which determine how quickly the air is changed in the kitchen. It’s recommended that your cooker hood should change the air around 10 times per hour. So, the larger the kitchen the higher the extraction rate.

The extraction rate your kitchen needs all depends on its size. The faster the extraction rate the faster the air will be cleaned, although the noise level may go up, so faster isn’t always better. Take a look at how to work out your extraction rate above.

Free Delivery
£229
FREE Delivery to most of the UK
Installation available in basket
Why buy me

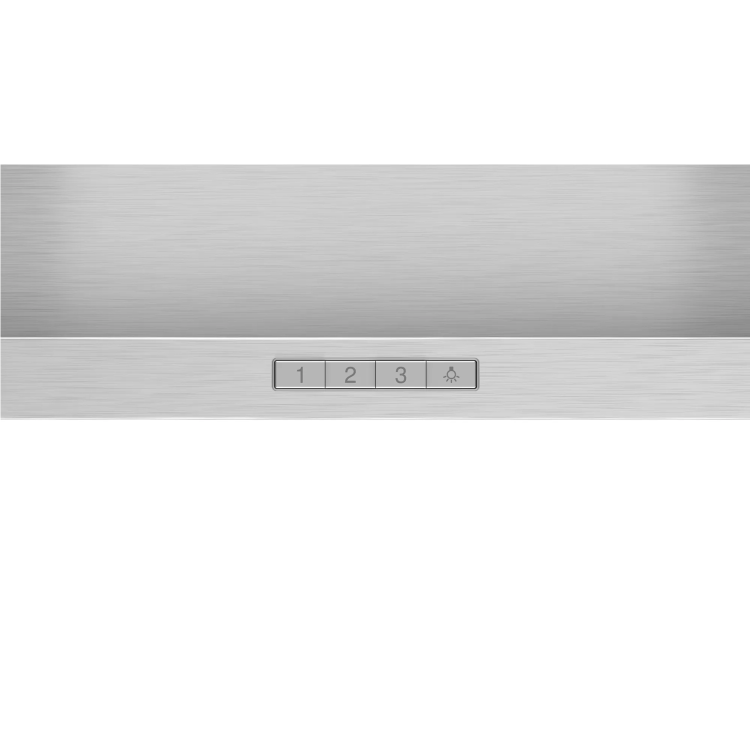

  • Push button control
  • 3 power levels
  • Max. extraction rate: 360 m3/h
  • Noise max. Normal Level: 66 dB*
  • 2 x 1.5W LED light
  • Colour Temperature: 3500 K

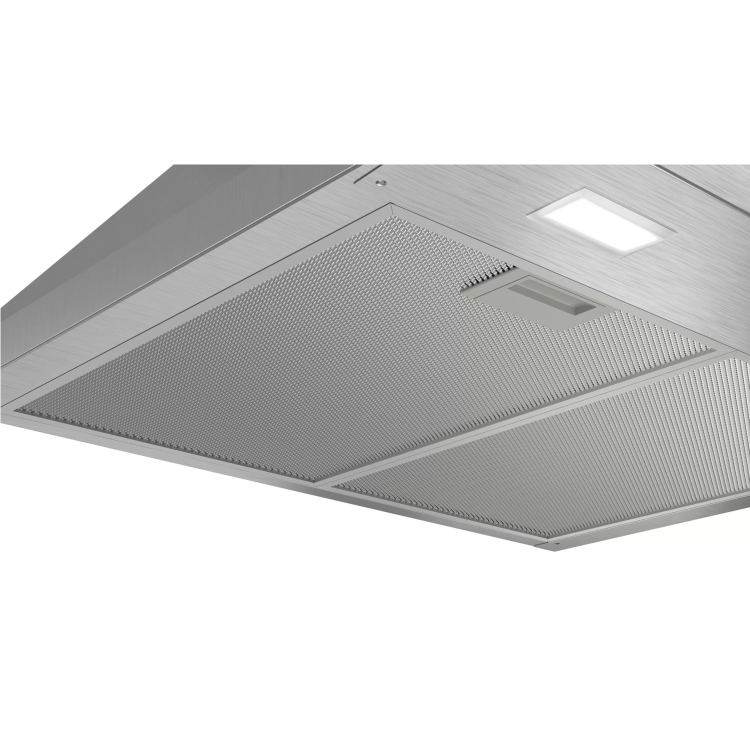

  • 2 removable metal grease filter cassettes

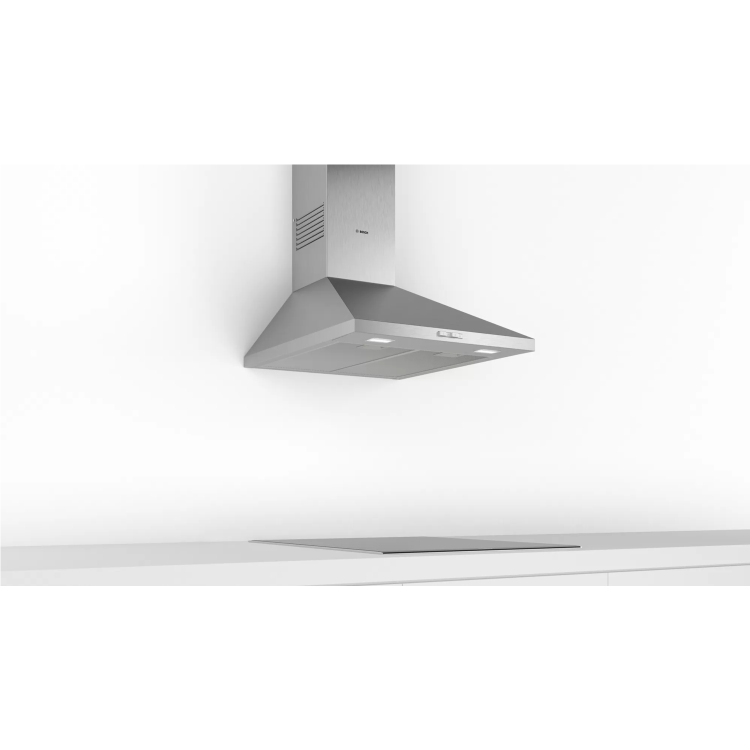

  • Designed for wall mounted installation
click
Extended warranties

With No Worries cover you get total peace of mind, a single UK based point of contact if you need help or advice, fast on-site response and a replacement product if we can't repair it.

What's included:

  • If you develop a fault we'll get it working again. We'll instruct either the manufacturer or a certified repair centre to repair it
  • If your product can't be repaired we will replace it. Replacements will be brand new and delivered free of charge
  • All costs are included. This includes parts, labour, call out and delivery charges, so you can rest assured that there are no hidden costs
  • We have a dedicated UK based claims line who will be there to help if any issues occur

Click here for the Terms & Conditions (opens in new window)

Alternatively, you can call the Care Team now to add peace of mind to any item bought from us or if you have any questions on 0844 893 7998

With No Worries cover you get total peace of mind, a single UK based point of contact if you need help or advice, fast on-site response and a replacement product if we can't repair it.

What's included:

  • If you develop a fault we'll get it working again. We'll instruct either the manufacturer or a certified repair centre to repair it
  • If your product can't be repaired we will replace it. Replacements will be brand new and delivered free of charge
  • All costs are included. This includes parts, labour, call out and delivery charges, so you can rest assured that there are no hidden costs
  • We have a dedicated UK based claims line who will be there to help if any issues occur

Click here for the Terms & Conditions (opens in new window)

Alternatively, you can call the Care Team now to add peace of mind to any item bought from us or if you have any questions on 0844 893 7998

Features

  • Push button control
  • 3 power levels
  • Max. extraction rate: 360 m3/h
  • Noise max. Normal Level: 66 dB*
  • 2 x 1.5W LED light
  • Colour Temperature: 3500 K
  • 2 removable metal grease filter cassettes
  • Designed for wall mounted installation

Design

  • Brushed steel
  • Pyramid
  • Chimney extractor hood
  • Mechanical

Key performance features:

  • Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
  • Max. extraction rate: 360 m3/h
  • Noise max. Normal Level: 66 dB*

Performance/technical information

  • Suitable for ducted or recirculating operation
  • For recirculated extraction recirculating kit (accessory) needed
  • Max. extraction rate: 360 m3/h
  • Maximum extraction rate exhaust air 360 m³/h according to EN 61591
  • Extraction rate in recirculation mode:
  • Max. normal use: 200 m³/h
  • Noise max. Normal Level: 66 dB*
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 66 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
  • Noise level in recirculation mode:
  • Max. normal use: 67 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
  • Power rating: 100 W
  • Light Intensity: 104 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

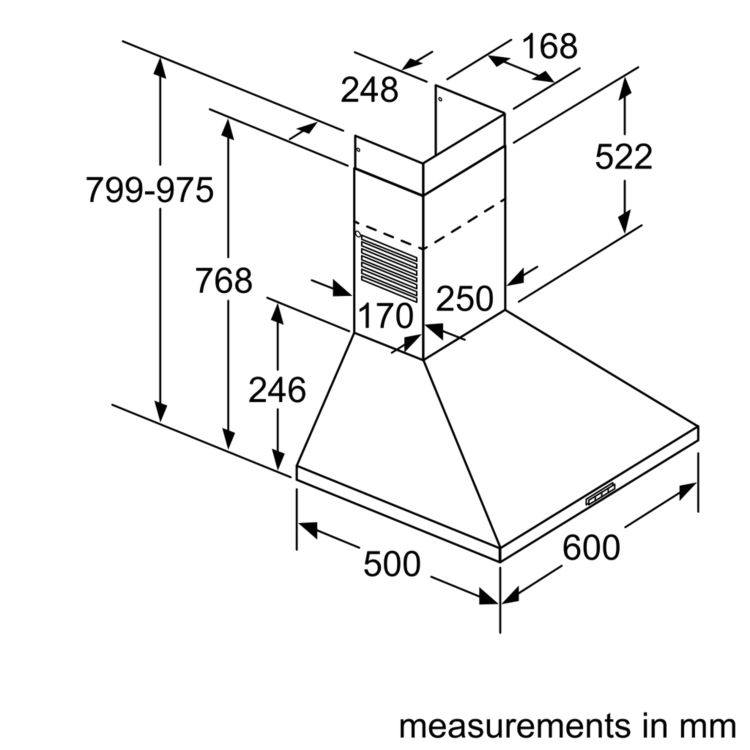

  • Dimensions exhaust air (HxWxD): 799-975 x 600 x 500 mm
  • Dimensions recirculating (HxWxD): 799-975 x 600 x 500 mm
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: E*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
  • Average Energy Consumption: 51.4 kWh/year*

Optional accessories

  • Recirculating kit

General information
Brand Bosch
Performance
Speed Settings
Multiple speed settings give ultimate versatility for a range of foods, the higher the setting, the finer the ingredients. Variable speeds give you even more control.
3
Maximum Extraction Rate 365m³/h
Maximum Recirculation Rate 200m³/h
Maximum Noise Level 66dB
Annual energy consumption 53kWh/a
Installation
Installation Type Wall-mounted
Vent Location Top
Plug type supplied with plug
Cable length 130cm
Connected load 100W
General information
Cooker Hood Type Chimney Hoods
Colour Stainless steel
Air Extraction Type Extraction & recirculation
Control Type Push Button Control
Number of lights 2
Type of lamps used LED
Grease filter material Washable aluminium
Warranty 2 year warranty
Product Detail
Approval certificates CE, VDE
EAN code 4242005031467
Efficiency Information
Fluid dynamic efficiency class E
Grease filtering efficiency class C
Lighting efficiency class A
Energy Rating D
Dimensions & Weight
Height 98cm
Width 60cm
Depth 50cm
Weight 7kg
Diameter of Air Outlet
This is the diameter of the outlet that connects to ducting if extracting to an external vent.
120/150mm
