CDA 60cm Chimney Hood - Stainless Steel

Name: CDA 60cm Chimney Hood - Stainless Steel
Brand: CDA
SKU: ECH63SS

Compare

SKU: ECH63SS Quickfind Code: 1837059

SAVE 18%

Unsure what extraction rate you need? Use our handy calculator

What are the kitchen dimensions?

Length (m)

Width (m)

Height (m)

Extraction rate required (m³/h)

Shop by extraction rate

Low »
under 349m³/h

Medium »
350 - 499m³/h

High »
Over 500m³/h

What is an extraction rate?

Cooker hoods come with different extraction rates, which determine how quickly the air is changed in the kitchen. It’s recommended that your cooker hood should change the air around 10 times per hour. So, the larger the kitchen the higher the extraction rate.

The extraction rate your kitchen needs all depends on its size. The faster the extraction rate the faster the air will be cleaned, although the noise level may go up, so faster isn’t always better. Take a look at how to work out your extraction rate above.

LIMITED STOCK! Less than 10 remaining

Was: £144.97 You save: £25.97

Why buy me

475m³/h extraction rate ideal for mid size kitchens
Maximum noise rate 64dB similar to a dishwasher
Easy to use push button controls
Dimensions: (H)65cm x (W)60cm x (D)50cm
3 speed settings

click

Extended warranties

5 Year Warranty for just

£90.00

3 Year Warranty for just

£60.00

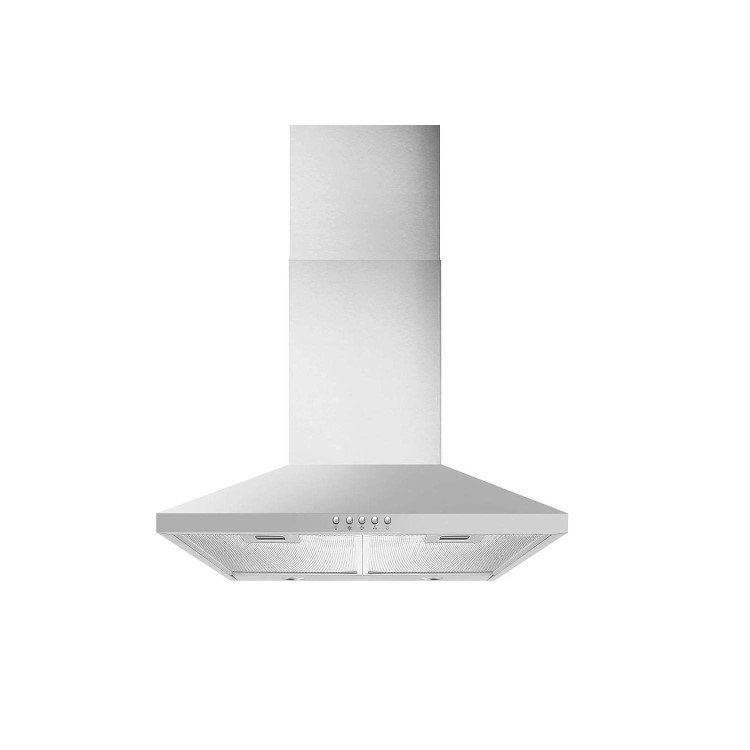

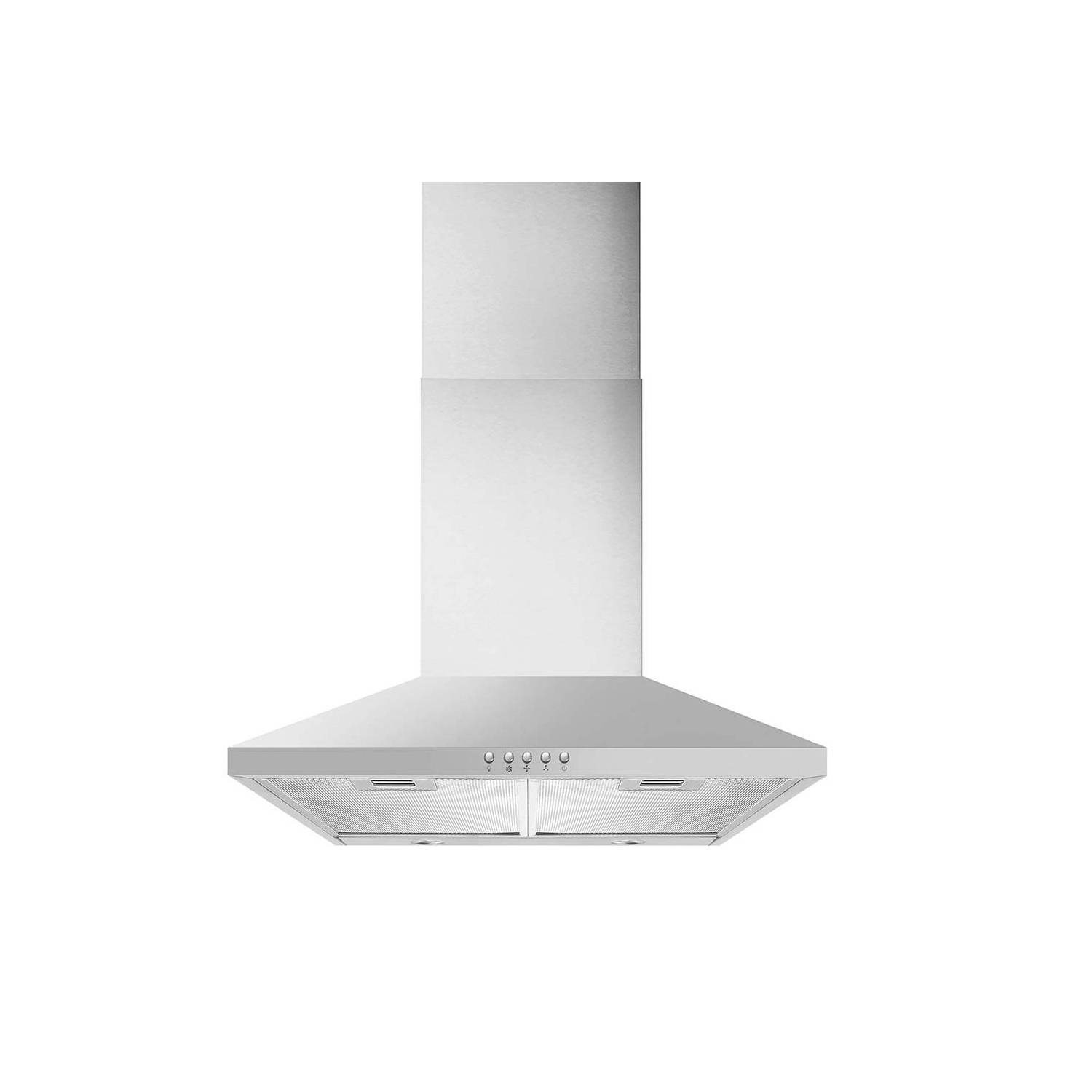

The ECH63SS 60cm chimney extractor in stainless steel has a contemporary design which allows it to be a main focal point in any kitchen.

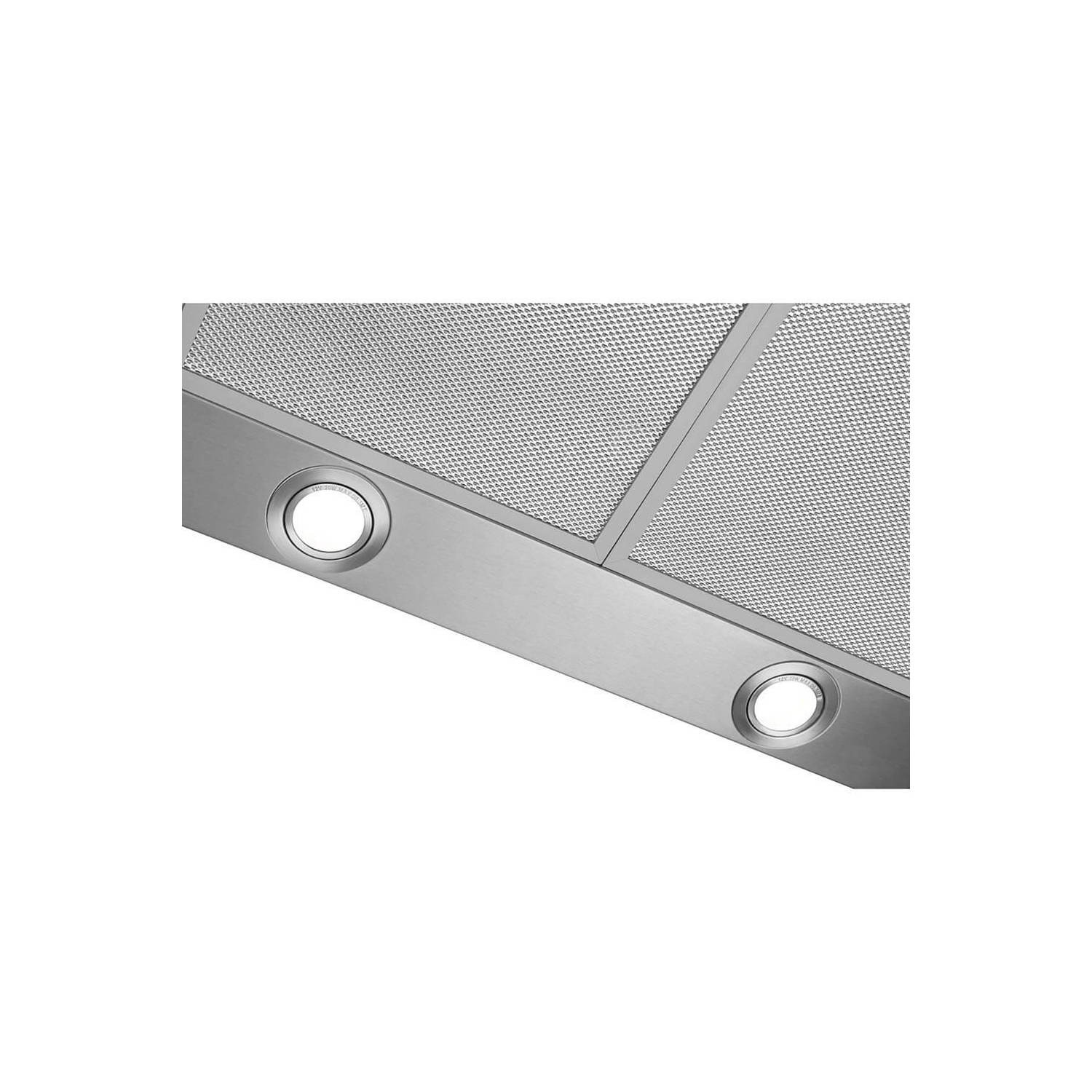

This cooker hood has 3 speeds with push button control, a twin fan motor, and built-in LED lights to provide illumination while cooking.

Features

Ducted/recirculating installation
3 speeds

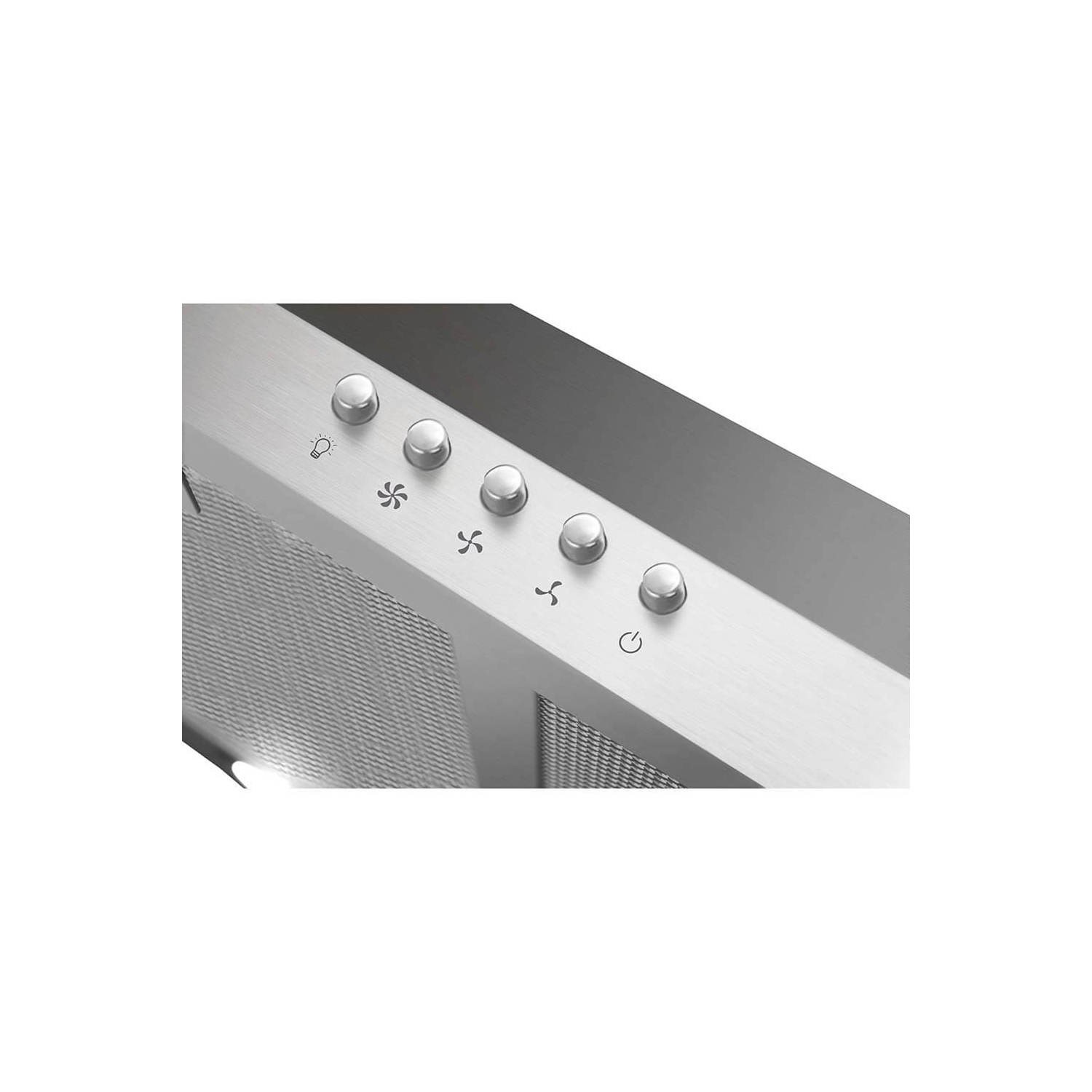

Push button control
150W motor
Height adjustable
Maximum extraction rate: 475 m³/hr
Maximum noise level: 64 dBA

Energy

Energy rating: C

Lighting

Number of lights: 2x 4W LED

Filters

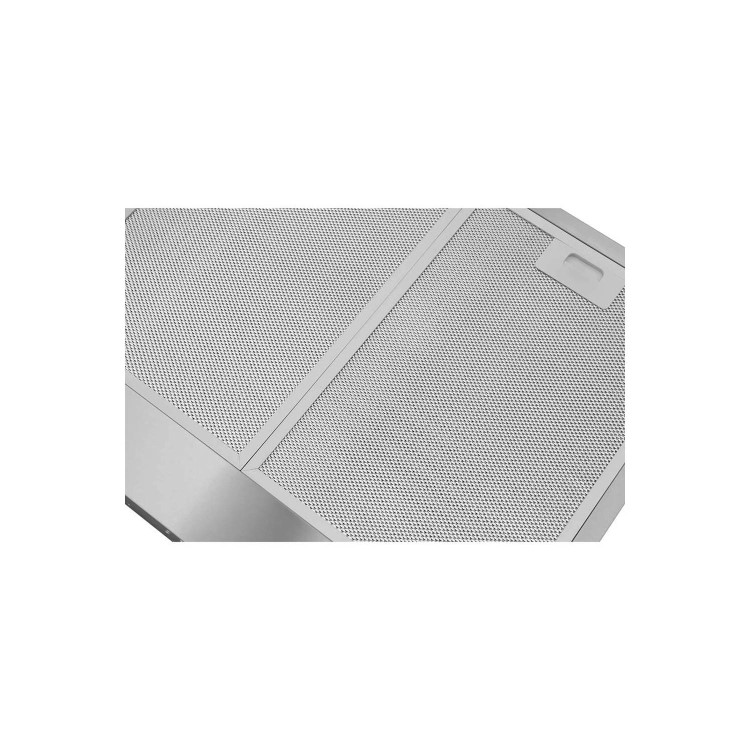

Number of grease filters: 2
Number of charcoal filters (optional): 2
Charcoal filter code: CHA37

Extraction Rates & Noise

Extraction rate at first speed: 280 m³/hr
Noise level at first speed: 53 dBA
Extraction rate at second speed: 340 m³/hr
Noise level at second speed: 60 dBA
Extraction rate at third speed: 475 m³/hr
Noise level at third speed: 64 dBA

Technical Specifications

Required height over gas hob: 700mm
Required height over electric hob: 650mm
Rated electrical power: 158 W
Power supply required: 3 A
Fluid dynamic efficiency: D
Grease filtering efficiency: C
Lighting efficiency: A

View more View less

General information
Brand	CDA
Cooker Hood Type	Chimney Hoods
Colour	Stainless steel
Air Extraction Type	Extraction & recirculation
Control Type	Push Button Control
Number of lights	2
Type Of Light Used	LED
Grease Filter Included
Carbon Filter Included
Warranty	2 years labour/5 years parts
Performance
Speed Settings Multiple speed settings give ultimate versatility for a range of foods, the higher the setting, the finer the ingredients. Variable speeds give you even more control.	3
Minimum Extraction Rate	270m³/h
Maximum Extraction Rate	475m³/h
Maximum Noise Level	64dB
Annual energy consumption	71kWh/a

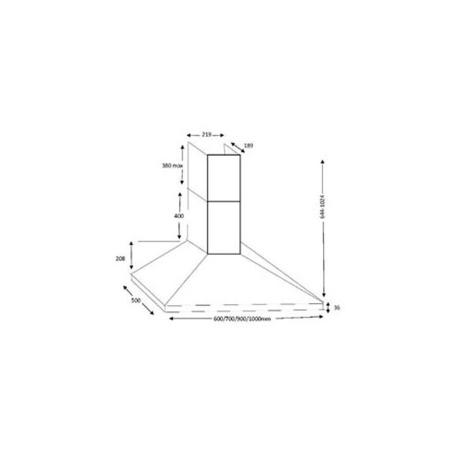

Dimensions & Weight
Height	65cm
Width	60cm
Depth	50cm
Weight	8.1kg
Chimney Width	219mm
Chimney Depth	189mm
Minimum Height	644mm
Maximum height	1024mm
Diameter of Air Outlet	150mm
Efficiency Information
Energy Rating	C
Fluid dynamic efficiency class	D
Lighting efficiency class	A
Grease filtering efficiency class	C
Installation
Vent Location	Top
Plug type	None
Connected load	158W
