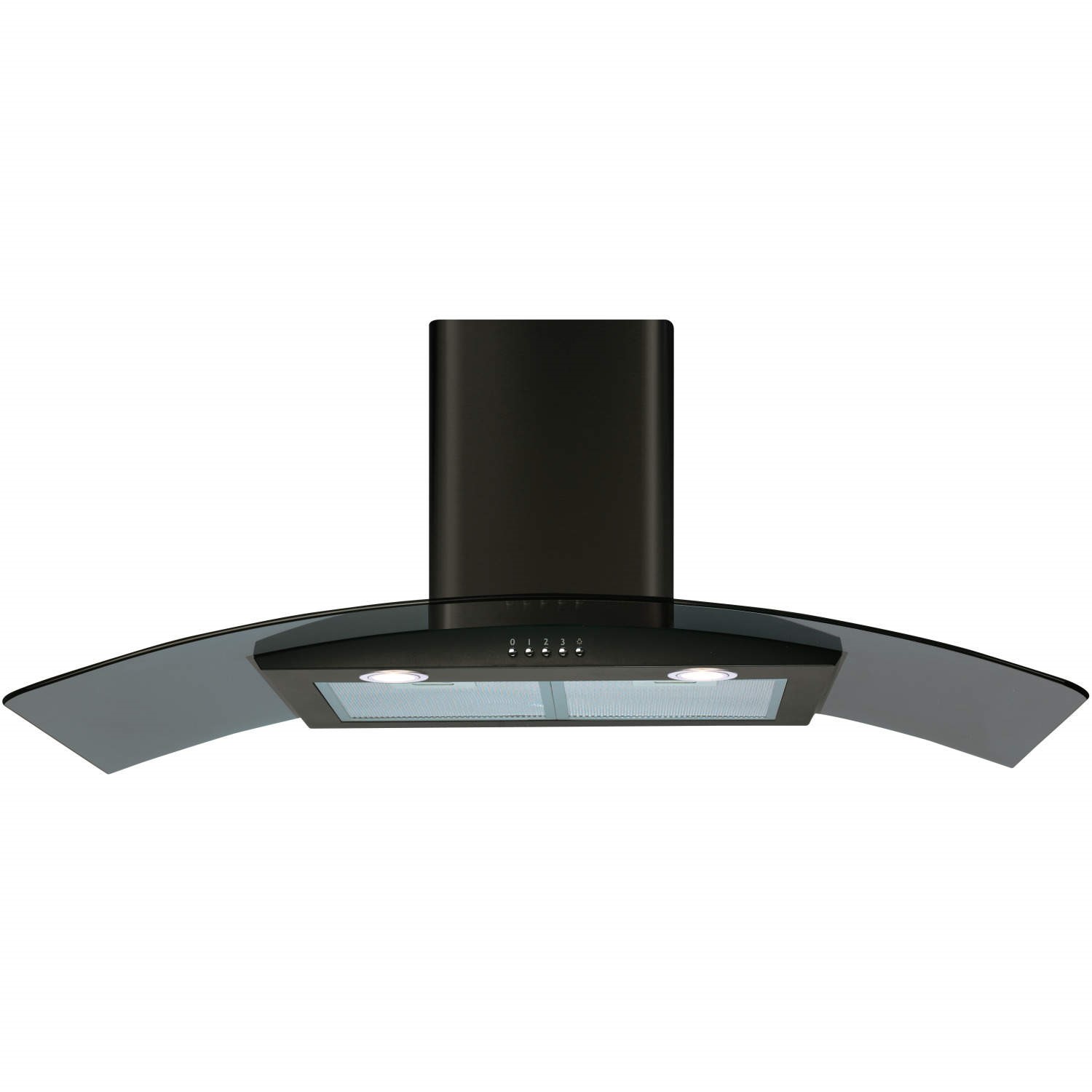

The ECP102BL is a 100cm wide chimney hood in black with a curved smoked glass canopy from CDA.
This model has 3 speeds selected by push button controls and aluminium grease filters. There are two 20 Watt halogen lights to illuminate your hob. The motor gives you a good extraction rate of 377 cubic metres per hour, which is ideal for kitchens up to 47 cubic metres, and a relatively low noise level at 61 decibels.
As a wall-mounted extractor the ECP102BL can be installed to re-circulate the air into the kitchen or to be ducted outside. If you are choosing to re-circulate you'll need a charcoal filter and if you're ducting out you'll need a ducting kit.
CDA guarantee their appliances for 5 years on the parts and 2 years on the labour. Please ensure you register your appliance to receive this.
Features
- Ducted or recirculating modes
- 3 speeds
- Push button control
- Aluminium grease filter
- 2 x 20 W halogen lights
Technical Specifications
- Required height over gas hob: 700 mm (min)
- Required height over electric hob: 600 mm (min)
- Outlet diameter: 150 mm
- Noise level: 61 dBA
- Extraction rate: 391 m³/hr
- Rated electrical power: 100 W
- Power supply required: 3 amps
Fitting note: Please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Due to glass manufacturing process the width of the glass canopy may be variable by up to 10mm
Question from Susan: Asked on 26/12/2013 Hi what is included with this hood ???? Do I need to buy filter and hose ??? Or that is included and it it only as extra ???
You would need to purchase either need a filter or a hose.
if recirculating in in your kitchen you need the filter: CHA12
if you are ducting out we do the following kits:
AED51 - 1Meter Kit
AED53 - 6 Meter Kit
Question from CDA ECP 102BL curved glass 100mm chiney hood: Asked on 14/05/2013 CDA ECP 102BL CHIMNEY HOOD - HOW DO I SPECIFY I REQUIRE 800mm & NOT 430mm between ceiling and unit
