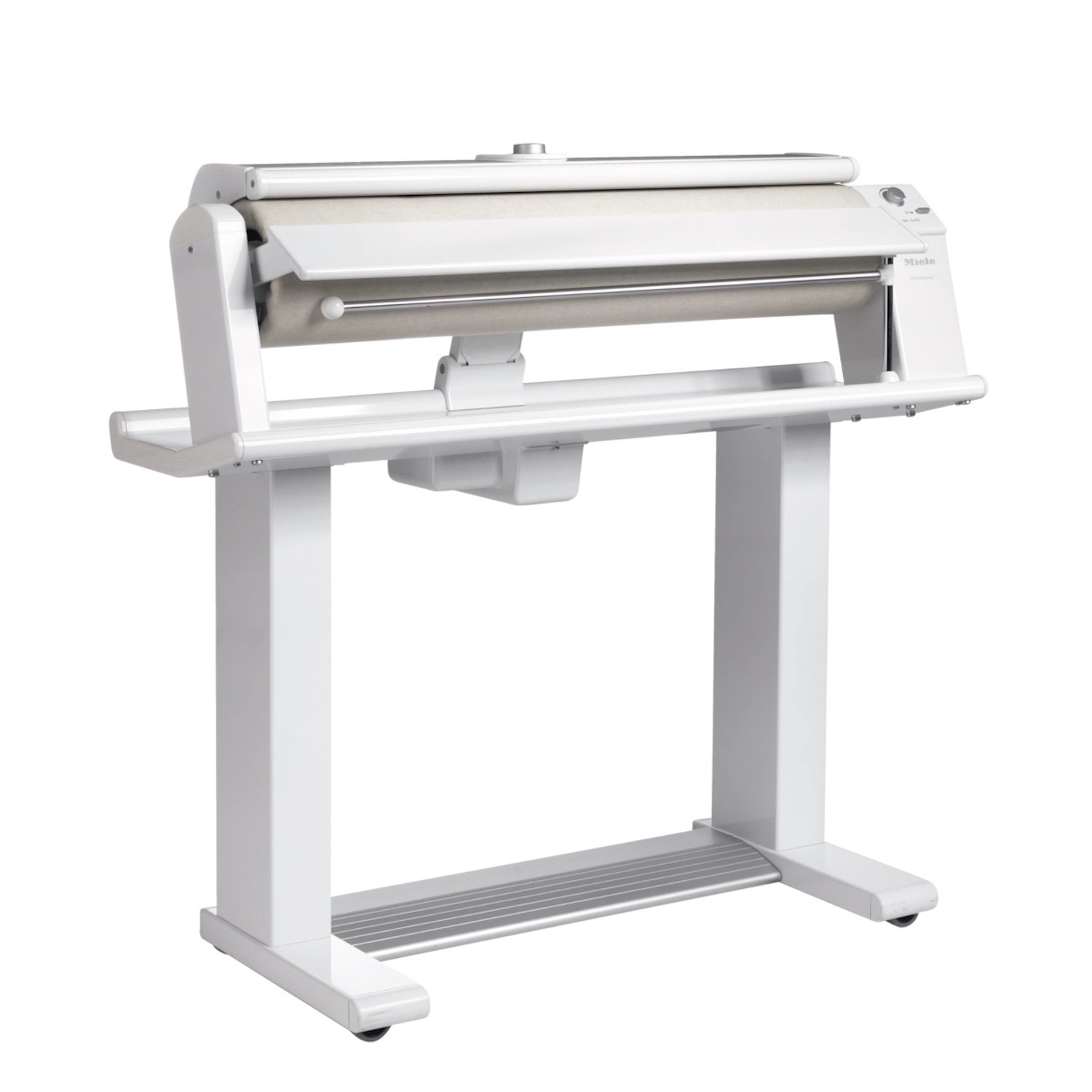

Miele Professional HM 16-83 Rotary Ironer: 830mm Roller, 15kg per Hour, 13A Plug
At a Glance
- Size: H96 × W105 × D38cm, 40kg, folds to H1052 × W500 × D380mm
- Power: 13A plug, 220-240V ~ 50/60Hz, 2.5kW heater, 3.1kW total rated load
- Output: Up to 15kg of linen per hour
- Roller: 830mm wide, 160mm diameter, 2.0 to 4.5m/min
- Warranty: 1 year manufacturer’s parts and labour warranty

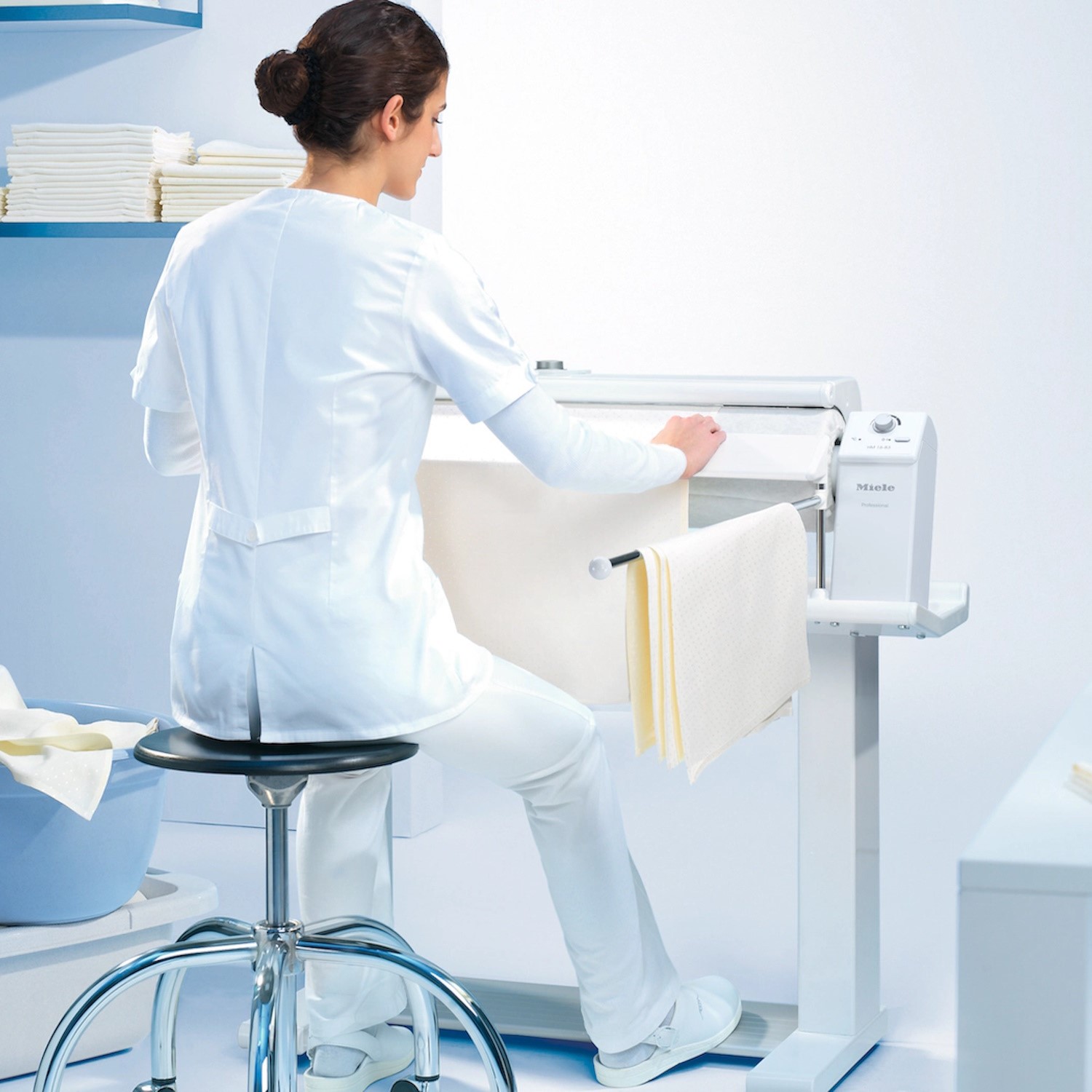

This rotary ironer finishes flatwork such as sheets, tablecloths and garments for commercial laundries. Its 830mm wide, 160mm diameter roller processes up to 15kg of linen per hour, and the ergonomic design lets staff iron while seated.
Installation and Connection
The HM 16-83 runs from a 13A fused single phase supply, so it plugs into a standard socket. Total rated load is 3.1kW with a 2.5kW heater. It is freestanding, measures H96 × W105 × D38cm, weighs 40kg and has a maximum floor load of 372N. When not in use it folds away to H1052 × W500 × D380mm. Heat dissipation is rated at 3.1MJ/h.
Day-to-Day Use and Cleaning
Roller speed varies from 2.0 to 4.5m/min to suit different fabrics, with dial and foot pedal control. Aramid needle felt padding gives a consistent finish, an automatic safety finger guard protects the operator, and a cool-down airing bar is fitted. Surfaces are easy to clean and the roller is simple to replace. Maximum noise level is 67dB.
FAQs
Does it need a three phase supply?
No. It runs from a 13A fused single phase supply.
How much linen can it iron per hour?
Up to 15kg per hour.
What does the warranty cover?
It comes with a 1 year manufacturer’s parts and labour warranty.
