The Series 4 Gas Hob combines style and safety with a tempered glass design, front control, ergonomic sword dials, and dishwasher-safe pan supports for easy cleaning and precise cooking.
Precise Control at Your Fingertips

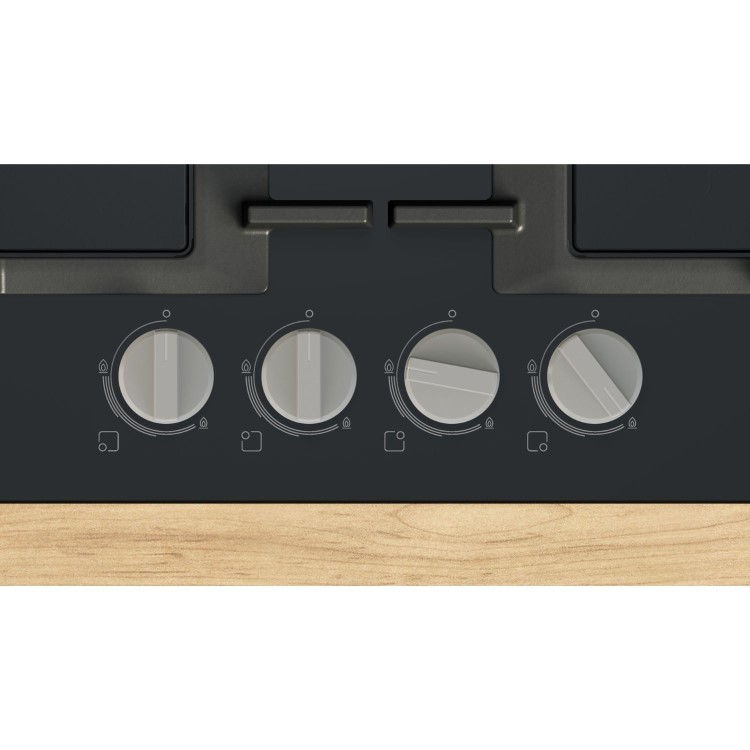

Ergonomic sword dials: with raised center for precise adjustments.
Strength and Style Combined

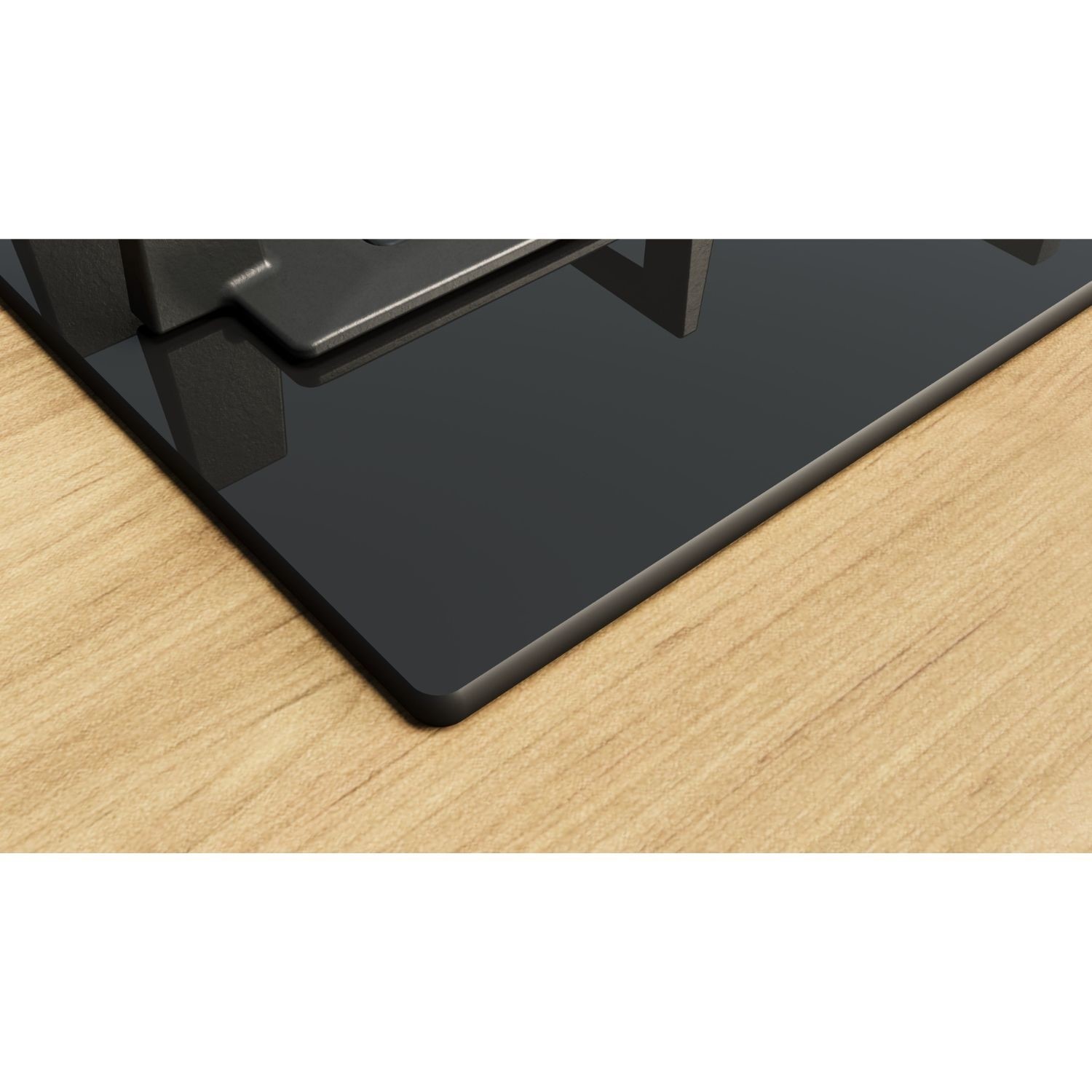

Tempered Glass: for strength and aesthetic.
Enhanced Safety
Safety gas cut-off: ensures safety by instantly cutting off gas supply if the flame goes out.
Effortless Cleanup
Dishwasher-safe pan supports: Easy, scrub-free cleaning.
Seamless Cooking Surface

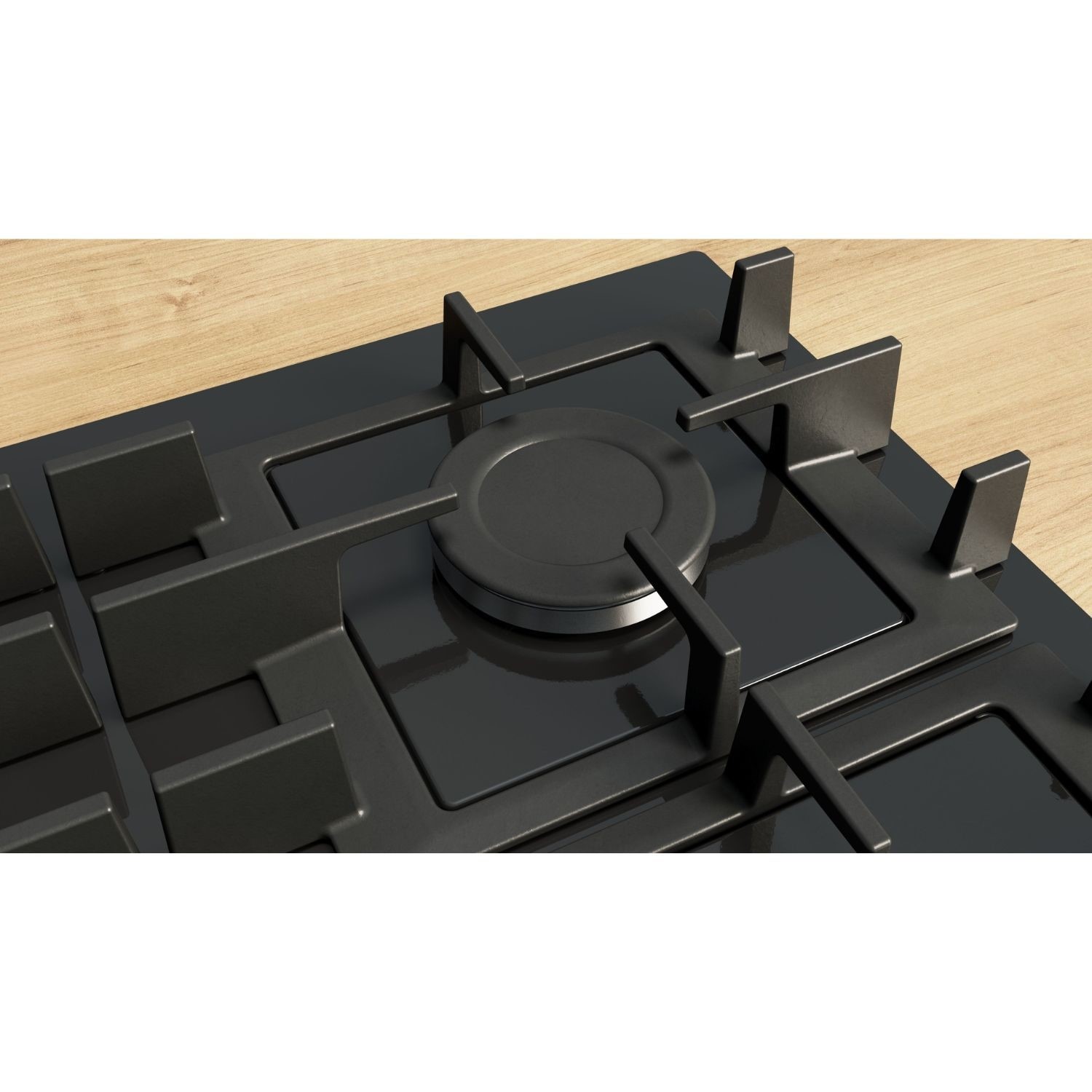

Semi-continuous pan supports: smaller for easy cleaning, yet providing a seamless cooking surface.
Compact and Convenient Design

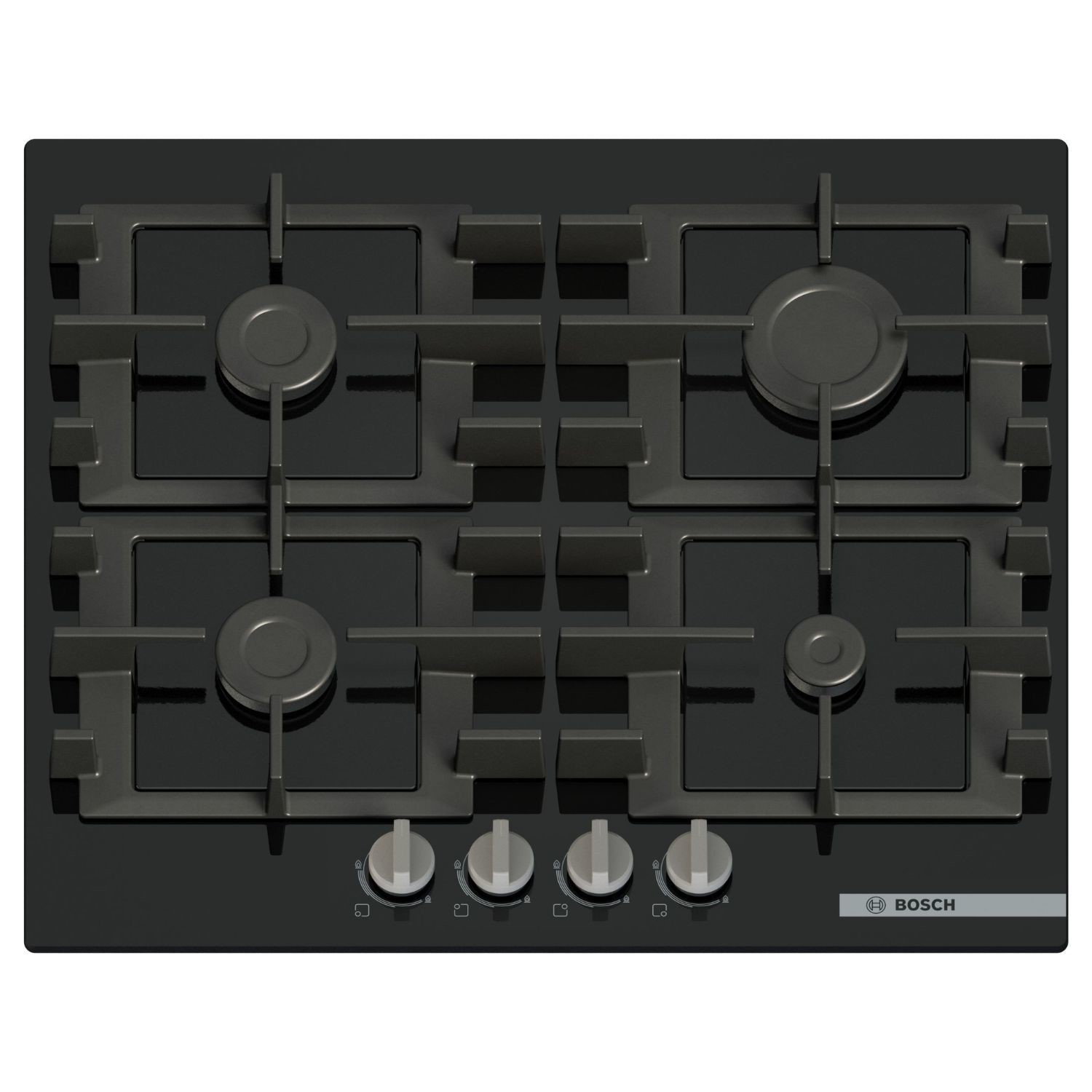

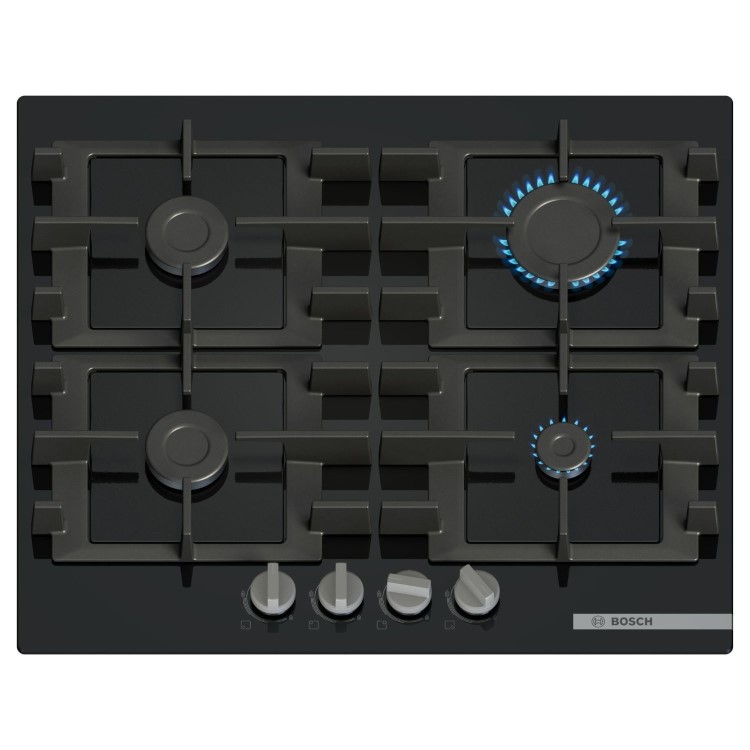

60cm, 4 burners, Front control, 4 Dishwasher-suitable cast iron pan supports, new standard sword dials, Tempered Glass
Key Features
- Black tempered glass surface
- Cast iron pan supports with rubber feet
Usage convenience

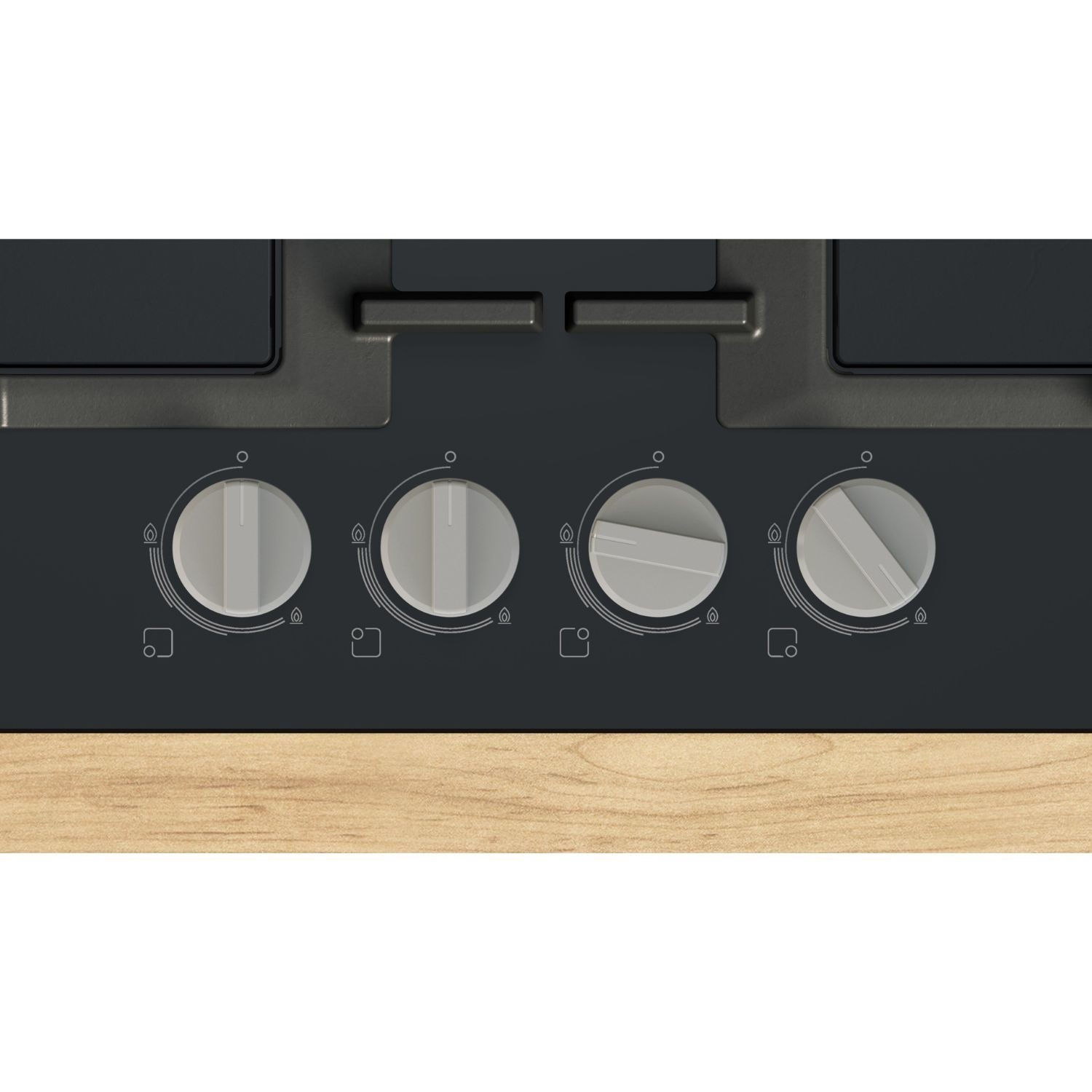

- Design co-ordinated control dials, front: easily access dials in front with strong grip for effortless turning.
- Ignition via control dials: just push and turn the dials to ignite the flame.
Burners and power

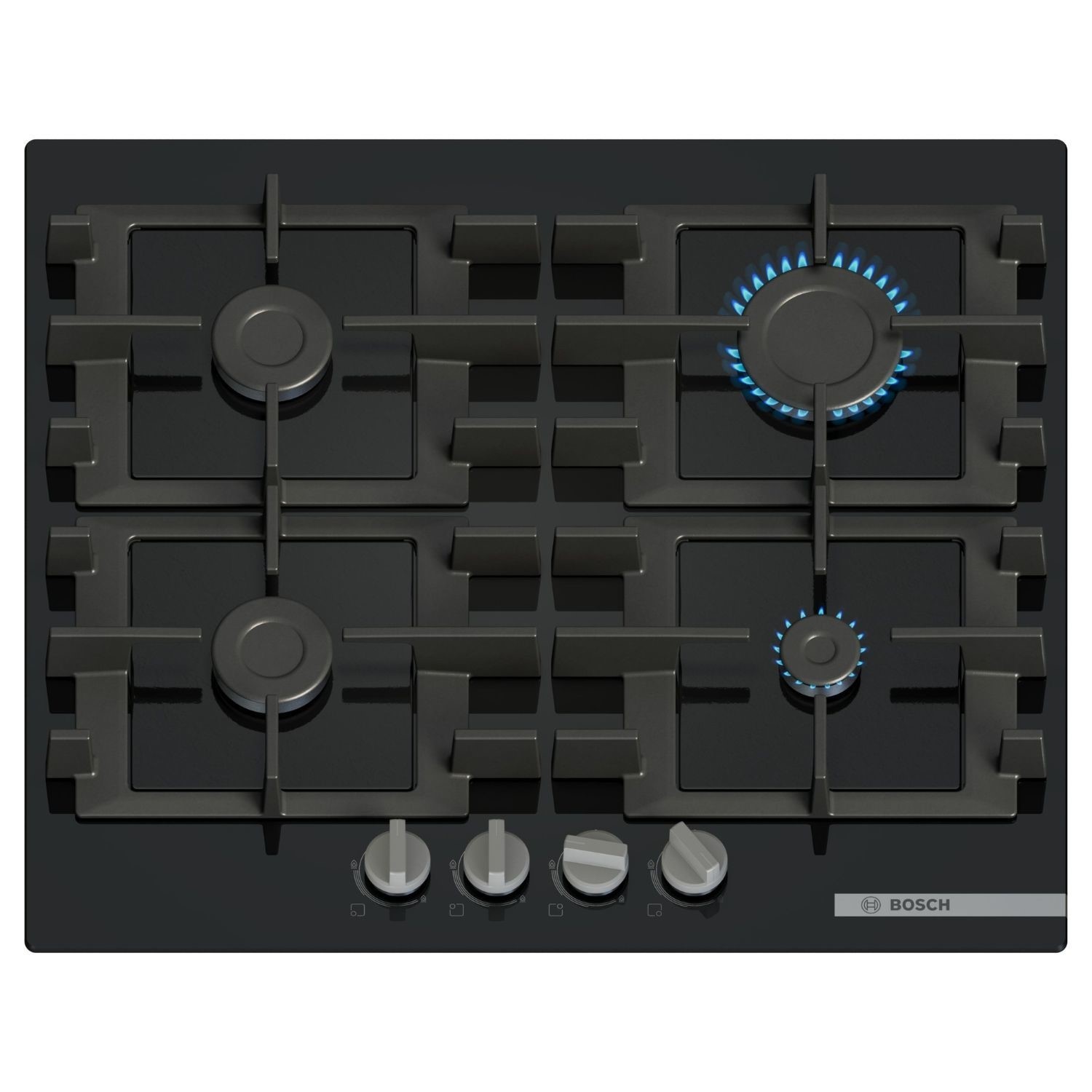

- 4 gas burners:
- Left front: standard burner up to 1.75 KW
- Left rear: Standard burner up to 1.75 KW
- Right rear: high-speed burner up to 3 KW
- Right front: economy burner up to 1 KW
Cleaning
- Dishwasher suitable pan supports for easy cleaning.
- Cast iron pan supports with rubber feet: little weight and compact form, yet high stability due to continuous surface.
Safety
- Flame failure safety device: prevents unwanted gas flow when flame goes out.
Installation (gas types & measurements)
- Pre-set for natural gas
- Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas.

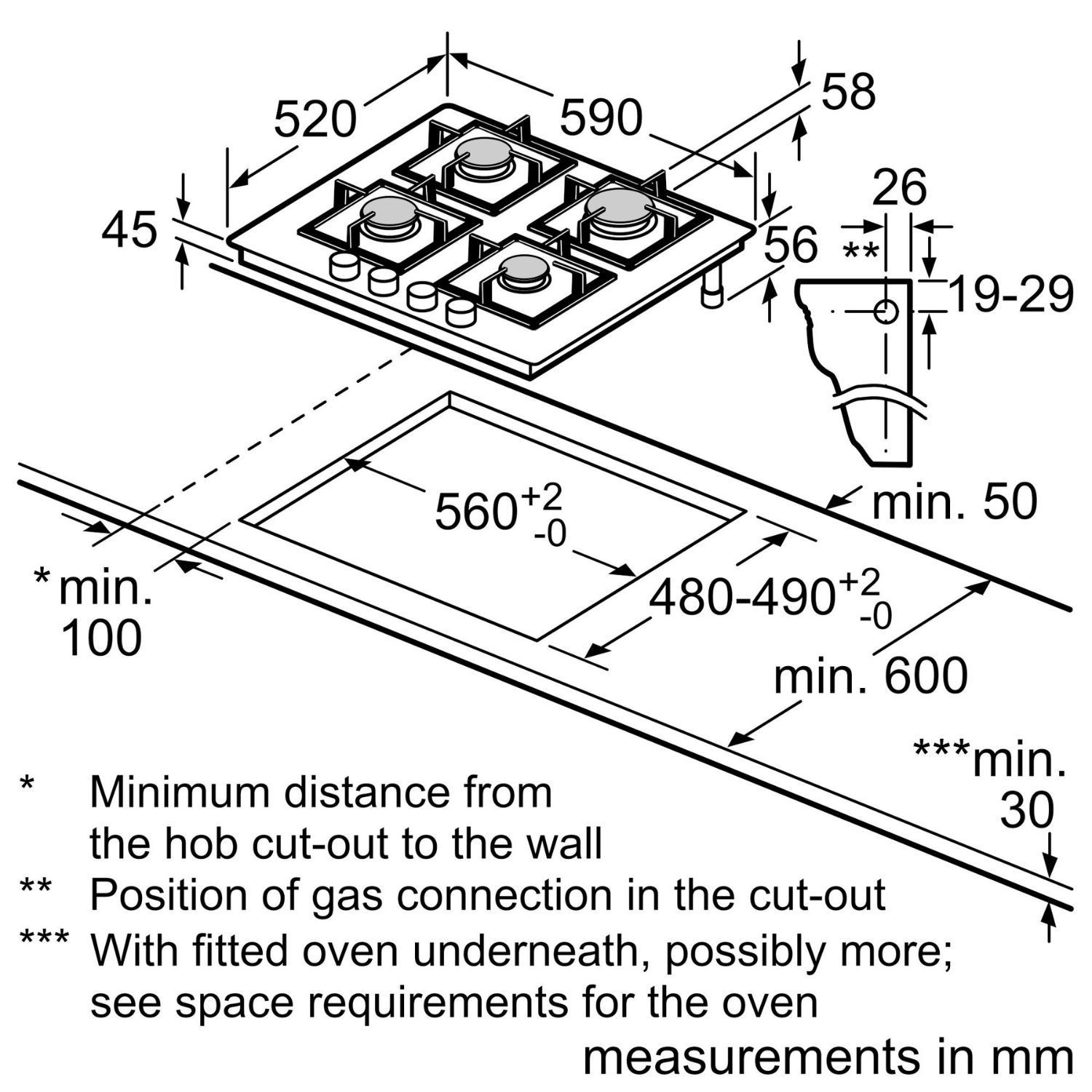

- Dimensions of the product (HxWxD mm): 57.4 x 590 x 520
- Required niche size for installation (HxWxD mm) : 45 x 560 x (480 - 490)
- Min. worktop thickness: 20 mm
- Power cord: 1 m
- Connected gas load: 7.5 KW

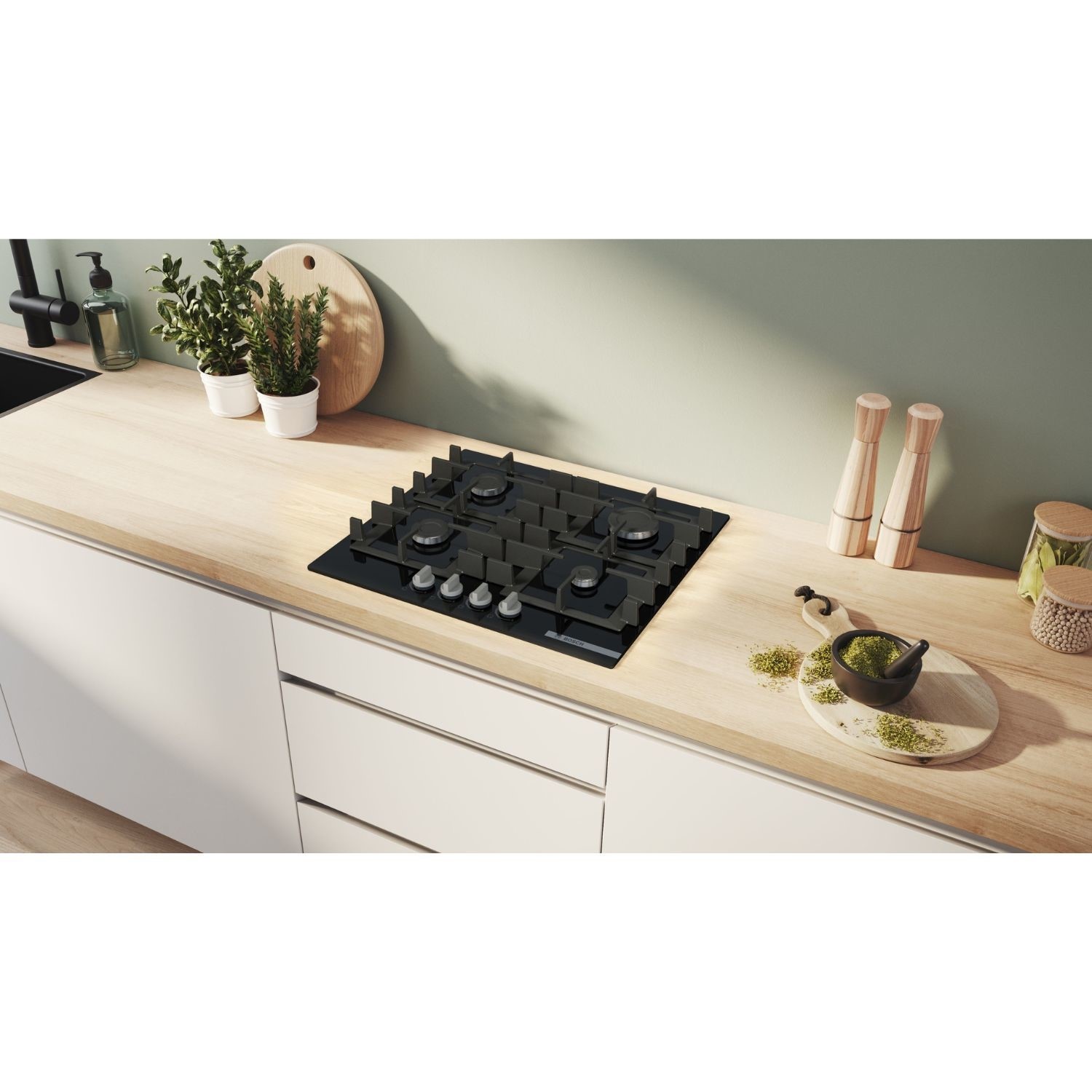

- Frameless design: install the hob either flush or slightly raised on the worktop
- If installed flush, minimum worktop thickness is 30mm.
Question from Dave: Asked on 10/07/2025 What is the minimum required gap between the back edge and the wall at the rear of the hob
Hi,For proper ventilation and safe operation, the Bosch PNP6B6K40 gas hob requires a minimum clearance of 150mm from the side wall. If installed above an oven, a minimum 5mm gap between the hob's bottom and the oven's top is also necessary for adequate ventilation. Always consult the official Bosch installation manual for complete details and safety requirements.Thanks!
Question from Steve Tillett: Asked on 22/05/2025 Is the LPG convertable
Hi, yeah, I'm happy to say that this is LPG convertible.
