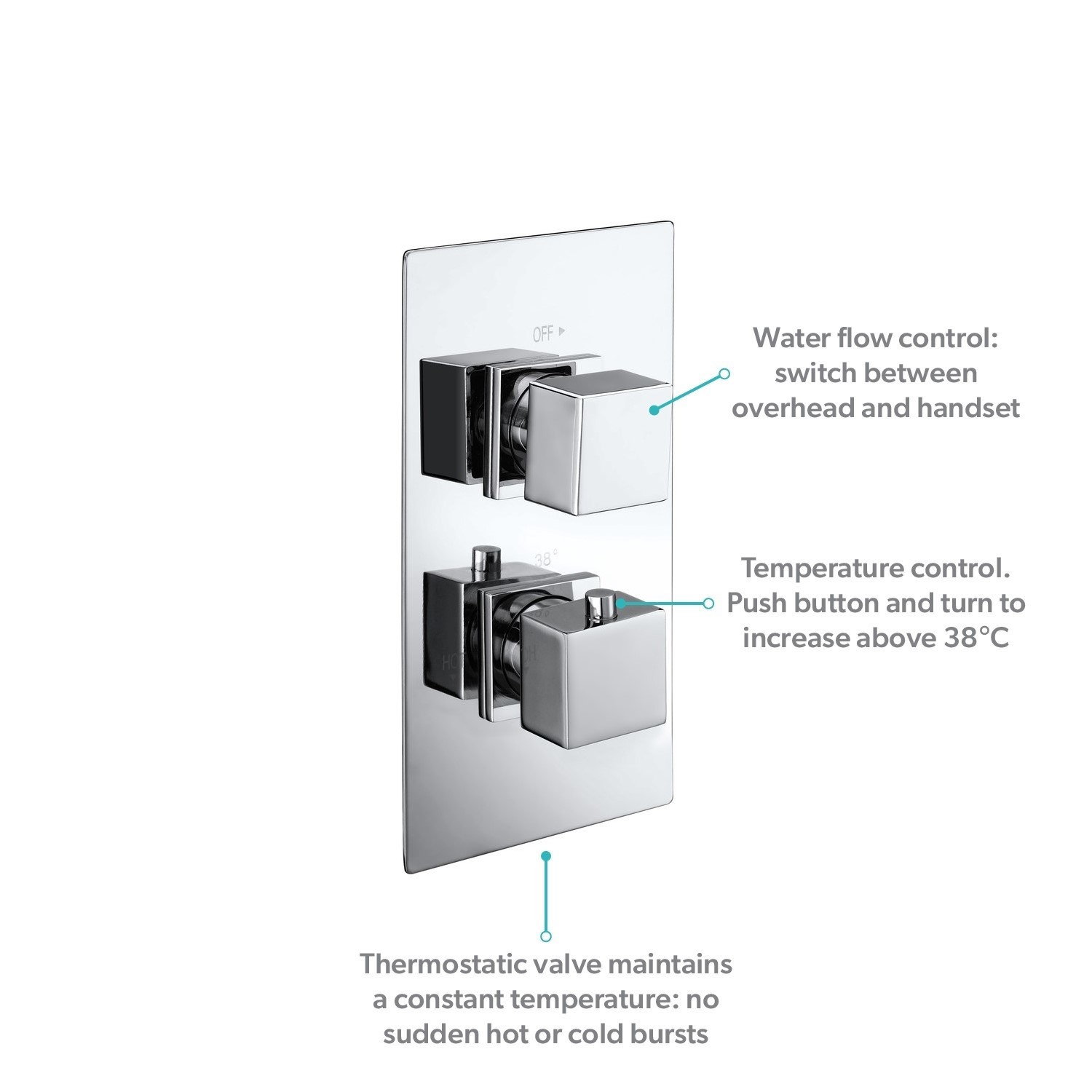

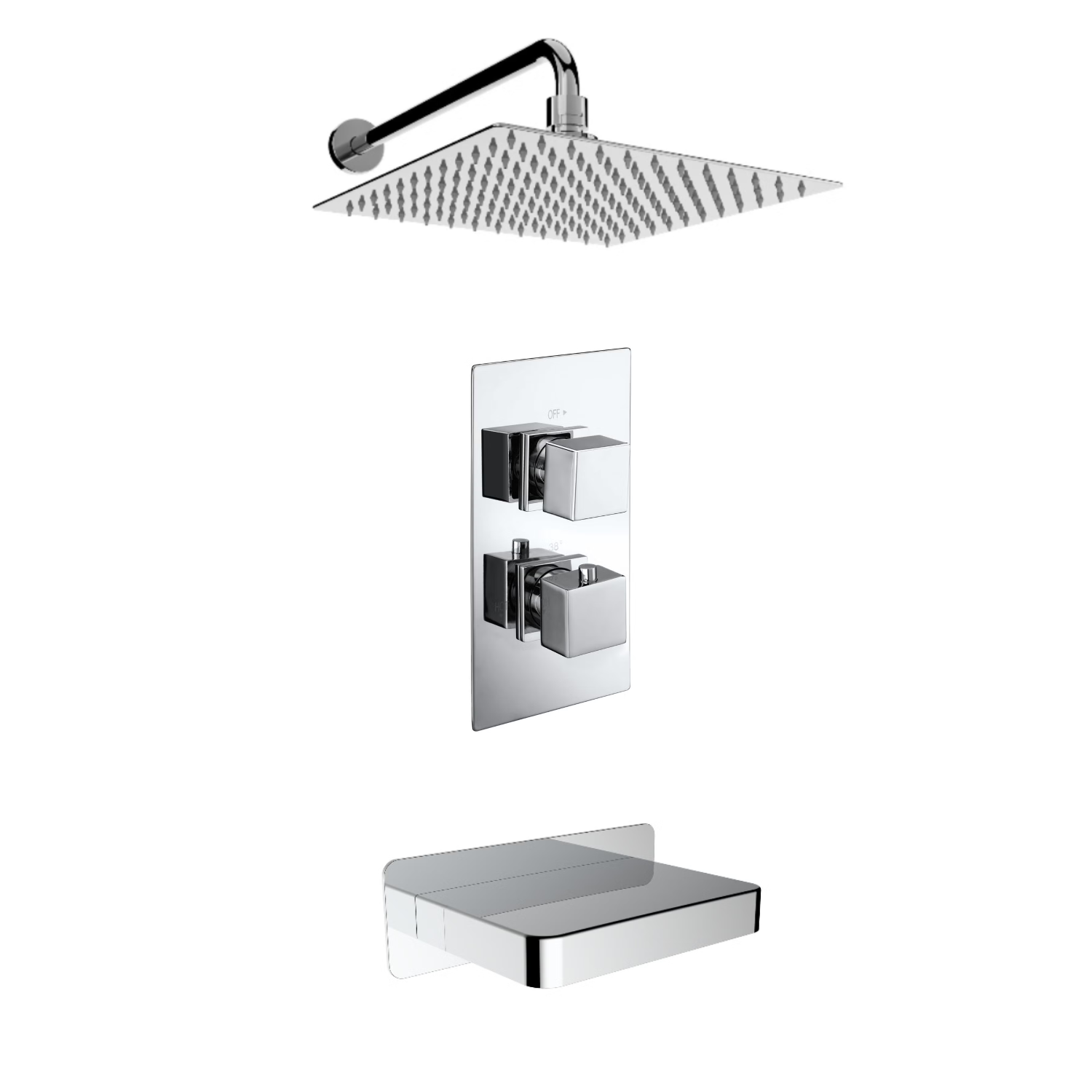

This Zana Chrome Dual Control bundle adds a sleek minimalistic touch to any shower. With a polished chrome finish, the dual valve comes with the matching square shower head and bath spout. It has an automatic shut-off in the event of either hot or cold water supply failure. The pre-set temperature is 38 degrees, with a push-button override to 48 degrees. This valve is also suitable for combination boilers, pressurized systems, pumped systems, and gravity-fed systems (which may require a pump).
The electroplated finish strengthens the shower's resistance to rust and corrosion, boosting longevity and endurance.

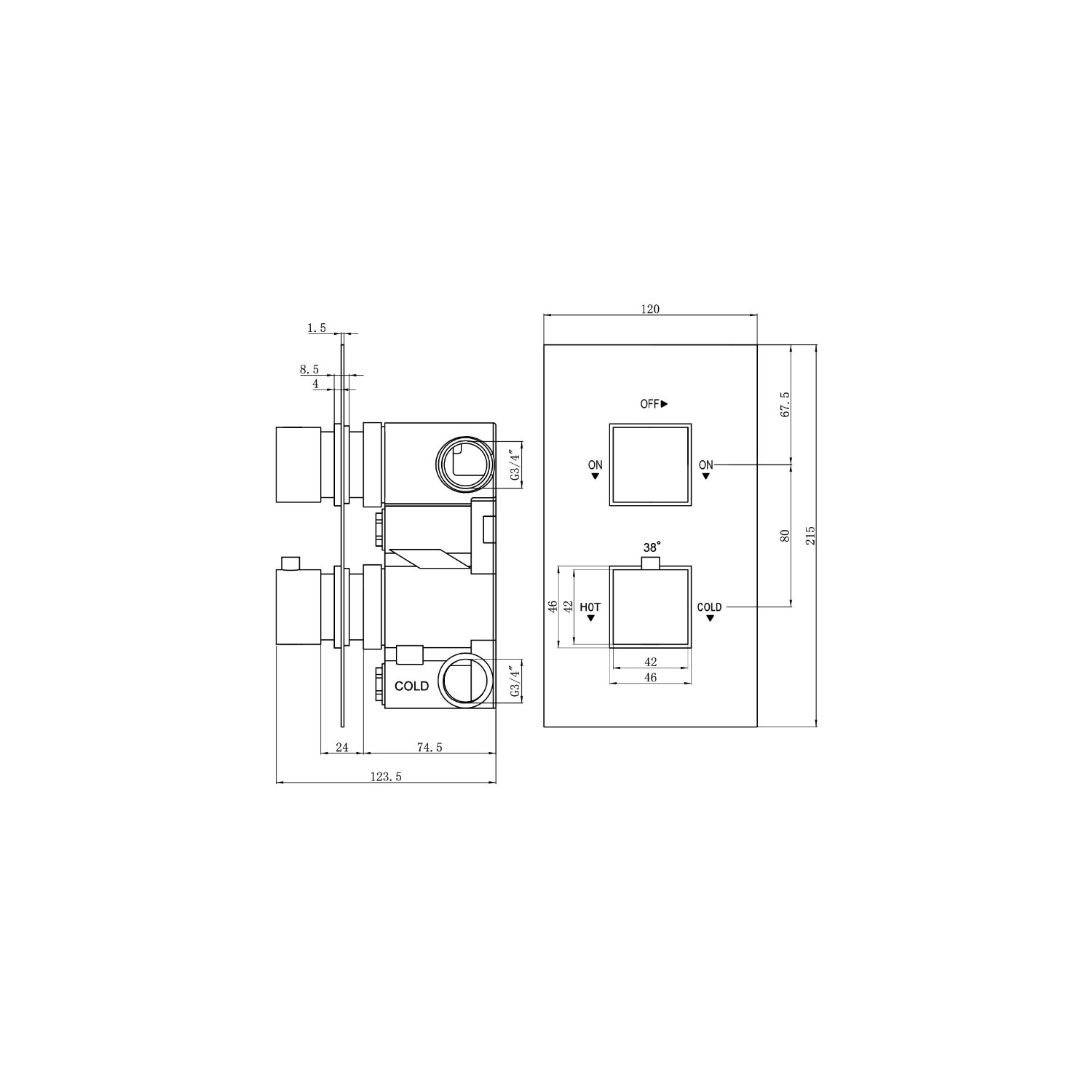

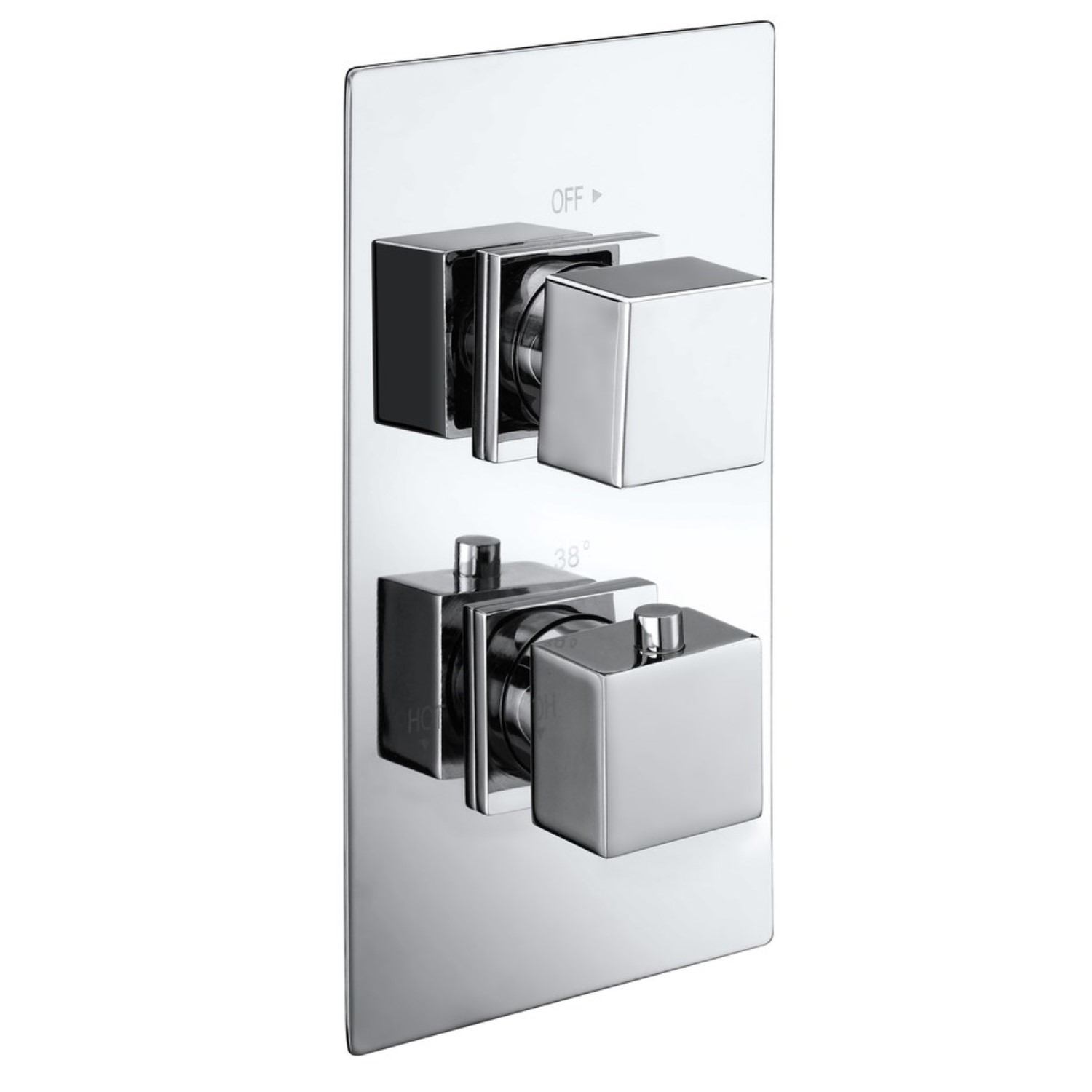

Need to know - Valve
- Dimensions: H215 x W120 x D123.5 mm
- Material: Brass
- Weight: 2.2kg
- Valve type: Concealed
- Outlet size: G 3/4"
- Inlet size: G 3/4"
- Colour: Chrome
- Finish: Polished
- Finish process: Electroplating
- Min pressure & flow rate: 0.5 bar (flow rate of 12.5 litres per minute)
- Max pressure & flow rate: 3.0 bar (flow rate of 30.7 litres per minute)
- Features: Thermostatic cartridge ceramic disc
- Warranty: 5 years against manufacturer faults
Need to know - Bath spout
- Dimensions: H28.5 x W225 x D128 mm
- Material: Brass
- Weight: 1.774kg
- Colour: Chrome
- Finish: Polished
- Finish process: PVD (physical vapour deposition)
- Shape: Square
- Waste included: No, see recommended accessories
- Aerator included: Yes for reduced water usage
- Box contents: Tap, instructions
- Valve included: No, see recommended accessories
- Inlet size: G1/2"
- Cartridge type: Ceramic disc
- Min pressure & flow rate: 1.0 Bar (21.8 per minute flow rate)
- Max pressure & flow rate: 3.0 Bar (32 per minute flow rate)
- Warranty: 5 years

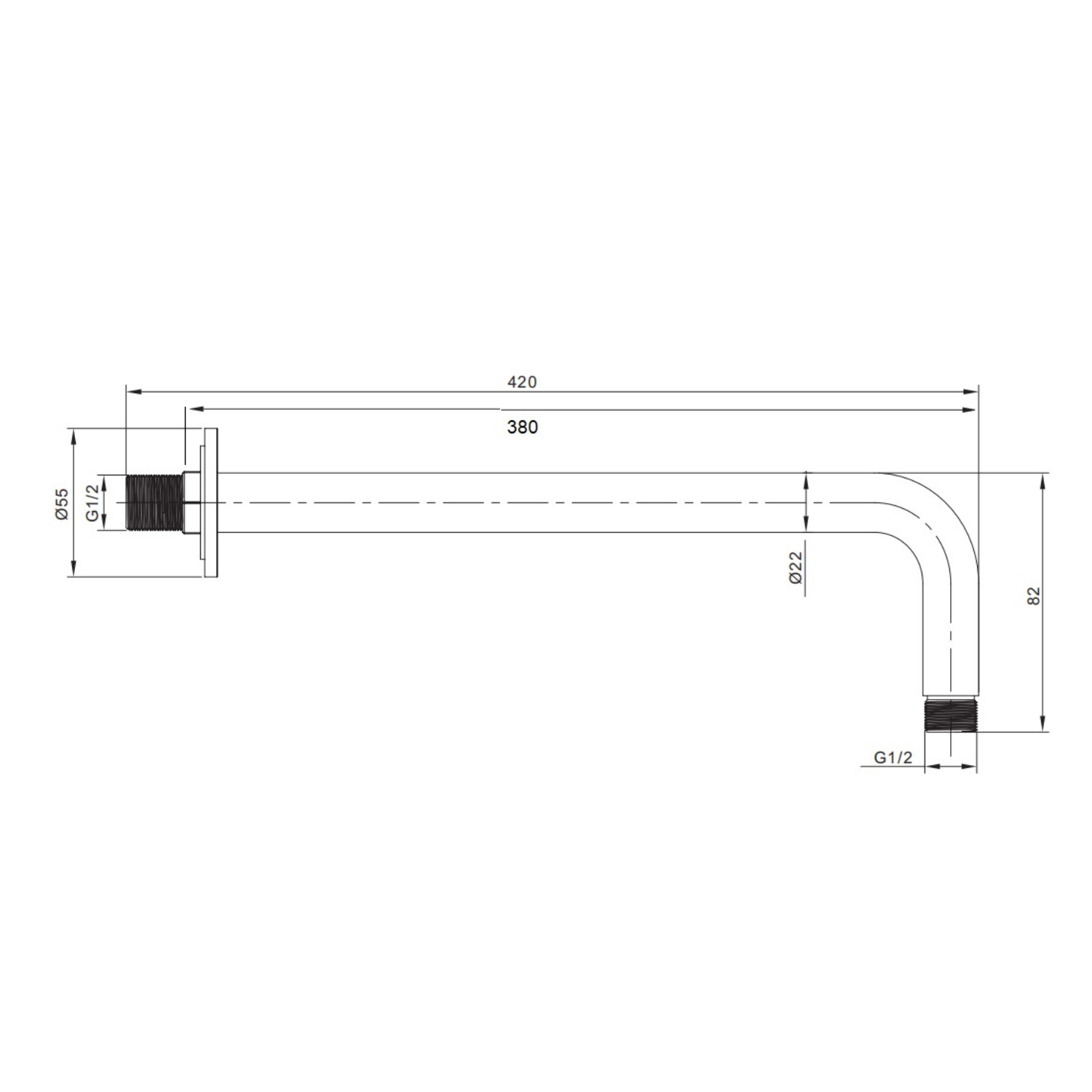

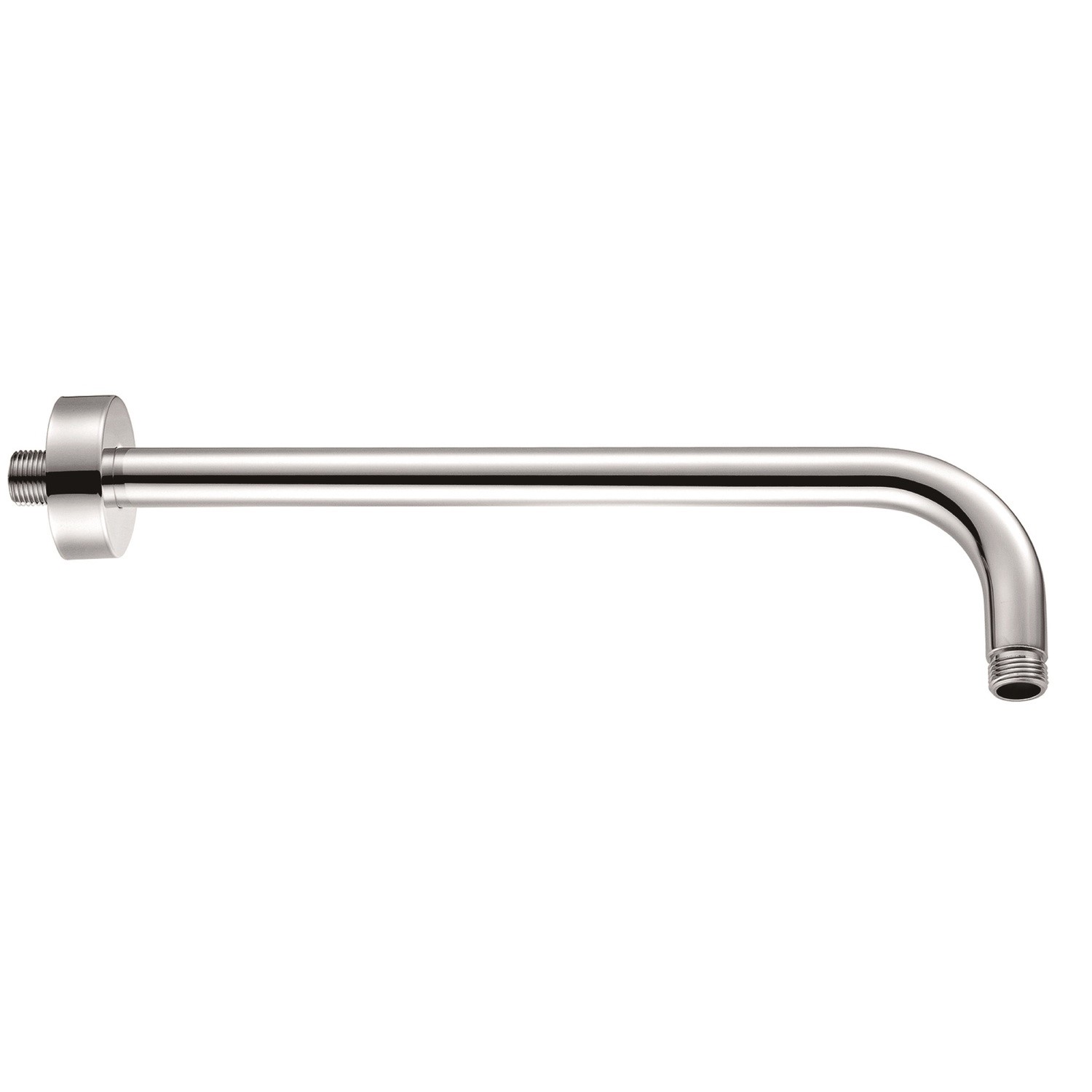

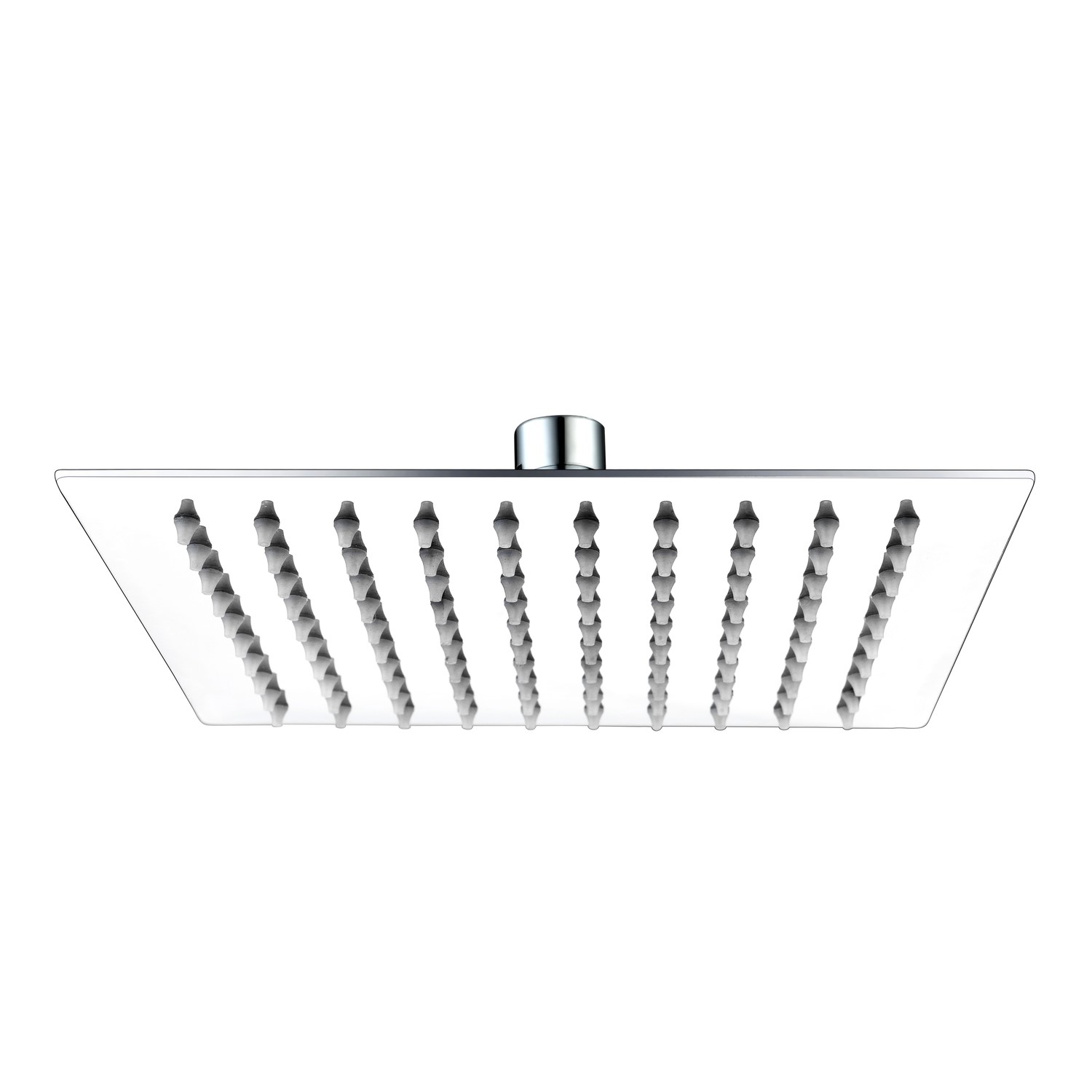

Need to know - Shower head & wall arm
- Shower head diameter: 250mm

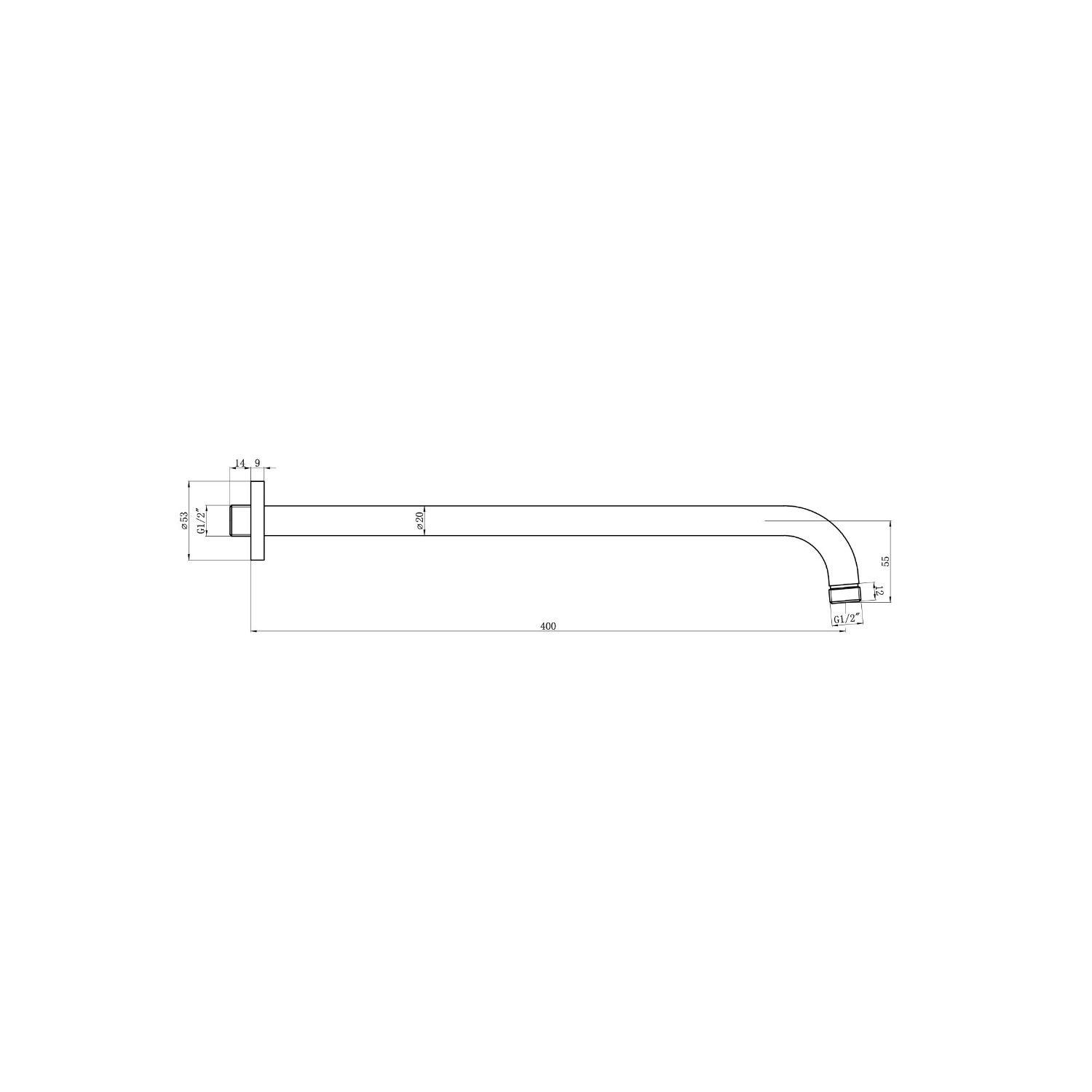

- Wall arm length: 400mm
- Wall arm weight: 0.75kg
- Material: Brass
- Colour: Chrome
- Finish: Polished
- Finish process: Electroplating
- Easy clean rubber inserts on head
- Warranty: 3 years
