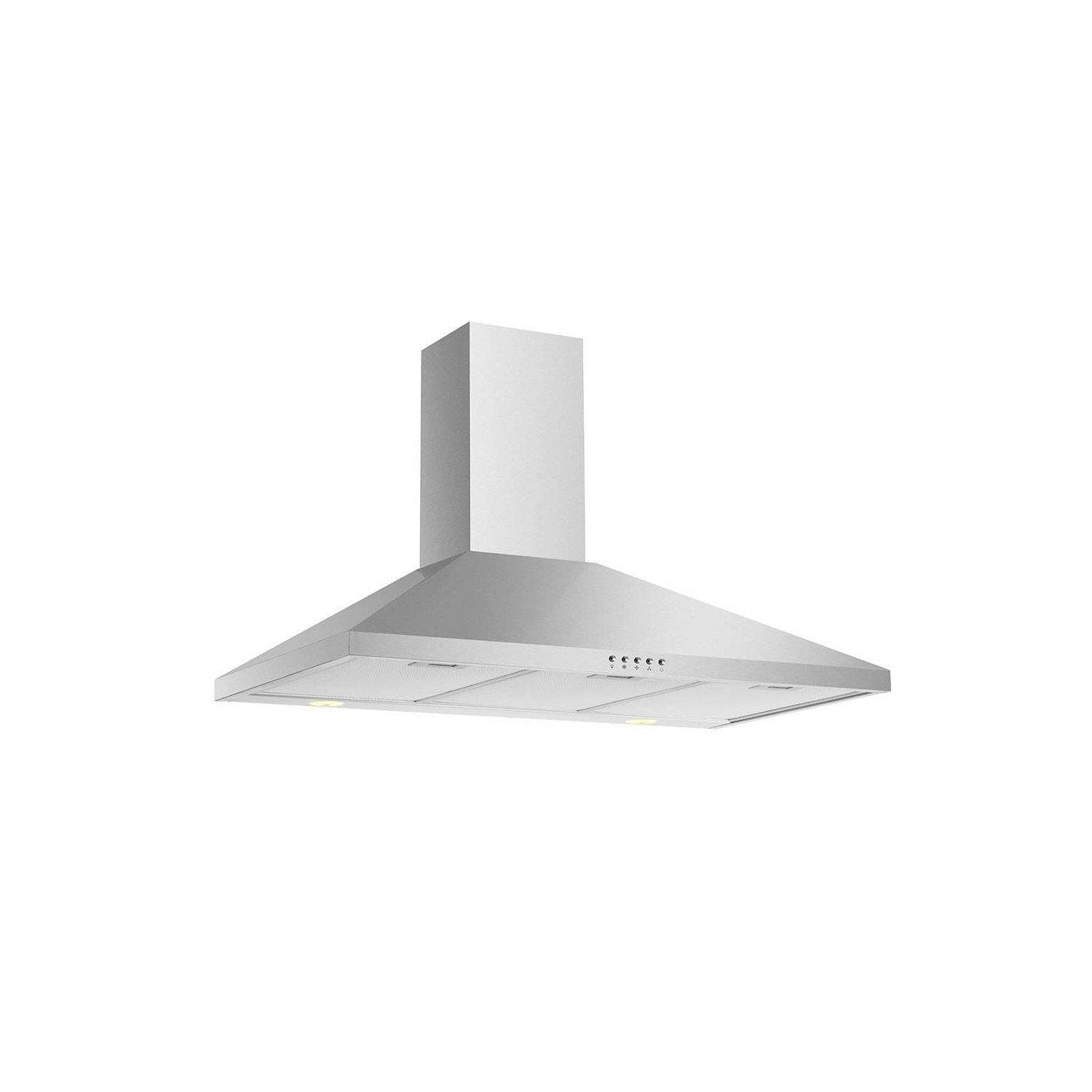

The CDA ECH103SS 100cm Chimney Cooker Hood is a sleek and stylish kitchen appliance that not only complements your kitchen's aesthetics but also efficiently removes smoke, steam, and cooking odors to maintain a clean and fresh environment. With its modern stainless steel finish, it adds a touch of elegance to any kitchen space.
Ducted or Recirculating Operation
It can be installed for either ducted extraction, where the extracted air is channeled outside, or recirculating mode, where the air is purified and recirculated back into the kitchen.
Adjustable Chimney Section
The chimney section can be adjusted to suit the height of your kitchen ceiling for a perfect fit.
LED Lighting
Integrated LED lights illuminate your cooking area, providing excellent visibility while you prepare meals.

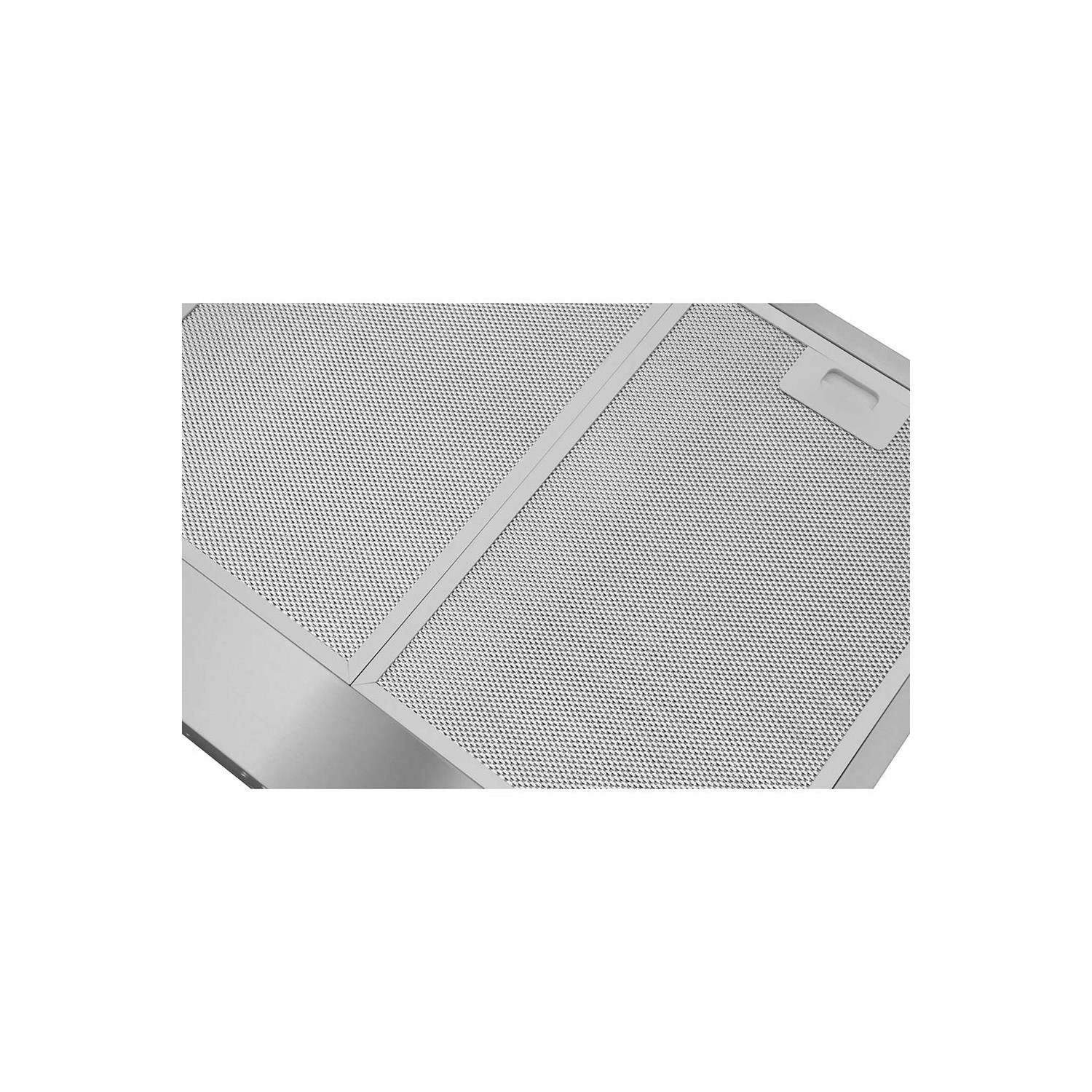

Washable Grease Filters
The cooker hood comes with washable grease filters that trap grease and grime from cooking, ensuring easy maintenance and extending the life of the appliance.
Key Features
- Height adjustable chimney hood for flexibility in the kitchen

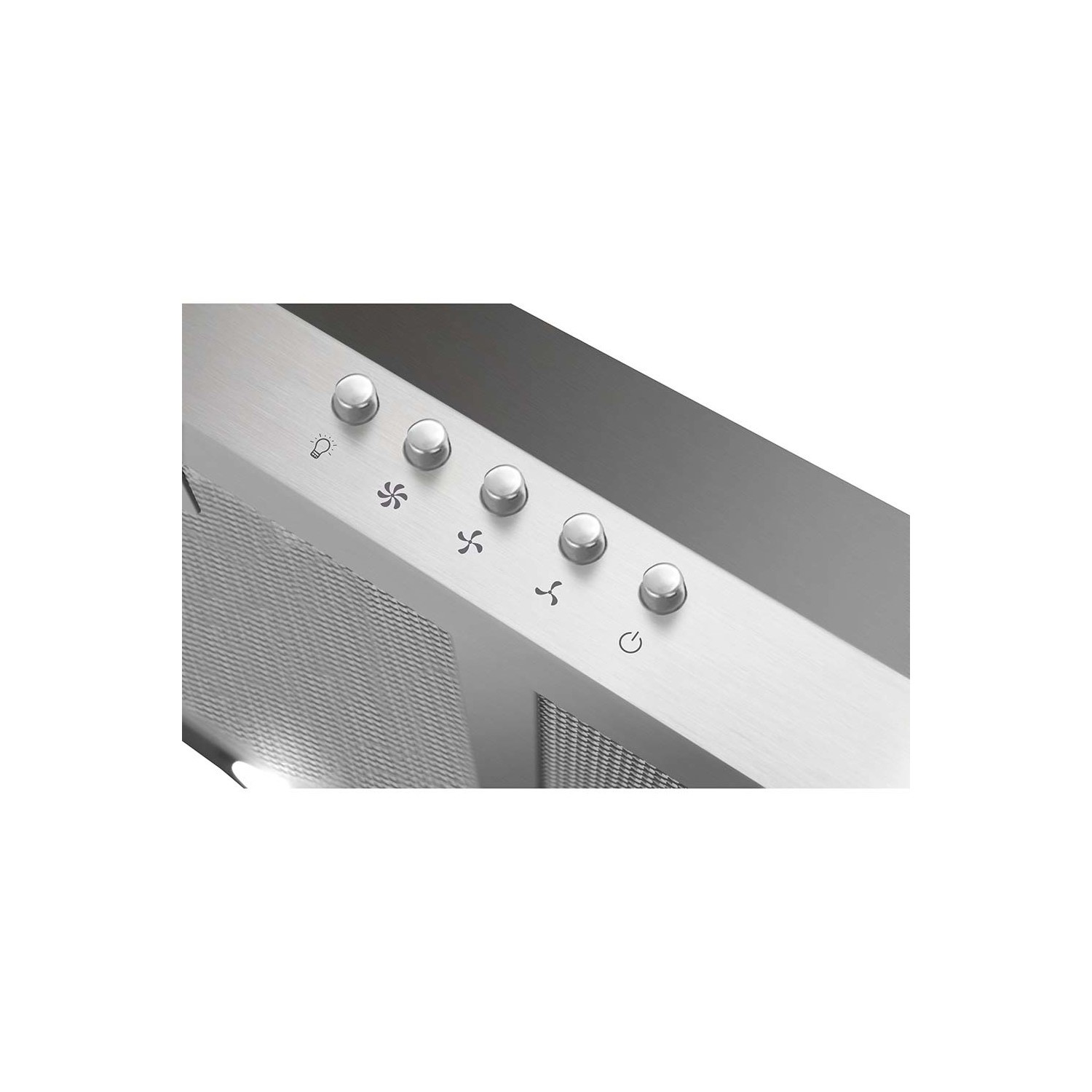

- Features 3 speeds for your extraction needs
- Has a contemporary design that features ducted/recirculating installation
- Better usability with LED lights for great illumunation

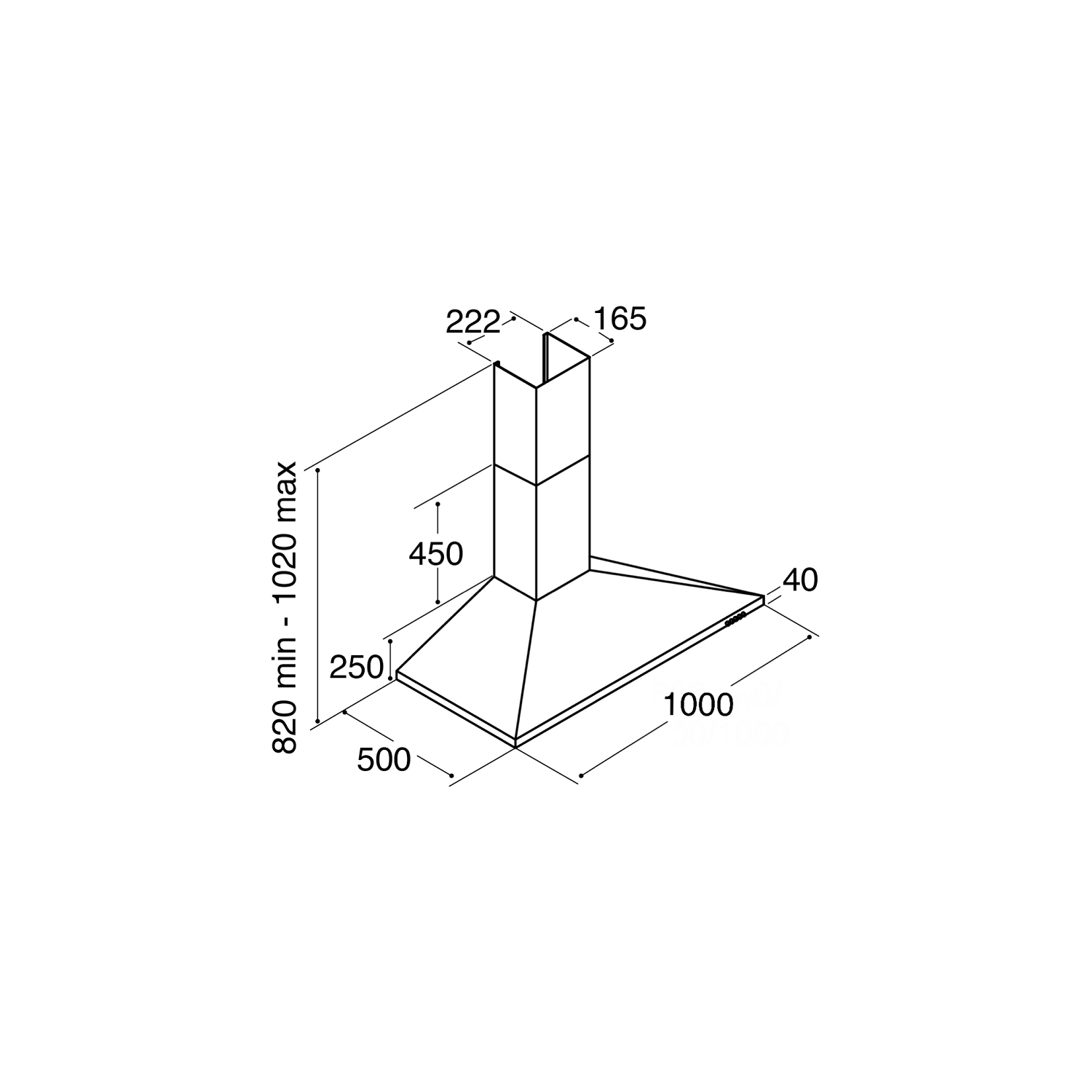

Dimensions
- Height: 644-1024mm
- Width: 1000mm
- Depth: 500mm
Technical Specification
- Motor Input: 150 W
- Rated electrical power: 158 W
- Required height over gas hobs: 700 mm (min)
- Required height over electric hobs: 650 mm (min)
- Outlet diameter: 150 mm
- Outlet position: Top
Extraction Rates And Noise
- Extraction rate at first speed: 291 m³/hr
- Extraction rate at second speed: 369 m³/hr
- Extraction rate at third speed: 498 m³/hr
- Noise level at first speed: 53 dBA
- Noise level at second speed: 60 dBA
- Noise level at third speed: 64 dBA
Energy
- Annual energy consumption: 61 kWh
- Energy rating: C
Lighting
- Lighting: 2 x LED
Filters
- Charcoal filter code: CHA37
Question from Colin Andrews: Asked on 30/01/2026 Where are the vent slots on the chimney.Are they high up or low down
Hi Colin,The vent slots on the CDA 100?cm ECH103SS chimney hood are located at the top of the unit, inside the chimney section. Air is extracted upwards through this top outlet, whether ducted outside or recirculated through filters; there are no vent slots low down on the chimney body.Thanks!
Question from Stuart Tanner: Asked on 15/10/2025 Is there a dimension drawing showing where the fixing holes are on the back and size of outlet hose required ? This is for the 100 cm hood
Hi,The CDA ECH103SS includes a detailed installation drawing that confirms its wall-mounted design and features a standard 150 mm top-mounted duct outlet. Although the exact fixing hole positions can be found in the full user manual available on the CDA website, the standard 150 mm outlet size ensures easy compatibility with existing ducting.Thanks!
