The details

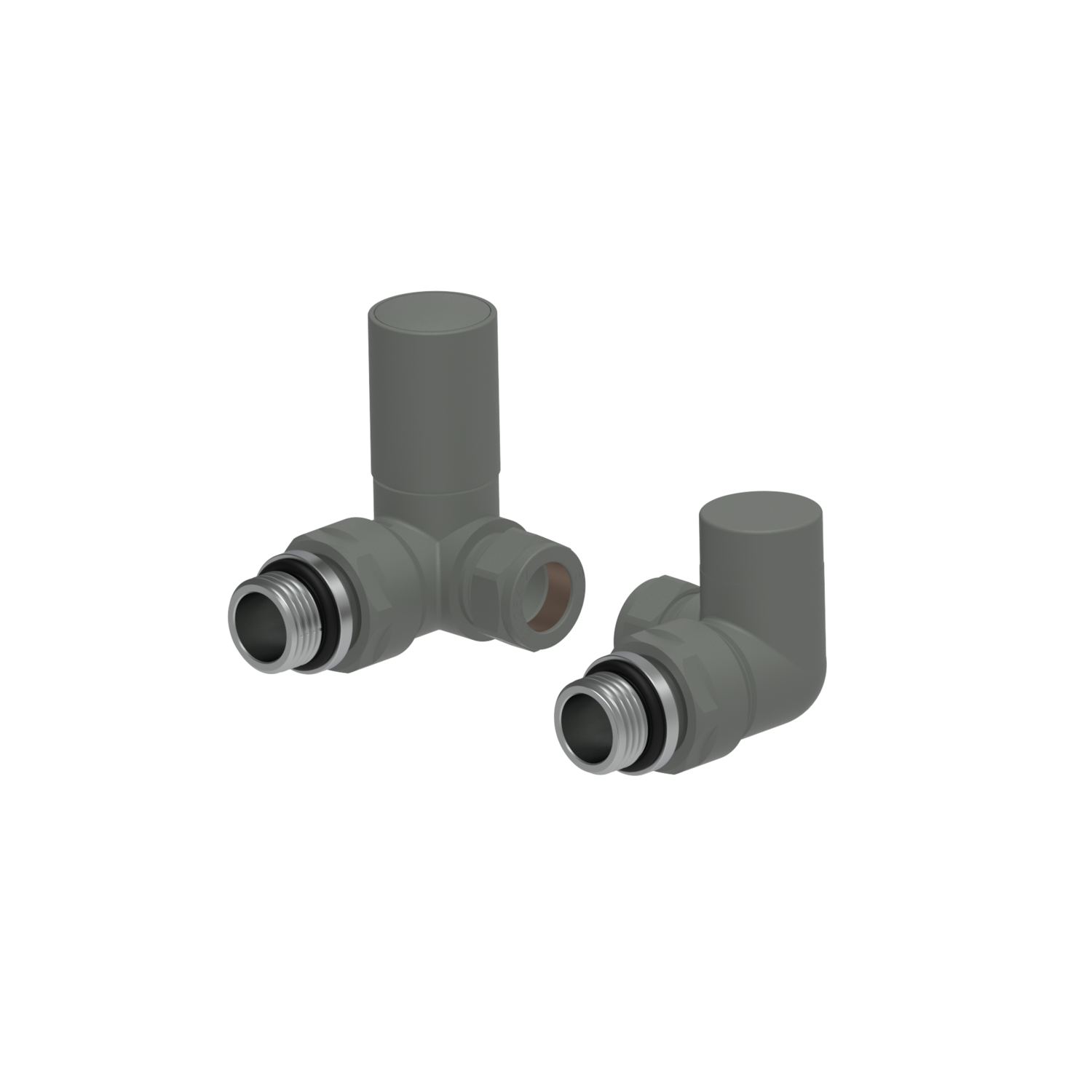

This pair of modern radiator valves feature a high-quality brass perfect for adding a finishing touch to modern or designer radiators and heated towel rails.
Featuring a 1/2" thread, these valves are compatible with all our radiators - including heated towel rails, column radiators, panel radiators, vertical flat tube radiators, and aluminium radiators.
Key features
- Compatible with all our water radiator ranges.
- Sleek design suitable for modern radiators.
- Durable solid brass construction.
- Available in Angled, Straight and Cornered orientation.
- Supplied as a pair, to fit a single radiator.
- Bi-directional - can be fitted on either the flow or return pipe of your radiator
- Adjustable water flow.
Specifications
- Valve type: Manual
- Orientation: Corner
- Style: Modern
- Colour: Anthracite Gray
- Finish: Matte
- Material: Brass/ABS
- Compression inlets: 15mm
- Radiator coupler: 1/2" BSPT

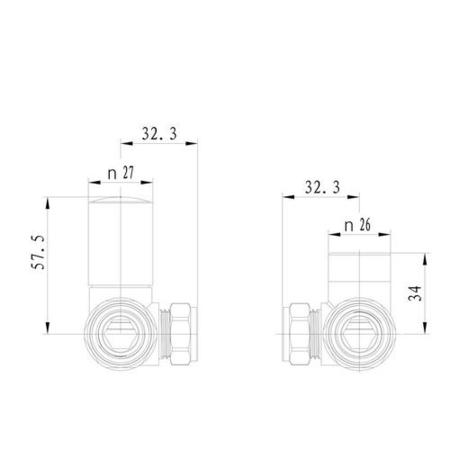

- Dimension: 4.7x6.6x4.5cm
- Weight: 0.555kg
Downloads
User manual
Question from Tas: Asked on 06/02/2026 Hi there would these match the Margo double panelled radiators ?
Hi,The Elego Anthracite Gray Modern Manual Corner Radiator Valves with Lockshield (MAN-CN-3AG) are compatible with Margo double-panelled radiators, as they use standard UK 15?mm compression fittings and ½″ BSPT connections. Their corner design makes them ideal for radiators with pipes coming out of the wall at the bottom sides. Just ensure your pipe centres match the valve spacing, and note that these are manual valves rather than thermostatic.Thanks!
