TCL 12000 BTU Smart A++ Wall Mounted Split Air Conditioner with Heat Pump
What stands out
•Smart Wi-Fi control lets you manage the unit from anywhere using the TCL Home App
•Powerful cooling and heating performance for year-round comfort
•T-AI Energy Saving intelligently reduces energy consumption
•12,000 BTU capacity ideal for rooms up to 30m²
•Coanda & Smart Airflow for more even temperature distribution
•Fast Cooling and Fast Heating reach your target temperature quickly
•Compatible with Amazon Alexa and Google Home voice control
•OTA updates keep firmware current
The details
Enjoy smart, efficient climate control all year round with the TCL SaveIN AI Air Conditioner. Combining powerful cooling and heating with intelligent energy-saving technology, this wall-mounted split system is designed to deliver maximum comfort while helping to reduce energy usage.
Powered by TCL's T-AI Energy Saving technology, the unit continuously analyses room conditions and automatically adjusts compressor operation to hold your ideal indoor temperature with improved efficiency. Whether you are cooling through summer or heating in winter, it works intelligently to provide comfort without unnecessary energy consumption.
Built-in Smart Wi-Fi lets you control the air conditioner remotely through the TCL Home App — adjust temperature, operating mode and schedules wherever you are. The unit is also compatible with Amazon Alexa and Google Home for convenient hands-free voice control.
The advanced Coanda Airflow design helps conditioned air travel further through the room, while Smart Airflow optimises airflow direction for both cooling and heating. Cool air is directed across the ceiling to reduce draughts; warm air flows towards the floor for improved heating comfort.
As a true reverse-cycle heat pump, the unit keeps heating in outdoor temperatures down to -20°C and cools reliably in ambient up to 53°C, with intelligent defrost maintaining output in cold, damp conditions. A wide 165–265V operating voltage window and auto-restart help it cope with unstable supply.For improved hygiene and long-term performance, TCL's 56°C Self-Cleaning technology actively cleans the evaporator through a multi-stage process that helps reduce bacteria and keeps airflow fresher, while a Gold Fin coating protects the coils against corrosion. Fast Cooling and Fast Heating reach your target temperature quickly, while the DC inverter compressor maintains stable, quiet and energy-efficient operation.
Essential info
- Model: TAC-12CHSD
- Capacity: 12000 BTU
- Type: Wall Mounted Split Air Conditioner
- Functions: Cooling & Heating
- Smart Control: Built-in Wi‑Fi
- App Compatibility: TCL Home App
- Voice Control: Amazon Alexa & Google Home
- Compressor Type: DC Inverter
- Airflow Technology: Coanda Airflow & Smart Airflow
- Self-Cleaning: 56°C Self‑Cleaning
- Fast Cooling & Fast Heating
- OTA Software Updates
Specification
Cooling / Heating Capacity: 3.4kW / 3.42kW (12,000 BTU)

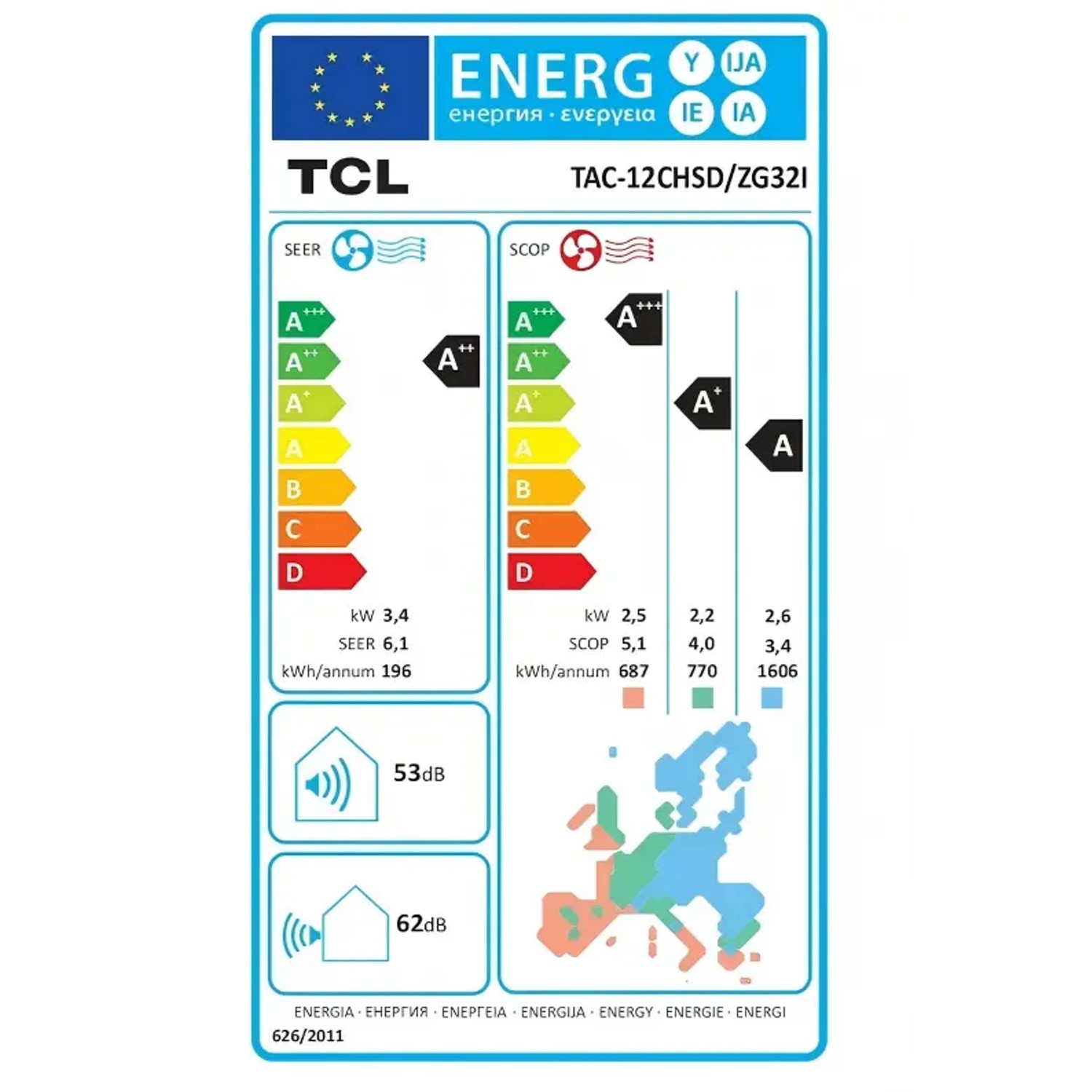

Energy Rating: A++ (Cooling) / A+ (Heating)
SEER / SCOP: 6.1 / 4.0
Recommended Area: 14-22m²
Operating Envelope (Outdoor): Cooling -15 to +53°C / Heating -20 to +30°C
Refrigerant: R32 (0.52kg, GWP 675)
Noise (Indoor, max sound power / pressure): 53 / 42 dB(A)
Compressor: DC Inverter Rotary (GMCC)
Smart Control: TCL Home App, Alexa & Google Home
Cooling Capacity (W): 3400 (1000-3770)
Heating Capacity (W): 3420 (1000-3810)
Power Input Cooling (W): 1130 (290-1500)
Power Input Heating (W): 1005 (290-1720)
Power Supply: 220-240V / 50Hz / 1 Phase
Indoor Air Flow (m³/h): 550 / 570
Fan Speeds: 7
Pipe Connections: 1/4" (6.35mm) / 3/8" (9.52mm)
Max Pipe Length: 25m
Max Height Difference: 10m
Operating Voltage Range: 165-265V
Self Cleaning: 56°C Self-Clean
Warranty: 1 Year
Dimensions
Indoor Dimensions (LWH) (CM): 77.8 × 27.2 × 19.2
Outdoor Dimensions (LWH) (CM): 71.2 × 45.9 × 27.6
Indoor Packaged Dimensions (LWH) (CM): 84 × 33.5 × 25.5
Outdoor Packaged Dimensions (LWH) (CM): 76.5 × 48.1 × 31
Weight (Net/Gross): 7.3kg / 9.5kg (Indoors)
Weight (Net/Gross): 20kg / 22kg (Outdoor)
Why buy?
•Powerful 12,000 BTU cooling and heating (3.4 kW) — sized for small-to-medium rooms up to 30 m².
•4-in-1 climate control: Cool, Heat, Dehumidify and Fan for genuine year-round comfort.
•Reliable heating down to -20°C outdoor — true year-round heat-pump performance, not just summer cooling.
•Low running costs: A++ cooling with T-AI energy-saving technology (up to 35% more efficient vs non-T-AI).
•Smart Wi-Fi & voice: control from anywhere via the TCL Home App, Alexa and Google Home.
•Coanda & Smart Airflow directs cool air upwards and warm air downwards to avoid direct draughts.
•56°C self-cleaning, Gold Fin coil coating and healthy filtration for fresher, more hygienic air.
•Whisper-quiet from 22 dB(A) sound pressure, with a fast, efficient DC Inverter compressor.

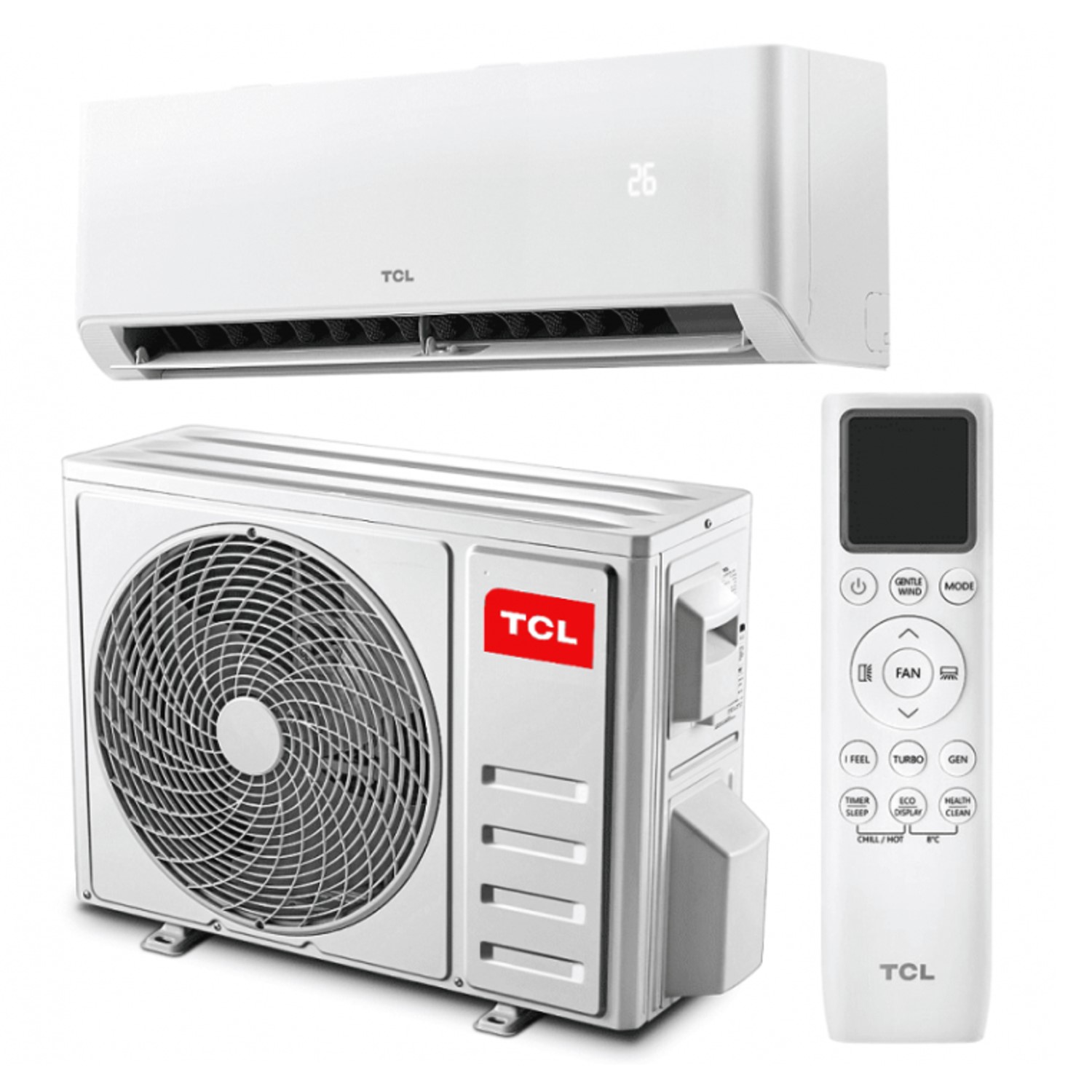

What's in the Box?

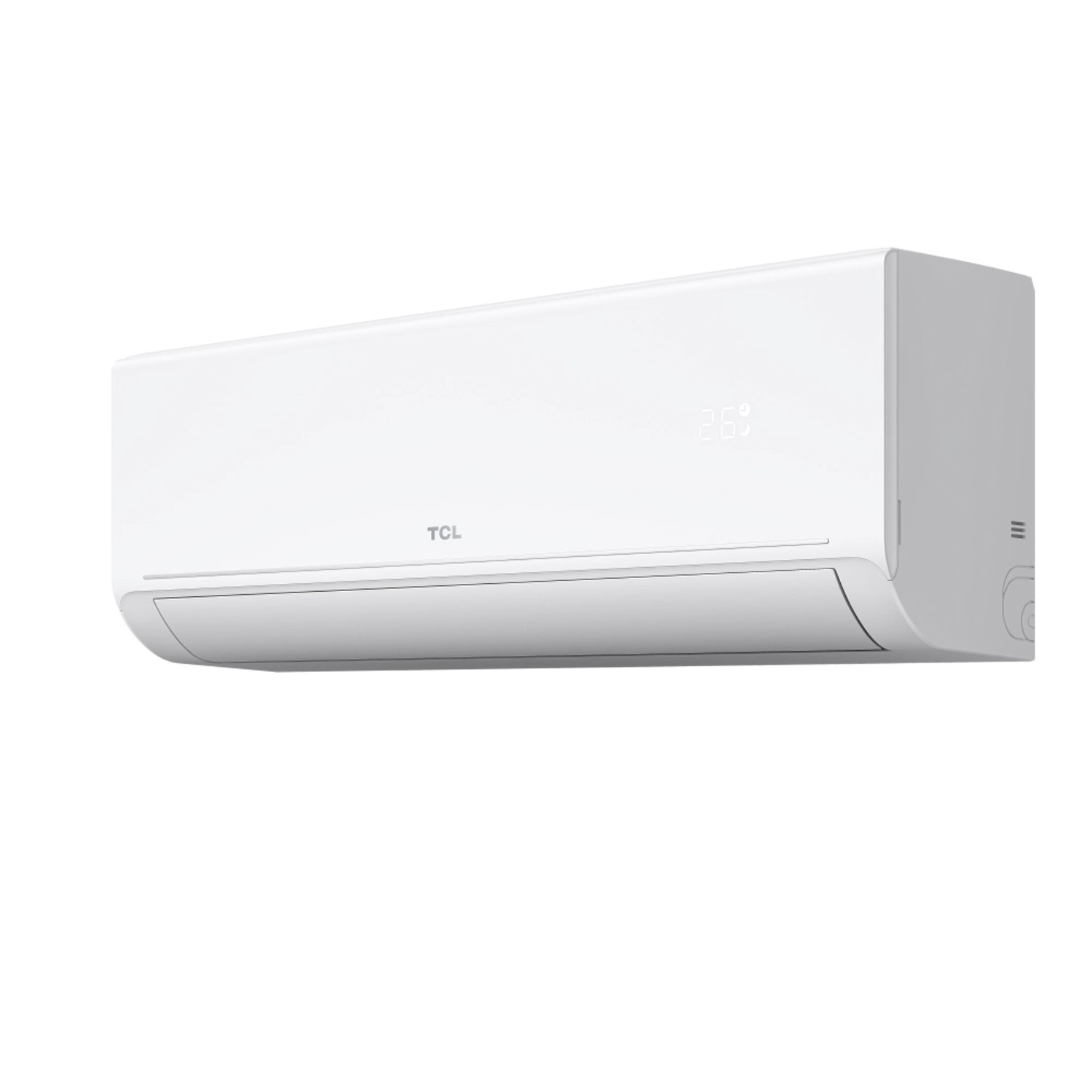

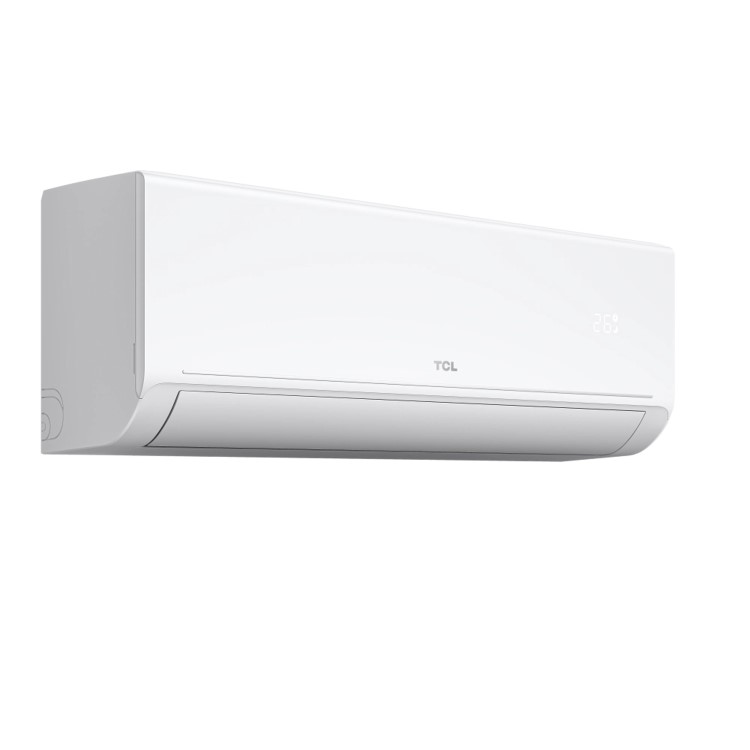

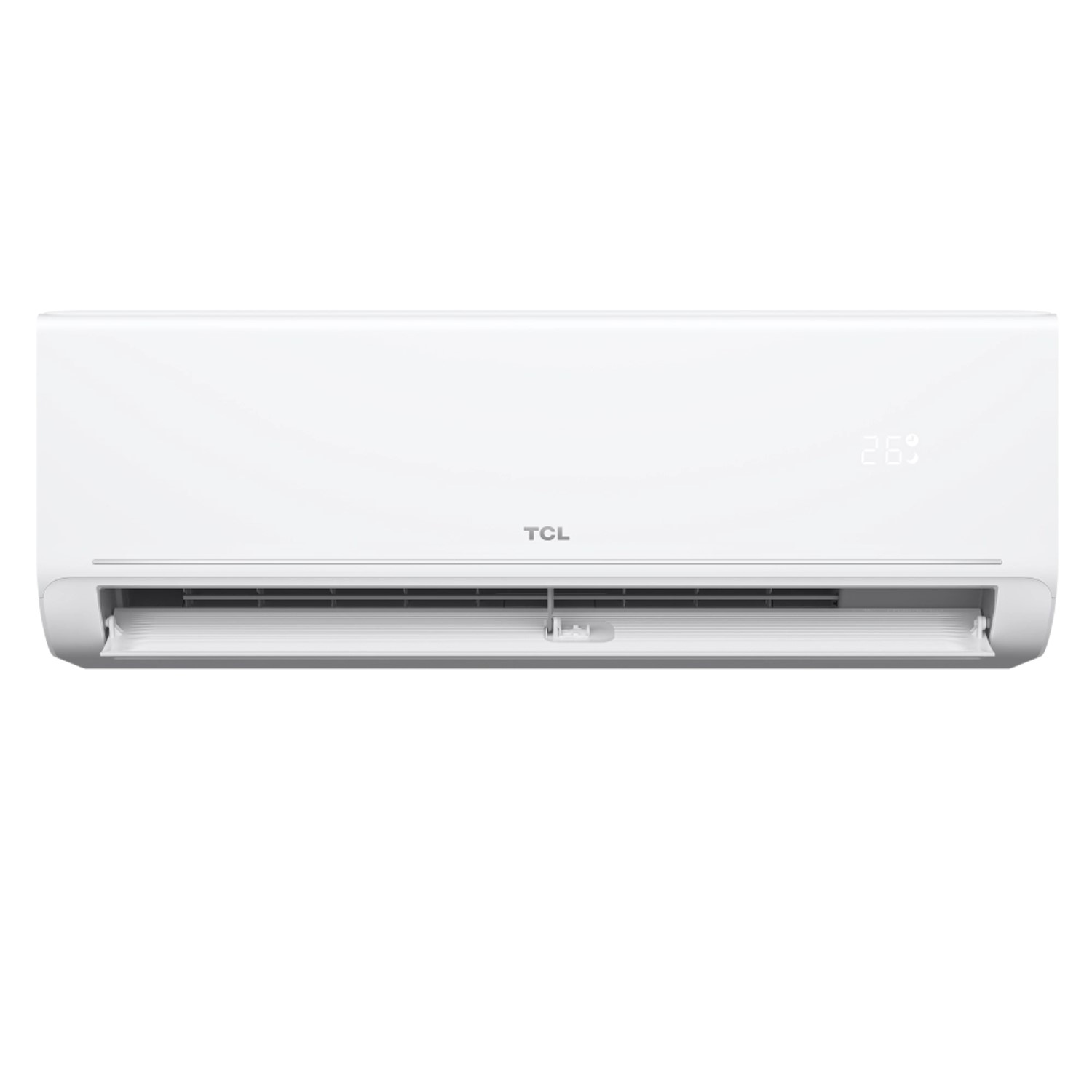

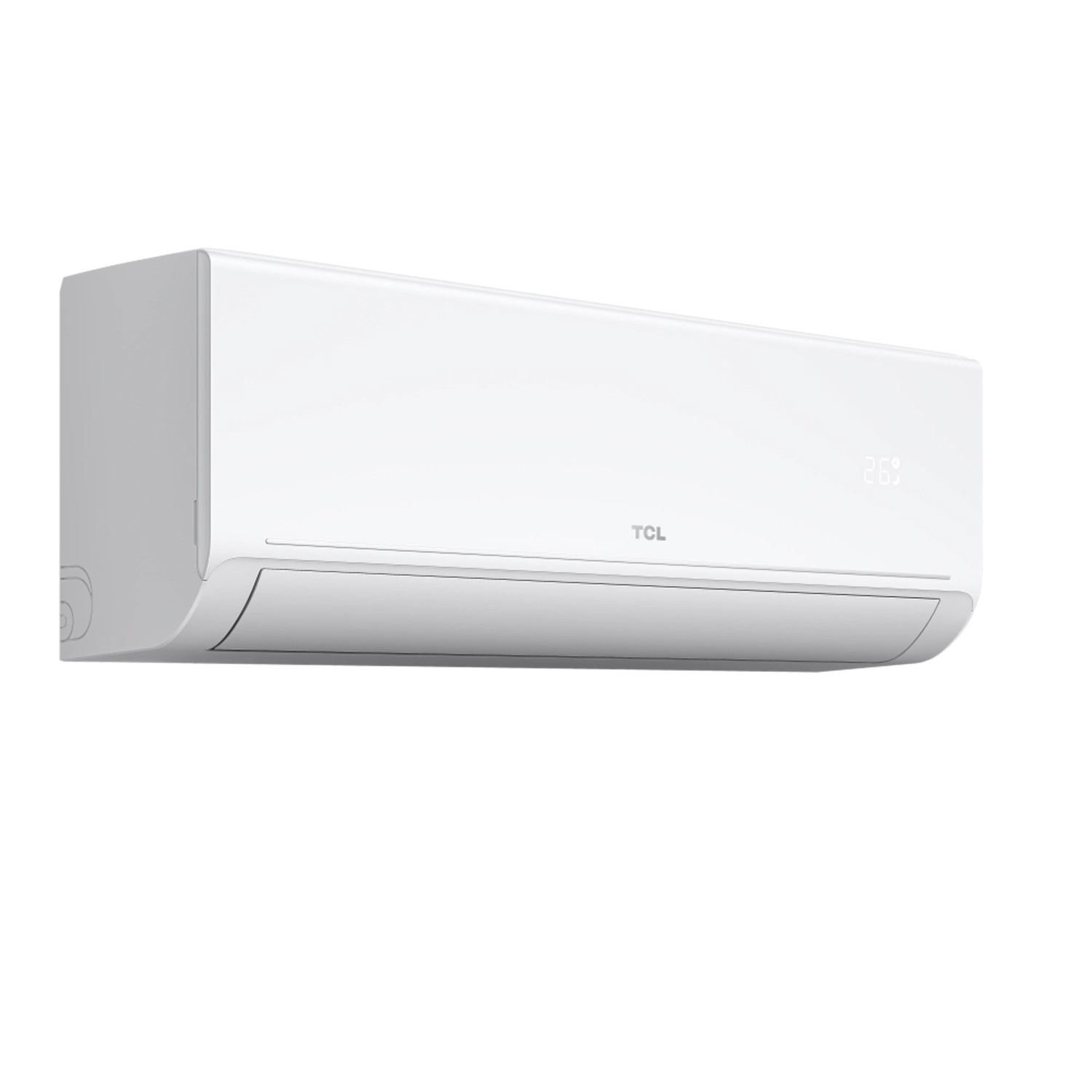

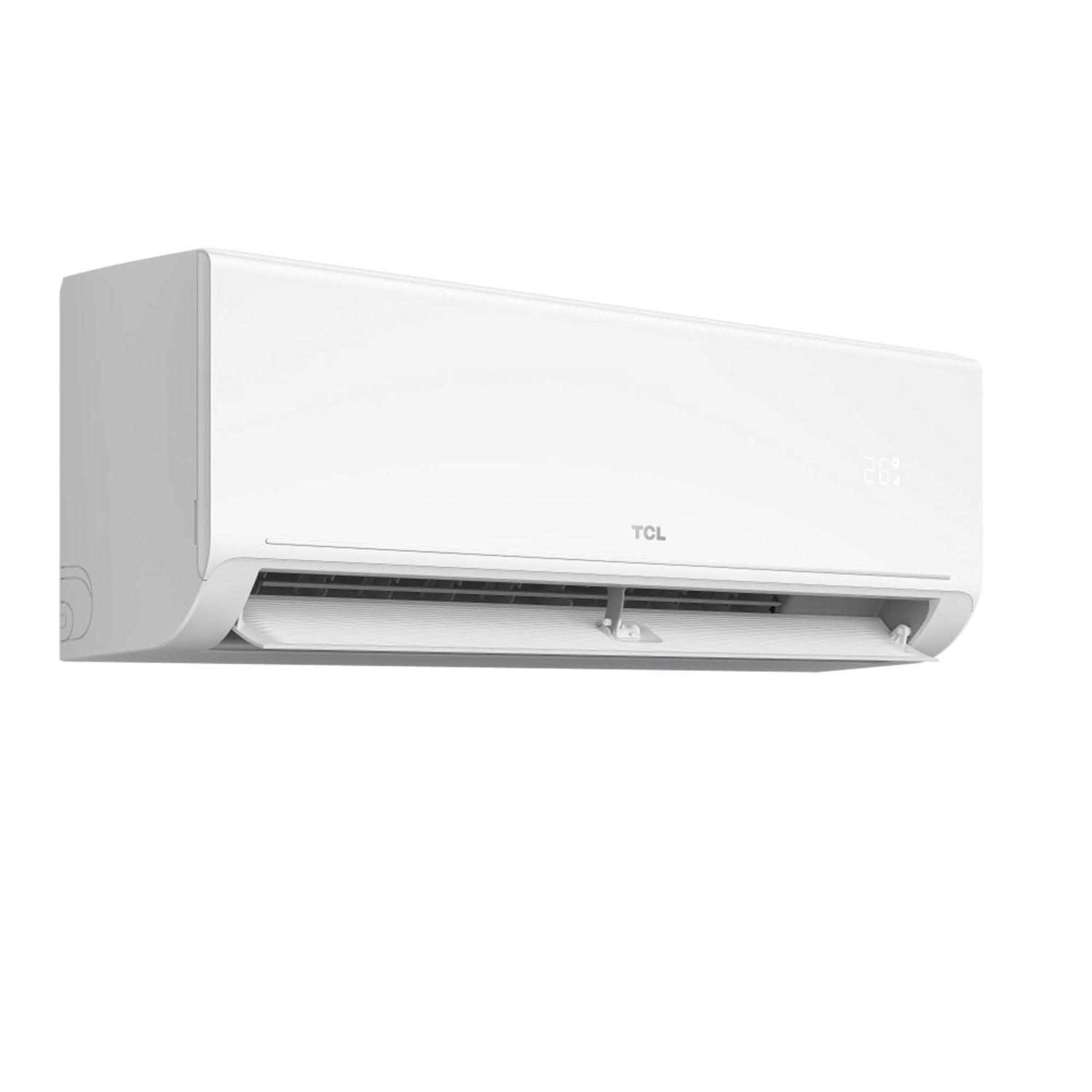

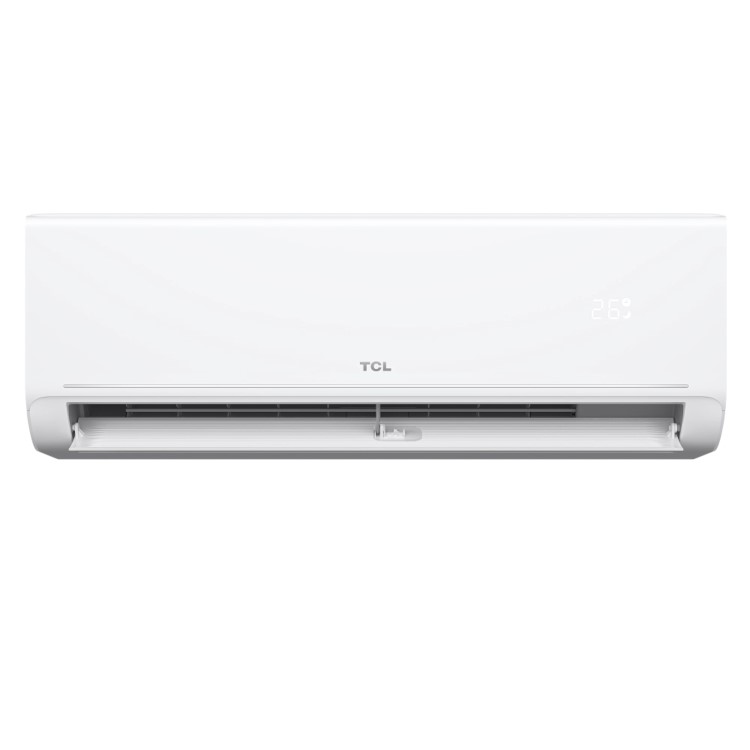

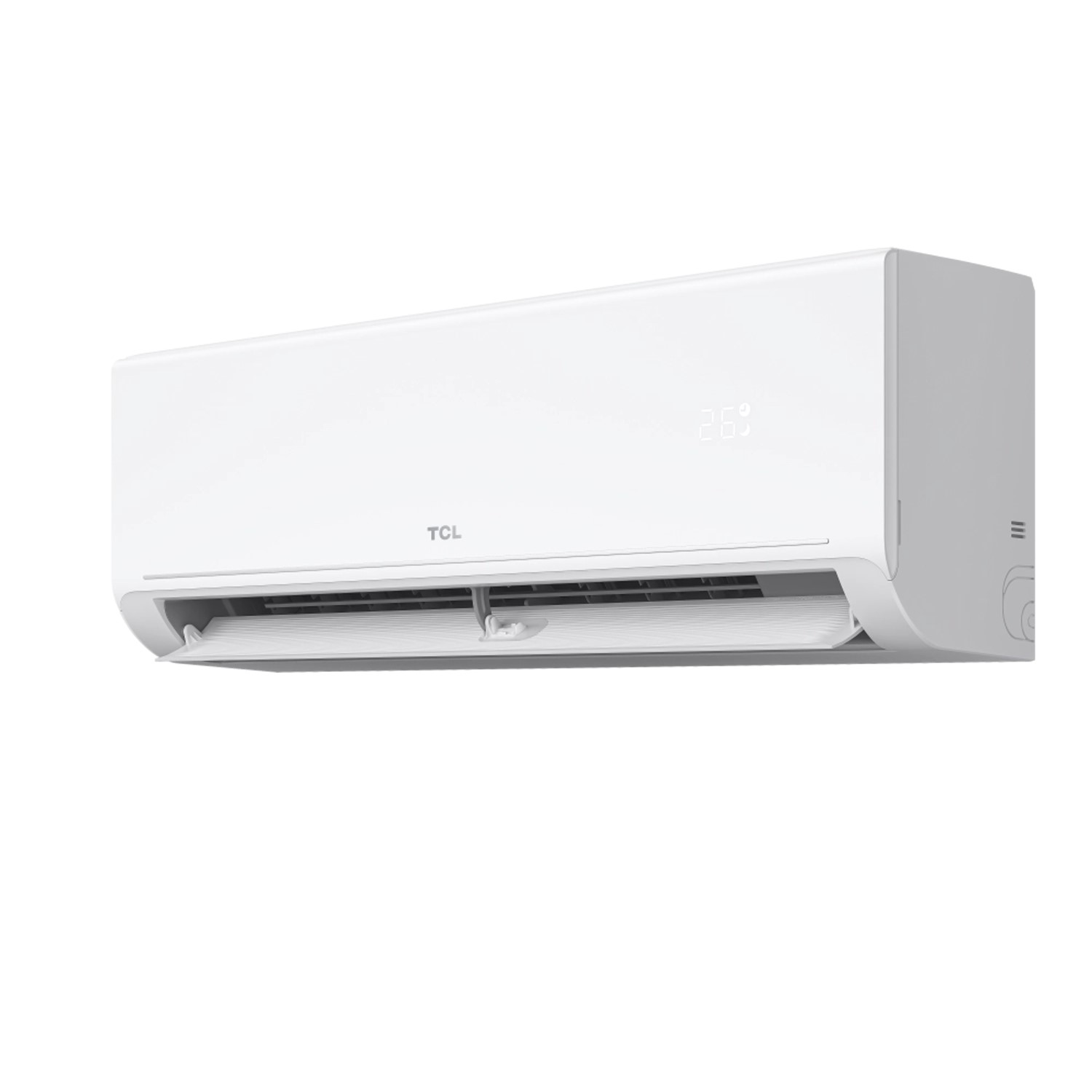

•1 × TCL 12,000 BTU Indoor Unit

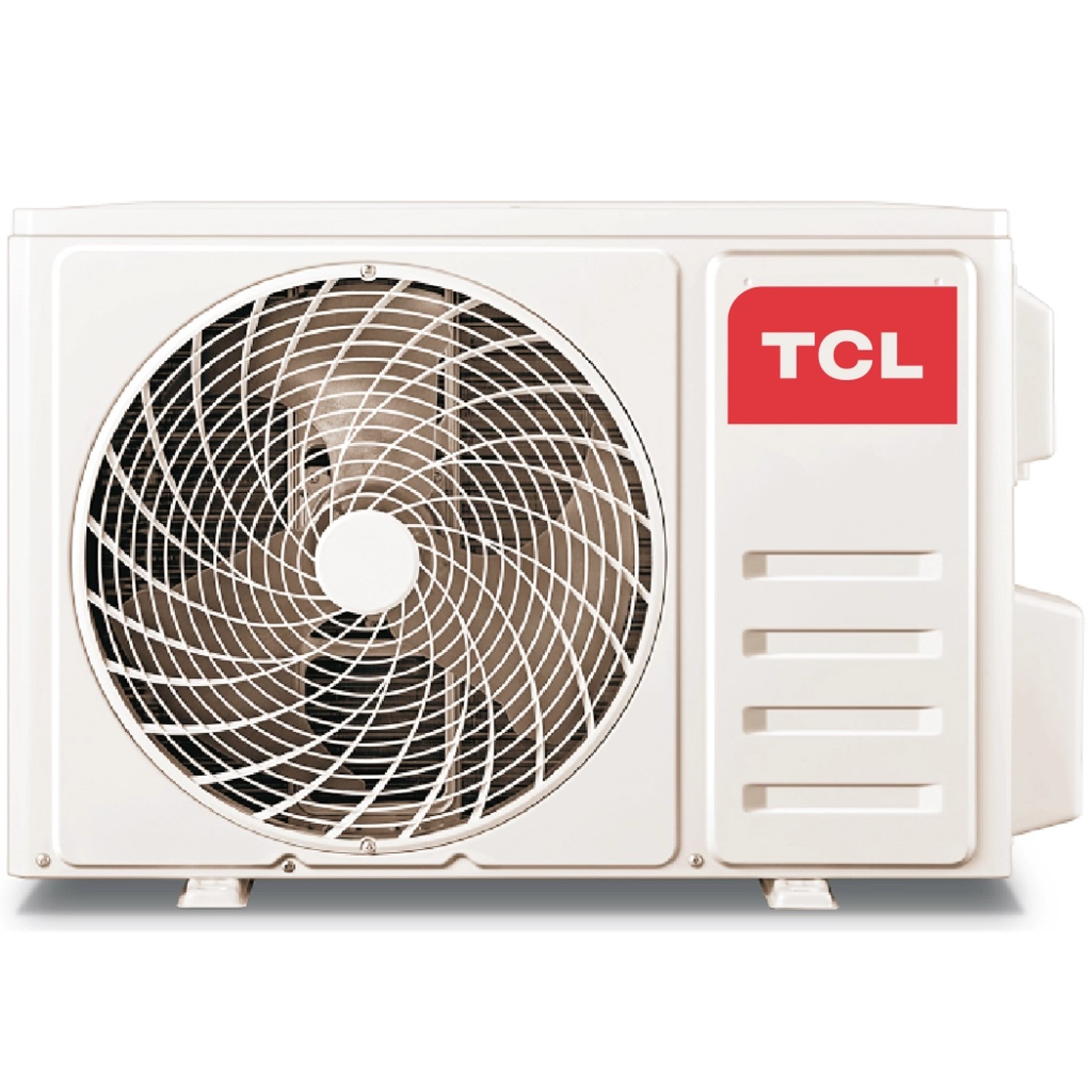

•1 × TCL 12,000 BTU Outdoor Unit

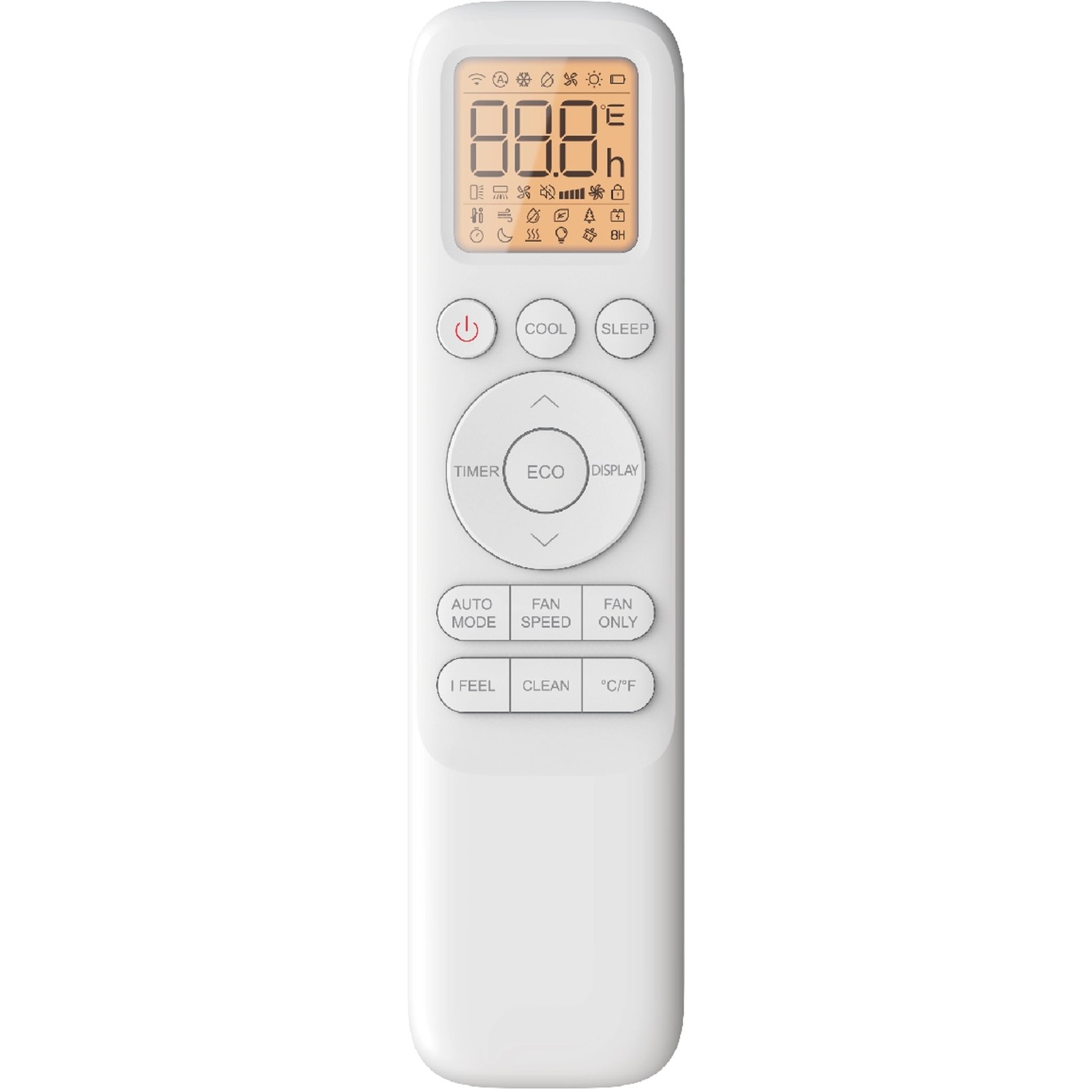

•1 × Remote Control
•1 × Power Cable
