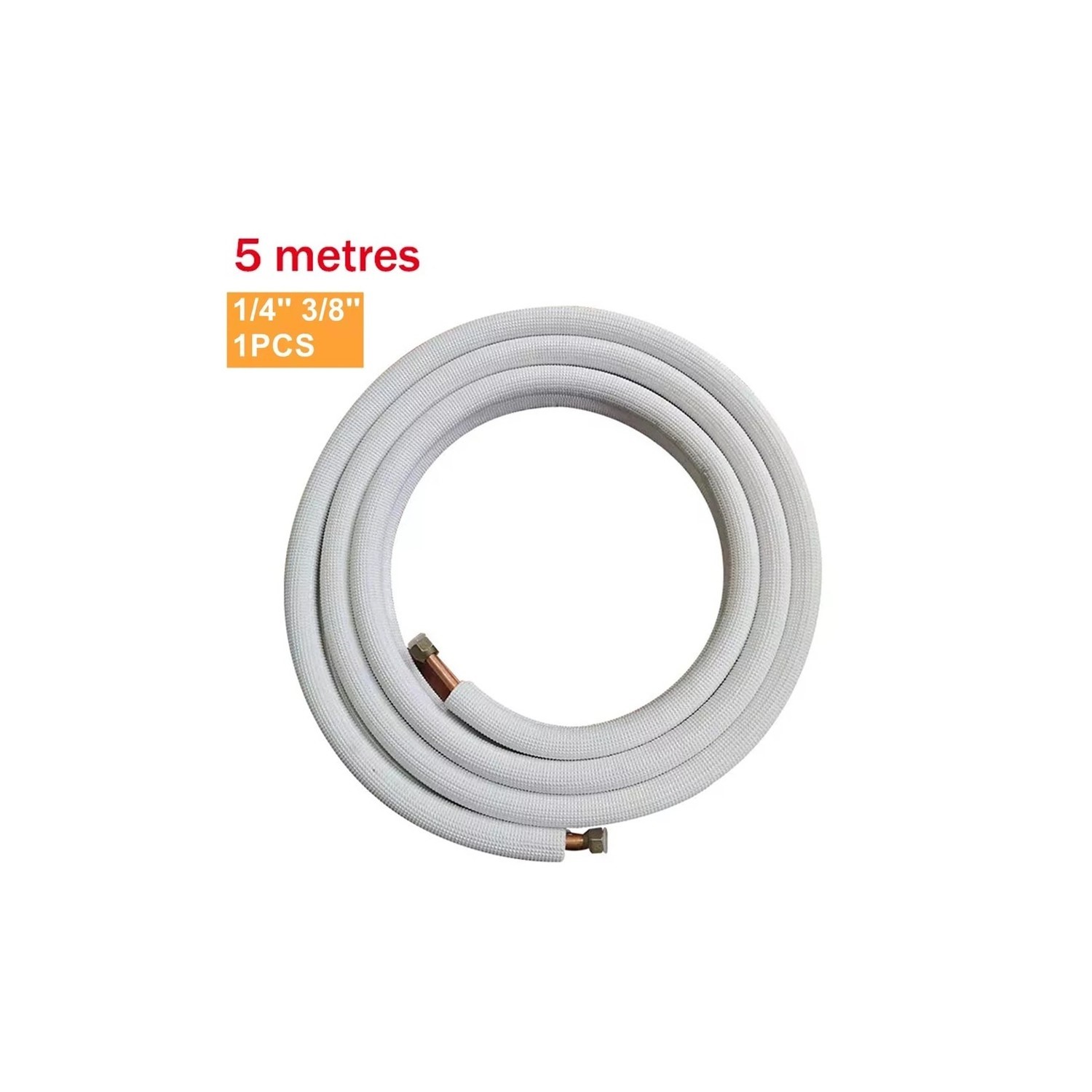

5 meter Pipe kit for 9000 and 12000 BTU Air Conditioners 1/4 and 3/8 inches, 6.35mm/9.52mm
Compatable models eiq-9wminv, eiq-12wminv, eiq-9wminvB, eiq-12wminvB, MISSION09-E-4.0, INV12T, INV12TWiFi, eiQ-9WMINV, eiQ-12WMINV, iQool9, iQool9B, iQool12, iQool12B, iQool9plus, iQool12plus, iQool18, iQool18B,iQool-2MS9K9K, iQool-2MS9K9KB, iQool-2MS12K12K, iQool-2MS12K12KB, iQool-3MS9K9K9K, iQool-3MS9K9K9KB,iQool-4MS12K12K12K12K, IQool-5MS12k12K12K12K12K, iQool-SRC18HP, iQool-C2MS12K12K, iQool-C3MS9K9K9K, iQool-C2MSC3SPM, iQool-C3MSC5SPM, Argo-2MS9K9K, Argo-3MS9K9K9K, Argo-4MS9K9K9K9K, Argo-2MS12K12K, S12EC, S12ET, AR12ART, AR18ART
Question from Eli: Asked on 09/07/2026 Is there any difference in the functionality of the air con unit if you use either the 1/4 inch or the 3/8 inch pipe?
Hi, the 1/4" and 3/8" pipes are both required for the air conditioning system and are not interchangeable options. The smaller 1/4" pipe is used for the liquid line and the larger 3/8" pipe is used for the gas/suction line. Using the correct pipe sizes is important for the unit to operate efficiently and correctly. This kit includes both sizes required for compatible 9000 and 12000 BTU electriQ air conditioners.
Thank you.
Question from Paul: Asked on 24/06/2026 how can I add the necessary gas to the 5m extention pipe kit and do I need to order a special connector to join them together?
Hi, The electriQ PIPEKIT12K-5M is a pre-insulated copper pipe set only and contains no refrigerant, as the gas is already sealed in the air conditioning system and handled during installation by an F-Gas engineer. It connects directly to the indoor and outdoor units using standard flare fittings, so no extra connector is required. If pipe runs exceed the system’s pre-charged allowance, any additional refrigerant must be added by the installer.
Thank you.
Question from Dan: Asked on 20/05/2026 Hi are both pipes 5m in length?
Hi Dan,Yes — both pipes in the kit are 5 metres long each, meaning you get a 5m length of the 1/4" pipe and a separate 5m length of the 3/8" pipe.Thanks!
Question from Paul: Asked on 25/04/2026 Is this pipe pre gassed ?
Hi Paul,No — this pipe is not pre-gassed; it’s just a copper pipe kit with insulation, and it doesn’t contain any refrigerant.Thanks!
Question from Steve White: Asked on 19/02/2026 Is this pre loaded?
Hi, The ElectriQ 5?m pipe kit is just the copper line set — it does not come pre-loaded with refrigerant. Refrigerant is only in the actual air conditioning system and must be charged by a qualified fitter during installation.
Thank you.
Question from Mark: Asked on 07/12/2025 Please tell me if this kit is 2 pipes! Ie flow and return pipes or do I have to order 2 if these kits?
Hi Mark,The ElectriQ 5?m pipe kit (PIPEKIT12K-5M) includes both the 1/4?inch and 3/8?inch pipes needed for a split AC — one for flow and one for return — so you do not need to order a second kit to have both pipes.Thanks!
