Smart, efficient climate control all year round
The TCL 12000 BTU Smart Wi-Fi DC Inverter Air Conditioner (TAC12CH) combines powerful cooling and heating performance with intelligent energy-saving technology. Ideal for rooms up to 30m², this wall-mounted split system delivers maximum comfort while helping to reduce your carbon footprint with an impressive A++ energy efficiency rating.
Stay effortlessly connected with the TCL Home App—allowing you to control, schedule, and monitor your climate from anywhere, or use hands-free voice commands via Amazon Alexa and Google Home. Featuring HEPA-grade filters and eco-friendly R32 refrigerant, it is designed to keep your home's air fresh, pure, and beautifully comfortable.
Intelligent Cooling, Heating & Airflow
Powered by TCL's innovative technology, this system continuously analyses room conditions to maintain the perfect indoor temperature. Whether you need rapid cooling in the height of summer or reliable warmth in winter, it adapts intelligently to provide comfort without unnecessary energy consumption.
Fast Cooling & Heating
Quickly reach your desired temperature. The Super DC Inverter with a high-performance GMCC compressor maintains stable, quiet, and highly efficient operation in all seasons.
T-AI Energy Saving
Work smarter, not harder. TCL's T-AI Energy Saving technology automatically adjusts the compressor to reduce energy consumption while maintaining your ideal room climate.
Smart Wi-Fi & Voice Control
Manage your comfort from anywhere. Use the TCL Home App to tweak settings remotely, or enjoy convenient hands-free operation via Amazon Alexa and Google Home.
Coanda & Smart Airflow
Enjoy an even temperature distribution. Cool air is directed across the ceiling to reduce direct drafts, while warm air smoothly flows towards the floor for cosier heating.
56°C Self-Cleaning
Breathe easy with long-term hygiene. A multi-stage process actively cleans the evaporator at high temperatures to reduce bacteria, whilst HEPA filters trap dust and pollen.
Always Up To Date
Keep your air conditioning system future-proof. Simple Over-The-Air (OTA) software updates ensure your unit is always running on the latest, most optimised firmware.
Downloads

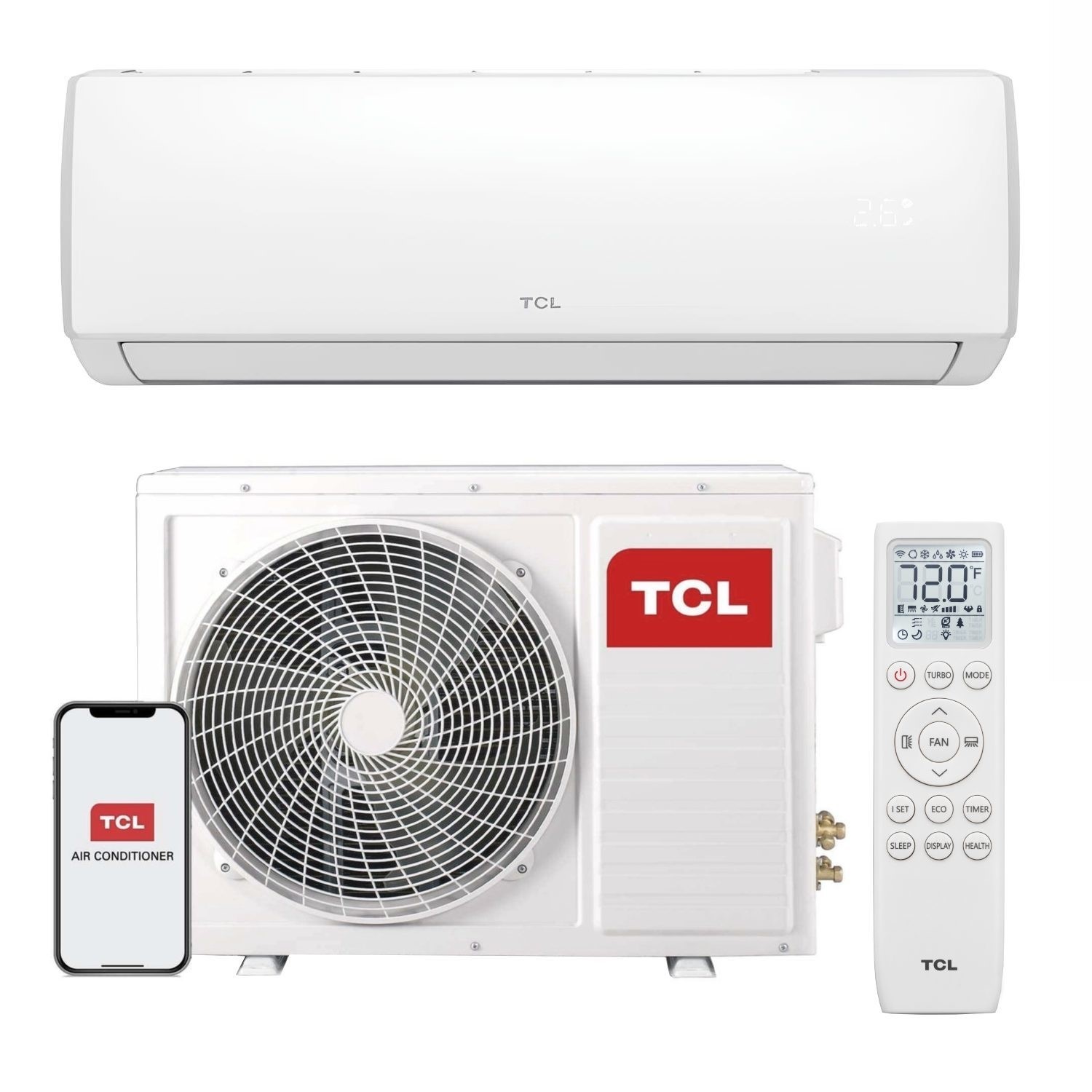

User manualWhat's in the Box

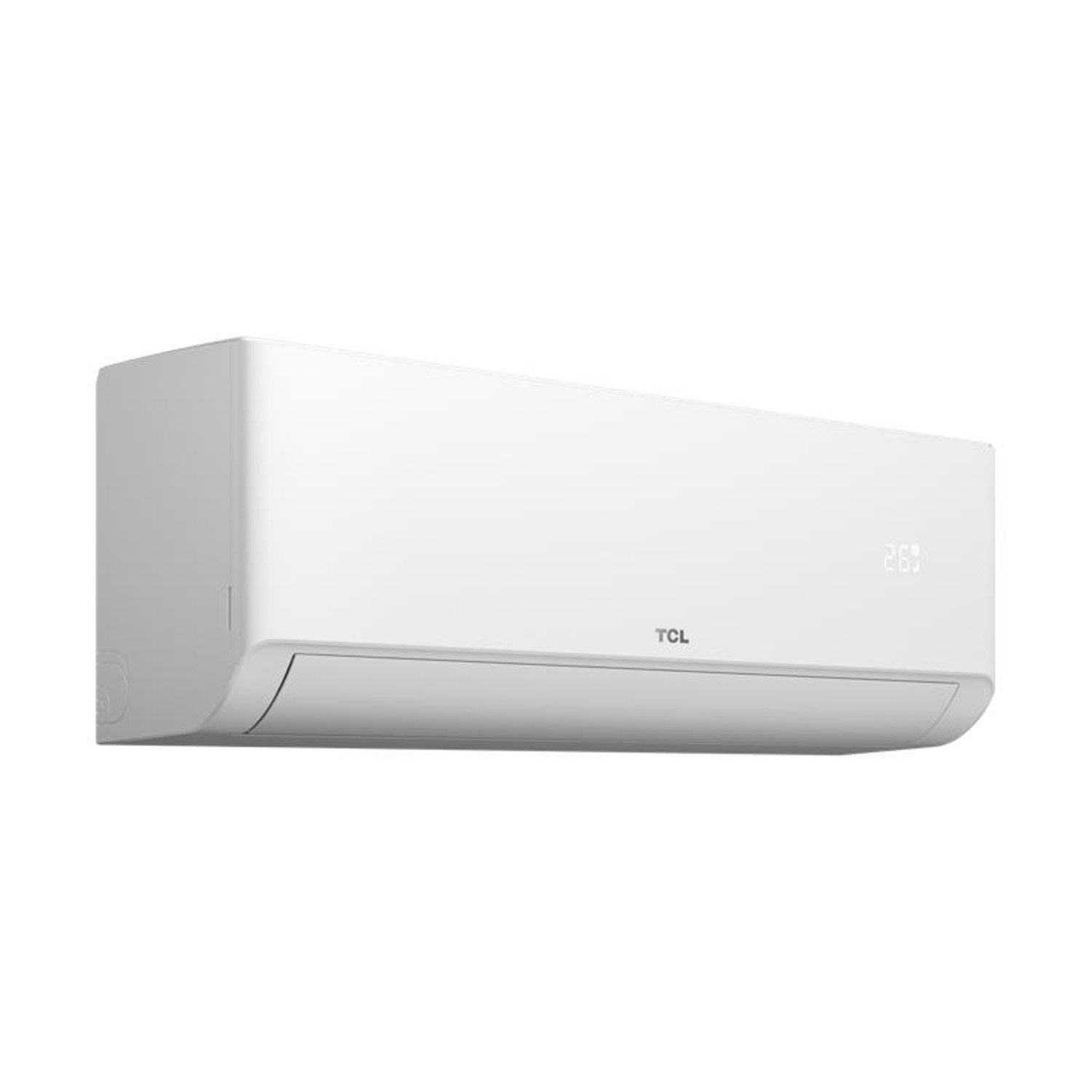

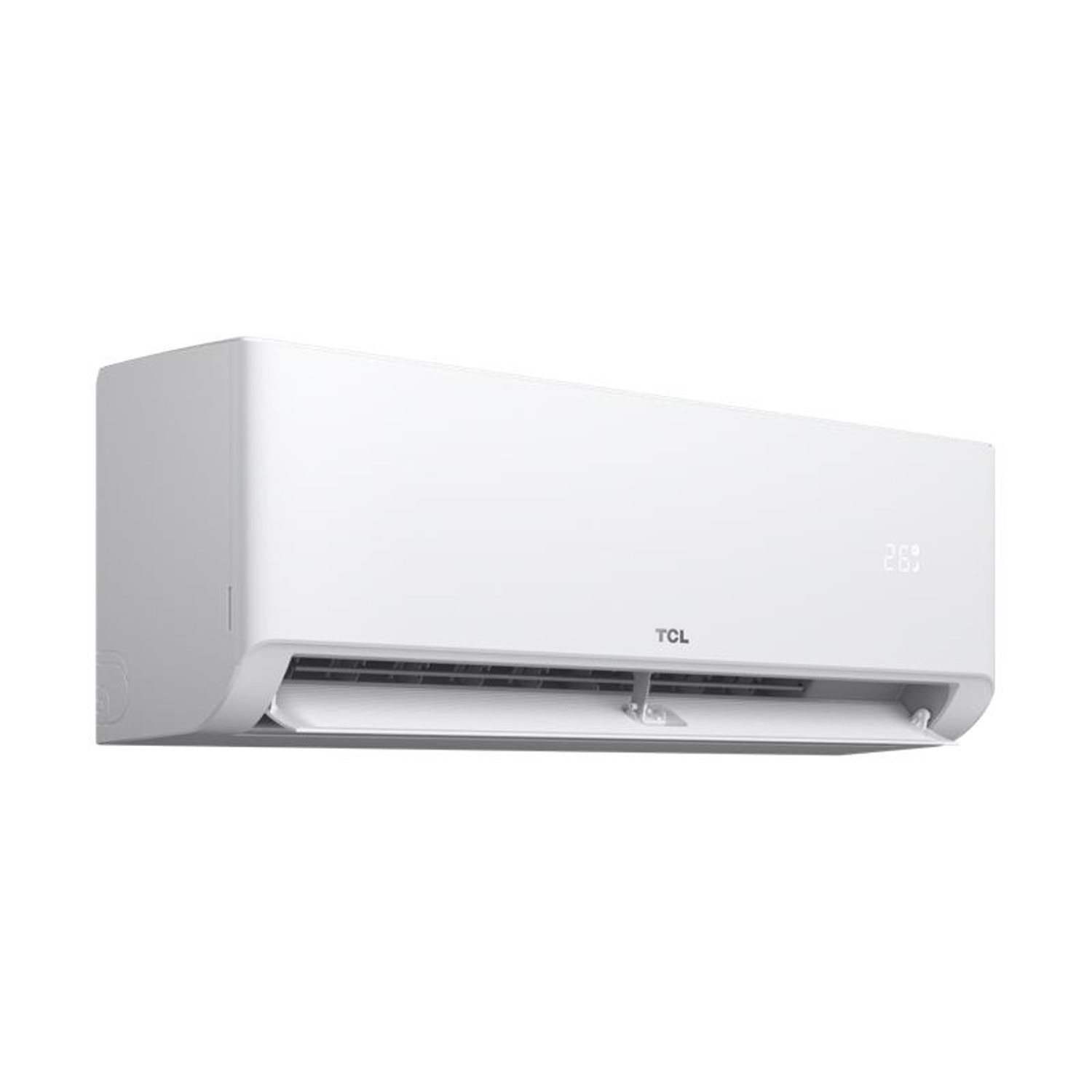

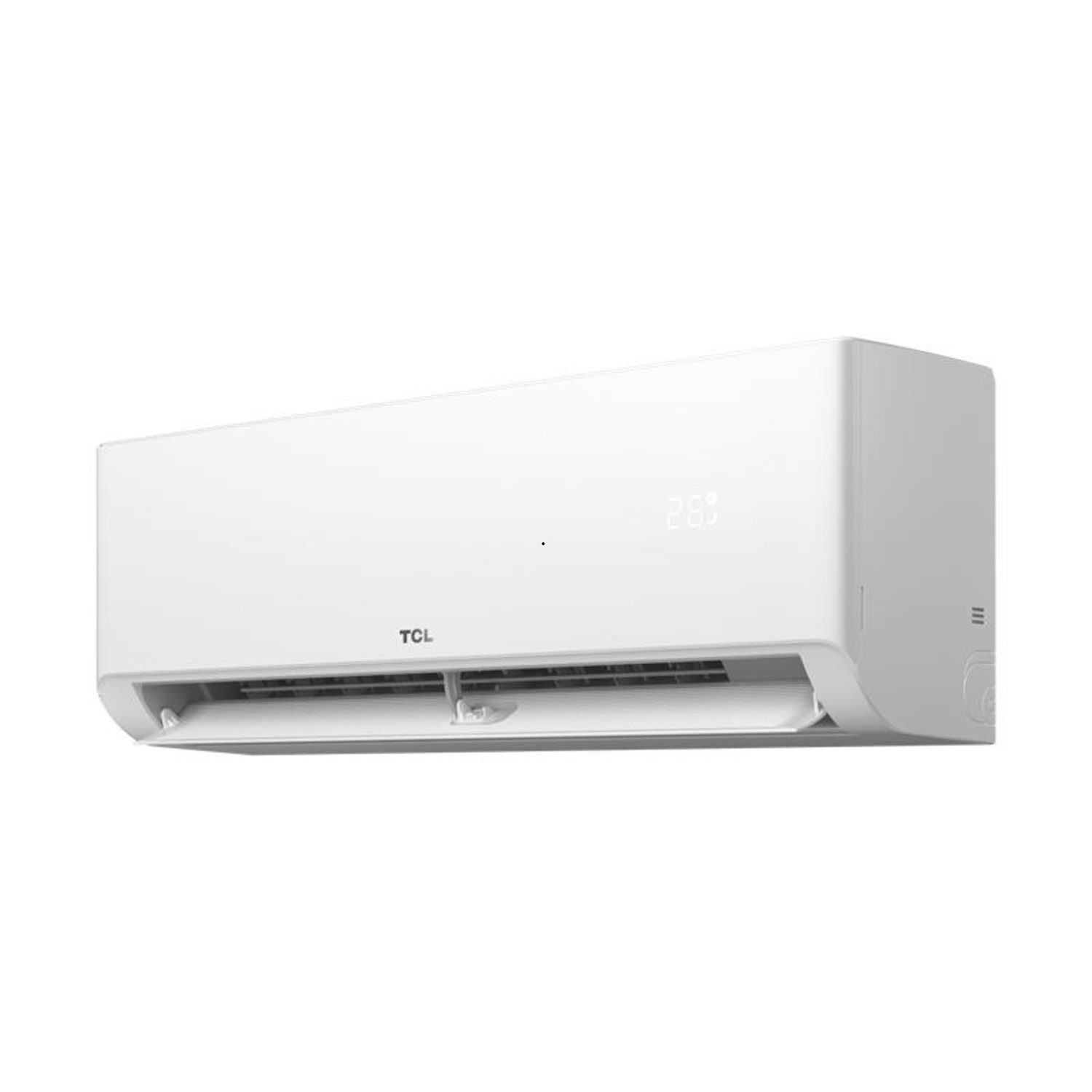

- 1 × TCL 12000 BTU Indoor Unit
- 1 × TCL 12000 BTU Outdoor Unit
- 1 × Remote Control
- 1 × Power Cable
- Note: 12K Pipe Kit is required for installation and is sold separately.
Key Specifications
- Cooling / Heating Capacity: 3.4 kW / 3.42 kW
- Energy Rating: A++ (Cooling) / A+ (Heating)
- Room Coverage: Ideal for up to 30m²
- Indoor Dimensions: 77.8 × 27.2 × 19.2 cm
- Refrigerant: R32 (0.52 kg)
- Smart Technology: TCL Home App, Alexa & Google Home
Installation & Technical Advice
Important: Pipe Kit Required Please note that a standard 12K Pipe Kit is essential for the installation of this unit, but it is sold separately. Ensure you have purchased the correct piping kit before booking your installation engineer. Maximum allowed refrigerant pipe length is 25m.
F-Gas Installation Required To ensure safe and optimal performance, this air conditioner must be installed by a fully qualified F-Gas AC engineer. These units contain a regulated R32 gas which must be handled by certified personnel in accordance with F-Gas regulations. Please ensure your fitter reads the user manual in full prior to installation.

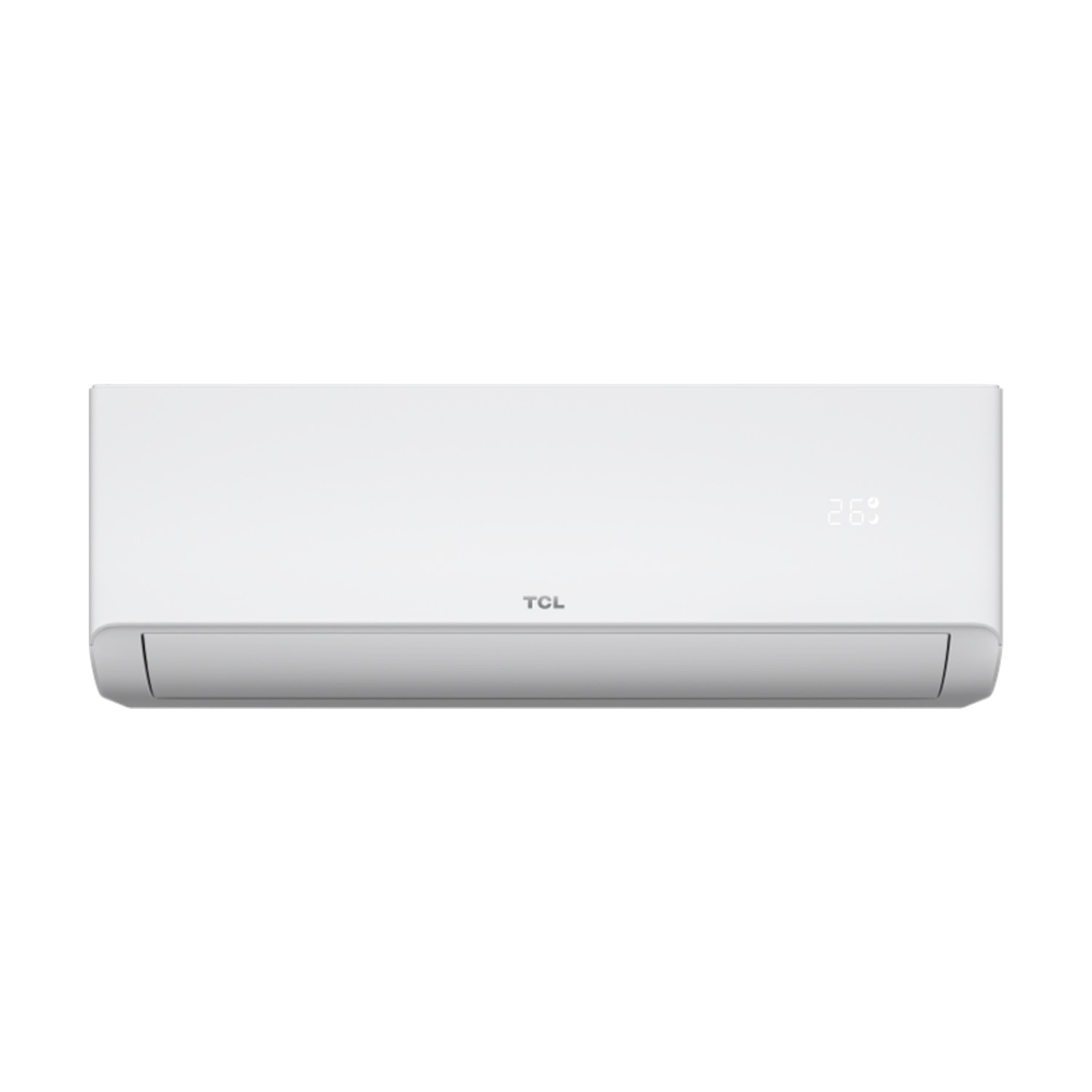

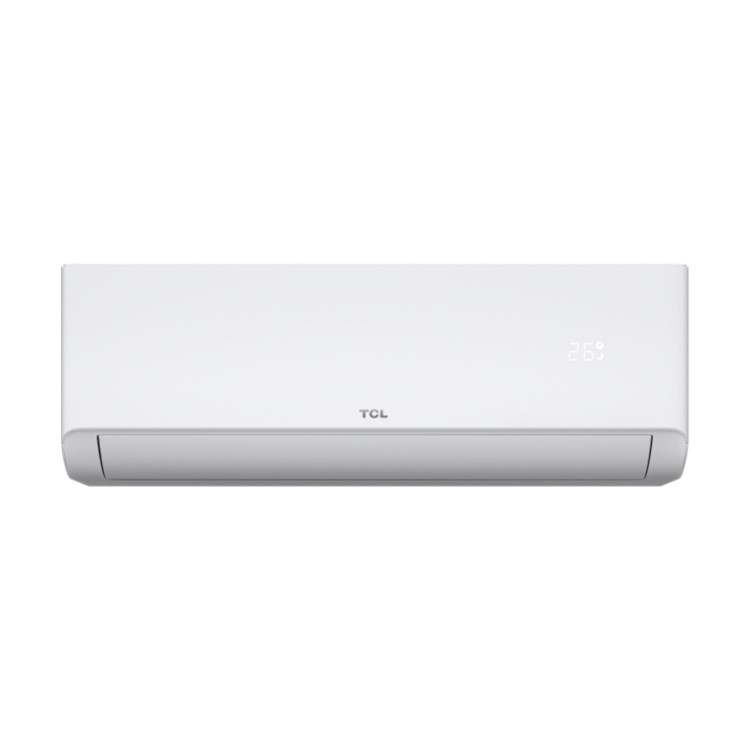

TCL 12000 BTU Smart Wi‑Fi DC Inverter Air Conditioner
What stands out
- Smart Wi‑Fi control lets you manage your air conditioner from anywhere using the TCL Home App
- Powerful cooling and heating performance for year-round comfort
- T‑AI Energy Saving technology intelligently adjusts operation to reduce energy consumption
- 12000 BTU capacity ideal for rooms up to 30m²
- Coanda Airflow and Smart Airflow provide more even temperature distribution throughout the room
- Fast Cooling and Fast Heating quickly reach your desired temperature
- Compatible with Amazon Alexa and Google Home voice control
- Easy OTA updates keep your air conditioner up to date
The details
Enjoy smart, efficient climate control all year round with your TCL Air Conditioner. Combining powerful cooling and heating performance with intelligent energy-saving technology, this wall-mounted split system is designed to deliver maximum comfort while helping to reduce energy usage.
Powered by TCL's innovative T‑AI Energy Saving technology, the unit continuously analyses room conditions and automatically adjusts compressor operation to maintain the ideal indoor temperature with improved efficiency. Whether you're cooling during summer or heating in winter, your TCL Air Conditioner works intelligently to provide comfort without unnecessary energy consumption.
Built-in Smart Wi‑Fi functionality allows you to control your air conditioner remotely using the TCL Home App. Adjust temperature settings, operating modes and schedules wherever you are. The unit is also compatible with Amazon Alexa and Google Home, providing convenient hands-free voice control.
The advanced Coanda Airflow design helps conditioned air travel further throughout the room, while Smart Airflow automatically optimises airflow direction for both cooling and heating modes. Cool air is directed across the ceiling to reduce direct drafts, while warm air flows towards the floor for improved heating comfort.
For improved hygiene and long-term performance, TCL's 56°C Self‑Cleaning technology actively cleans the evaporator through a multi-stage process that helps reduce bacteria and keeps airflow fresher. The outdoor unit also features a reverse-cleaning function to help minimise dust accumulation.
Featuring Fast Cooling and Fast Heating functions, your TCL Air Conditioner quickly reaches your desired temperature, while the DC inverter compressor maintains stable, quiet and energy-efficient operation.
Essential info
- Model: TAC12CH
- Capacity: 12000 BTU
- Type: Wall Mounted Split Air Conditioner
- Functions: Cooling & Heating
- Smart Control: Built-in Wi‑Fi
- App Compatibility: TCL Home App
- Voice Control: Amazon Alexa & Google Home
- Compressor Type: DC Inverter
- Airflow Technology: Coanda Airflow & Smart Airflow
- Self-Cleaning: 56°C Self‑Cleaning
- Fast Cooling & Fast Heating
- OTA Software Updates
Specification
Air Flow (M3/h): 550 / 570
Rated capacity Cooling (W): 3400 (1000–3770)
Rated capacity Heating (W): 3420 (1000–3810)
Power Input Cooling (W): 1130 (290–1500)
Power Input heating (W): 1005 (290–1720)
Current input Cooling (A): 5.8 (1.5–9.0)
Current input Heating (A): 4.4 (1.5–10.0)
SEER/SCOP Cooling (W/W): 6.10 / A++
SEER/SCOP Heating (W/W): 4.00 / A+
Easy Fit with 5m pipe and cable kit supplied as standard: Cable included; pipe kit sold separately
Liquid side / Gas Side (mm/inch): 6.35 (1/4) + 9.52 (3/8)
Max. Refrigerant pipe length: 25m
Refrigerant type/weight: R32 / 0.52kg
Super DC Inverter with GMCC Compressor
Digital LED temperature and function display
Self-diagnostic function
Save energy by using the ECO mode
Auto Restart when electricity is restored after a power cut
Child lock for added peace of mind
Installed with filters to remove odours, dust and pollen (HEPA-grade)
Warranty: 1 year
Dimensions
Indoor Dimensions (LWH) (CM): 77.8 × 27.2 × 19.2
Outdoor Dimensions (LWH) (CM): 71.2 × 45.9 × 27.6
Indoor Packaged Dimensions (LWH) (CM): 84 × 33.5 × 25.5
Outdoor Packaged Dimensions (LWH) (CM): 76.5 × 48.1 × 31
Weight (Net/Gross): 7.3kg / 9.5kg (Indoors)
Weight (Net/Gross): 20kg / 22kg (Outdoor)
Why buy?
The TCL TAC12CH AI brings together intelligent energy management, smart connectivity and powerful climate control in one modern air conditioning system. Ideal for homes, apartments and offices, it delivers comfortable temperatures, convenient app control and efficient year-round performance.
Question from Mark: Asked on 20/07/2026 What brackets do I need or are they supplied?
Hi Mark,The indoor unit includes the wall mounting plate needed for installation. However, the outdoor condenser wall bracket is not supplied and will need to be purchased separately if you plan to mount the unit on a wall. Alternatively, the outdoor unit can be installed on a suitable ground stand or base.Thanks!
Question from Basil: Asked on 16/07/2026 Who will come and do the installation. does they need extra payment
Hi Basil,The installation will be carried out by an F-Gas certified air-conditioning engineer. Installation is not included in the unit price, so an additional payment will be required.To view the installation charges, please add the service to your order before proceeding to checkout. Thank you!
Question from Reece: Asked on 14/07/2026 Does this unit require installation from the outside too
Hi, yes, this is a split system and requires both an indoor wall-mounted unit and an outdoor unit. The outdoor unit must be installed outside the property and connected to the indoor unit by pipework. Installation must be completed by a qualified F-Gas engineer, as the unit contains R32 refrigerant.
Thank you.
Question from Parker: Asked on 14/07/2026 Does this just do 1 room?
Hi, This TCL 12000 BTU split air conditioner is designed to cool and heat one main room or open-plan area. It has a single indoor unit, so it won’t independently cover multiple separate rooms. If doors are left open, some air may reach nearby areas, but performance will depend on the layout and size of the space.
Thank you.
Question from Leigh: Asked on 10/07/2026 Do these units come pre gassed?
Hi, Yes, the TCL TAC12CH comes with a factory pre-charged refrigerant charge in the outdoor unit, suitable for the standard installation pipe length. Please note this is not a DIY system; installation must be completed by a qualified engineer who will connect the units, vacuum and test the system, and commission it before use.
Thank you.
Question from Davidsr412012: Asked on 10/07/2026 Does it need water supply.
Hi, The TCL TAC12CH does not require a mains water supply. It uses refrigerant pipework between the indoor and outdoor units, and any condensation produced during operation is removed through a small condensate drain hose/pipe installed as part of the air conditioning installation. This is not connected to your plumbing system.
Thank you.
Question from Leila: Asked on 10/07/2026 Hi. Can I plug this into the mains with a normal plug socket if not which ones can you suggest that do.
Hi, The TCL TAC12CH is a wall-mounted split air conditioning system and is not designed to plug directly into a standard household socket like a portable air conditioner. It requires installation by a qualified engineer, who will ensure the electrical connection is completed correctly in line with the manufacturer’s instructions and local requirements.
Thank you.
Question from matt: Asked on 09/07/2026 Can I install this my self
Hi Matt,You can install parts of it yourself, but the final installation and commissioning should be carried out by a qualified air conditioning engineer because it requires specialist tools and handling of the refrigerant system.Thanks!
Question from Mark: Asked on 09/07/2026 Do you need a qualified engineer to fit them
Hi Mark,Yes, the TCL TAC12CH split air conditioner must be installed by a qualified F-Gas registered air-conditioning engineer to ensure it is fitted safely and correctly.Thanks!
Question from christopher: Asked on 09/07/2026 what is the warranty length
Hi, Yes this comes with a 1 year manufacturer warranty.
Thank you.
Question from Isaac: Asked on 08/07/2026 Does this price include installation, or am I just buying these parts by themselves?
Hi Isaac,the price for the TCL 12,000 BTU Smart A+ Wall Mounted Split Air Conditioner with Heat Pump is for the unit only and doesn't include installation.Thanks!
