Smart, efficient climate control all year round
The TCL 24000 BTU Smart Wi-Fi DC Inverter Air Conditioner (TAC24CH) delivers exceptional cooling and heating performance combined with intelligent energy-saving technology. Perfectly suited for larger spaces up to 60m², this wall-mounted split system ensures maximum comfort whilst helping to lower your energy consumption with a superb A++ energy efficiency rating.
Enjoy seamless control via the TCL Home App—manage your home's climate from anywhere, or simply use hands-free voice commands through Amazon Alexa and Google Home. Complete with HEPA-grade filtration to remove dust and pollen, and utilising eco-friendly R32 refrigerant, it is designed to provide a fresher, healthier, and perfectly balanced environment.
Intelligent Cooling, Heating & Airflow
Powered by TCL's innovative T-AI technology, this system continuously analyses room conditions to maintain the perfect indoor temperature. Whether you need rapid cooling in the height of summer or reliable warmth in winter, it adapts intelligently to provide brilliant comfort without unnecessary energy consumption.
Fast Cooling & Heating
Quickly reach your desired temperature. The Super DC Inverter with a high-performance GMCC compressor ensures stable, whisper-quiet, and highly efficient operation in all seasons.
T-AI Energy Saving
Work smarter, not harder. TCL's T-AI Energy Saving technology automatically adjusts the compressor to reduce energy usage whilst reliably maintaining your ideal room climate.
Smart Wi-Fi & Voice Control
Manage your comfort from anywhere. Use the TCL Home App to tweak settings remotely, or enjoy convenient hands-free operation via Amazon Alexa and Google Home.
Coanda & Smart Airflow
Enjoy an even temperature distribution. Cool air is directed across the ceiling to reduce direct drafts, whilst warm air smoothly flows towards the floor for cosier heating.
56°C Self-Cleaning
Breathe easy with long-term hygiene. A multi-stage process actively cleans the evaporator at high temperatures to reduce bacteria, whilst the outdoor unit's reverse cleaning helps minimise dust.
Always Up To Date
Keep your air conditioning system future-proof. Simple Over-The-Air (OTA) software updates ensure your unit is always running on the latest, most optimised firmware.
Downloads

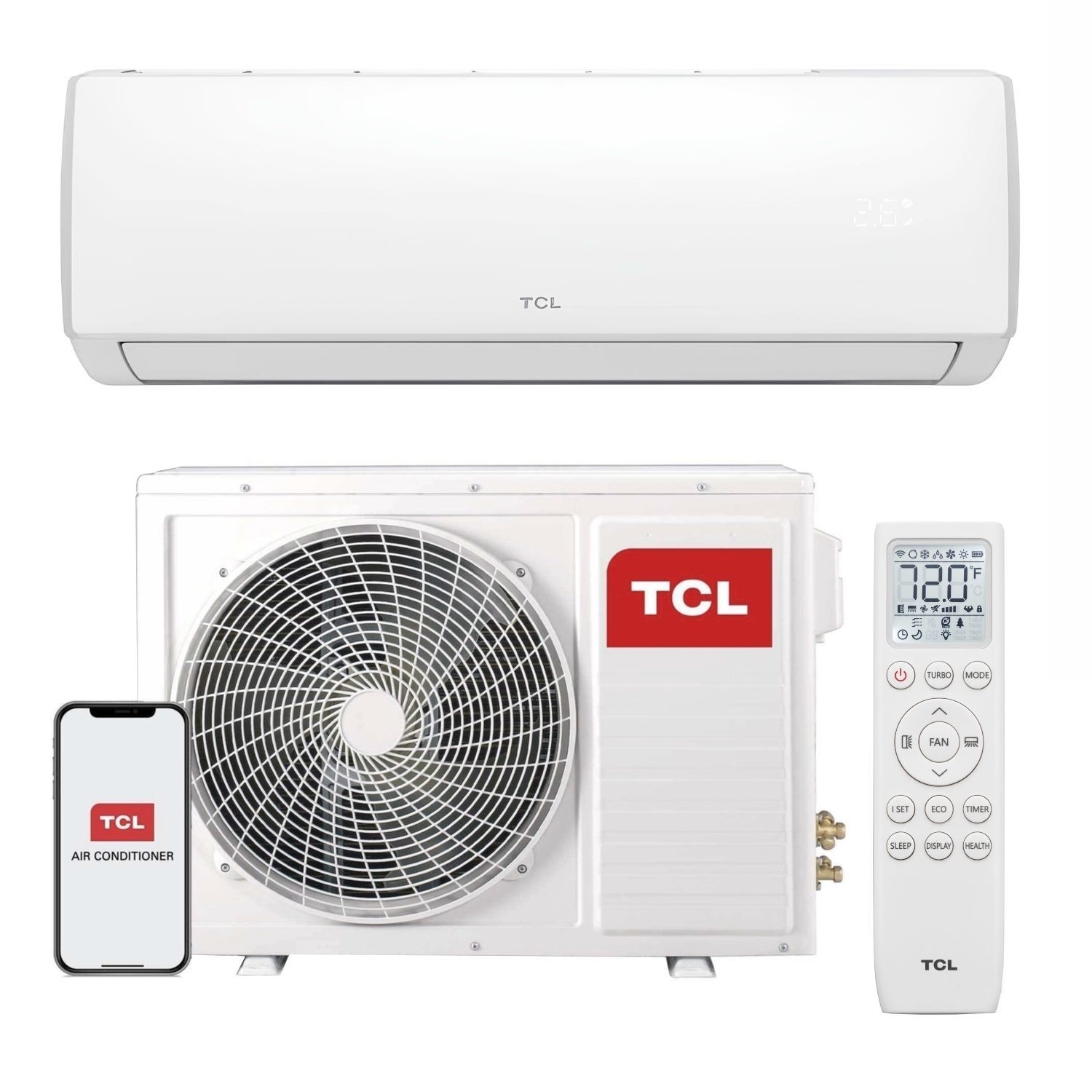

User manualWhat's in the Box
- 1 × TCL 24000 BTU Indoor Unit
- 1 × TCL 24000 BTU Outdoor Unit
- 1 × Remote Control
- 1 × Power Cable
- Note: A 1/4" & 1/2" Pipe Kit is required for installation and is sold separately.
Key Specifications
- Cooling / Heating Capacity: 7.04 kW / 7.08 kW
- Energy Rating: A++ (Cooling) / A+ (Heating)
- Room Coverage: Ideal for up to 60m²
- Indoor Dimensions: 100.5 × 32.15 × 22 cm
- Refrigerant: R32 (1.14 kg)
- Smart Technology: TCL Home App, Alexa & Google Home
Installation & Technical Advice
Important: Pipe Kit Required Please note that a suitable Pipe Kit (1/4" + 1/2") is essential for the installation of this unit, but it is sold separately (SKUs: PIPEKIT18KM-5M / PIPEKIT18KM-10M / PIPEKIT18KM-15M). Ensure you have purchased the correct piping kit before booking your installation engineer, although your engineer can also supply the necessary pipes if preferred. The maximum allowed refrigerant pipe length is 25m.
F-Gas Installation Required To ensure safe and optimal performance, this air conditioner must be installed by a fully qualified F-Gas AC engineer. These units contain a regulated R32 gas which must be handled by certified personnel in accordance with F-Gas regulations. Please ensure your fitter reads the user manual in full prior to installation.
TCL 24000 BTU Smart Wi‑Fi DC Inverter Air Conditioner
What stands out
- Smart Wi‑Fi control lets you manage your air conditioner from anywhere using the TCL Home App
- Powerful cooling and heating performance for year-round comfort
- T‑AI Energy Saving technology intelligently adjusts operation to reduce energy consumption
- 24000 BTU capacity ideal for rooms up to 60m²
- Coanda Airflow and Smart Airflow provide more even temperature distribution throughout the room
- Fast Cooling and Fast Heating quickly reach your desired temperature
- 56°C Self‑Cleaning function helps keep the unit hygienic and operating efficiently
- Compatible with Amazon Alexa and Google Home voice control
- Easy OTA updates keep your air conditioner up to date
The details
Enjoy smart, efficient climate control all year round with the TCL TAC24CH Air Conditioner. Combining powerful cooling and heating performance with intelligent energy-saving technology, this wall-mounted split system is designed to deliver maximum comfort while helping to reduce energy usage.
Powered by TCL's innovative T‑AI Energy Saving technology, the unit continuously analyses room conditions and automatically adjusts compressor operation to maintain the ideal indoor temperature with improved efficiency. Whether you're cooling during summer or heating in winter, the TAC24CH works intelligently to provide comfort without unnecessary energy consumption.
Built-in Smart Wi‑Fi functionality allows you to control your air conditioner remotely using the TCL Home App. Adjust temperature settings, operating modes and schedules wherever you are. The unit is also compatible with Amazon Alexa and Google Home, providing convenient hands-free voice control.
The advanced Coanda Airflow design helps conditioned air travel further throughout the room, while Smart Airflow automatically optimises airflow direction for both cooling and heating modes. Cool air is directed across the ceiling to reduce direct drafts, while warm air flows towards the floor for improved heating comfort.
For improved hygiene and long-term performance, TCL's 56°C Self‑Cleaning technology actively cleans the evaporator through a multi-stage process that helps reduce bacteria and keeps airflow fresher. The outdoor unit also features a reverse-cleaning function to help minimise dust accumulation.
Featuring Fast Cooling and Fast Heating functions, the TAC24CH quickly reaches your desired temperature, while the DC inverter compressor maintains stable, quiet and energy-efficient operation.
Essential info
- Model: TAC24CH
- Capacity: 24000 BTU
- Type: Wall Mounted Split Air Conditioner
- Functions: Cooling & Heat pump heating
- Smart Control: Built-in Wi‑Fi
- App Compatibility: TCL Home App
- Voice Control: Amazon Alexa & Google Home
- Compressor Type: DC Inverter
- Airflow Technology: Coanda Airflow & Smart Airflow
- Self-Cleaning: 56°C Self‑Cleaning
- Fast Cooling & Fast Heating
- OTA Software Updates
Specification
Air Flow (M3/h): 1000
Rated capacity Cooling (W): 7040 (1500–7800)
Rated capacity Heating (W): 7080 (1500–7900)
Power Input Cooling (W): 2324 (390–2800)
Power Input heating (W): 2178 (390–3000)
Current input Cooling (A): 10.5 (1.8–12.6)
Current input Heating (A): 10.0 (1.8–13.4)
SEER/SCOP Cooling (W/W): 6.40 / A++
SEER/SCOP Heating (W/W): 4.00 / A+
Easy Fit with 5m pipe and cable kit supplied as standard: Cable included; pipe kit sold separately
Liquid side / Gas Side (mm/inch): 6.35 (1/4) + 12.7 (1/2)
Max. Refrigerant pipe length: 25m
Refrigerant type/weight: R32 / 1.14kg
Super DC Inverter with GMCC Compressor
Digital LED temperature and function display
Self-diagnostic function
Save energy by using the ECO mode
Auto Restart when electricity is restored after a power cut
Child lock for added peace of mind
Installed with filters to remove odours, dust and pollen (HEPA-grade)
Warranty: 1 year
Dimensions
Indoor Dimensions (LWH) (CM): 100.5 × 32.15 × 22
Outdoor Dimensions (LWH) (CM): 92 × 69.9 × 38
Indoor Packaged Dimensions (LWH) (CM): 109.6 × 39 × 29.7
Outdoor Packaged Dimensions (LWH) (CM): 94.9 × 73.2 × 39.2
Weight (Net/Gross): 11kg / 13kg (Indoors)
Weight (Net/Gross): 38kg / 40.5kg (Outdoor)
Why buy?
The TCL TAC24CH AI brings together intelligent energy management, smart connectivity and powerful climate control in one modern air conditioning system. Ideal for homes, apartments and offices, it delivers comfortable temperatures, convenient app control and efficient year-round performance.
