The details

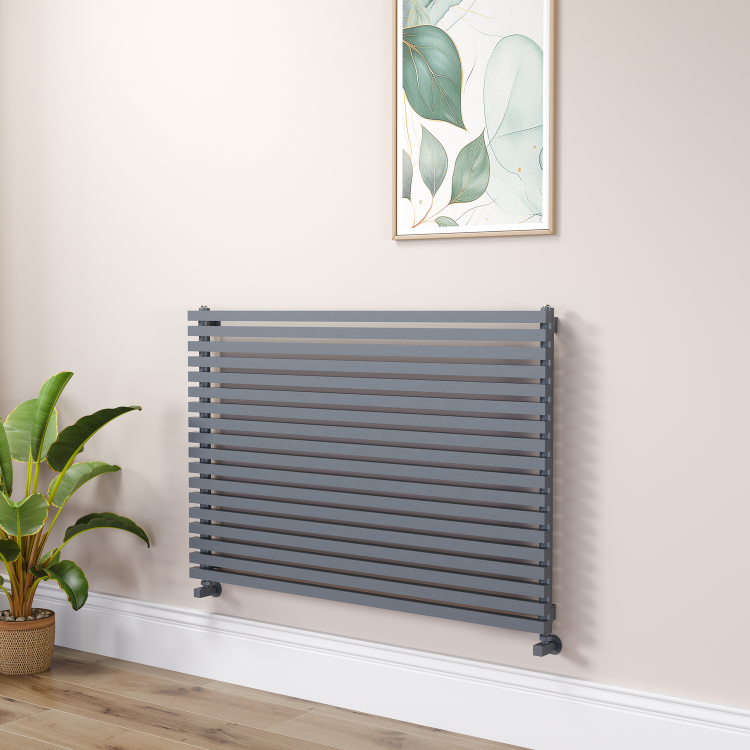

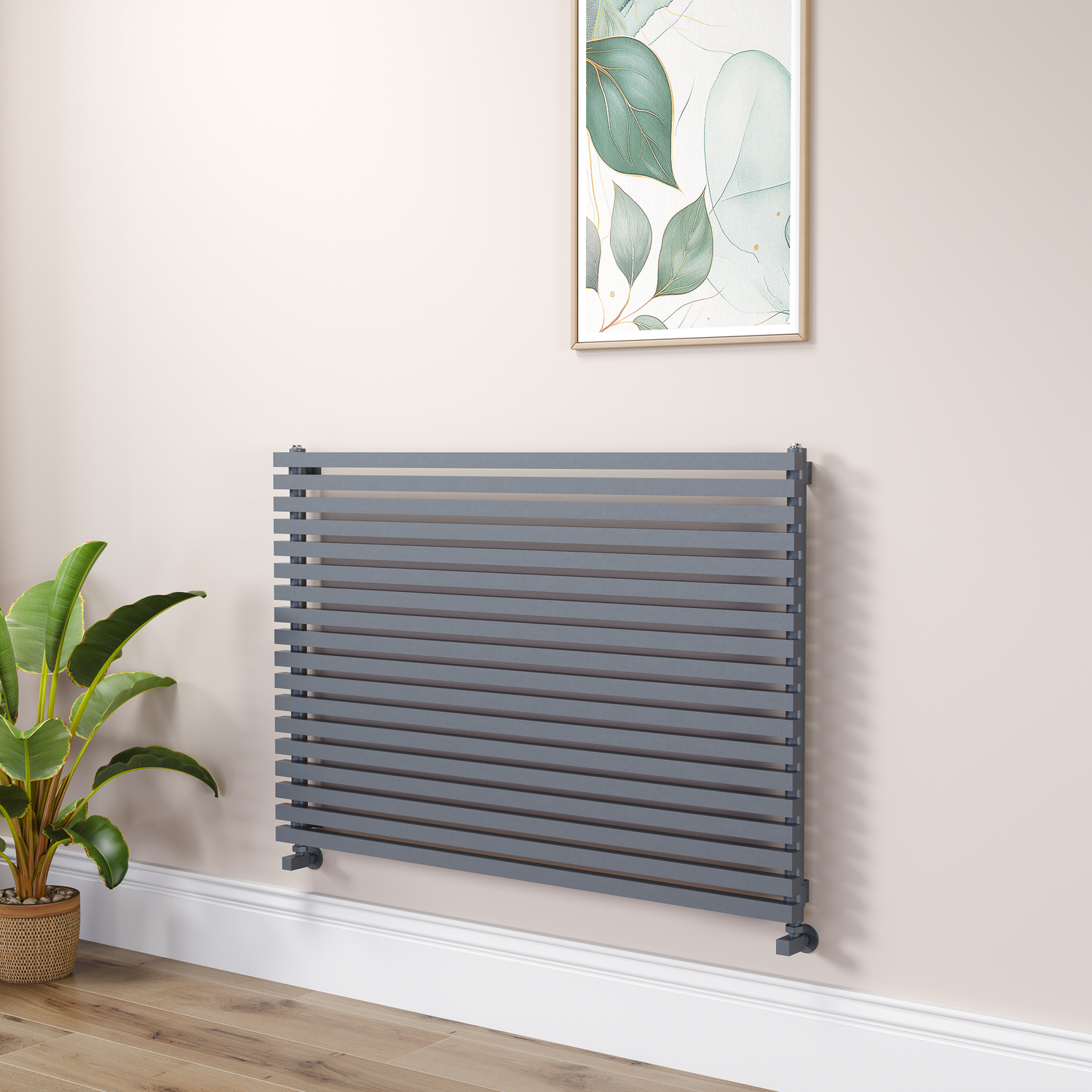

Elevate the look and comfort of your home with our Ravello range of stylish horizontal square tube designer reversed radiators. Perfectly suited for traditional and modern interiors, these radiators combine sleek modern design with high-performance heating. This square tube column horizontal form fits seamlessly into any room, from living areas to bedrooms, while offering powerful and efficient heating with elegant and classy vibes.
Ravello horizontal designer reversed radiators are engineered to provide exceptional heating output, ensuring your space is always warm and inviting, even in the coldest months. Whether you're looking for a space-saving radiator for a compact room or a more powerful unit for a larger space, you’ll find the perfect match with Ravello’s diverse range of space-saving sizes and styles.
Constructed from premium steel, these radiators are built for durability and long-lasting performance. Each radiator is finished with a resilient coating that guards against wear and tear, ensuring easy maintenance while adding a contemporary touch to your decor. Designed for central heating systems, Ravello reversed radiators ensure consistent and reliable warmth throughout your home.
Key features

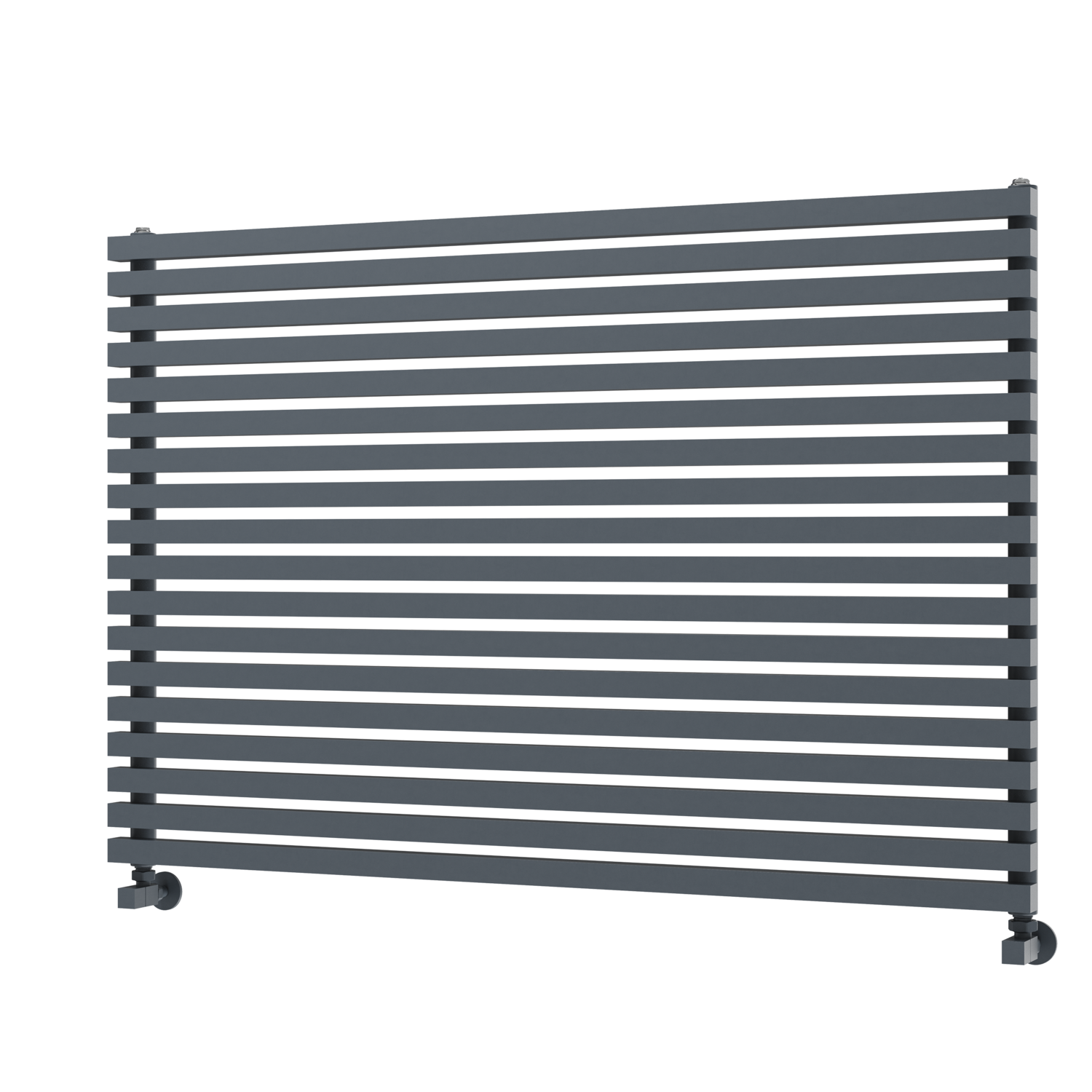

- Sleek horizontal single-panel radiator with 18 square bars, perfect for both modern and classic interiors.
- Slim and space-saving with a high thermal efficiency.
- 5751 BTU / 4553 BTU (Delta T60 / T50) heat output.
- Full range available in single-panel options for versatile heating needs.
- Durable construction with a high-quality finish for long-lasting use.
- Easy to maintain - can be cleaned repeatedly without affecting quality or finish.
- Powder-coated steel - resistant to scratches, stains, impacts, chemicals, acids, and UV-resistant.
- A variety of sizes and colours to fit different designs and layouts.
- Compatible with all central heating systems.

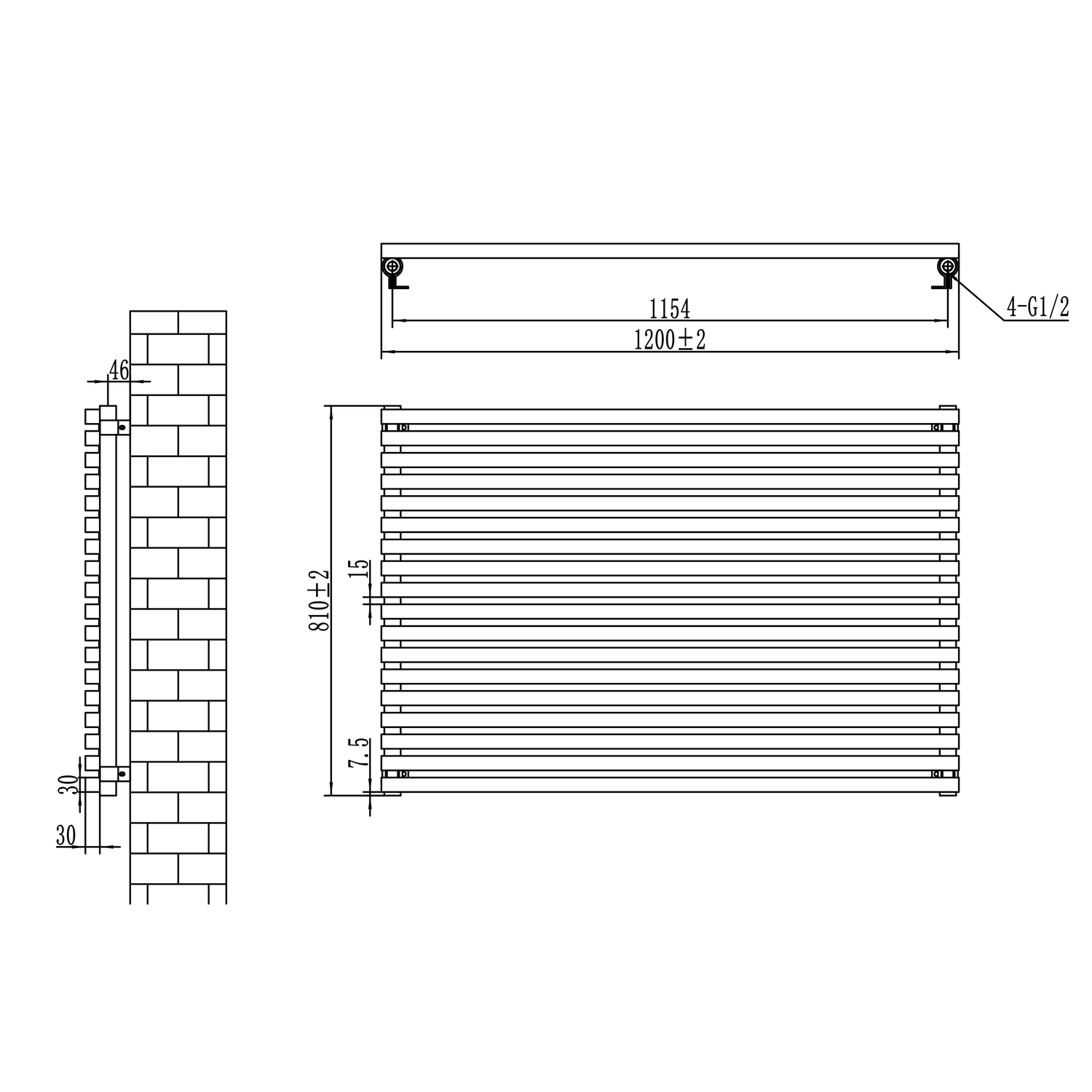

- Approx. Wall to Radiator Face (mm): 93 mm.
- Approx. Wall to Pipe Centre: 46 mm.
- Approx. Pipe Centre to Pipe Centre: 1154 mm.
- Built to Last: 1.5mm thick steel for guaranteed durability.
- Tested and certified by a notified body to CE/ BS EN 442 Standards.
- CE Marked and Declaration of Performance provided (DOP).
- ISO 9001:2015 / GB/T19001-2016 Registered Manufacturer.
- Includes User Manual, Wall fixings, Wall plugs, Blanking and Bleed plug.
Specifications
- Wall Mounted: Yes
- Colour: Dark Grey Anthracite
- Net Size (HxWxD): 81x120x6.4 cm
- Gross Size (HxWxD): 89.5x130x9.2 cm
- Net Weight: 31.9 kg
- Gross Weight: 35.9 kg
- Panel Type: Single
- Columns per panel: 18
- Shape: Square
- Direction: Horizontal
- Max Operation Pressure: 5 bars
- Max Operation Temperature: <95°C
- Connection Size: ½ inch BSP
- Water Content: 16.2 litres
Please note: Valves are not included but can be added to your order separately. Please note that all measurements are approximate. We recommend purchasing radiators and valves before fitting the pipework.
Downloads
User manualDeclaration of Performance (DOP)
Once you've decided on a new bathroom radiator, you'll also need to pick up some radiator valves/electrical element separately to go with it depending on your fuel type. Compatible valves are recommended with the radiator on the product page.
