The details
Fast and powerful cooling & heating
Stay comfortable in any season with Samsung Digital Inverter technology, delivering efficient cooling in summer and reliable heating in winter.
Control your energy consumption
A++ energy efficiency delivers exceptional comfort while significantly reducing electricity costs.
R32 – Highly efficient ecological refrigerant
The R32 refrigerant cools faster, is more energy-efficient, and has a lower environmental impact compared to older refrigerants—helping you stay comfortable while being kinder to the planet.
Automatic internal cleaning
The automatic internal cleaning function prevents bacteria and mould buildup on the heat exchanger, keeping your air fresh, reducing maintenance, and extending the unit’s lifespan.
Sleep-friendly comfort
Enjoy uninterrupted rest with automated sleep mode, which gradually adjusts the temperature overnight to match your body’s natural cooling cycle—keeping you comfortable while saving energy.
Quick and easy installation
Samsung air conditioners are designed for simpler and more efficient installation, regardless of the environment and the number of people involved. Reduced labour and installation time means more units can be installed in more homes in less time.
Quiet operation
With noise levels as low as 28 dB(A), this air con runs quietly, ensuring a peaceful environment whether you’re working, relaxing, or sleeping.
Essential info
- Power supply: 220-240V~ 50Hz, 1Ph

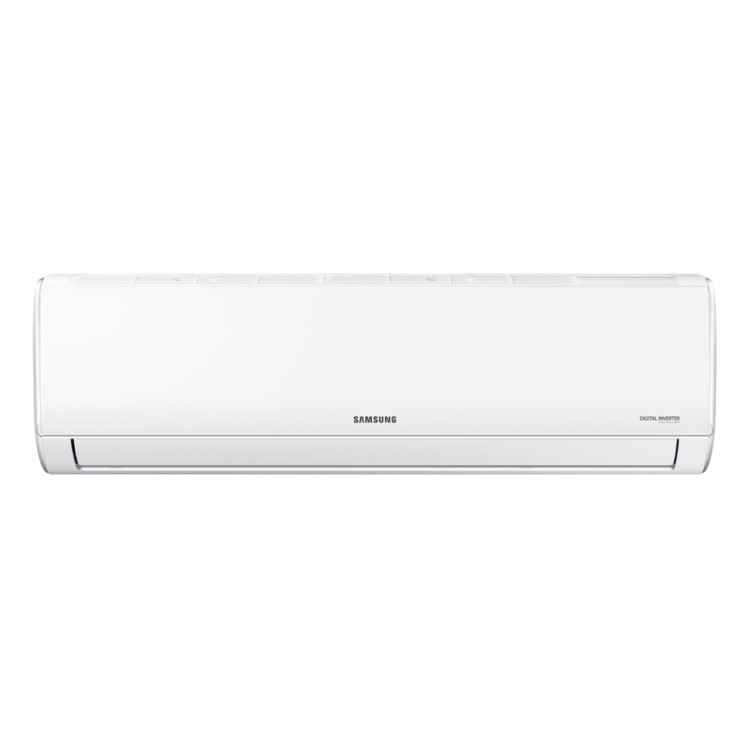

- Indoor dimensions (L×W×H): 80.5 × 19.4 × 28.5 cm
- Indoor net weight: 8.1kg

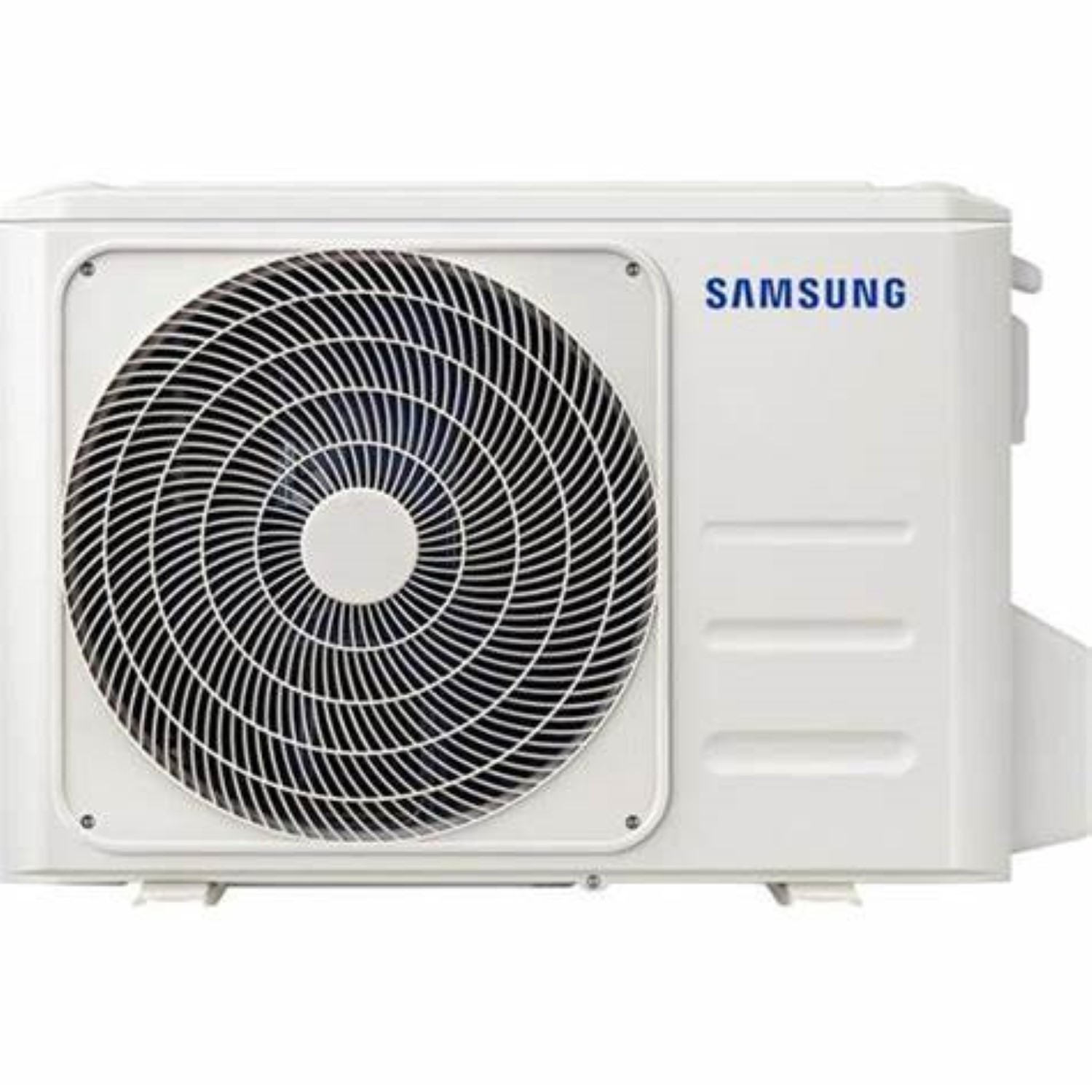

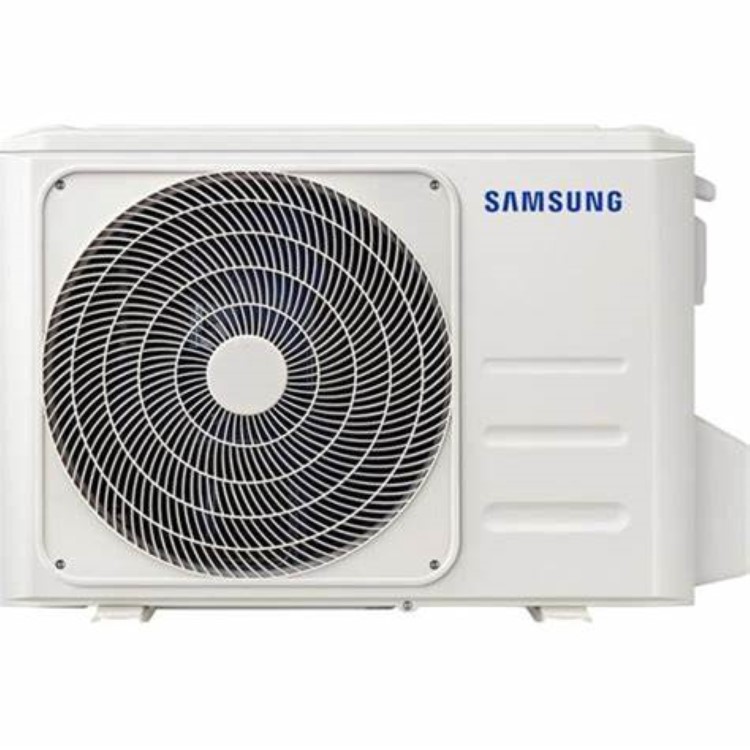

- Outdoor dimensions (L×W×H): 72 × 27 × 49.5 cm
- Outdoor net weight: 23.2kg
- Rated indoor airflow: 540 m³/h
Technical specifications
- Cooling efficiency: 9000 BTU
- Energy class (cooling): A++
- Energy class (heating): A+
- Power input (cooling mode): 1.21kW
- Power input (heating mode): 1.09kW
- SEER in cooling: 6.3
- SCOP in heating: 4.0
- Max copper pipe length: 25m
- Refrigerant type: R32
- Liquid pipe diameter: 1/4 inch
- Gas pipe diameter: 3/8 inch
- Sound power level (indoor): 55 dB(A)
- Sound power level (outdoor): 62 dB(A)
- Sound pressure level at 1m (low–high fan): 28–36 dB(A)
- Sound pressure level at 1m (outdoor): 49 dB(A)
- Energy class: Cooling/Heating: A++/A+
Key features
- Dual Inverter Compressor
- Cooling, heating & dehumidifying
- Quick and easy installation
- Energy-saving inverter technology
- Efficient heat pump
- Ultra-quiet operation
- Digital LED temperature and function display
- 24-hour timer
- Self-diagnostic system
- Silent Mode
- Auto Restart
- Comfort Air (indirect cooling)
Tech stuff
This unit must be installed by an F-Gas certified air conditioning engineer. Please make sure the installer reads the user manual thoroughly before starting.
Contains refrigerant gas covered by F-Gas regulations. Only qualified professionals should handle it. You can check certification guidance here: Government Guidance
